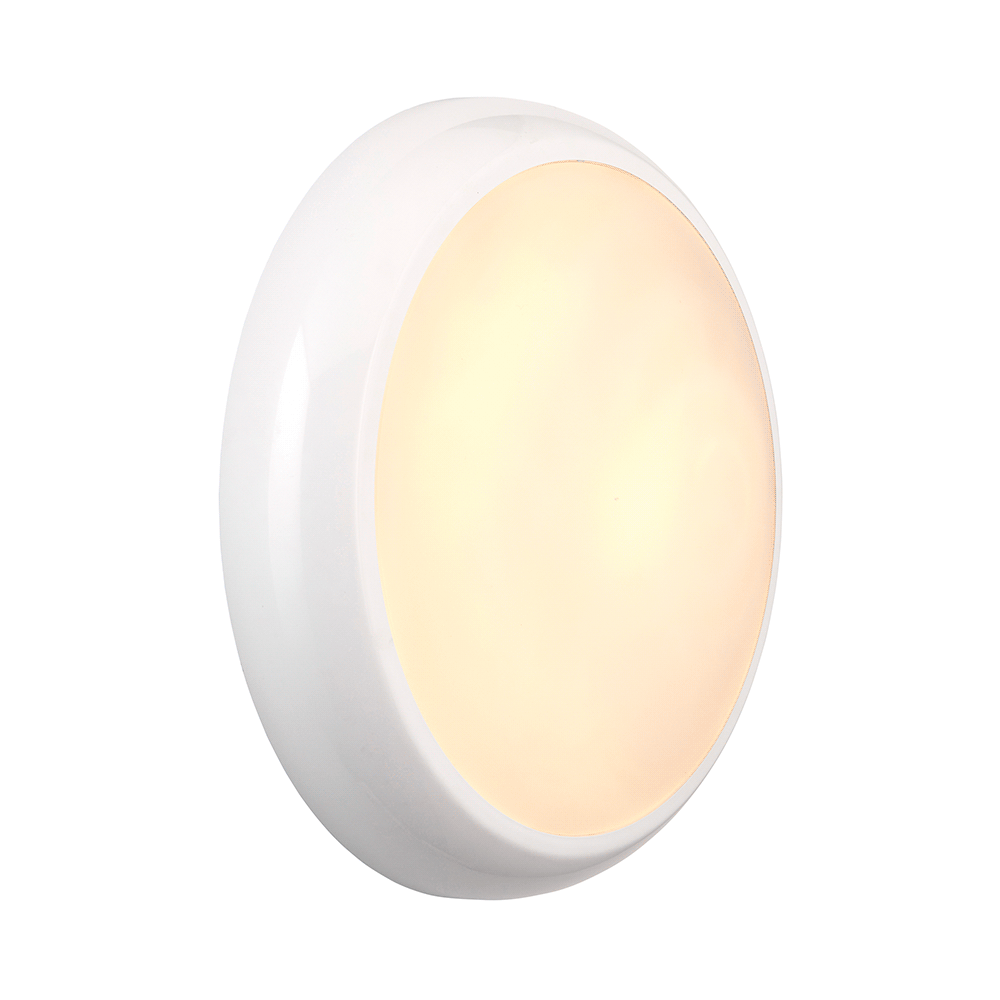

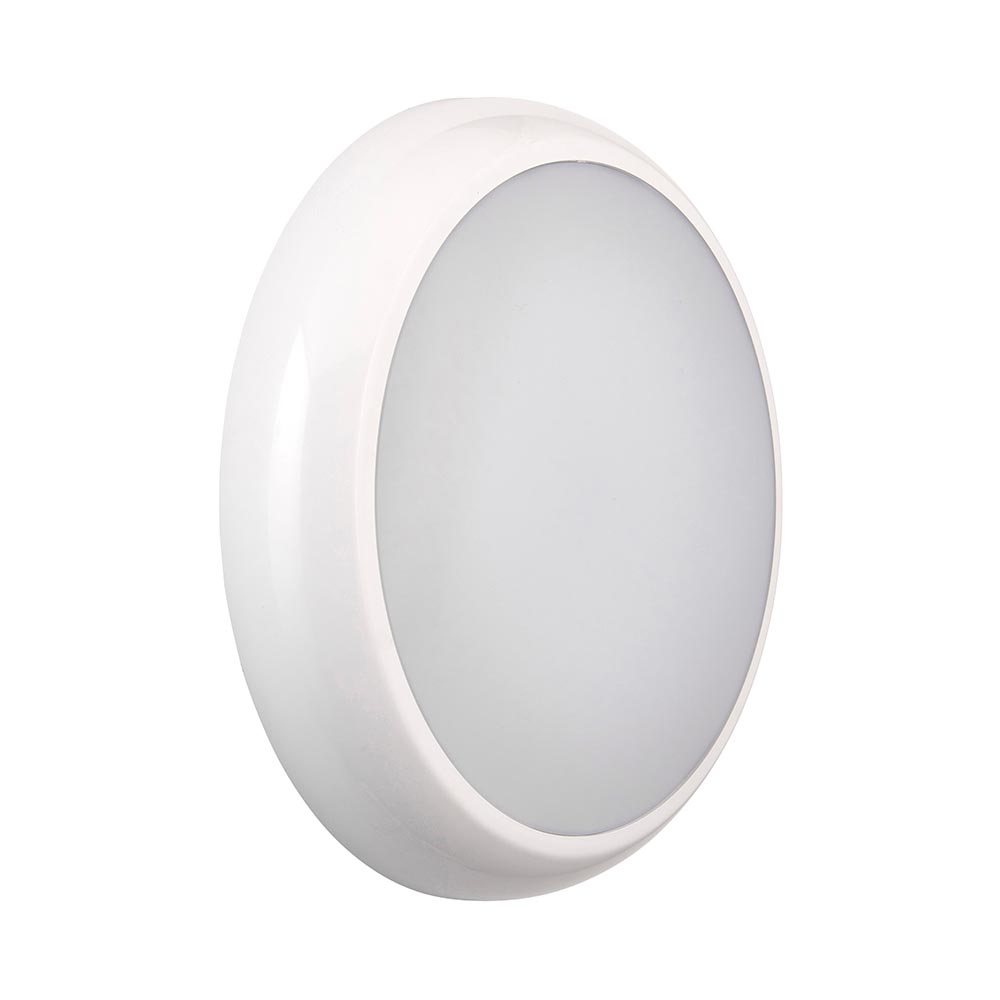

Saxby HeroULTRA CCT Tri Wattage Bulkhead Microwave Emergency

113963
Saxby
113963
UOS: Each
Hide

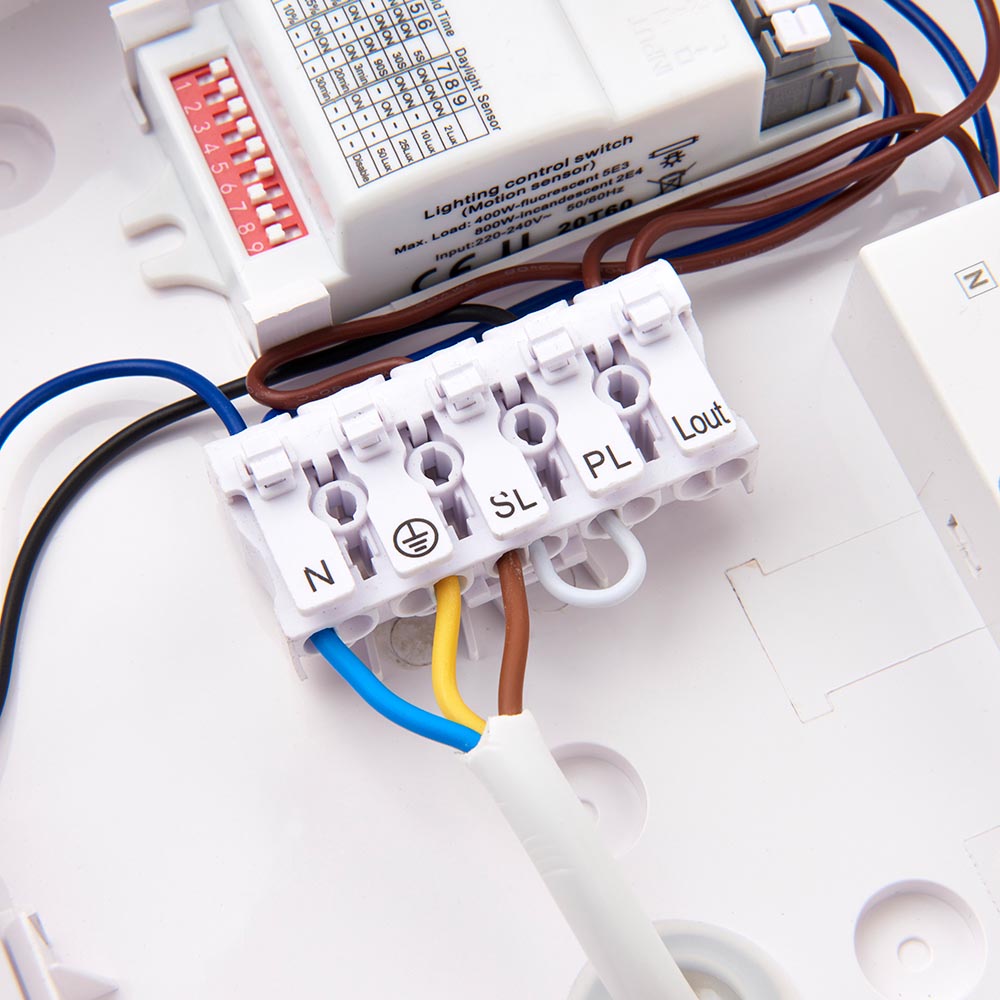

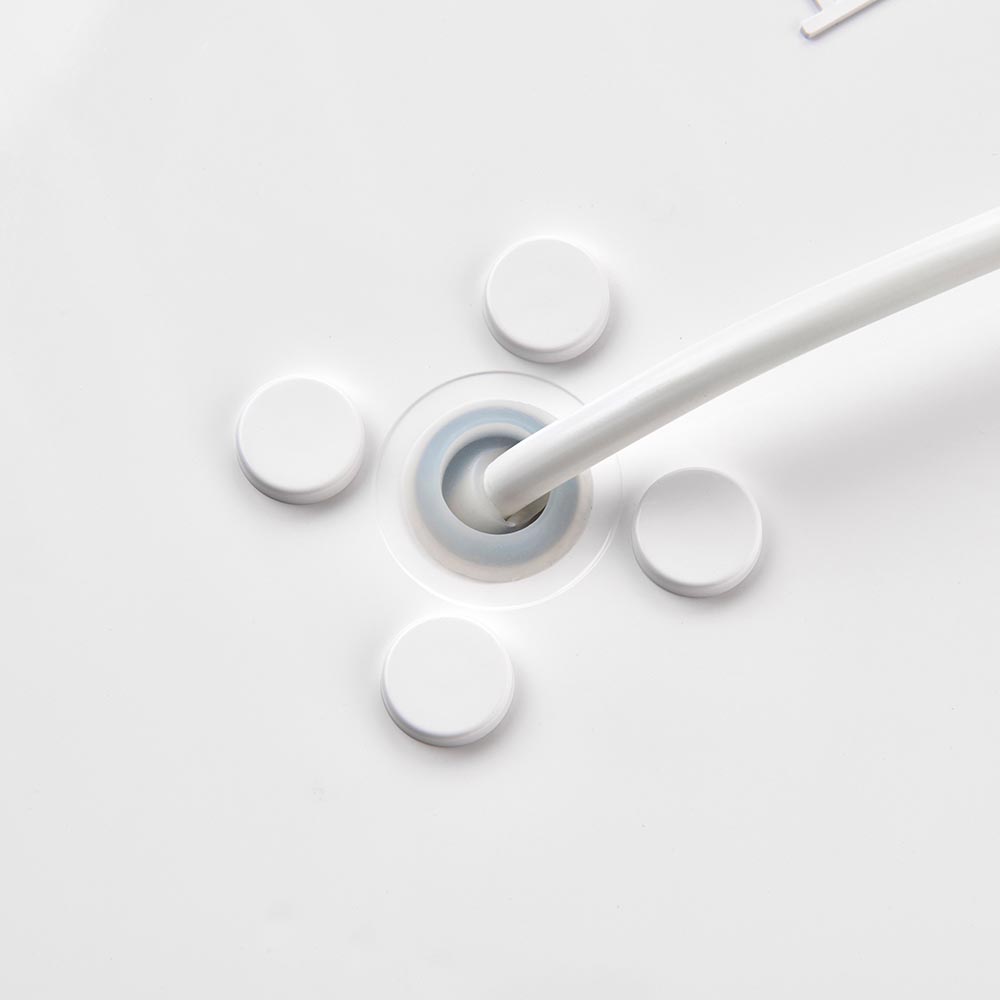

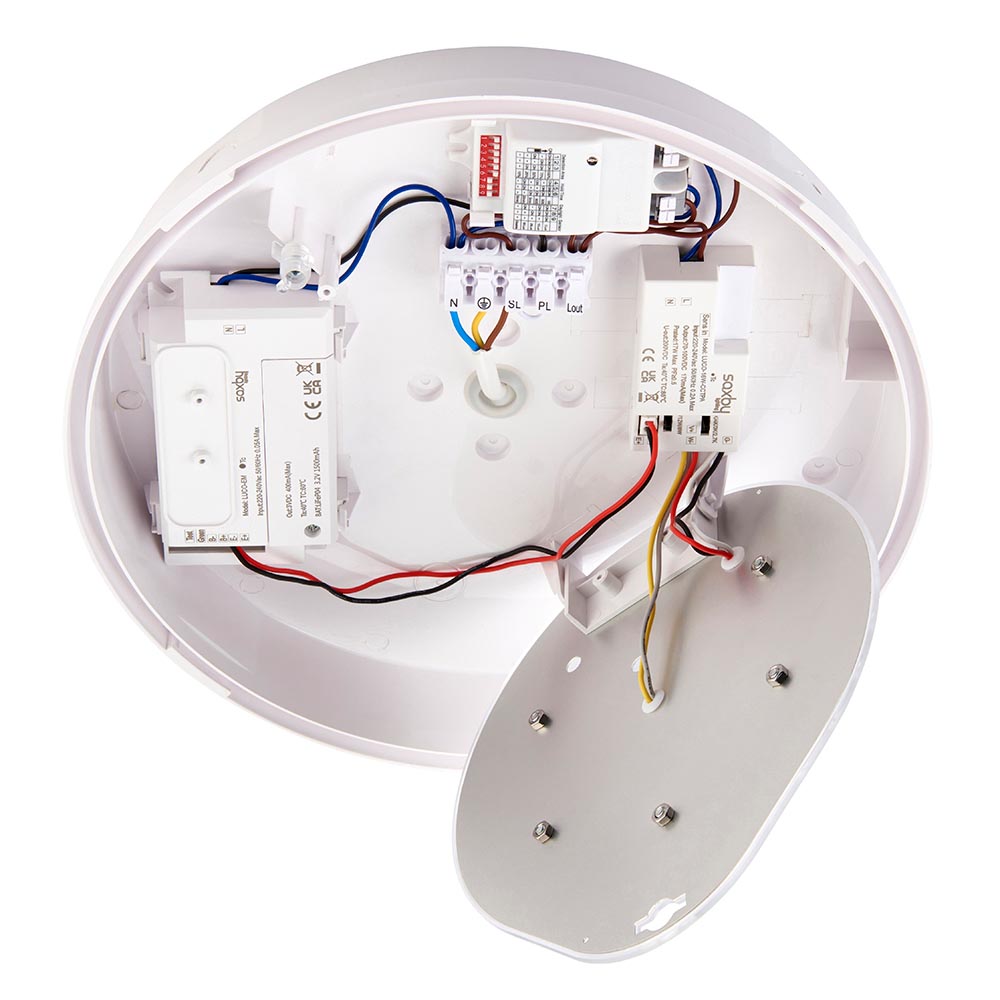

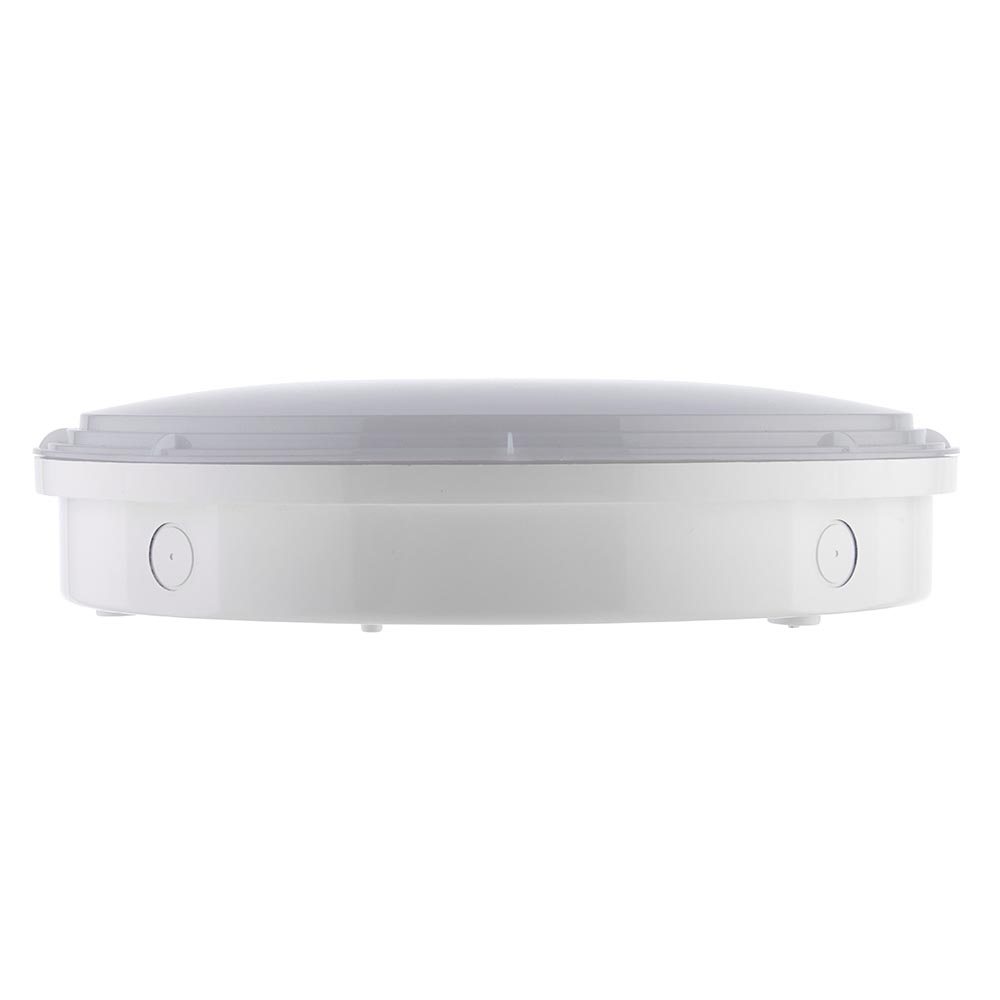

Saxby's signature bulkhead has just been upgraded! Introducing HeroULTRA; Available in Standard, Emergency and Microwave variants. Supplied with white bezel as standard but customisation is available with chrome and black options, as well as eyelids in white and black. Outstanding illumination is provided thanks to its high-performance LED chips and the HeroULTRA boasts an impressive output of 1800 lumens at an incredible efficiency of 120 lumens per watt. The CCT Switch allows you switch between 2700K/3000K/4000K/5000K/6000K colour temperatures and has 4 conduit entries on the side with a push-to-lock bezel. The fast-fit hinged gear tray and push-fit connector makes it perfect for efficient, hassle-free installation. The IP65, slim profile and IK10 rating further ensure it is robust enough for public spaces indoors and outdoors.
  • Complete with built in Microwave sensor
  • 360 /120˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall
  • Matt white textured & opal pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 10

Overview

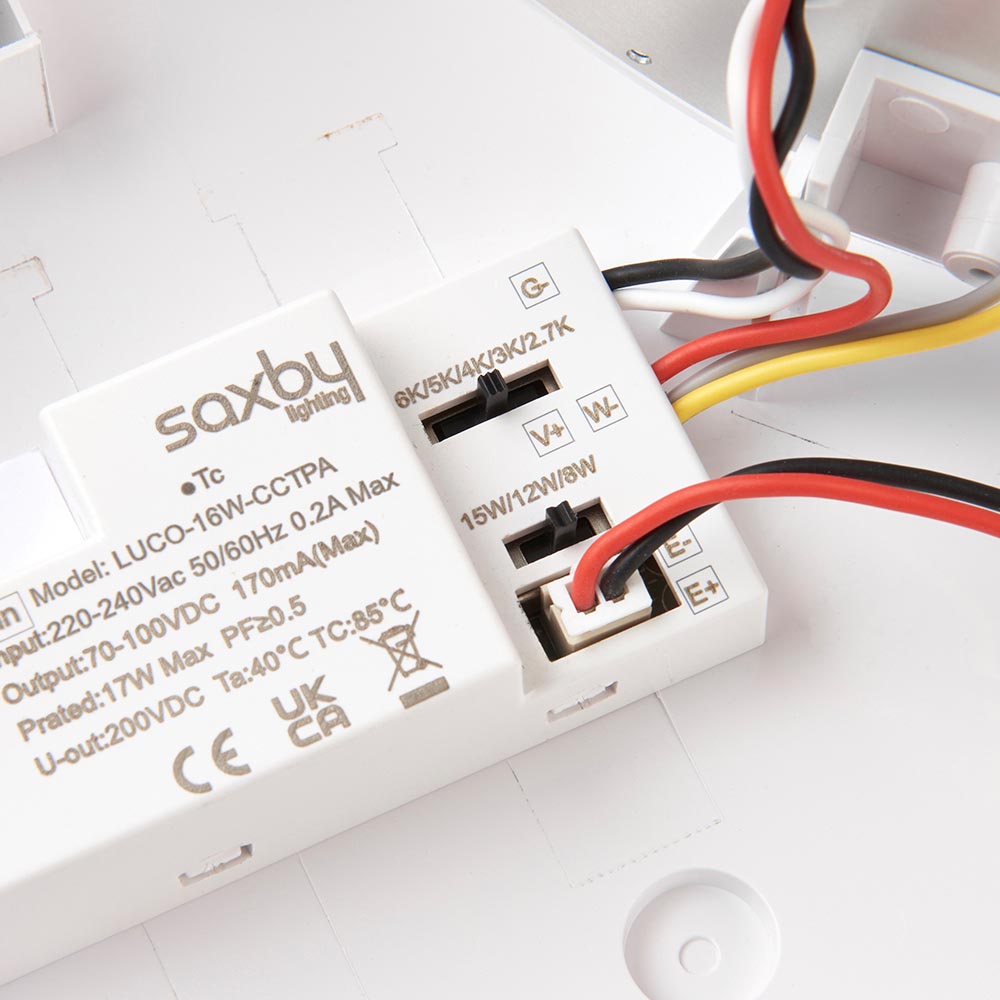

  • Complete with LED driver

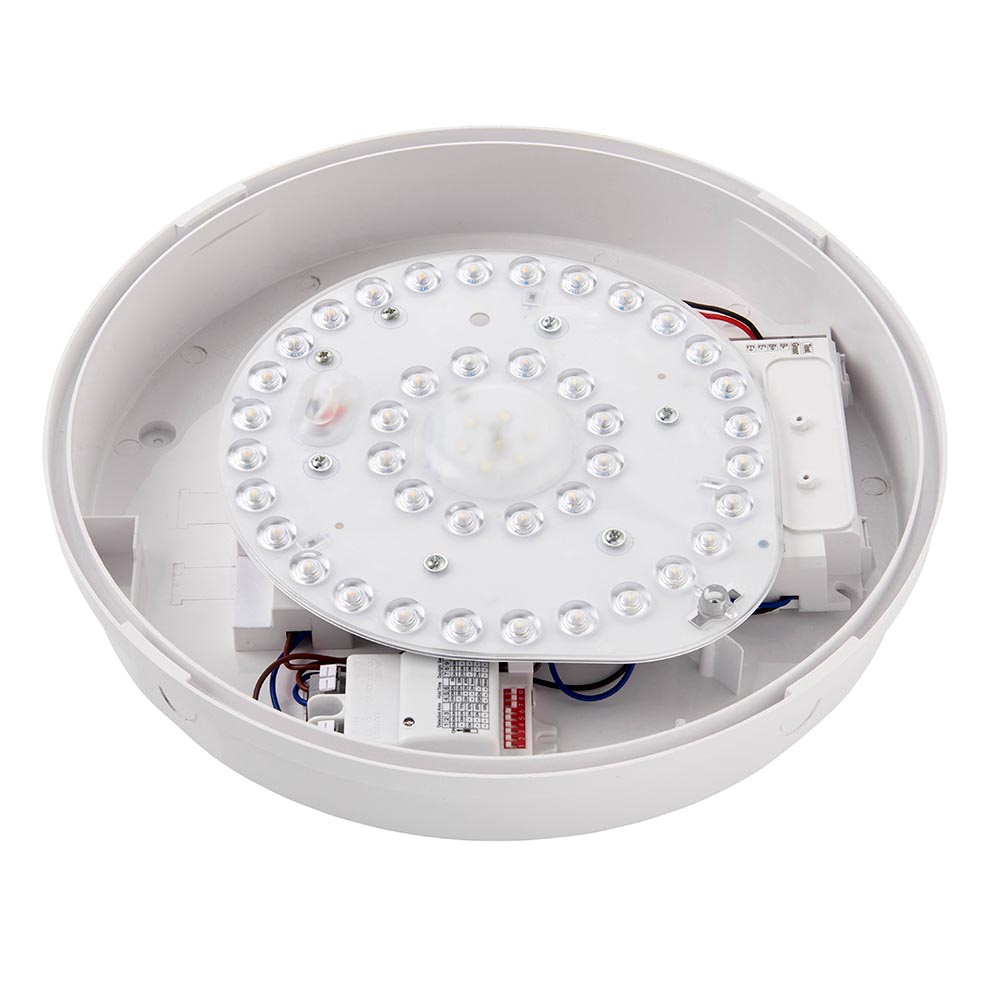

  • 15W LED module (SMD 2835 CCT) CCT (Included)
  • K: 2700/3000/4000/5000/6000 Lm: 1800 Lm/W: 120
  • IP65

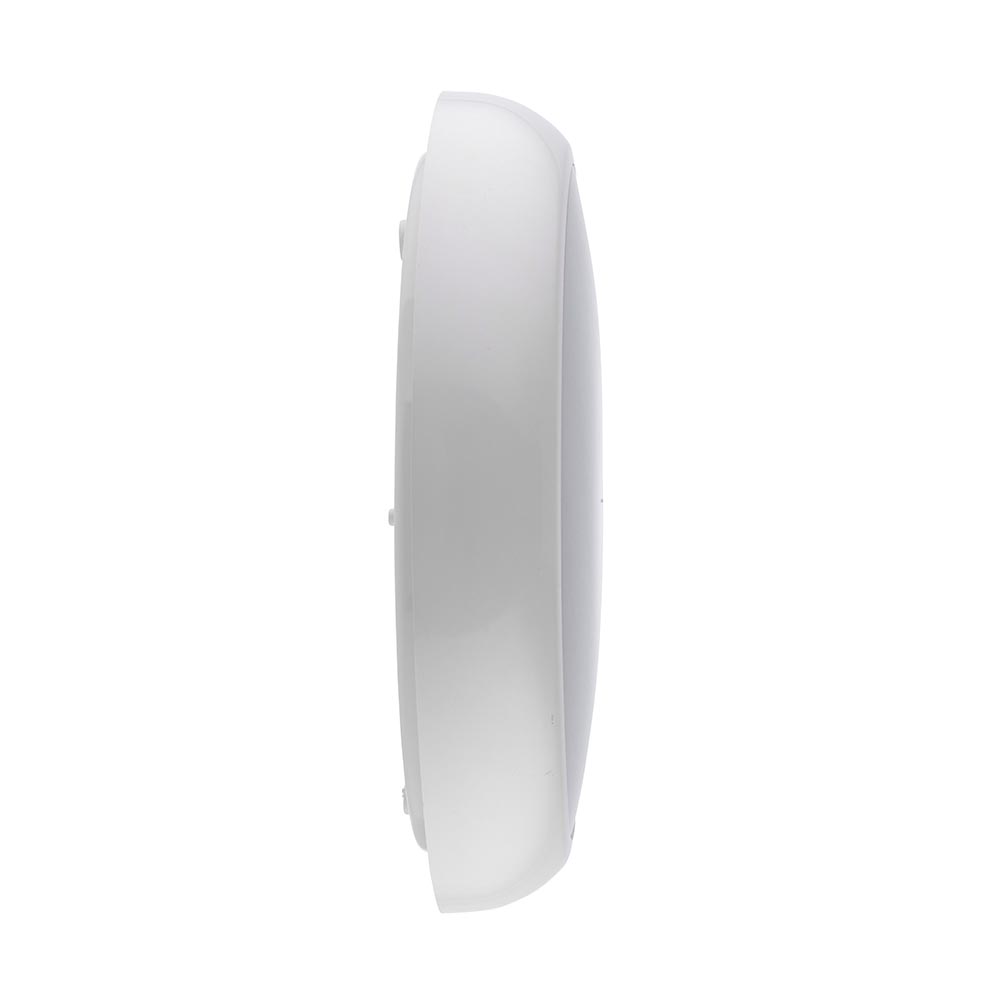

  • Proj: 77mm Dia: 316mm
  • Emergency maintained & non-maintained fitting
  • Class 2
  • MW with Master function
  • 2+3YR Extended Warranty
  • Weight: 1 Kg

Specification

Colour Finish:
Matt white textured & opal pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

360 /120˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall

  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Dimensons

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588139638
    Packed Height (mm):
    31
    Packed Wid (mm):
    31
    Packed Depth (mm):
    7
    Packed Weight (kg):
    1.08

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    10
    Outer Height (mm):
    63.5
    Outer Width (mm):
    32.5
    Outer Depth (mm):
    37
    Outer Gross Weight (kg):
    10.8
