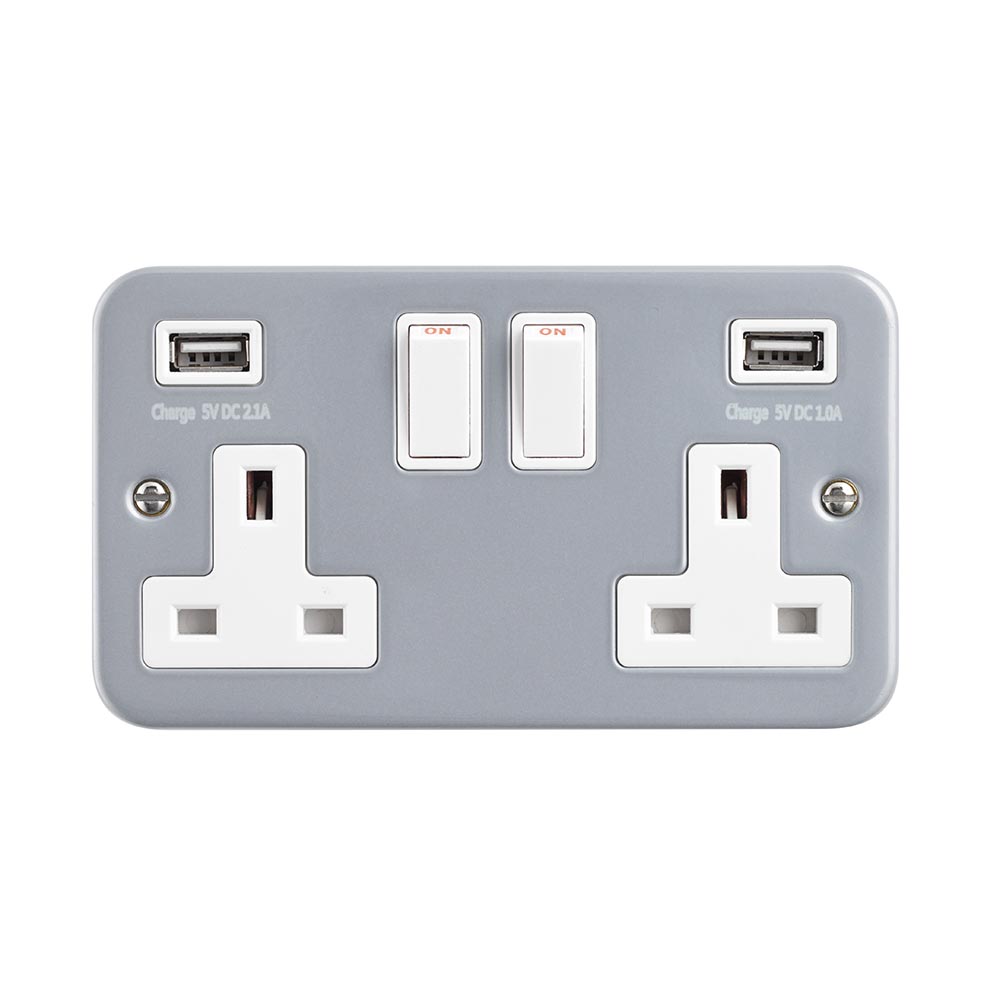

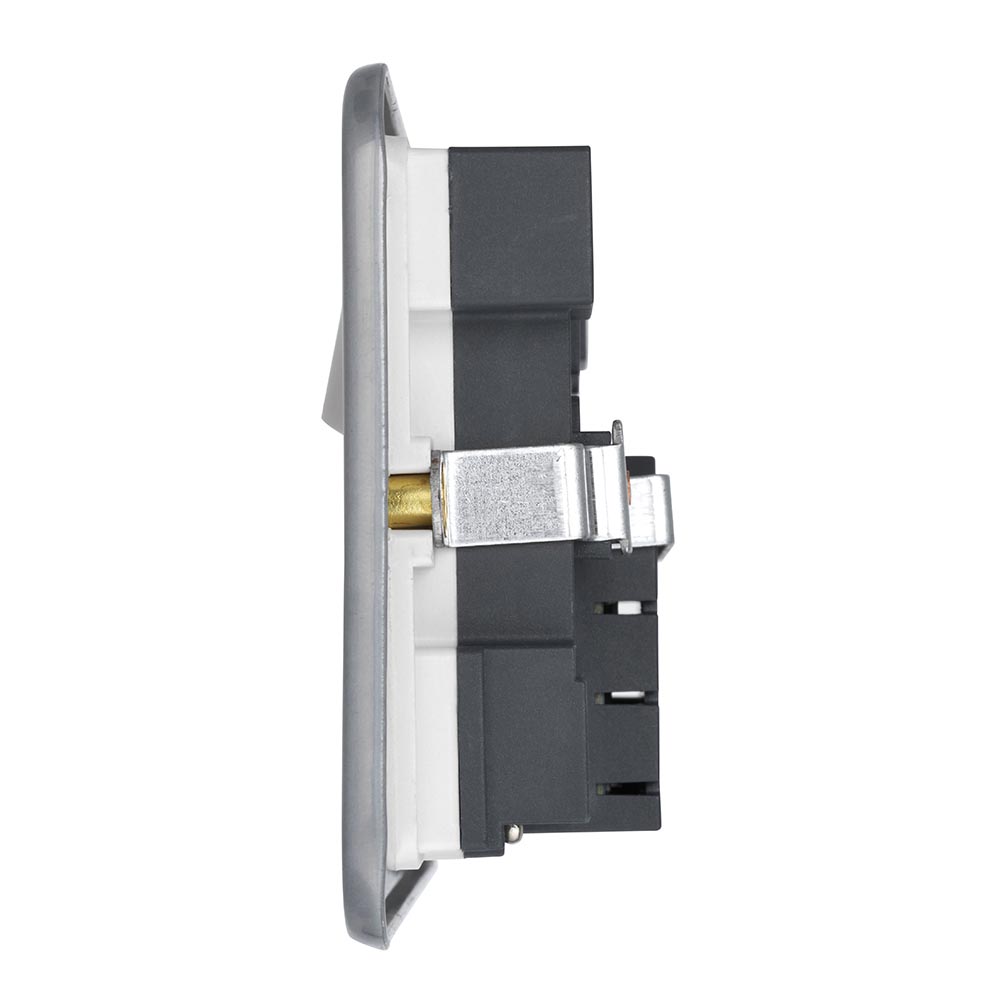

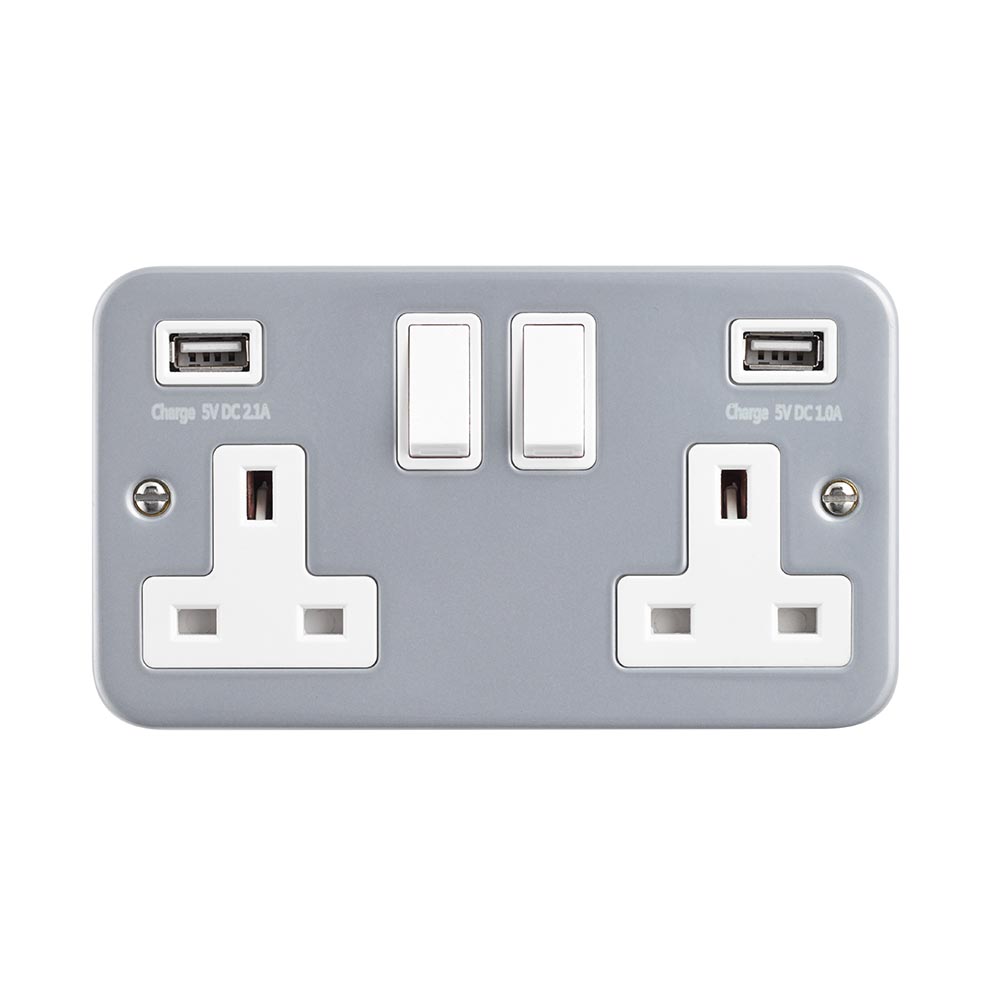

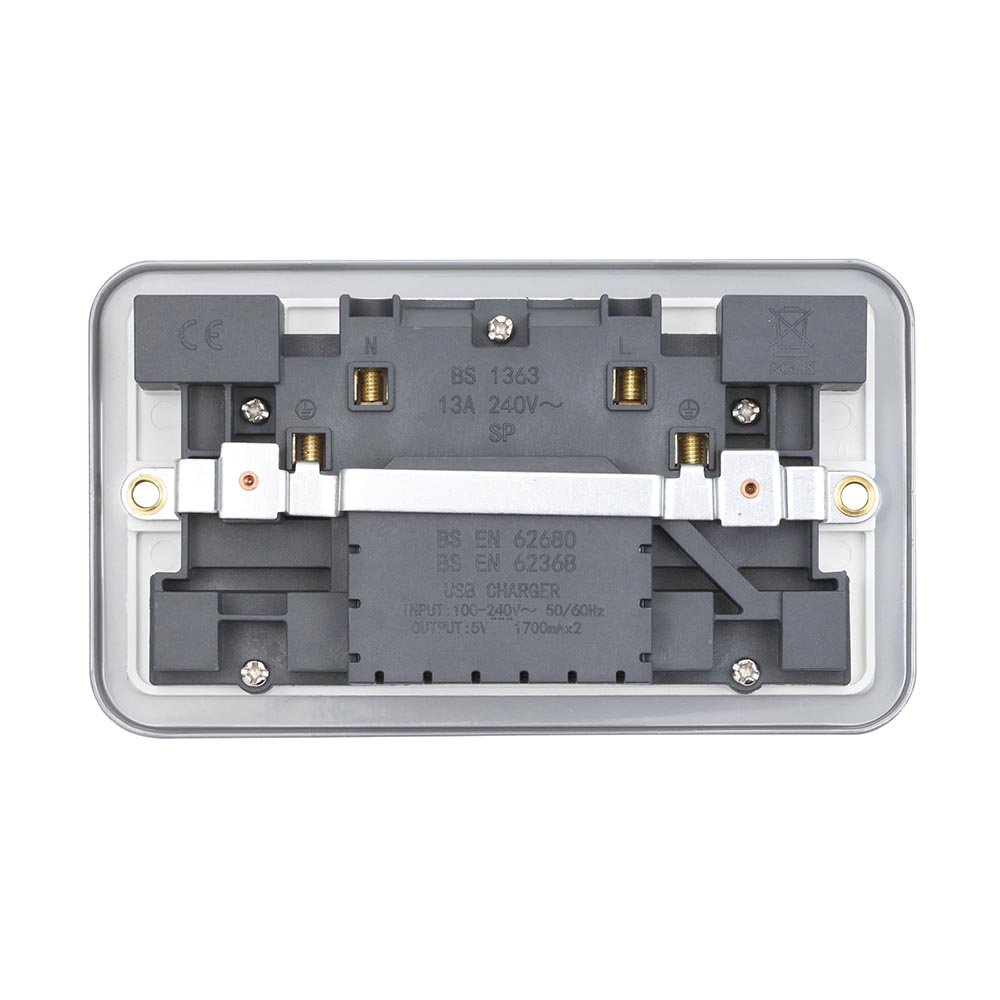

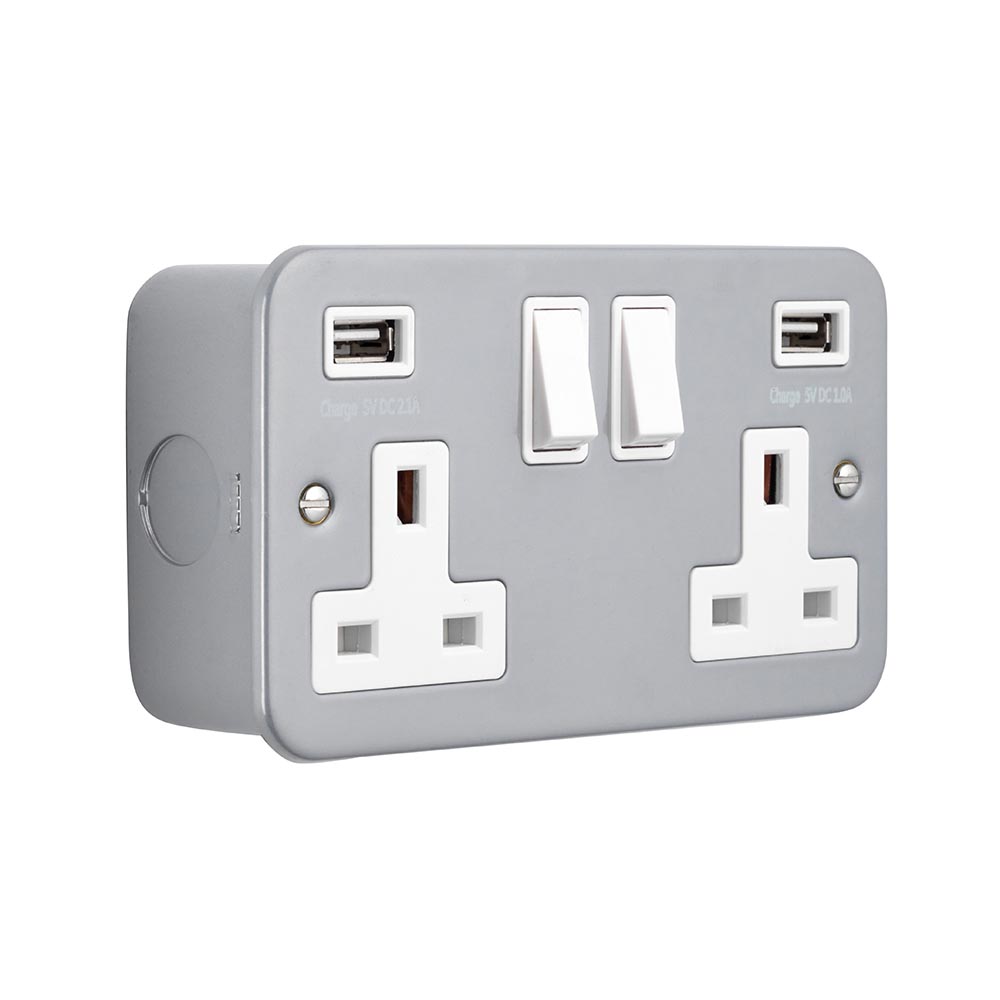

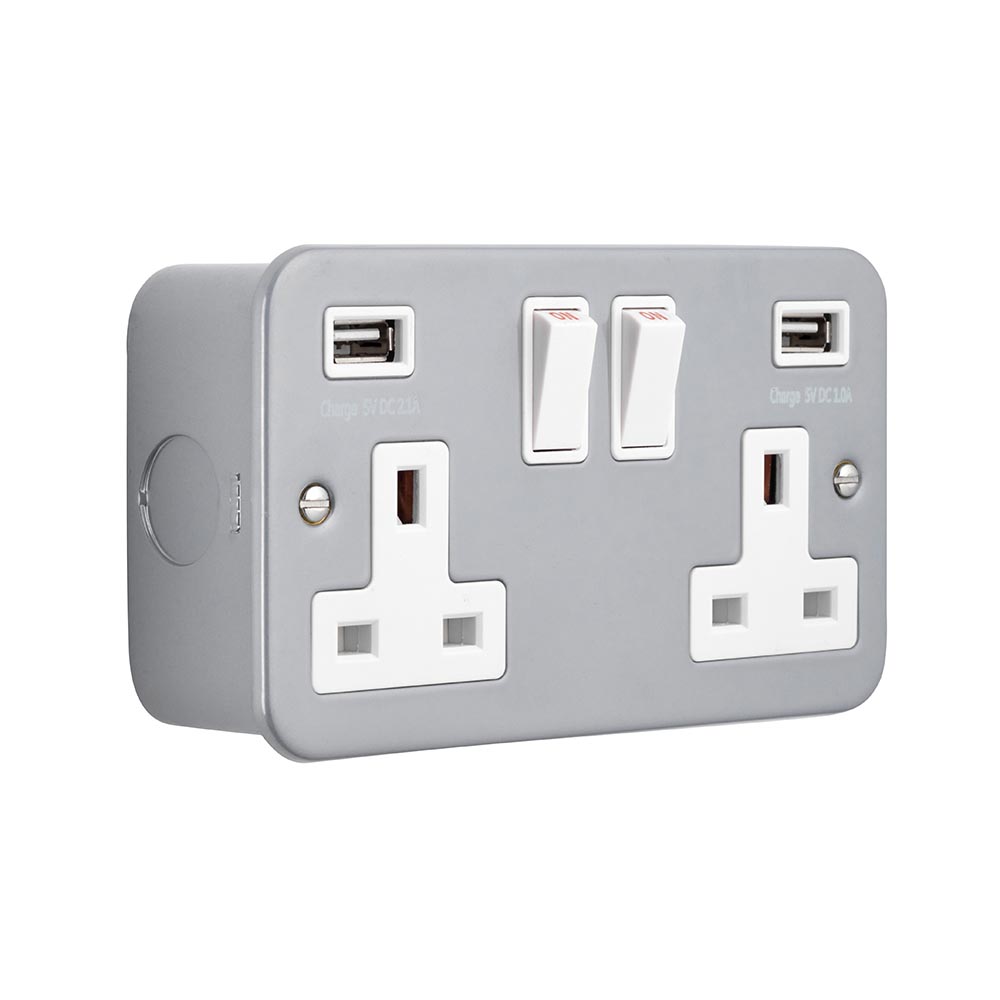

Metal Clad 13A 2G SP Switched Socket with twin 5V USB

MC423
Saxby-Electrical
MC423
UOS: Each
Hide
Login To Buy

Overview

  • Our 13A rated socket boasts captive screws which provide for quick, easy and hassle free installation
  • Integrated with 2x USB A ports
  • Supplied with fixing screws
  • Etched terminal markings for quick identification
  • Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
  • Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing
  • Finished in a high quality powder coating to help protect against scratches
  • We recommend using a standard metal surface box with a depth of 40mm - MC902
  • Certified to BS 1363-2

    • Specification

    Colour Finish:
    Silver effect paint
    Captive Terminal Screw:
    NO
    Fixing Screws Supplied:
    YES
    Terminal Capacity (mm):
    6²*1/ 4²*1/ 2.5²*3
    Number of Earth Terminals:
    1
    Screw Caps:
    NO
    Socket Type:
    2G-2P UK 13A
    IP Rating:
    20
    Switch Type:
    DOUBLE POLE
    Anti-Microbial Property:
    YES
    Operating Voltage:
    250V 50Hz
    Commodity Code:
    8536699085
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 8536699085
  • Country of Origin:

    • Dimensons

    Unpacked Height (mm):
    86
    Unpacked Width (mm):
    146
    Unpacked Depth (mm):
    42.5

    Pack Quantities

    Package Pack Type:
    POLY BAG
    Package Hanging:
    NO
    Package EAN:
    5017588053385
    Packed Height (mm):
    14.6
    Packed Wid (mm):
    8.6
    Packed Depth (mm):
    4.26
    Packed Weight (kg):
    .47

    Case Quantities

    Inner Carton
    Inner Pack Type:
    WHITE BOX
    Inner Qty:
    5
    Inner EAN:
    0105017588053385
    Inner Height (mm):
    8.5
    Inner Width (mm):
    14.5
    Inner Depth (mm):
    25.5
    Inner Gross Weight (kg):
    2.43
    Outer Carton
    Outer Pack Type:
    BROWN BOX
    Outer Qty:
    50
    Outer Height (mm):
    31
    Outer Width (mm):
    28
    Outer Depth (mm):
    46
    Outer Gross Weight (kg):
    25.2
