Stratus Base 40W 6000K

106527
Saxby
106527
UOS: Each
Hide

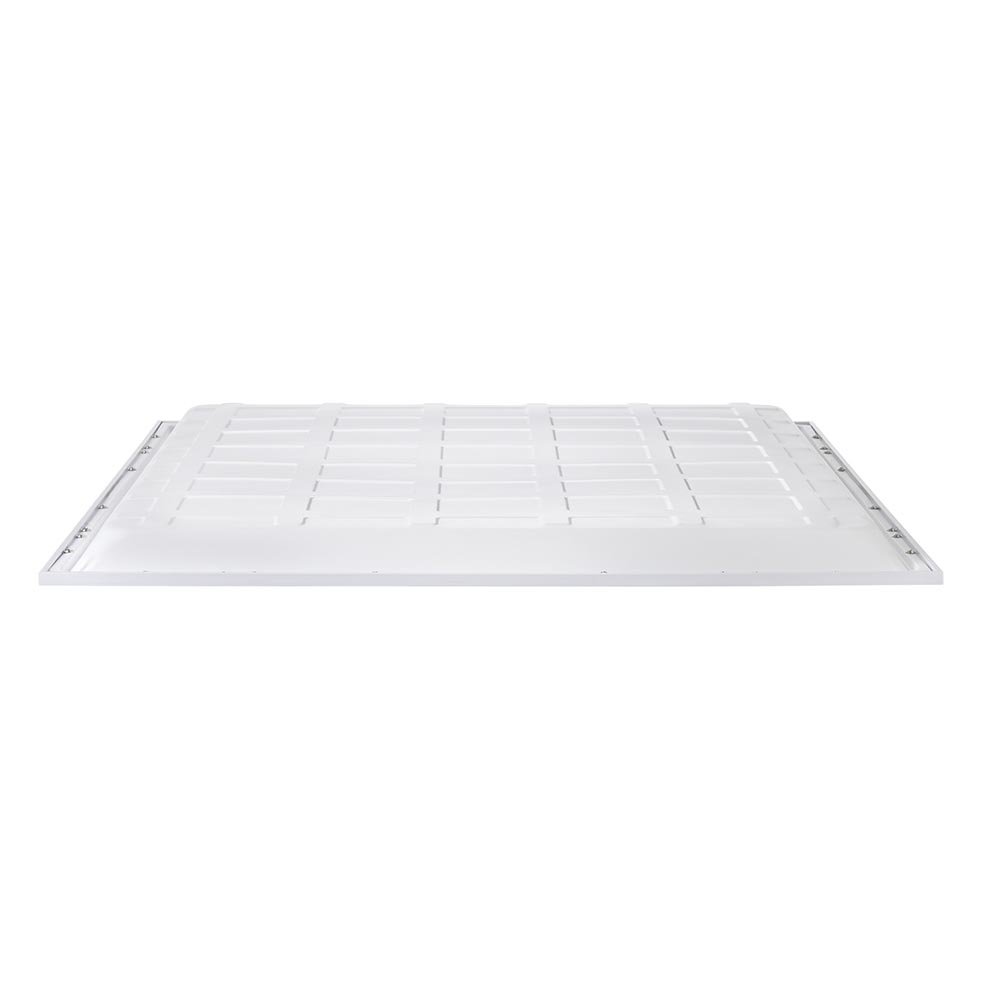

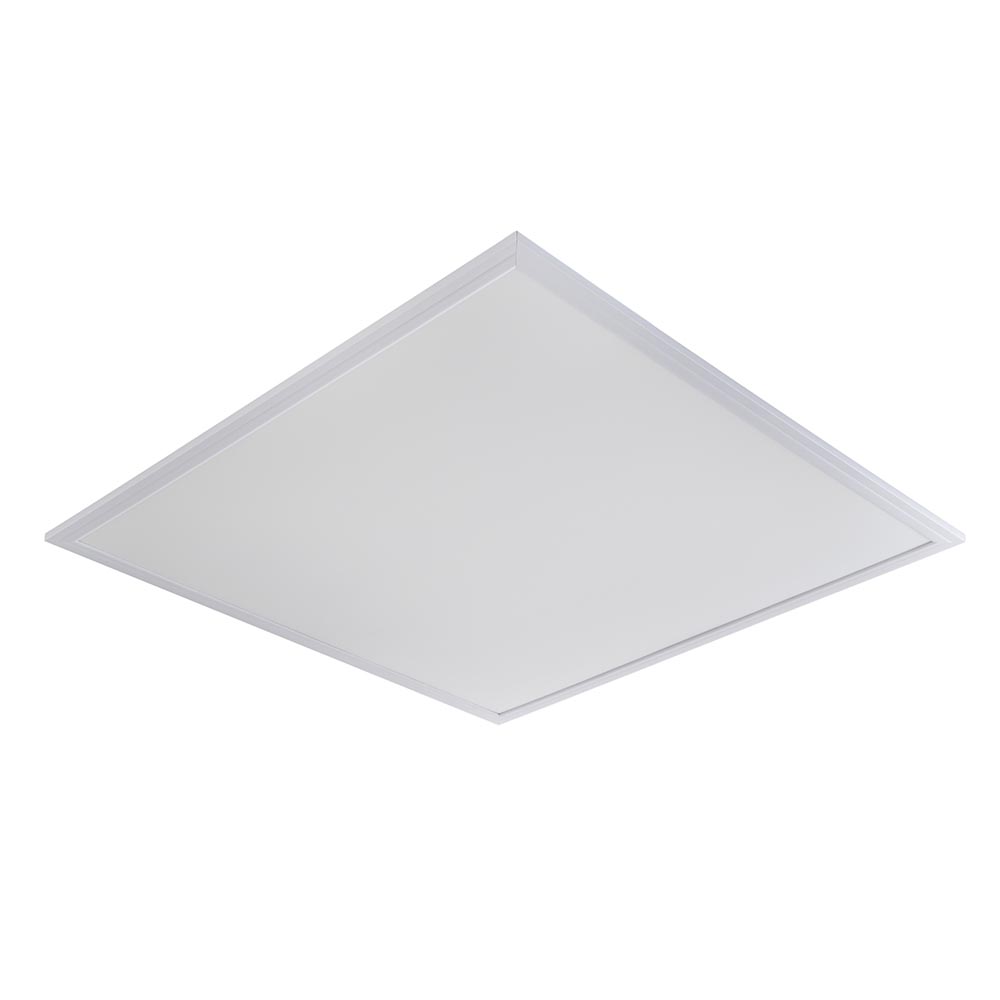

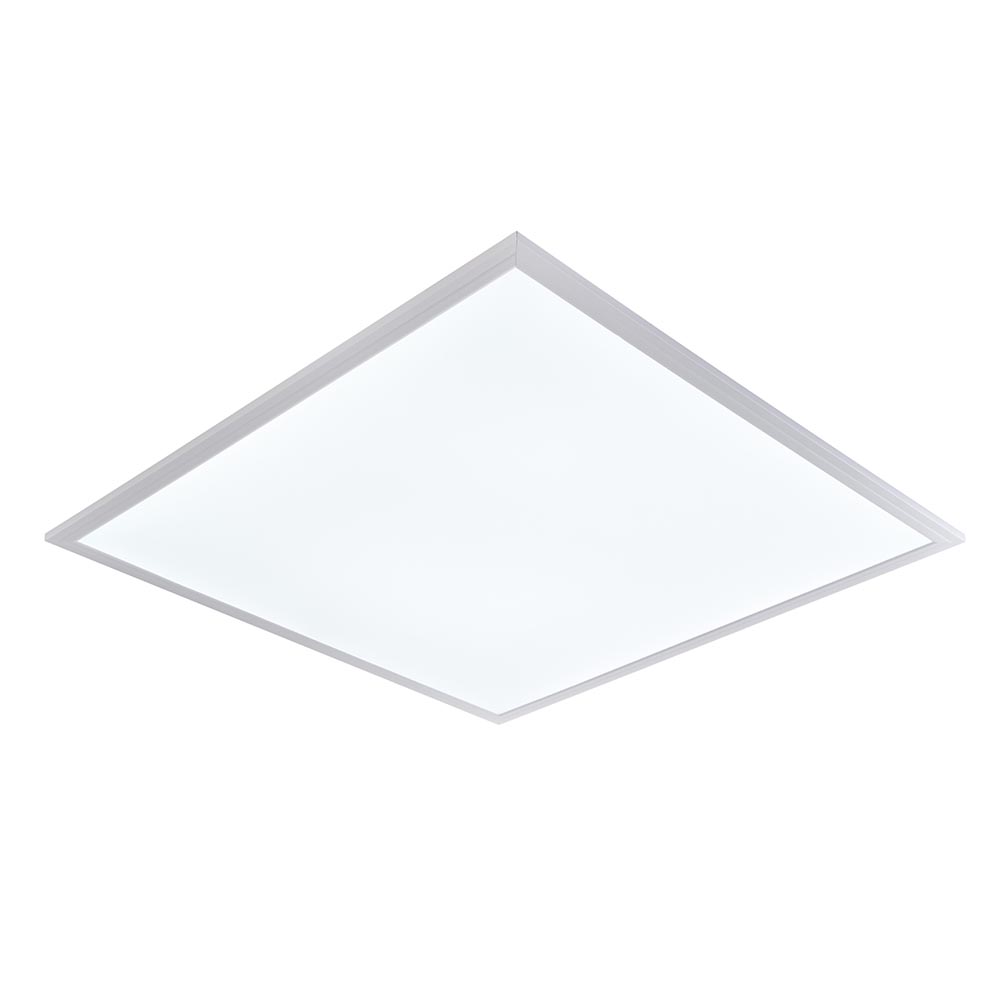

PLEASE NOTE: THESE ARE ONLY AVAILABLE TO BE ORDERED IN MULTIPLE OF 6'S. The Stratus base panel is a robust, square LED panel. Complete with LED driver, this LED fitting has a 40W LED module (SMD) and using backlit technology for a high light output of 4000 lumens. It comes in a gloss white & opal plastic finish.
  • White paint & opal plastic
  • Constructed from steel & ps plastic &pvc
  • Shipment Carton Qty: 6
Login To Buy

Overview

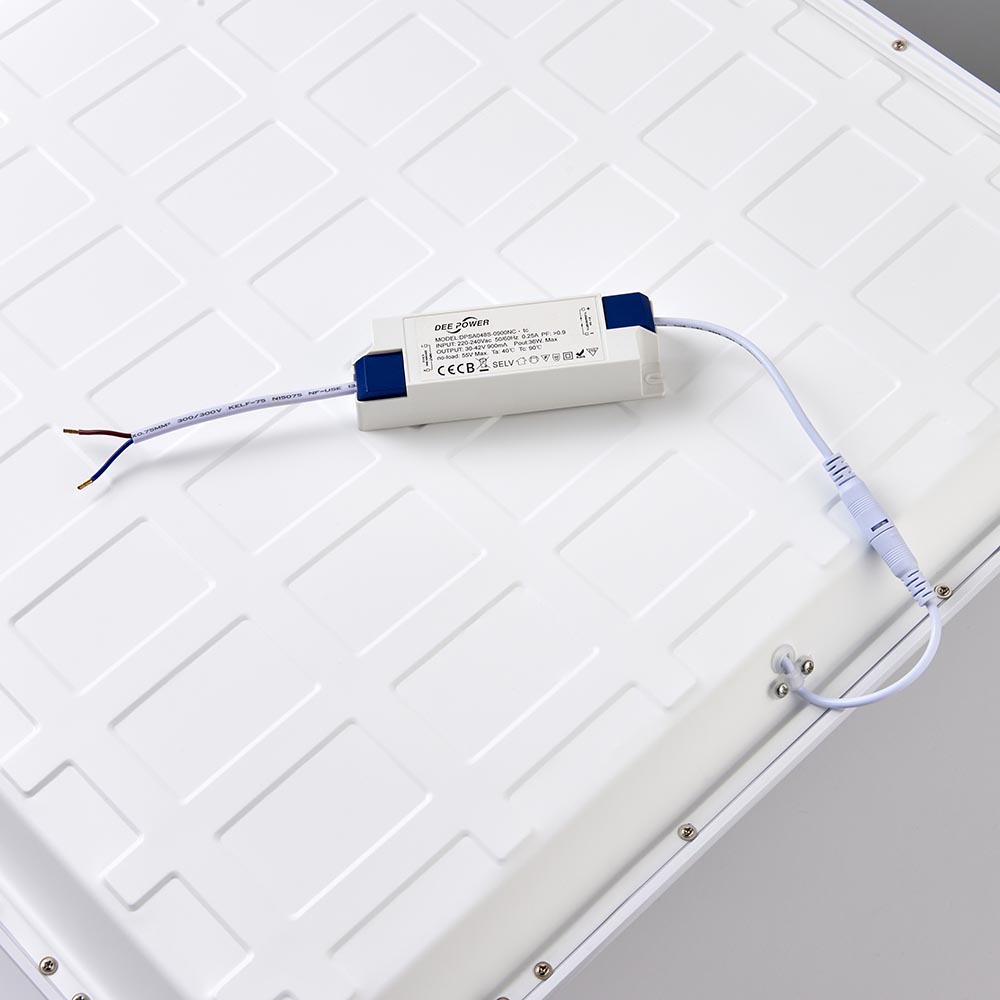

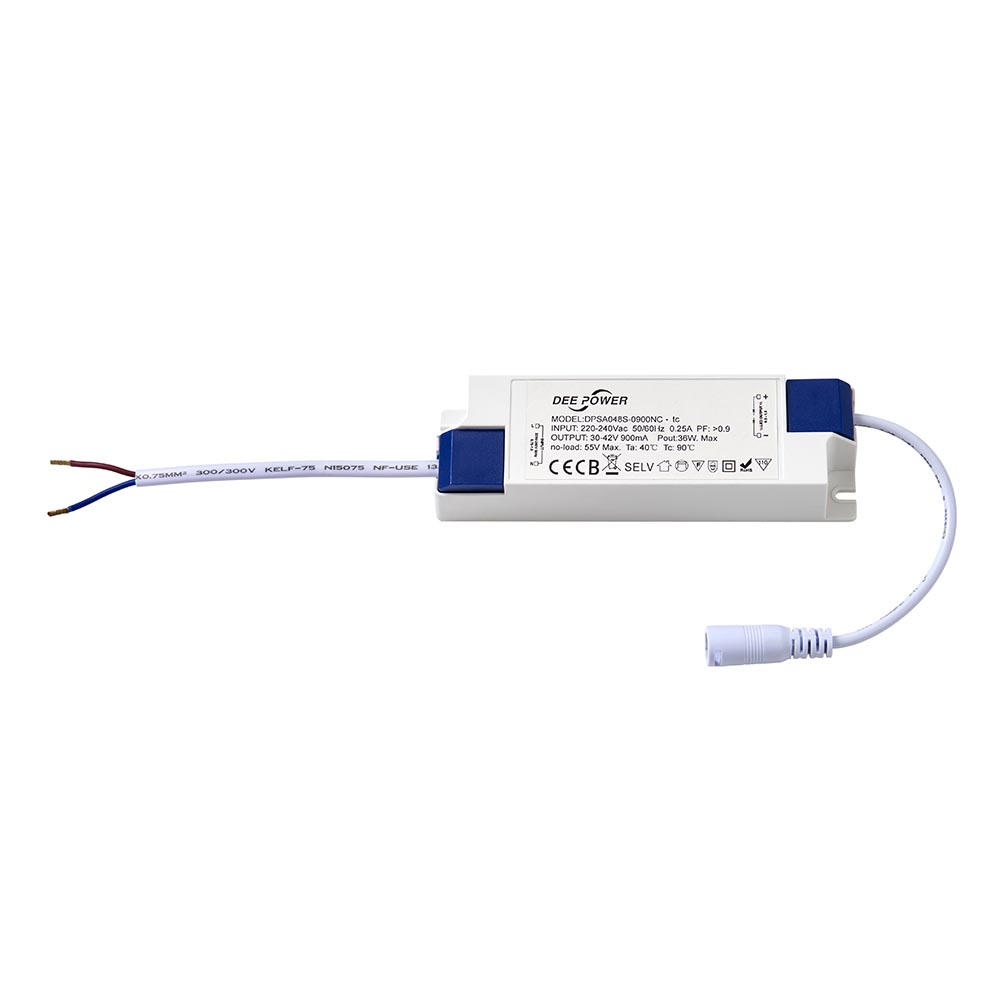

  • Complete with LED driver
  • 40W LED module (SMD 2835) Daylight White (Included)
  • K: 6000 Lm: 4000 Lm/W: 100
  • Sq: 595mm H: 30mm
  • Class 3
  • 2+1YR Extended Warranty
  • Weight: 1.4 Kg

Specification

Colour Finish:
White paint & opal ps plastic
IP Rating:
20
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    30
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588065272
    Packed Height (mm):
    3.3
    Packed Wid (mm):
    62.5
    Packed Depth (mm):
    66
    Packed Weight (kg):
    1.69

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    6
    Outer Height (mm):
    62
    Outer Width (mm):
    22.5
    Outer Depth (mm):
    66.5
    Outer Gross Weight (kg):
    11
