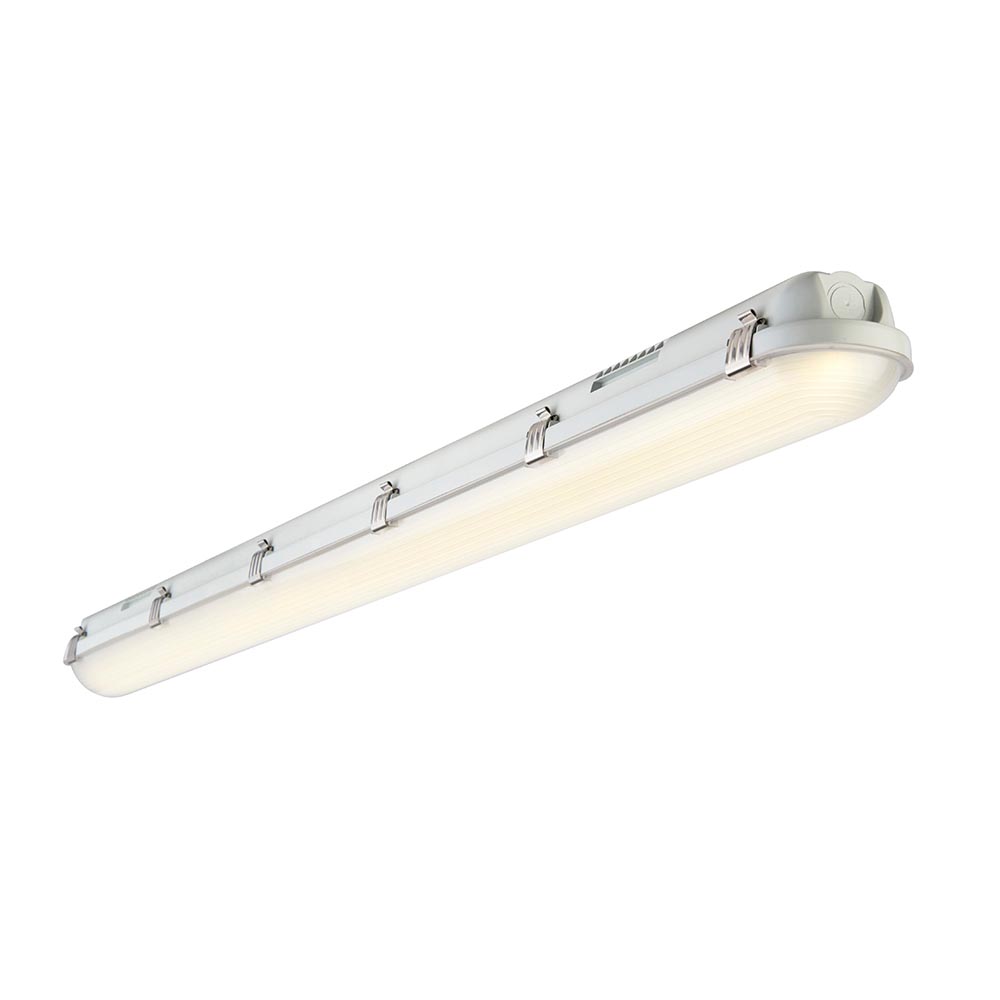

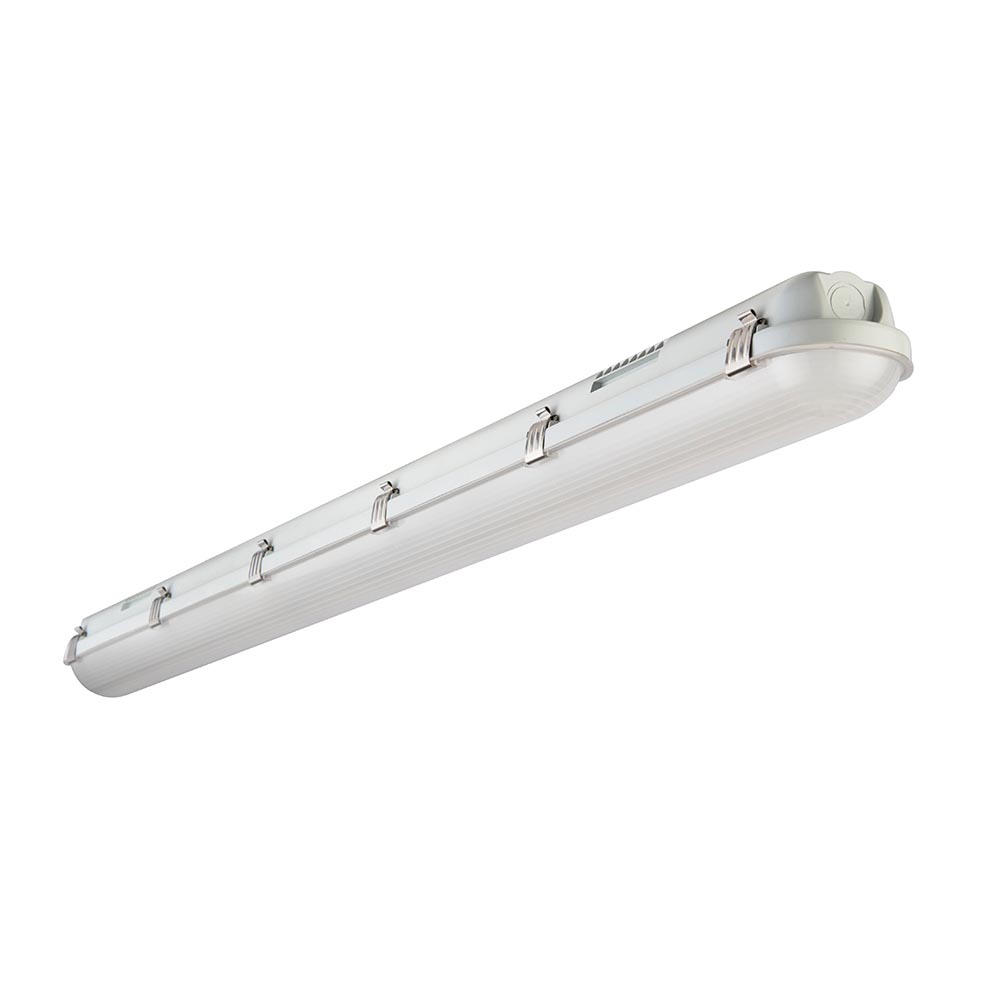

LED Anti-Corrosive batten 4000K 4FT EM IP65 19W

103259
Saxby
103259
UOS: Each
Hide
The LED anti corrosive batten range is the perfect choice for performance combined with low energy consumption and high light output. Quick and easy to install with low maintenance costs, constructed from polycarbonate making the battens shock and IK08 impact resistant. Available in lengths of 4ft, 5ft or 6ft with additional options of High Lumen and Emergency.

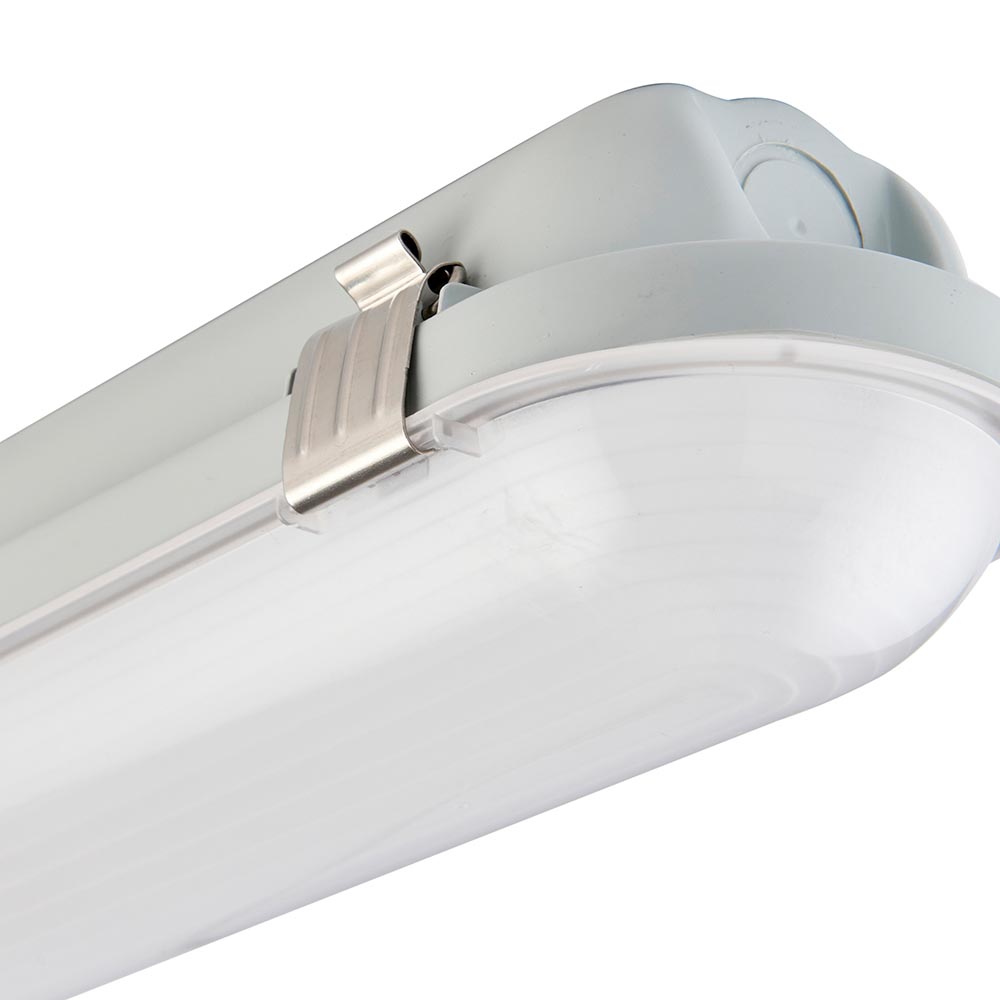

  • Frosted pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 6
Login To Buy

Overview

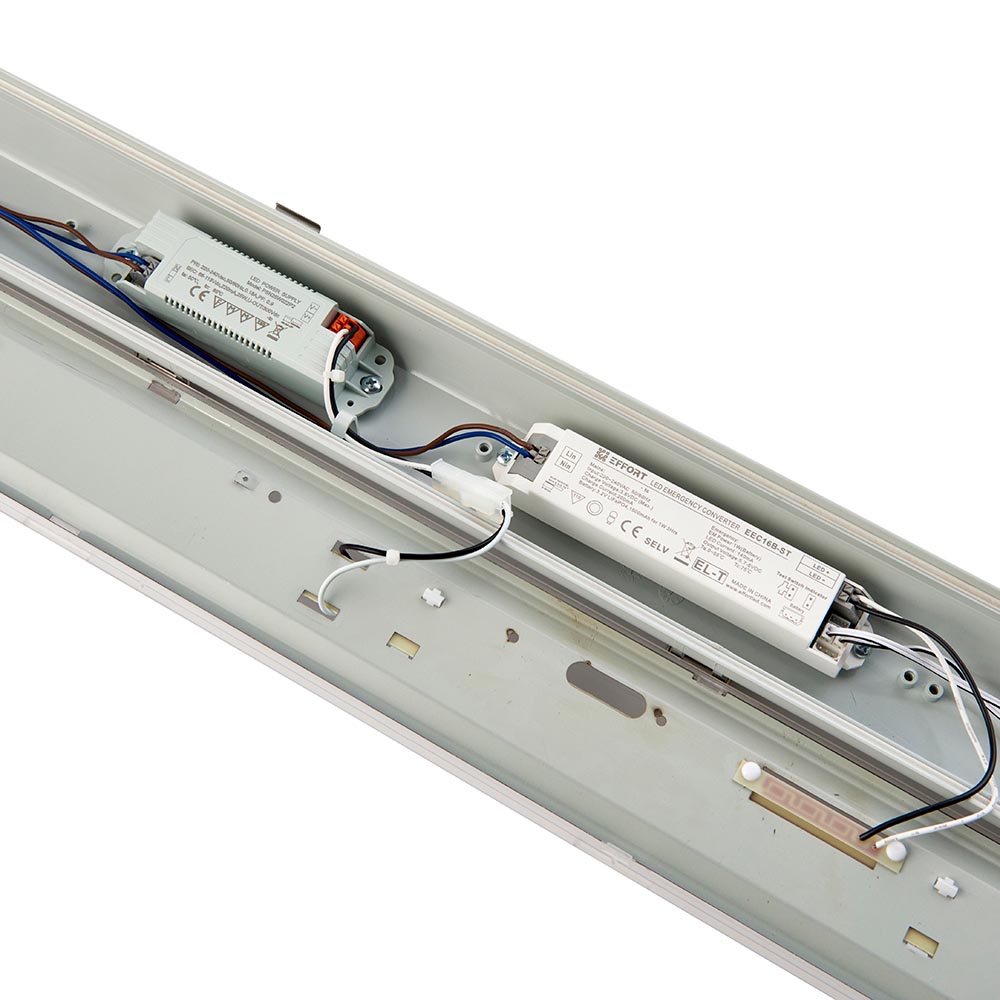

  • Complete with LED driver

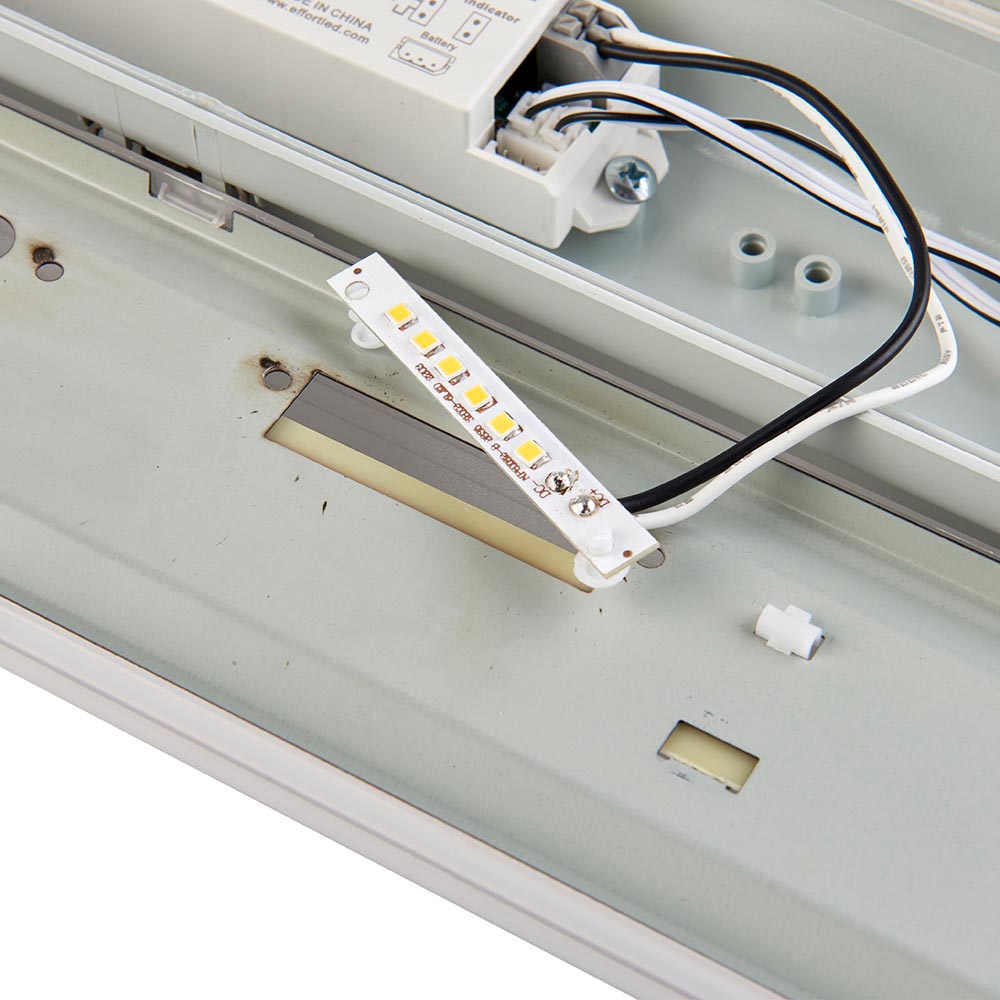

  • 19W LED module (SMD 2835) Cool White (Included)
  • K: 4000 Lm: 2660 Lm/W: 140
  • IP65
  • L: 1200mm Proj: 68mm W: 79mm
  • Emergency maintained fitting
  • Class 1
  • 2+3YR Extended Warranty
  • Weight: 1.4 Kg

Specification

Colour Finish:
Frosted pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    79
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588032595
    Packed Height (mm):
    7.5
    Packed Wid (mm):
    8.2
    Packed Depth (mm):
    121
    Packed Weight (kg):
    1.55

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    6
    Outer Height (mm):
    17.5
    Outer Width (mm):
    22.7
    Outer Depth (mm):
    123
    Outer Gross Weight (kg):
    10
