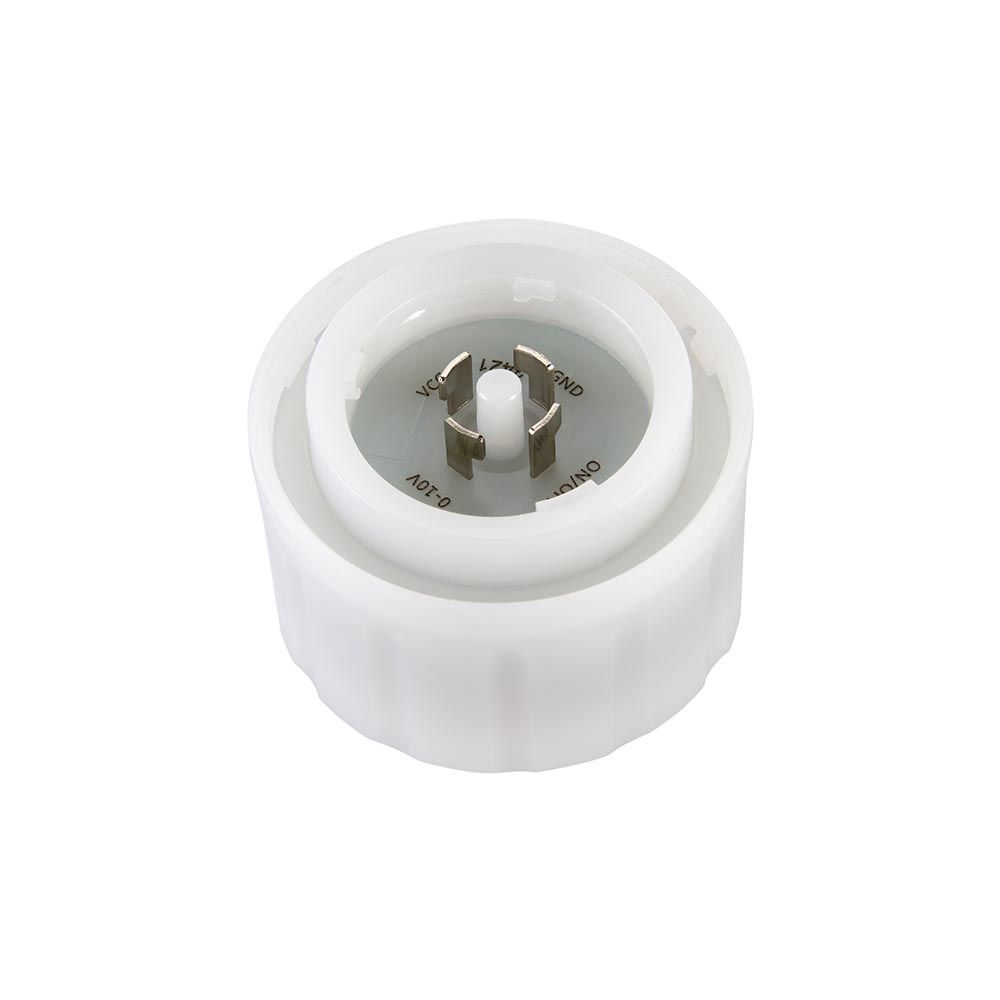

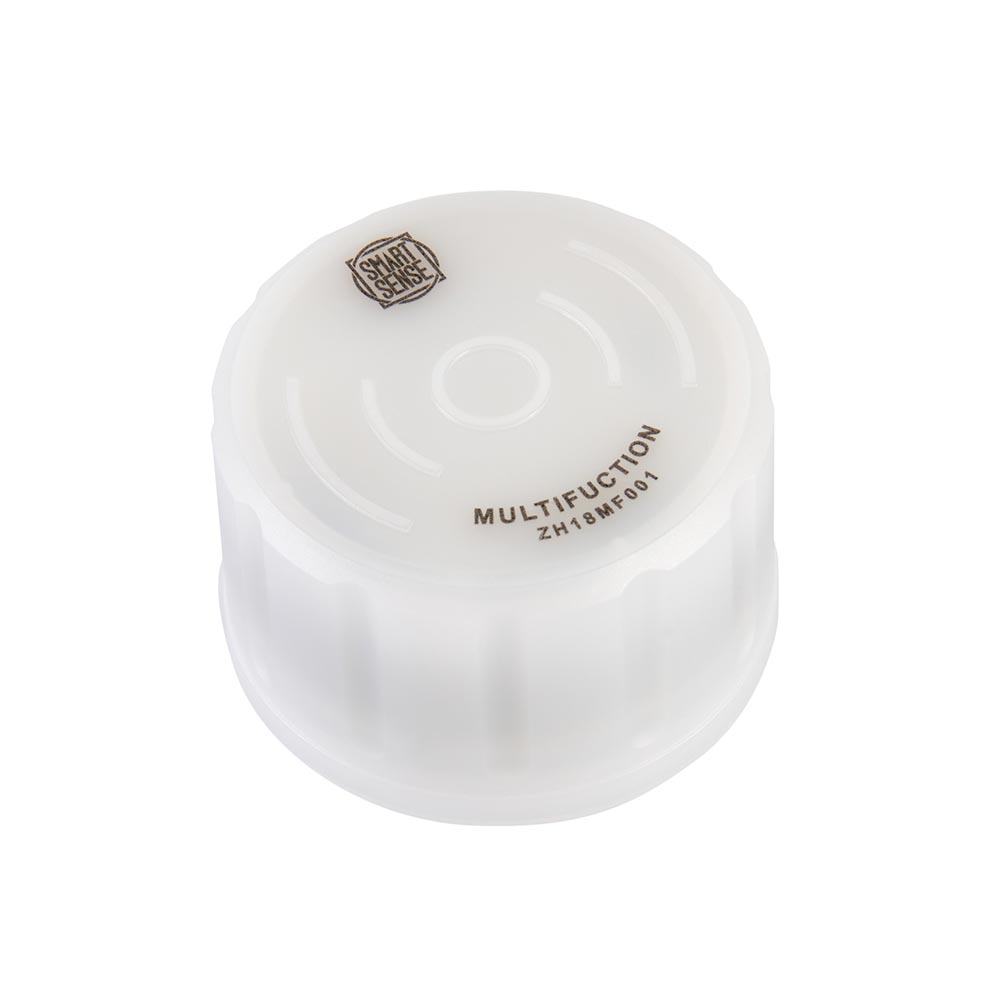

Helios microwave sensor

106745
Saxby
106745
UOS: Each
Hide

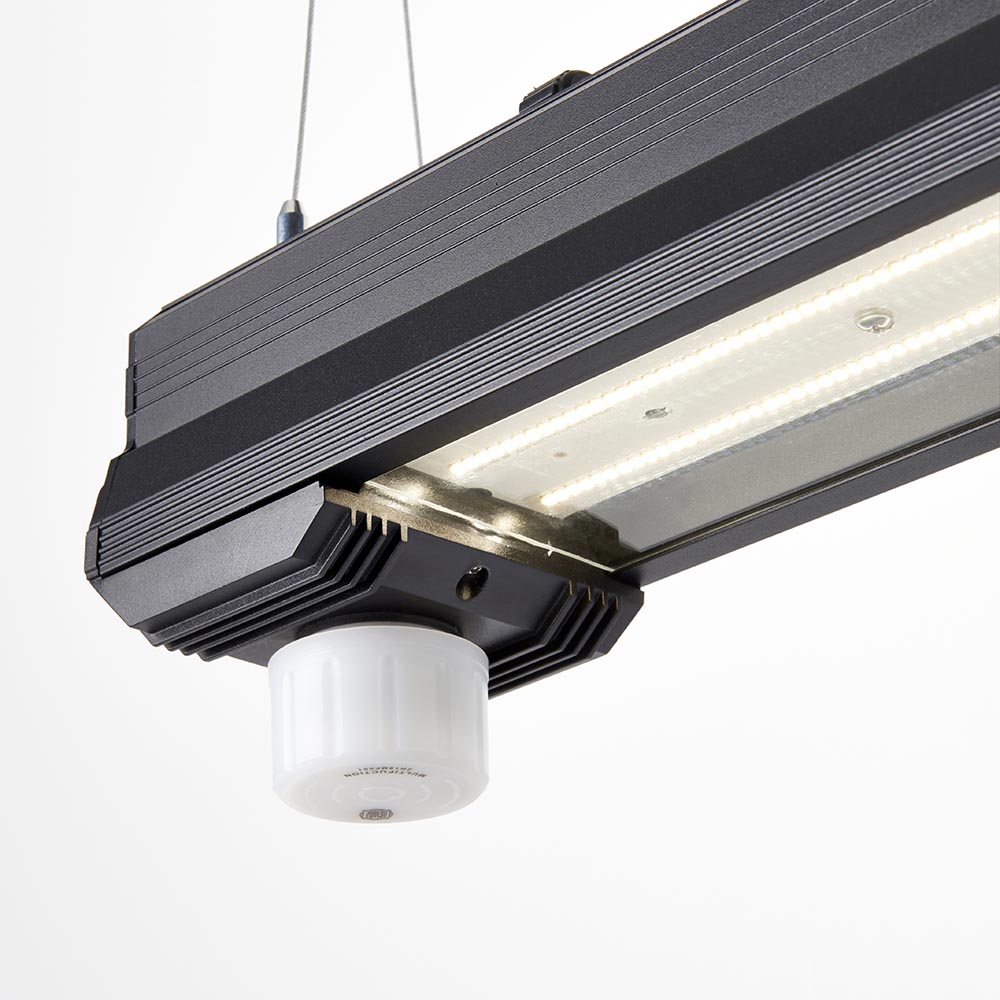

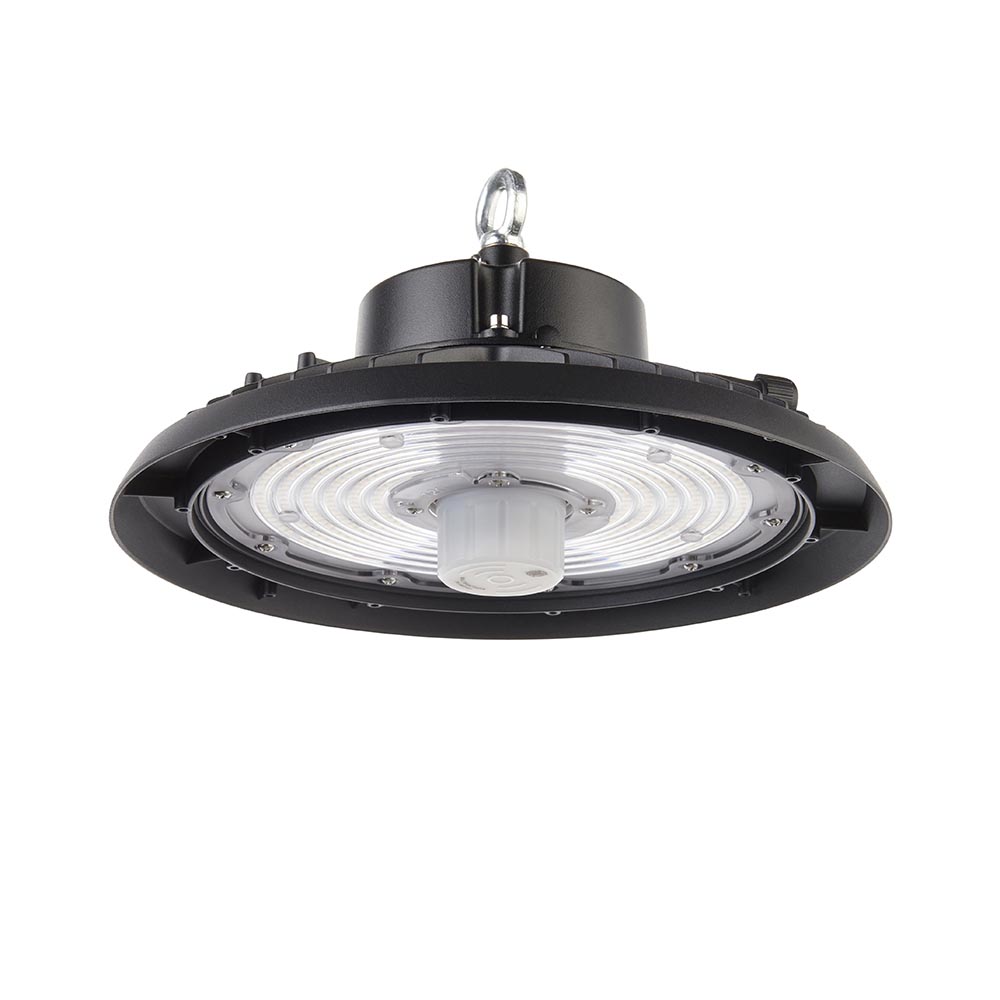

Plug and Play microwave sensor for the Helios Range
  • Complete with built in Microwave sensor
  • 360˚ (180˚ on a wall) detection angle, 5m range with a 10 sec - 10 min timer function, 5 Lux to 200 Lux range
  • Gloss white pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 100
Login To Buy

Overview

  • H: 33.5mm Dia: 50mm

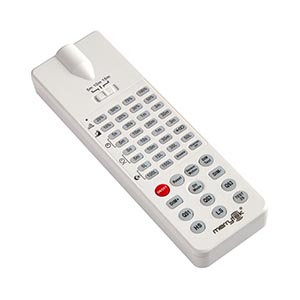

  • Need remote 78774 to set up the sensor
  • Default setting: Detection area 100%, Hold time 5s, Stand-by period 0s, Stand-by dim level 10%, Daylight sensor Disabled.
  • 2+3YR Extended Warranty
  • Weight: 0 Kg

Specification

Colour Finish:
Gloss white pc
IP Rating:
20
Commodity Code:
8536501990
Country Of Origin:
China

Documents

Specification

360˚ (180˚ on a wall) detection angle, 5m range with a 10 sec - 10 min timer function, 5 Lux to 200 Lux range

  • Commodity Code: 8536501990
  • Country of Origin:

    • Dimensons

    Unpacked Height (mm):
    33.5
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588067450
    Packed Height (mm):
    6
    Packed Wid (mm):
    6
    Packed Depth (mm):
    6
    Packed Weight (kg):
    .07

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    100
    Outer Height (mm):
    29.5
    Outer Width (mm):
    28
    Outer Depth (mm):
    17
    Outer Gross Weight (kg):
    4.35
