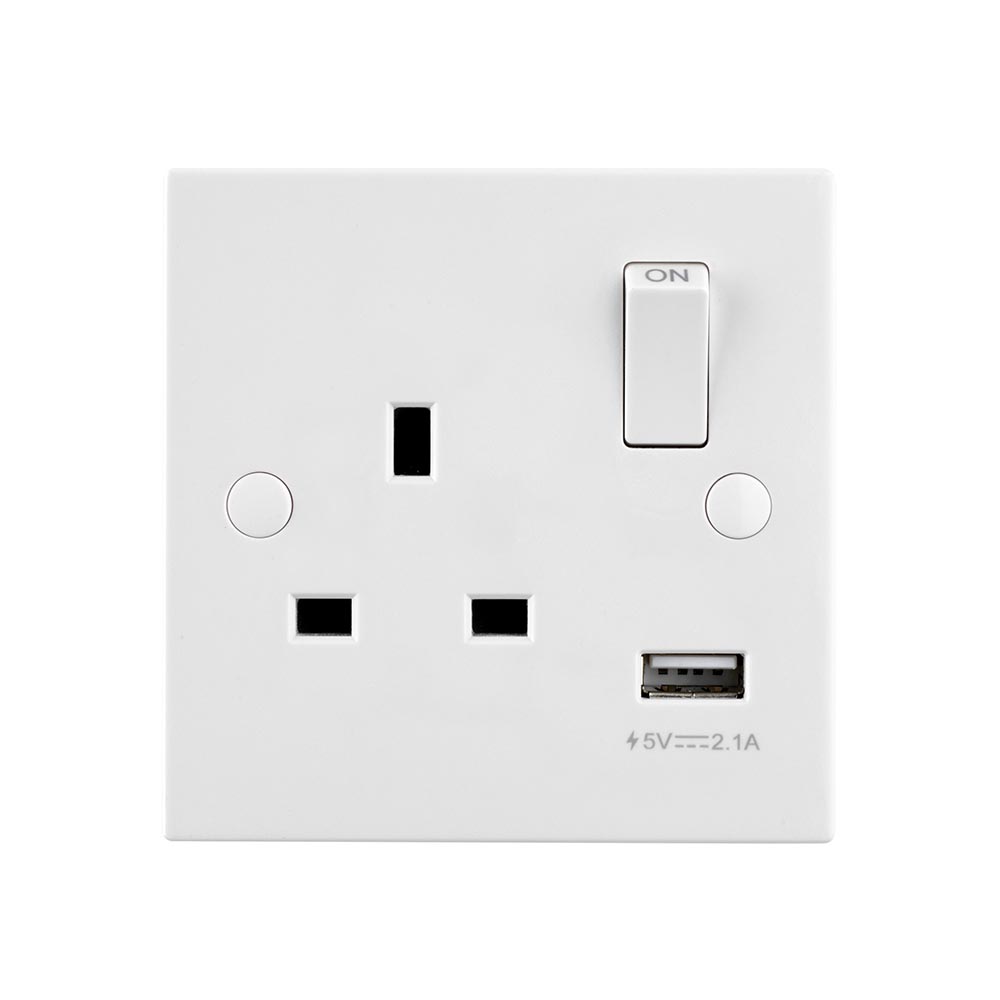

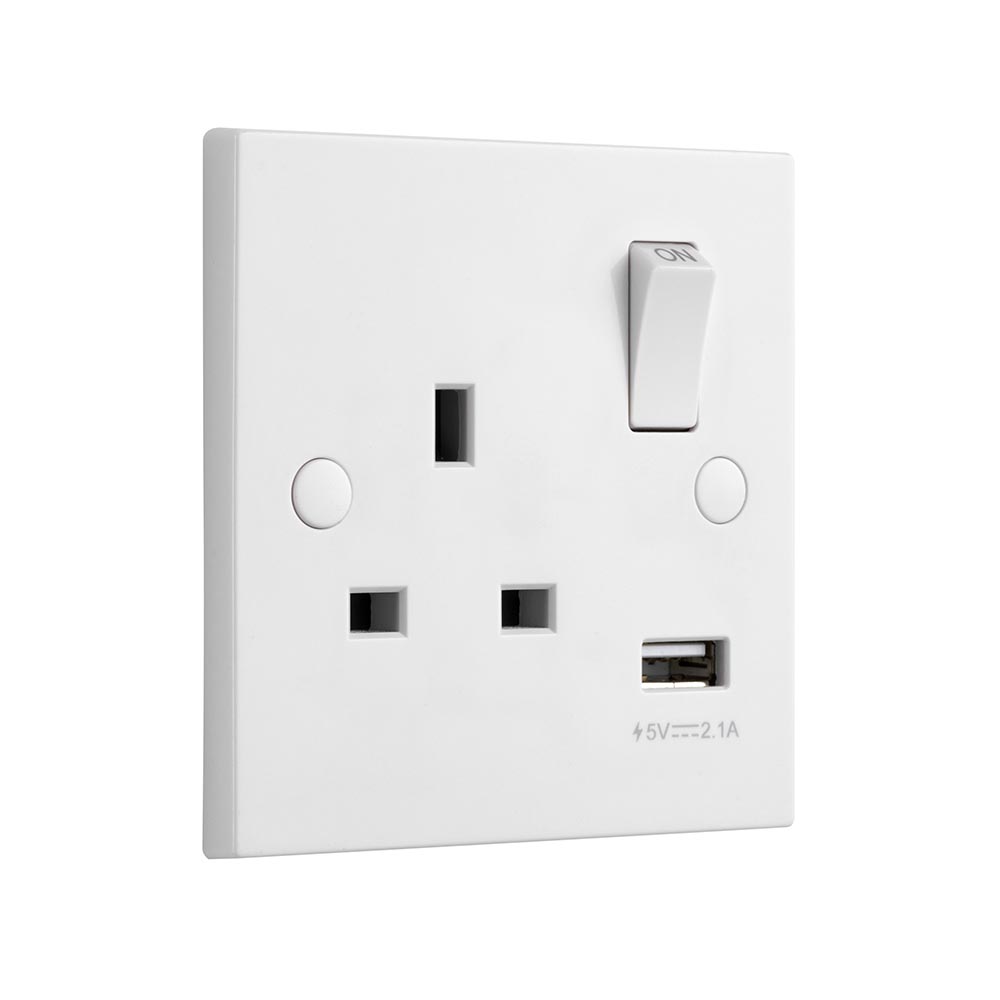

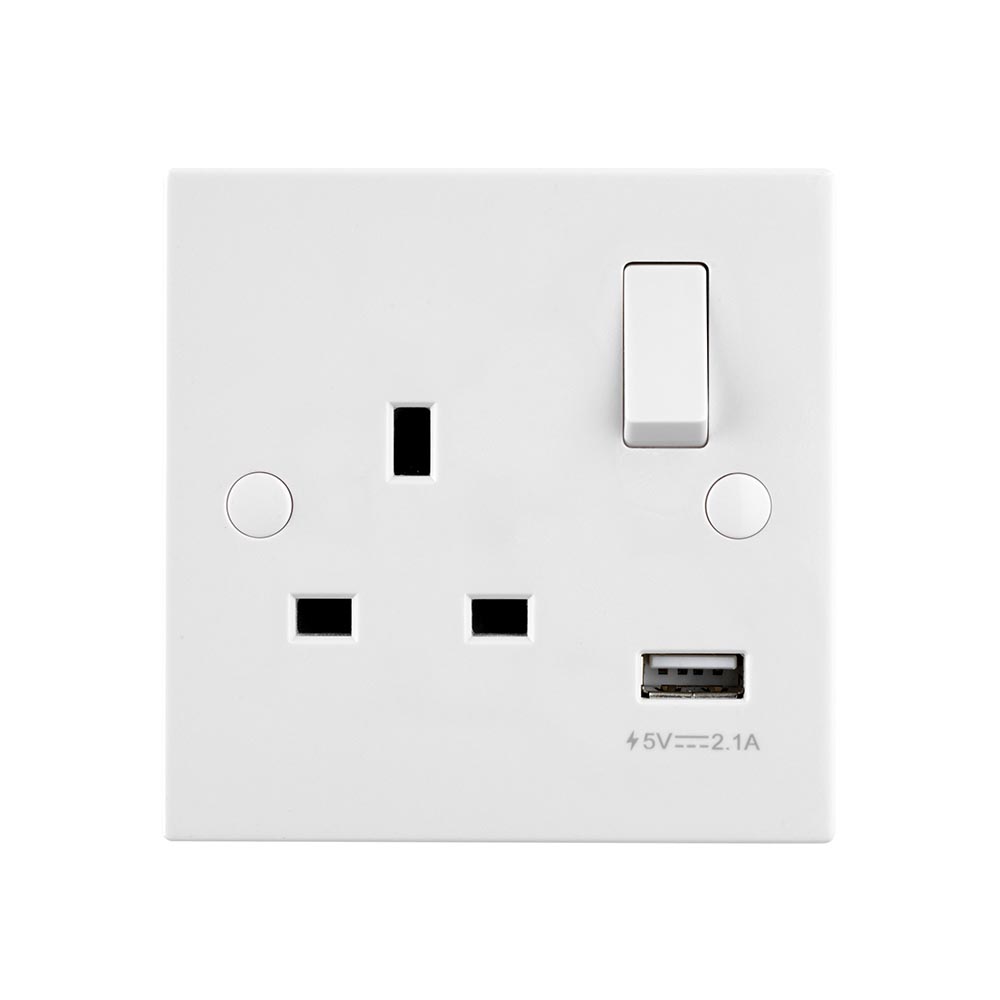

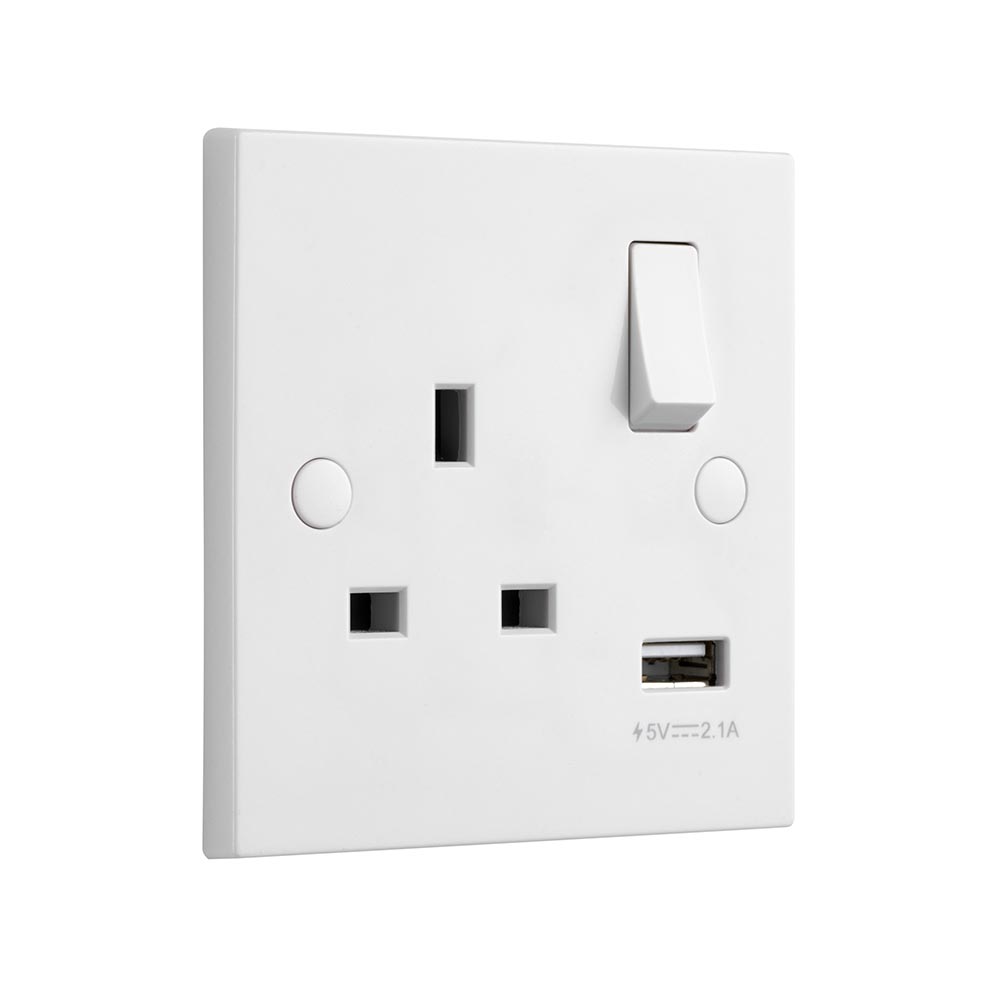

Square Edge 13A 1G SP Switched Socket with 2.1V USB

SE413
Saxby-Electrical
SE413
UOS: Each
Hide
Login To Buy

Overview

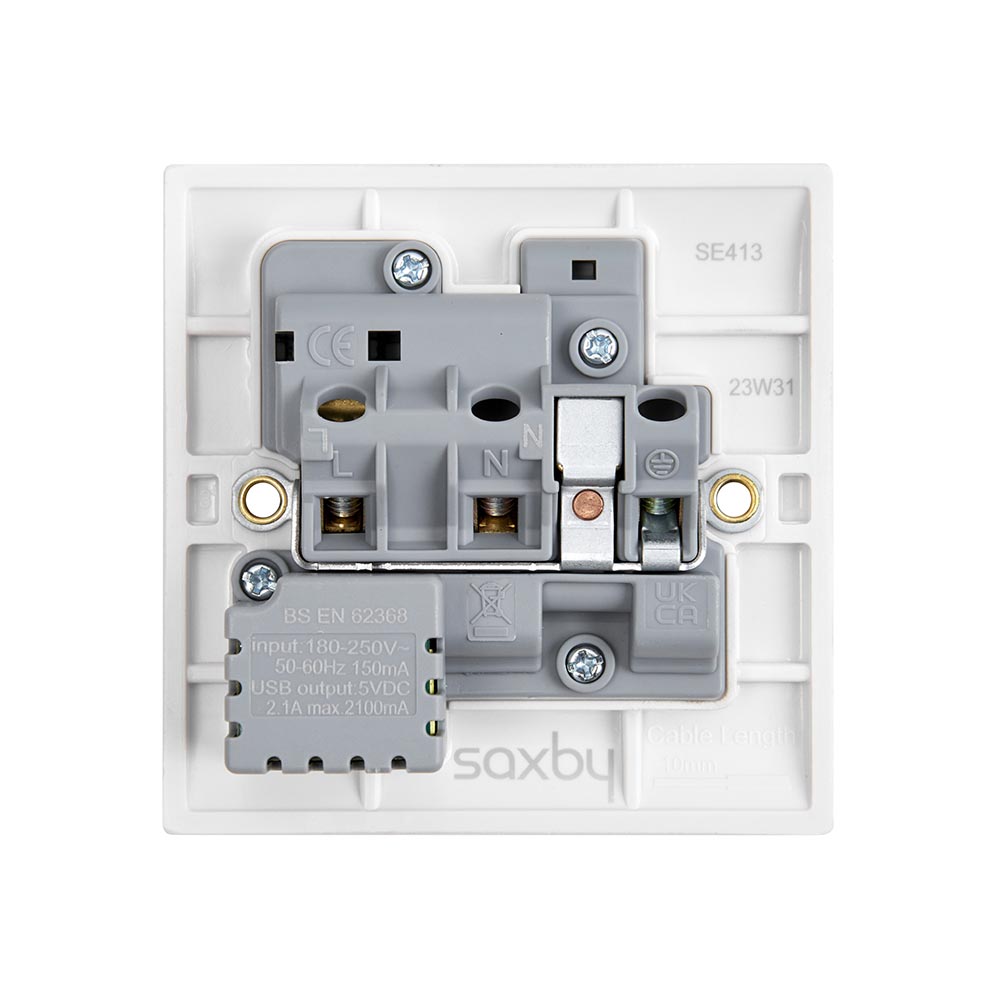

  • Our 13A rated socket boasts angled in-line terminals with captive screws which provide for quick and easy access and a hassle free installation
  • Integrated with 1x 2.1V USB A port
  • Supplied with fixing screws & white screw covers for sleek appearance
  • Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
  • Double pole switching for the peace of mind of a safer installation of your socket
  • This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • We recommend a minimum mounting box depth of 25mm
  • Certified to BS 1363-2; BS EN 62368

    • Specification

    Colour Finish:
    White
    Captive Terminal Screw:
    YES
    Fixing Screws Supplied:
    YES
    Minimum Box Depth (mm):
    35
    Terminal Capacity (mm):
    6²*1/ 4²*3/ 2.5²*4
    Number of Earth Terminals:
    1
    Screw Caps:
    INCLUDED
    Socket Type:
    1G-1P UK 13A
    IP Rating:
    20
    Switch Type:
    SINGLE POLE
    Anti-Microbial Property:
    YES
    Operating Voltage:
    250V 50Hz
    Anti-Fingerprint Lacquer:
    YES
    Commodity Code:
    8536699099
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 8536699099
  • Country of Origin:


    • Technical Datasheet

    Dimensons

    Unpacked Height (mm):
    86
    Unpacked Width (mm):
    86
    Unpacked Depth (mm):
    34.799999999999997

    Pack Quantities

    Package Pack Type:
    PRINTED BAG
    Package Hanging:
    YES
    Package EAN:
    5017588058151
    Packed Height (mm):
    18
    Packed Wid (mm):
    12.5
    Packed Depth (mm):
    3.49
    Packed Weight (kg):
    .13

    Case Quantities

    Inner Carton
    Inner Pack Type:
    SAXBY BRAND BOX
    Inner Qty:
    10
    Inner EAN:
    0105017588058151
    Inner Height (mm):
    9.2
    Inner Width (mm):
    16.2
    Inner Depth (mm):
    18.2
    Inner Gross Weight (kg):
    1.34
    Outer Carton
    Outer Pack Type:
    BROWN BOX
    Outer Qty:
    100
    Outer Height (mm):
    21.5
    Outer Width (mm):
    33
    Outer Depth (mm):
    50.5
    Outer Gross Weight (kg):
    14.06

    FAQs

    Other Colours

    Products you may also be interested in

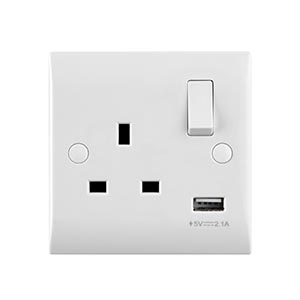

    Curved Edge 13A 1G SP Switched Socket with 2.1V USB
