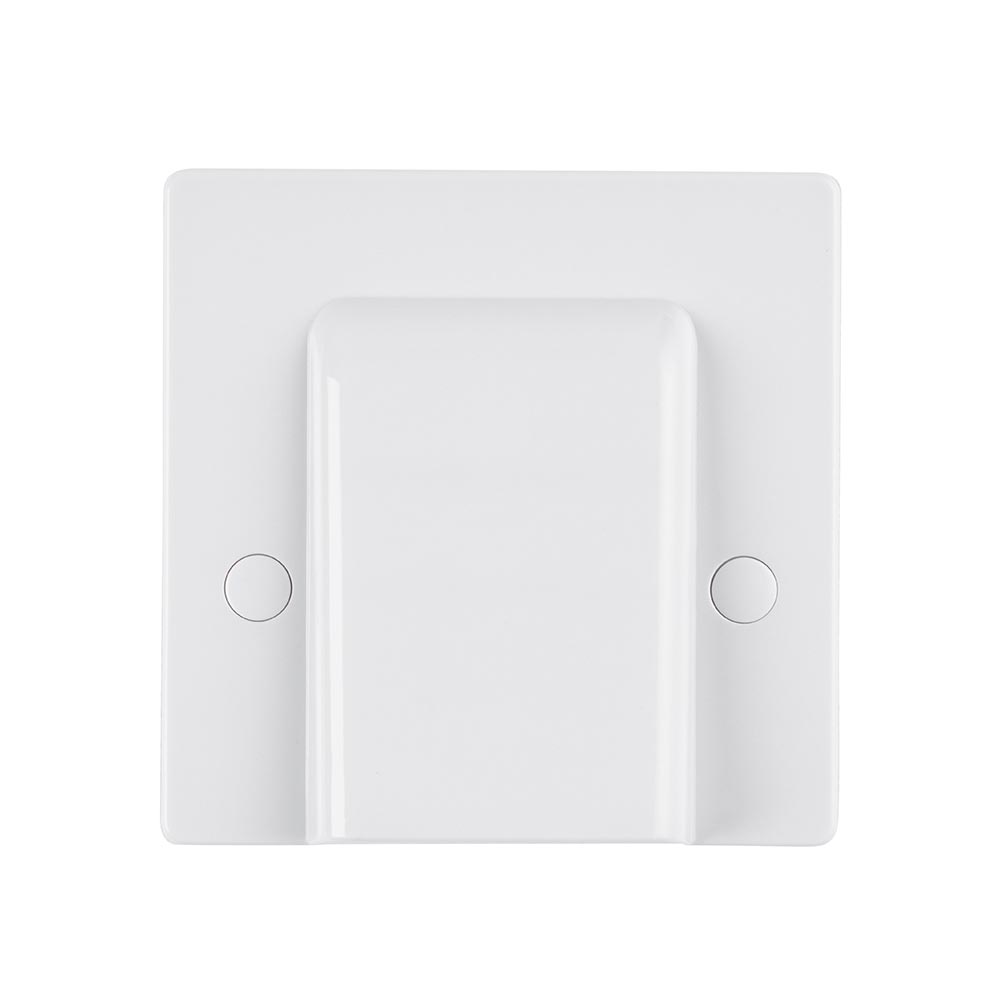

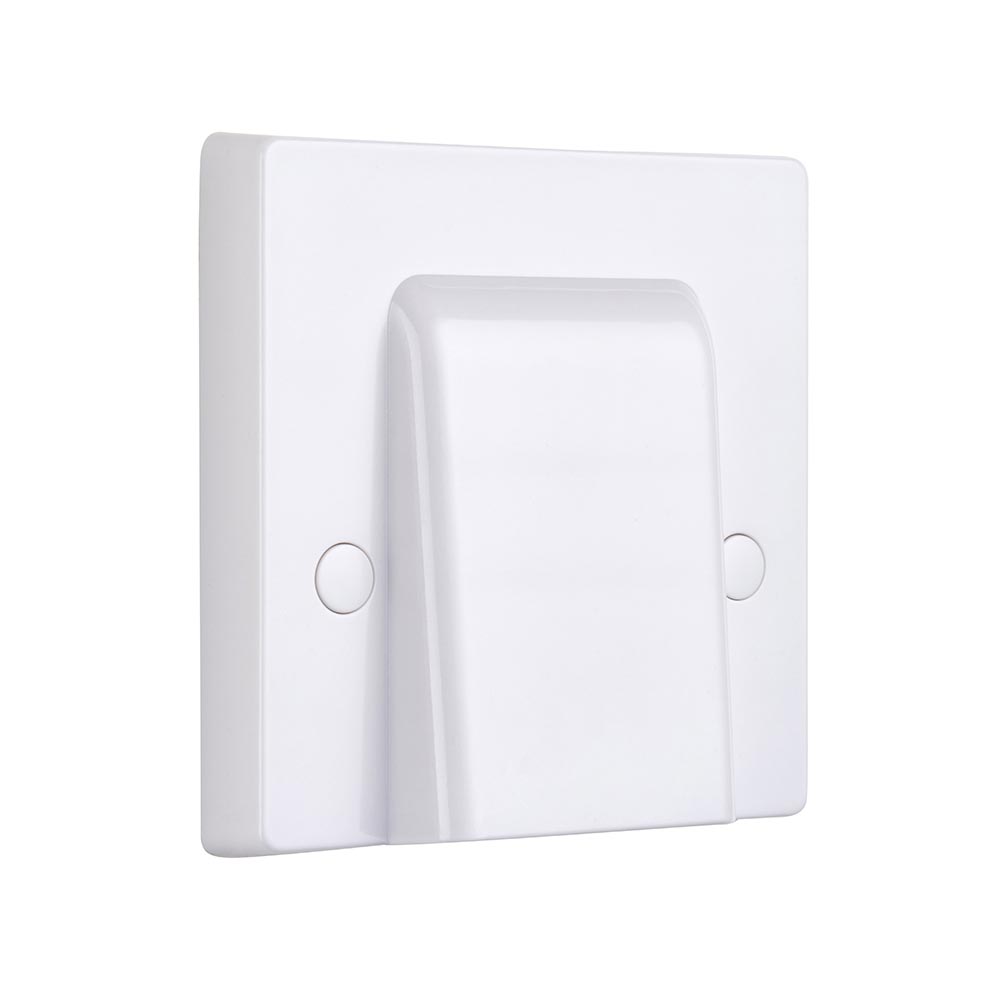

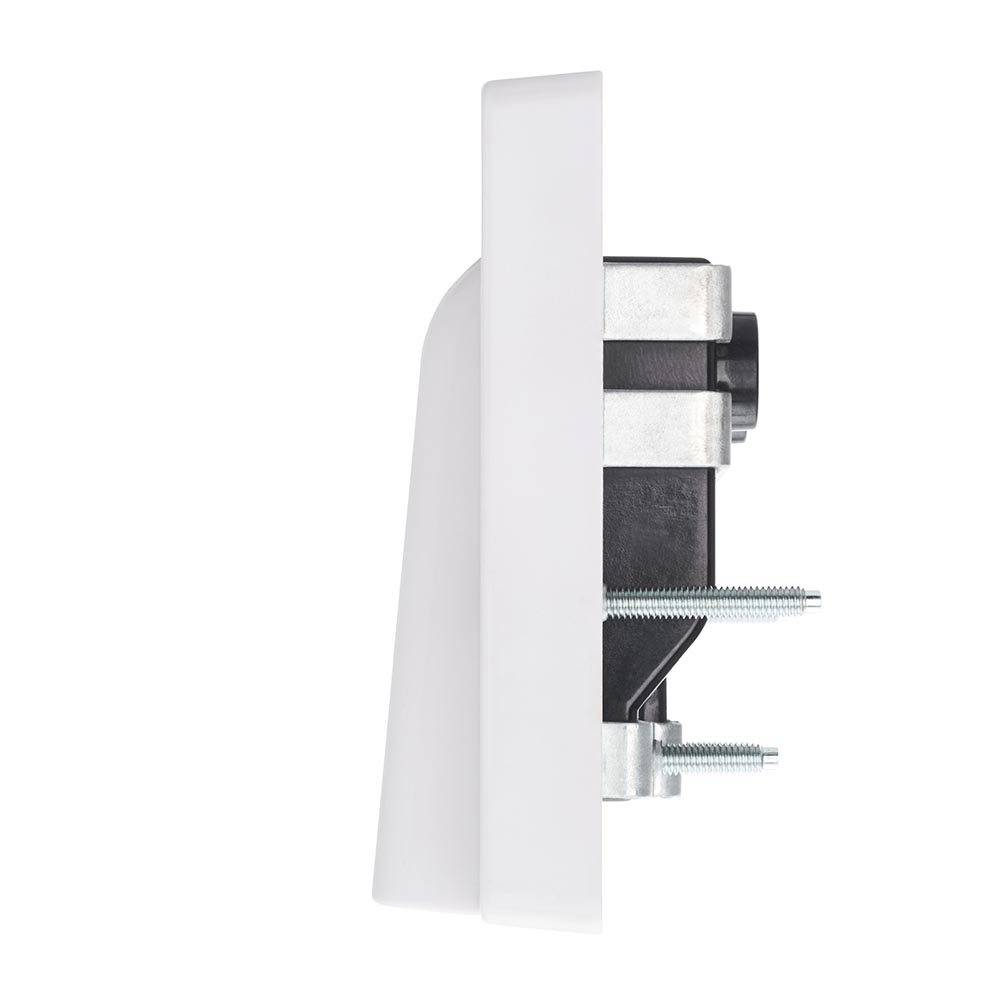

Square Edge 45A Cooker Connection Unit

SE556
Saxby-Electrical
SE556
UOS: Each
Hide
Login To Buy

Overview

  • Rated to 45A
  • Suitable for cookers and ovens
  • Supplied with fixing screws & white screw covers for sleek appearance
  • Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
  • This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • We recommend a minimum mounting box depth of 25mm
  • Certified to BS 5733

    • Specification

    Colour Finish:
    White
    Captive Terminal Screw:
    YES
    Fixing Screws Supplied:
    YES
    Minimum Box Depth (mm):
    25
    Terminal Capacity (mm):
    16²*1/ 6²*2/ 4²*3/ 2.5²*4
    Number of Earth Terminals:
    1
    Screw Caps:
    INCLUDED
    IP Rating:
    20
    Anti-Microbial Property:
    YES
    Operating Voltage:
    250V 50Hz
    Anti-Fingerprint Lacquer:
    YES
    Commodity Code:
    8536508090
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 8536508090
  • Country of Origin:


    • Technical Datasheet

    Dimensons

    Unpacked Height (mm):
    86
    Unpacked Width (mm):
    86
    Unpacked Depth (mm):
    40

    Pack Quantities

    Package Pack Type:
    PRINTED BAG
    Package Hanging:
    YES
    Package EAN:
    5017588058045
    Packed Height (mm):
    18
    Packed Wid (mm):
    12.5
    Packed Depth (mm):
    4.01
    Packed Weight (kg):
    .17

    Case Quantities

    Inner Carton
    Inner Pack Type:
    SAXBY BRAND BOX
    Inner Qty:
    5
    Inner EAN:
    0105017588058045
    Inner Height (mm):
    9.2
    Inner Width (mm):
    16.2
    Inner Depth (mm):
    18.2
    Inner Gross Weight (kg):
    .95
    Outer Carton
    Outer Pack Type:
    BROWN BOX
    Outer Qty:
    50
    Outer Height (mm):
    21.5
    Outer Width (mm):
    33
    Outer Depth (mm):
    50.5
    Outer Gross Weight (kg):
    10.19

    FAQs

    Other Colours

    Products you may also be interested in

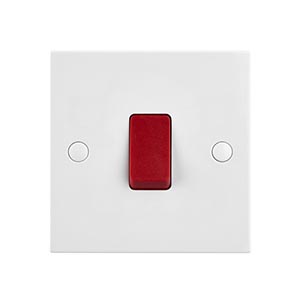

    Square Edge 45A 1G DP Switch
    Login To Buy

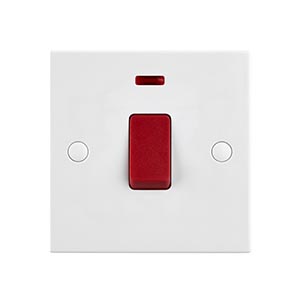

    Square Edge 45A 1G DP Switch with Neon
    Login To Buy

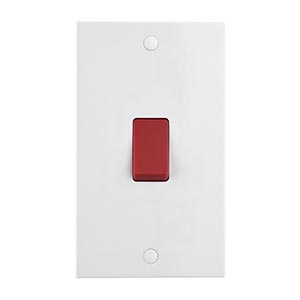

    Square Edge 45A Large Plate DP Switch
    Login To Buy

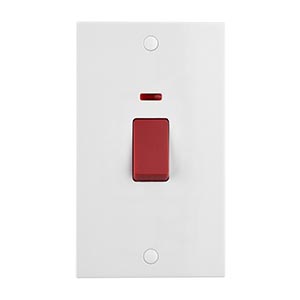

    Square Edge 45A Large Plate DP Switch with Neon
