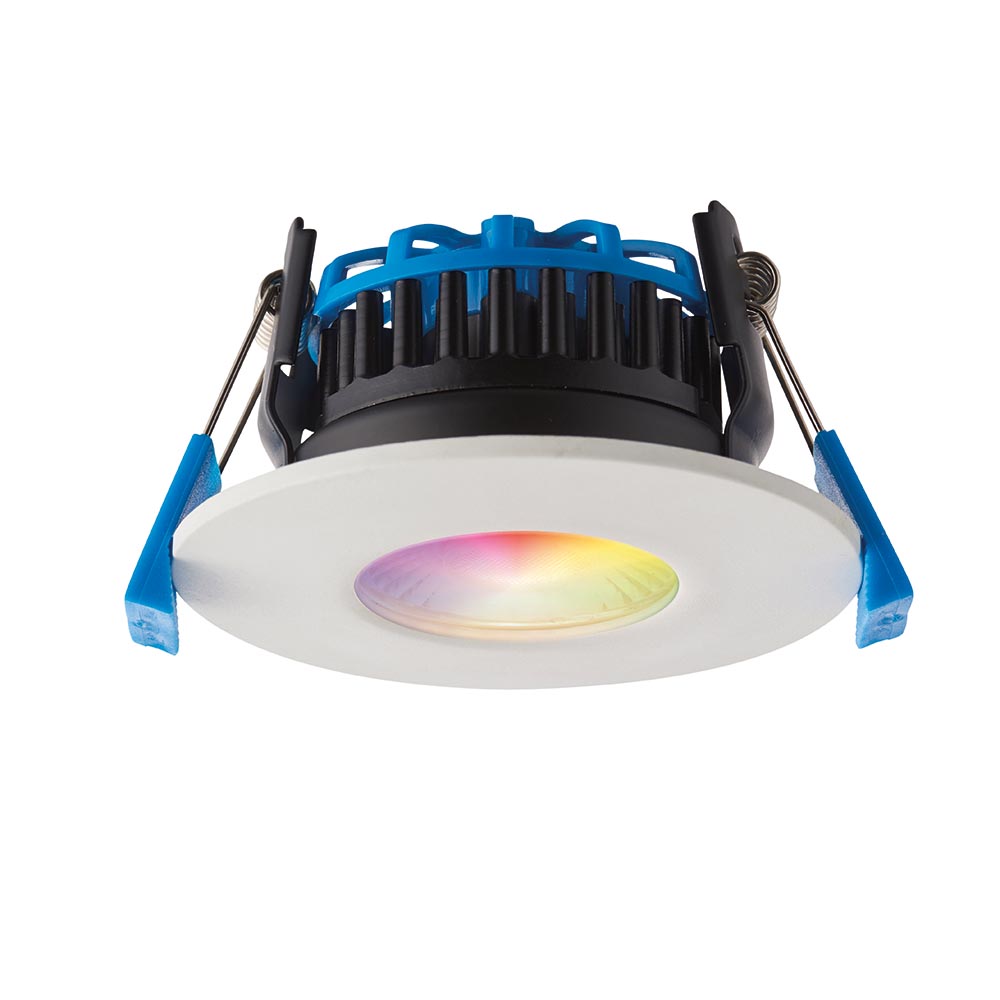

Smart ShieldPRO RGBW IP65 8W cool white

81555
Saxby
81555
UOS: Each
Hide
The popular ShieldPRO fitting has gone Smart. This fitting comes with a 3-way Plug and Play connector which allows users to loop in and out. Other features include: the option to be covered with insulation, fits into shallow ceiling voids, IP65-rated, and fully fire-rated for 30, 60 and 90-minute ceilings.
  • Dimmable
  • Matt white & clear acrylic
  • Constructed from steel & aluminium alloy & acrylic
  • Shipment Carton Qty: 20

Overview

  • Complete with LED driver
  • 8W LED module RGBW (Included)
  • K: 4000 Lm: 600 Lm/W: 75
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • H: 48mm Dia: 89mm
  • Class 2
  • Cut hole Dia: 70mm
  • Please turn on bluetooth on the phone during pairing, turn on for 10 seconds, then off/on 5 times, 1 second gap between clicks
  • Specification

    Colour Finish:
    Matt white paint & clear acrylic
    IP Rating:
    65
    Operating Voltage:
    220-240V
    Commodity Code:
    9405423990
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    48
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588815556
    Packed Height (mm):
    8.5
    Packed Wid (mm):
    13
    Packed Depth (mm):
    9.5
    Packed Weight (kg):
    .27

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    44
    Outer Width (mm):
    20
    Outer Depth (mm):
    28
    Outer Gross Weight (kg):
    5.8
