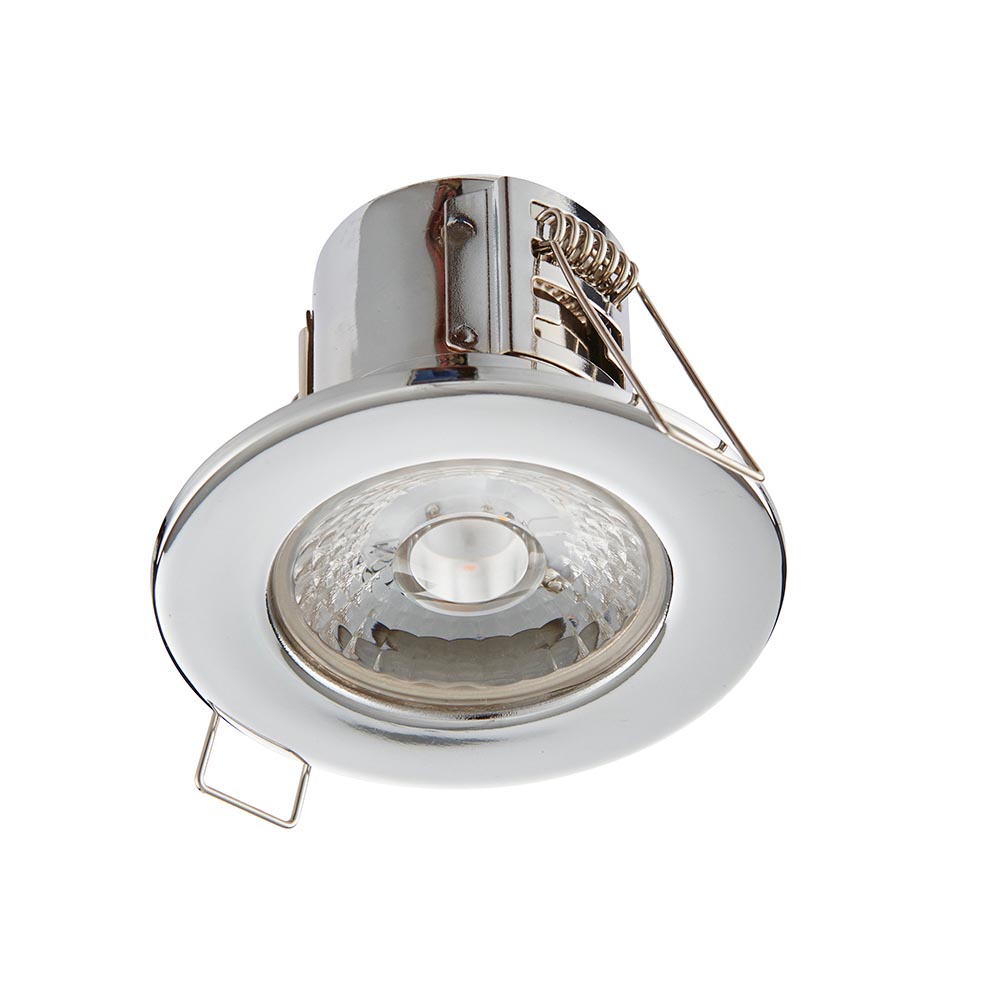

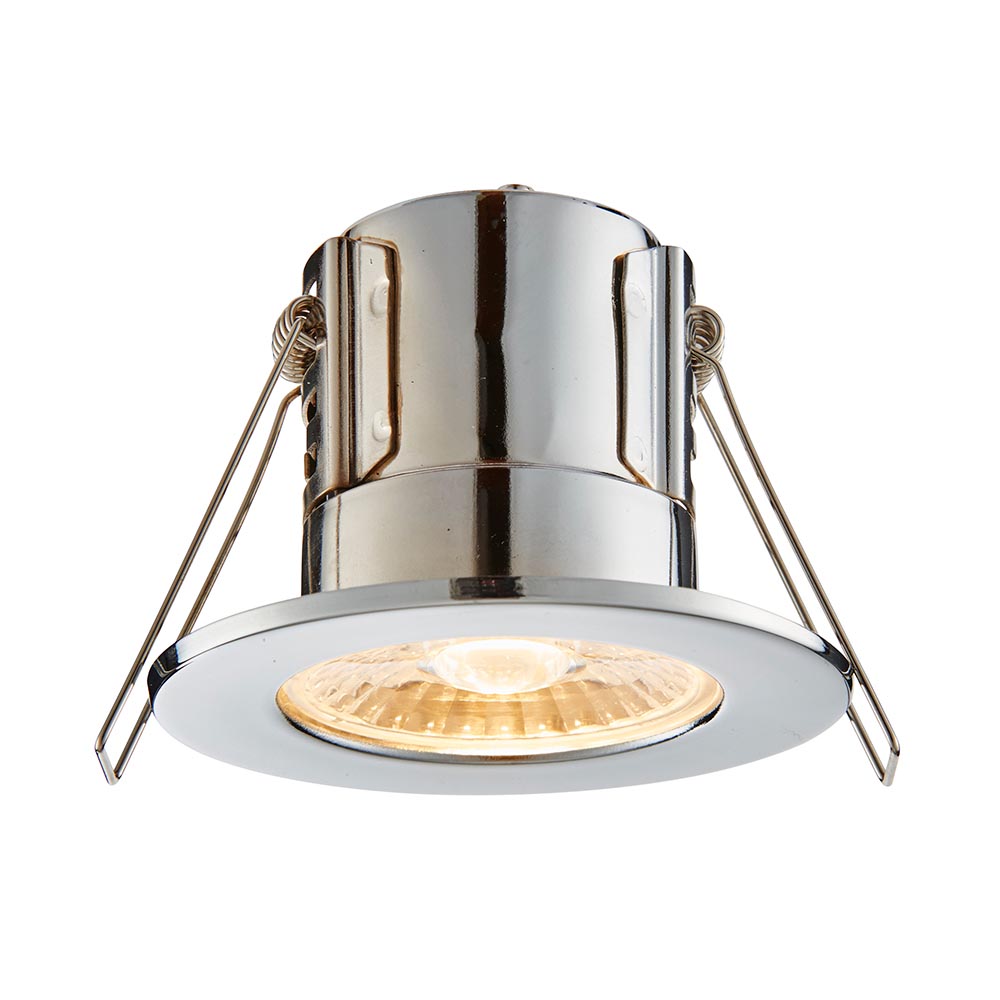

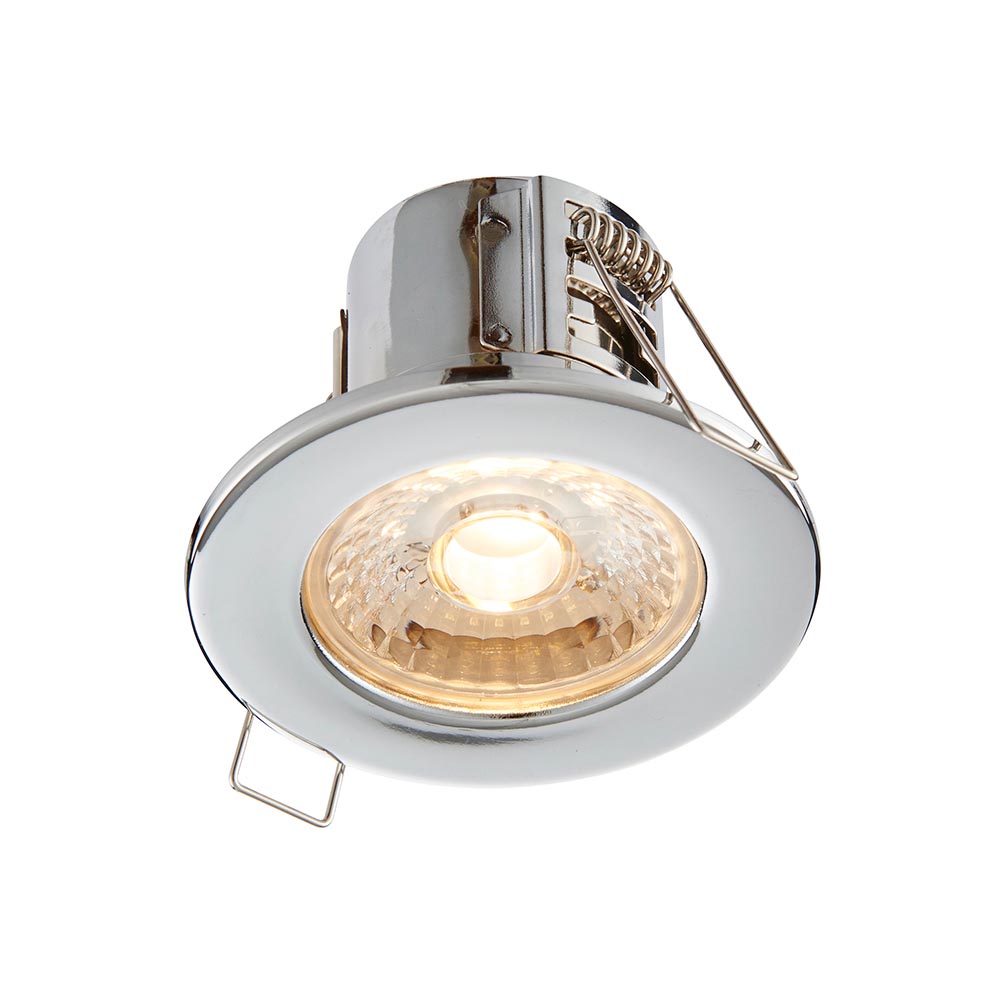

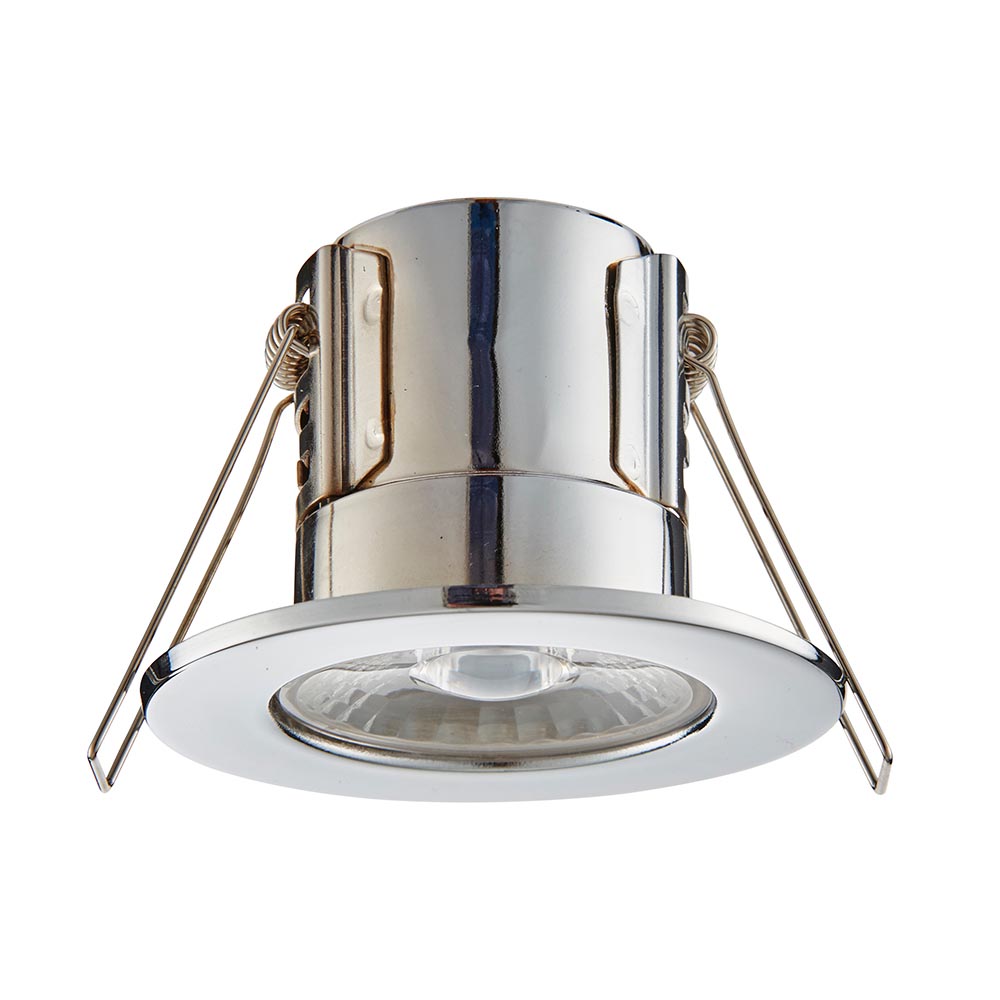

ShieldECO 500 IP65 5W warm white

74031
Saxby
74031
UOS: Each
Hide
Ideal for domestic use, the ShieldECO range has all the features required of an everyday downlight; fire rated, IP65 and dimmable. Tool-less and quick to install due to the 4 way push fit screwless terminal block. The 5W LED SMD module produces 500 lumens of warm white light from the anti-glare 60° lens. Slim profile with chrome finish.
  • Dimmable
  • Chrome plate & clear acrylic
  • Constructed from steel & acrylic
  • Shipment Carton Qty: 20
Login To Buy

Overview

  • Complete with integrated control gear
  • 5W LED module (SMD 2835) Warm White (Included)
  • K: 3000 Lm: 500 Lm/W: 100
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 30, 60 & 90 minutes
  • Proj: 3mm Dia: 81.5mm H: 59mm
  • Class 2
  • Cut hole Dia: 57mm
  • Samsung LED
  • 2+3YR Extended Warranty
  • Weight: 0.2 Kg

Specification

Colour Finish:
Chrome effect plate & clear acrylic
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    59
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588740315
    Packed Height (mm):
    12
    Packed Wid (mm):
    11
    Packed Depth (mm):
    8
    Packed Weight (kg):
    .27

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    27
    Outer Width (mm):
    23
    Outer Depth (mm):
    41.5
    Outer Gross Weight (kg):
    5.76
