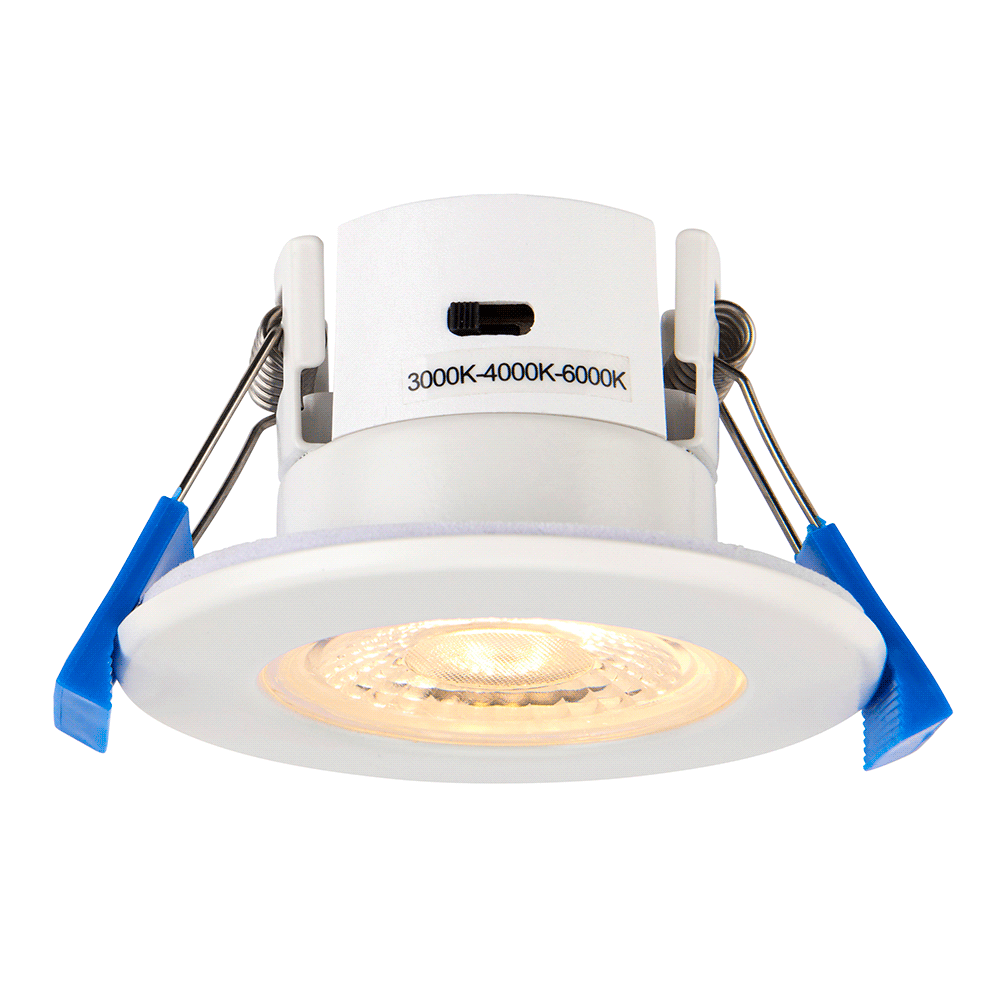

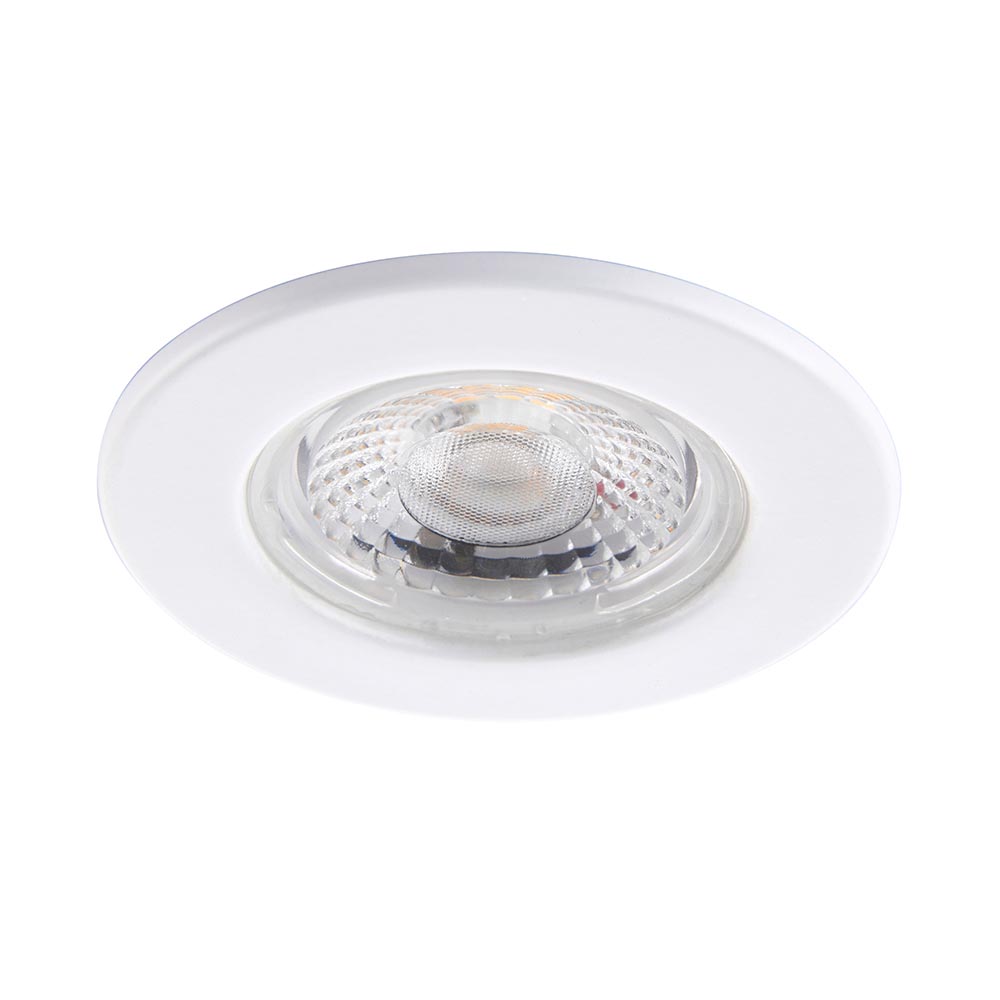

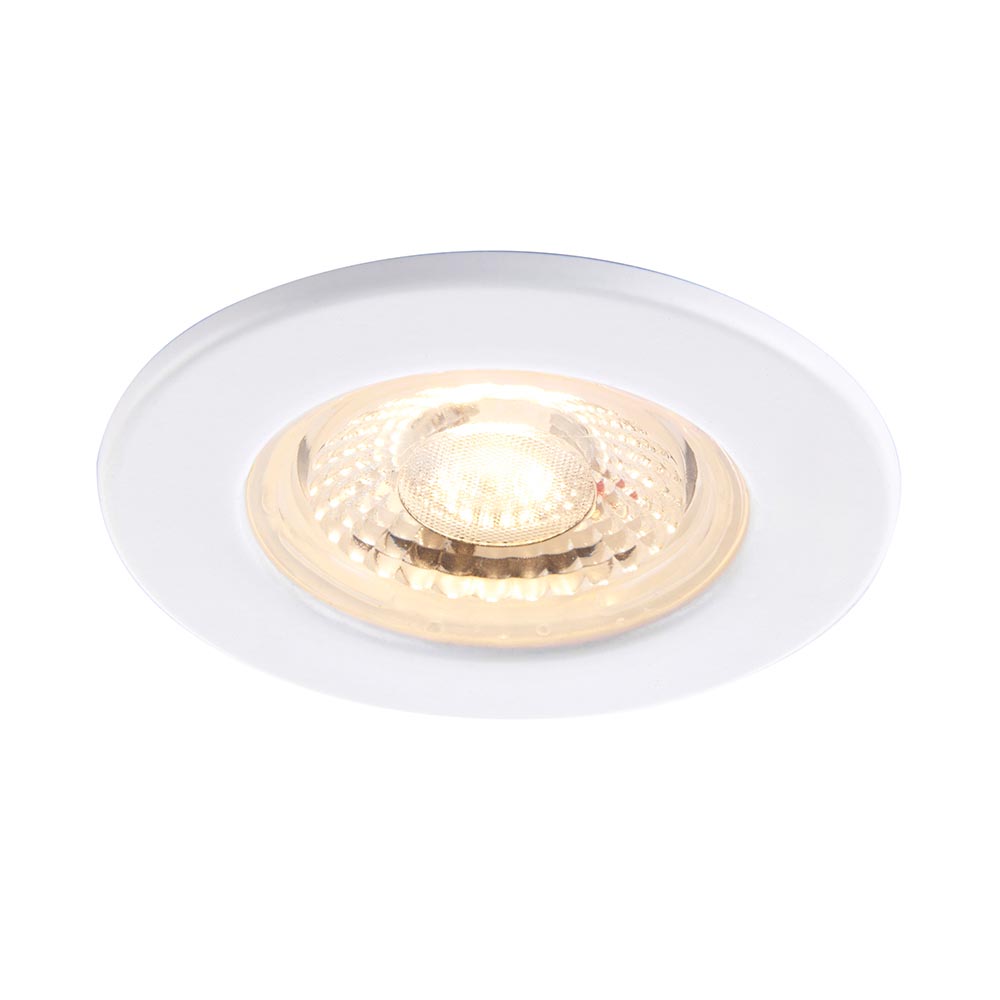

      ShieldECO CCT 5W IP65 - Single

      109804
      Saxby
      109804
      UOS: Each
      Hide

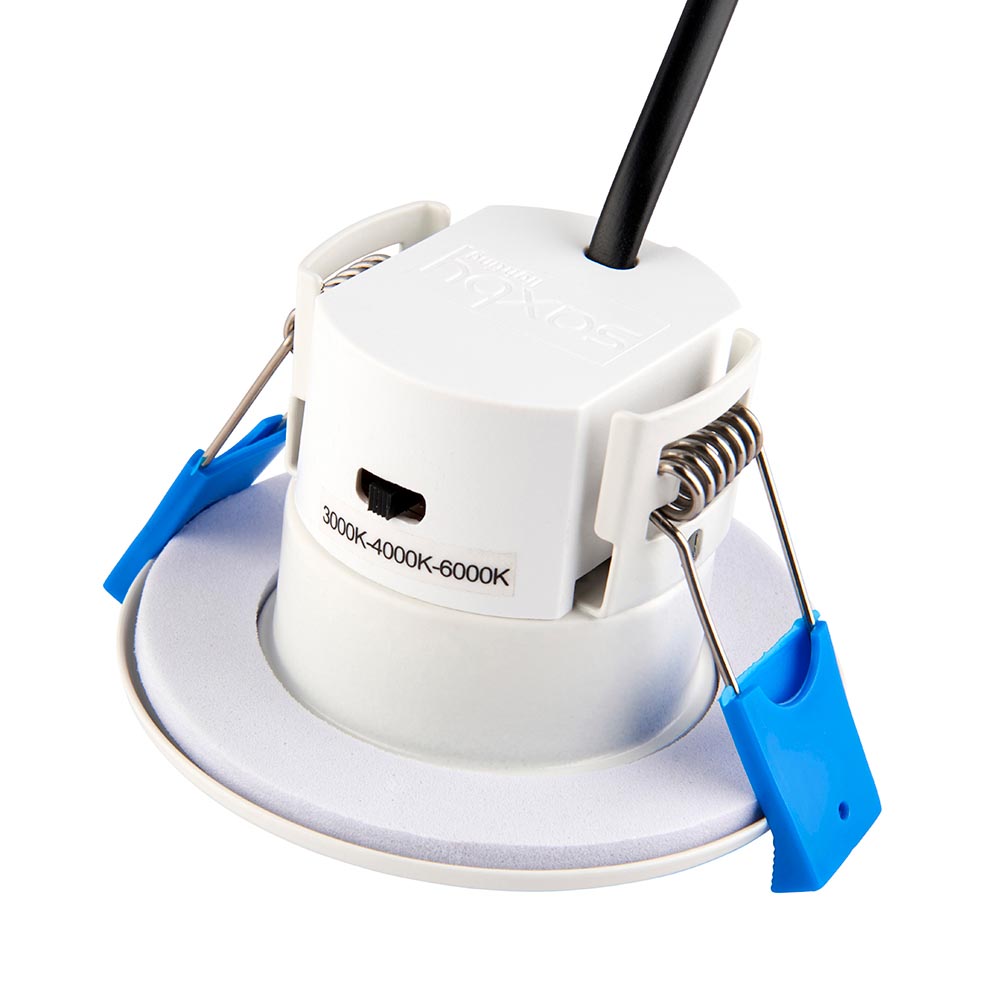

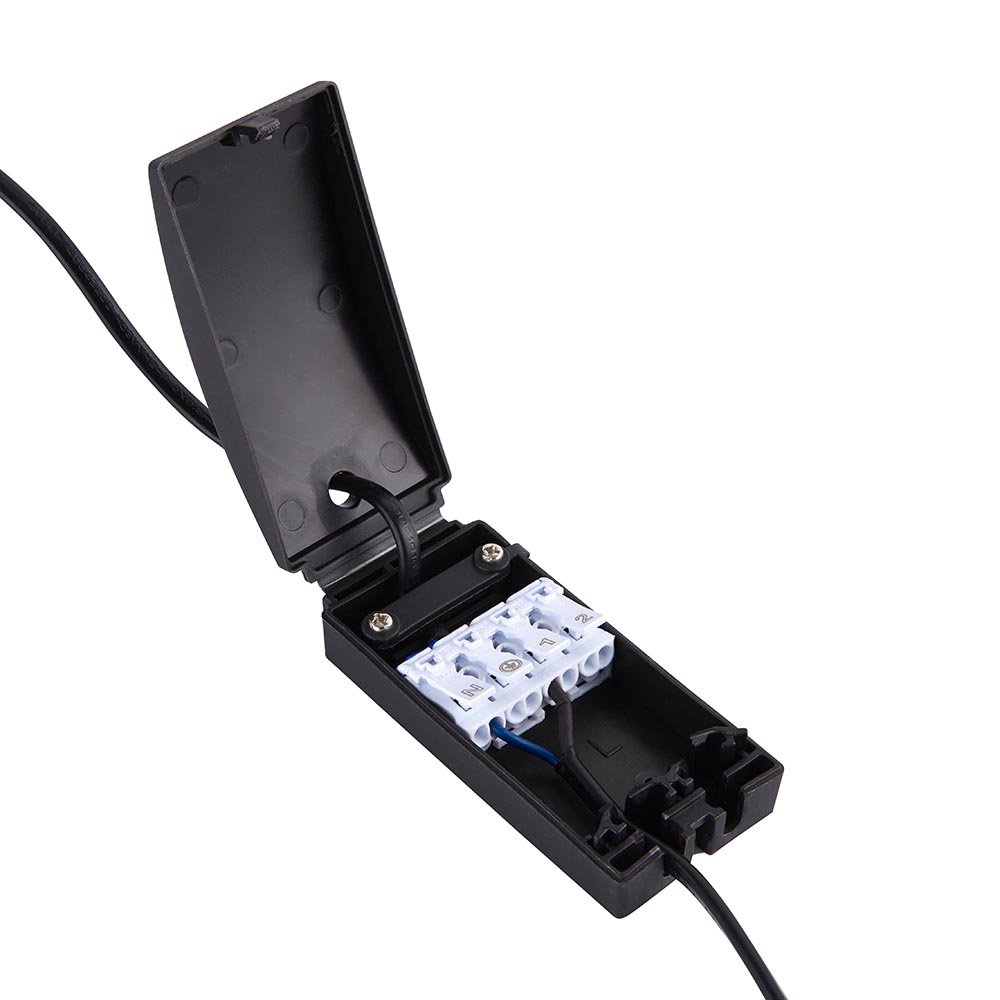

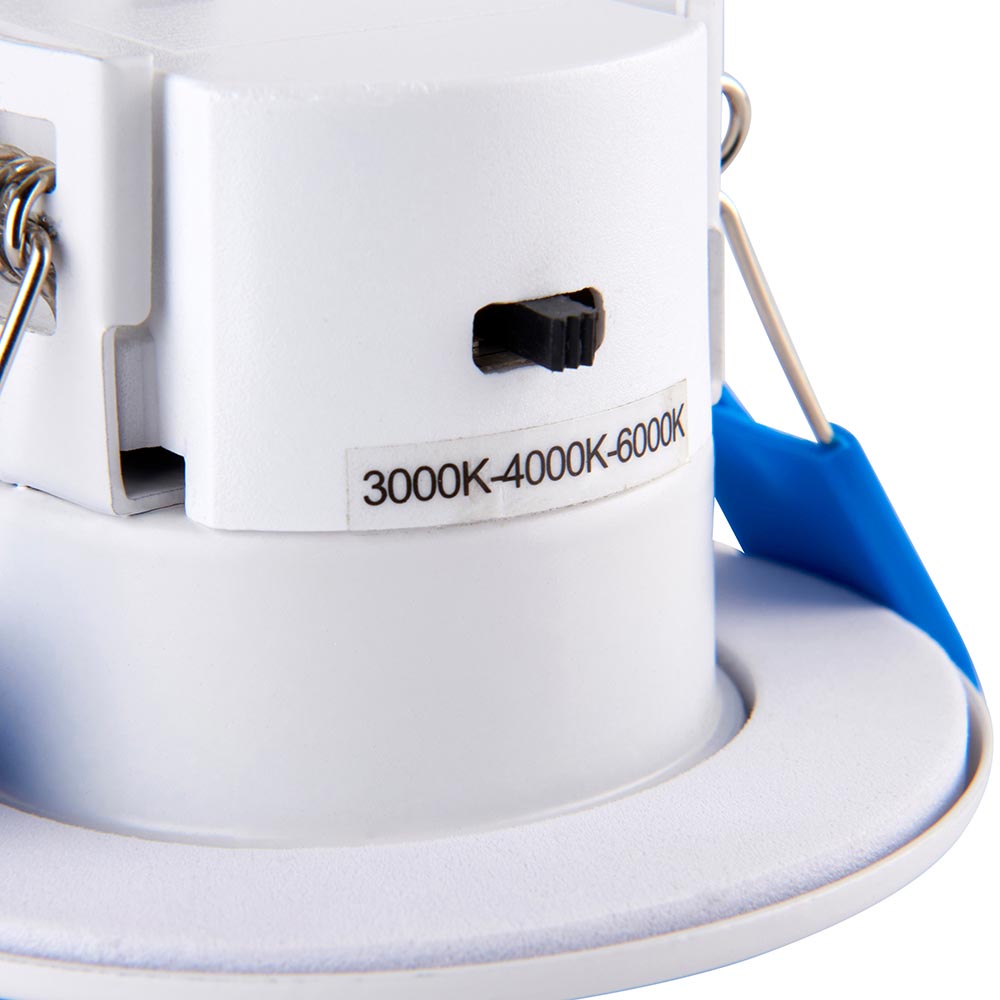

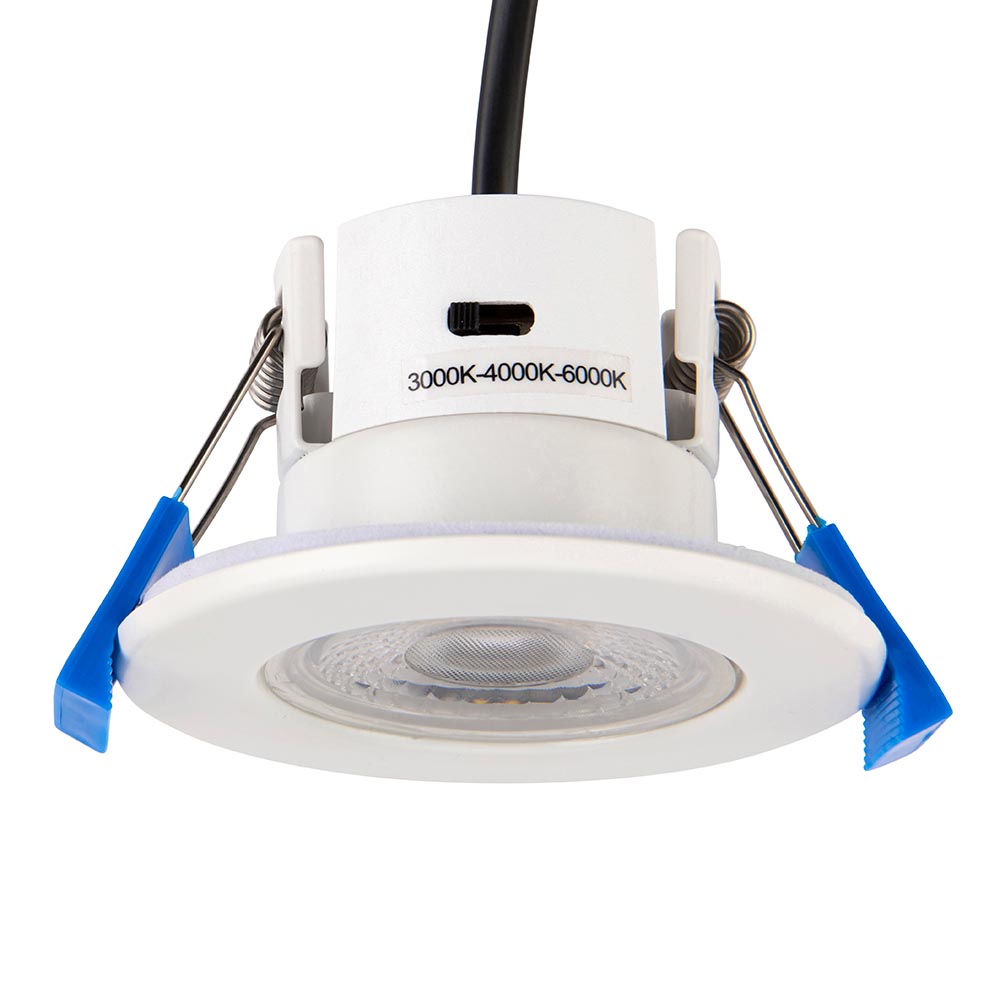

      The ShieldECO CCT has all the features required of an everyday downlight; fire rated, IP65 and dimmable. Incorporating CCT technology, allows for three colour temperatures; 3000K, 4000K & 6000K in one fitting. Our new and improved tool-less connection box, integrated within the rear of the fitting, allows for quick and easy push-fit installation. Slim profile with matt white finish. Additional bezel options; satin nickel, chrome, black, antique brass, polished brass & anthracite grey available to create the perfect finish in any setting. Available to purchase in singles or as a 10 packs.
      • Dimmable
      • Matt white & clear acrylic
      • Constructed from steel & polycarbonate & acrylic
      • Shipment Carton Qty: 50
      Overview
      Specification
      Documents
      Specification
      Dimensons
      Pack Quantities
      Case Quantities

      Overview

      • 5W LED module (SMD 2835 CCT) CCT (Included)
      • K: 3000/4000/6000 Lm: 550 Lm/W: 110
      • IP65. Suitable for bathroom zone 2
      • Suitable for bathroom zone 1&2 and used in conjunction with a 30MA RCD
      • Fire rated to 30, 60 & 90 minutes
      • Proj: 3mm H: 49mm Dia: 82mm
      • Class 2
      • Cut hole Dia: 57mm

      Specification

      Colour Finish:
      Matt white paint & clear acrylic
      IP Rating:
      65
      Operating Voltage:
      220-240V
      Commodity Code:
      9405423990
      Country Of Origin:
      China

      Documents

      Specification



    • Commodity Code: 9405423990
    • Country of Origin: China


    • Technical Datasheet

      Photometric LDT File

      Dimensons

      Unpacked Height (mm):
      49
      Unpacked Width (mm):
      No Width
      Unpacked Depth (mm):
      No Depth

      Pack Quantities

      Package Pack Type:
      Retail carton
      Package EAN:
      5017588098041
      Packed Height (mm):
      6.5
      Packed Wid (mm):
      10
      Packed Depth (mm):
      10
      Packed Weight (kg):
      .23

      Case Quantities

      Outer Carton
      Outer Pack Type:
      Shipment carton
      Outer Qty:
      50
      Outer Height (mm):
      52
      Outer Width (mm):
      21
      Outer Depth (mm):
      34.5
      Outer Gross Weight (kg):
      12.19
      Products you may also be interested in

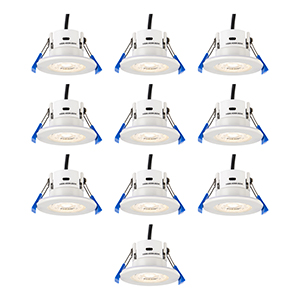

      ShieldECO CCT 5W IP65 - 10 Pack
      Associated Products

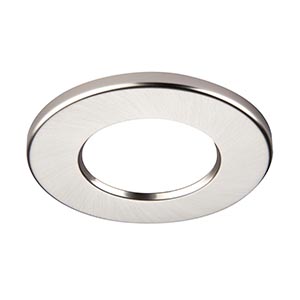

      ShieldECO Bezel - Satin Nickel

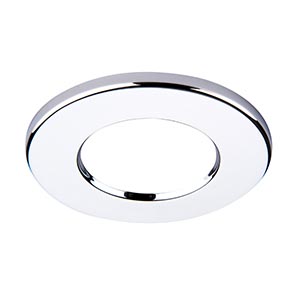

      ShieldECO Bezel - Chrome

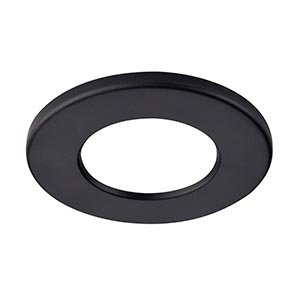

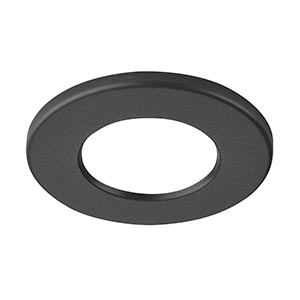

      ShieldECO Bezel - Black

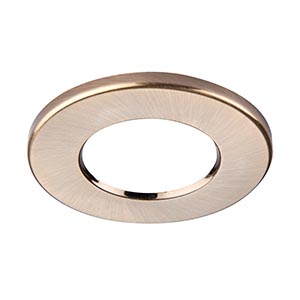

      ShieldECO Bezel - Antique Brass

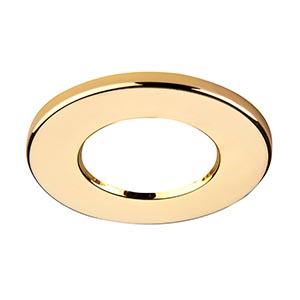

      ShieldECO Bezel - Polished Brass
