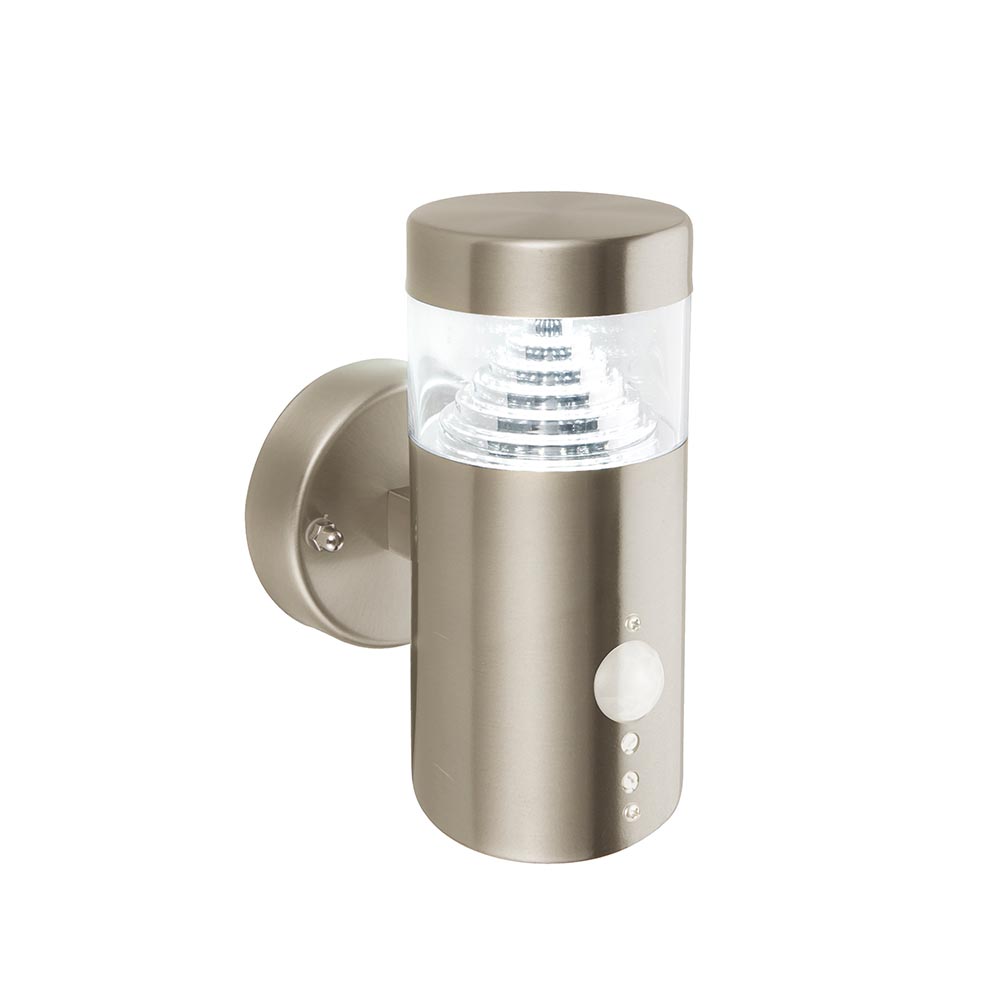

Pyramid wall PIR IP44 4.3W daylight white

92533
Saxby
92533
UOS: Each
Hide
The Pyramid is a LED, high quality exterior lighting range which uses a stepped reflector to provide a distinctive light pattern. Available in a choice of wall and post options and finished in brushed stainless steel.
  • Complete with built in Manual override PIR
  • 10 ± 5 lux On, 30 ± 10 lux Off, 110˚ detection angle, 8m maximum range with a 5 sec - 5 min timer function
  • Brushed stainless steel & clear pc
  • Constructed from stainless steel (304) & polycarbonate
  • Shipment Carton Qty: 4
Login To Buy

Overview

  • Complete with LED driver
  • 4.3W LED module (SMD 2835) Daylight White (Included)
  • K: 6500 Lm: 320 Lm/W: 74
  • IP44
  • H: 165mm W: 85mm Proj: 130mm
  • Class 1
  • 2+1YR Extended Warranty
  • Weight: 0.5 Kg

Specification

Colour Finish:
Brushed stainless steel & clear pc
IP Rating:
44
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

10 ± 5 lux On, 30 ± 10 lux Off, 110˚ detection angle, 8m maximum range with a 5 sec - 5 min timer function

  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    165
    Unpacked Width (mm):
    85
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588925330
    Packed Height (mm):
    14.5
    Packed Wid (mm):
    9
    Packed Depth (mm):
    17.5
    Packed Weight (kg):
    .5

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    4
    Outer Height (mm):
    31
    Outer Width (mm):
    19.5
    Outer Depth (mm):
    19.5
    Outer Gross Weight (kg):
    2.2
