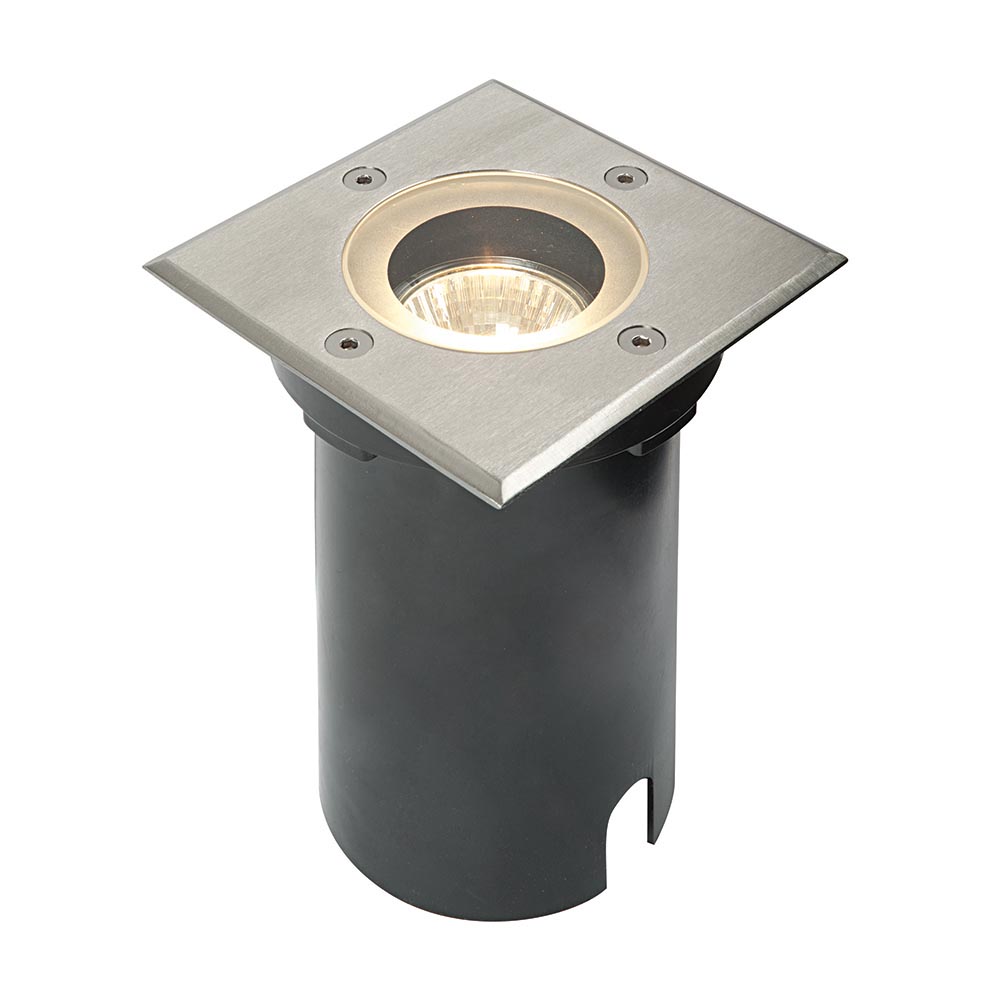

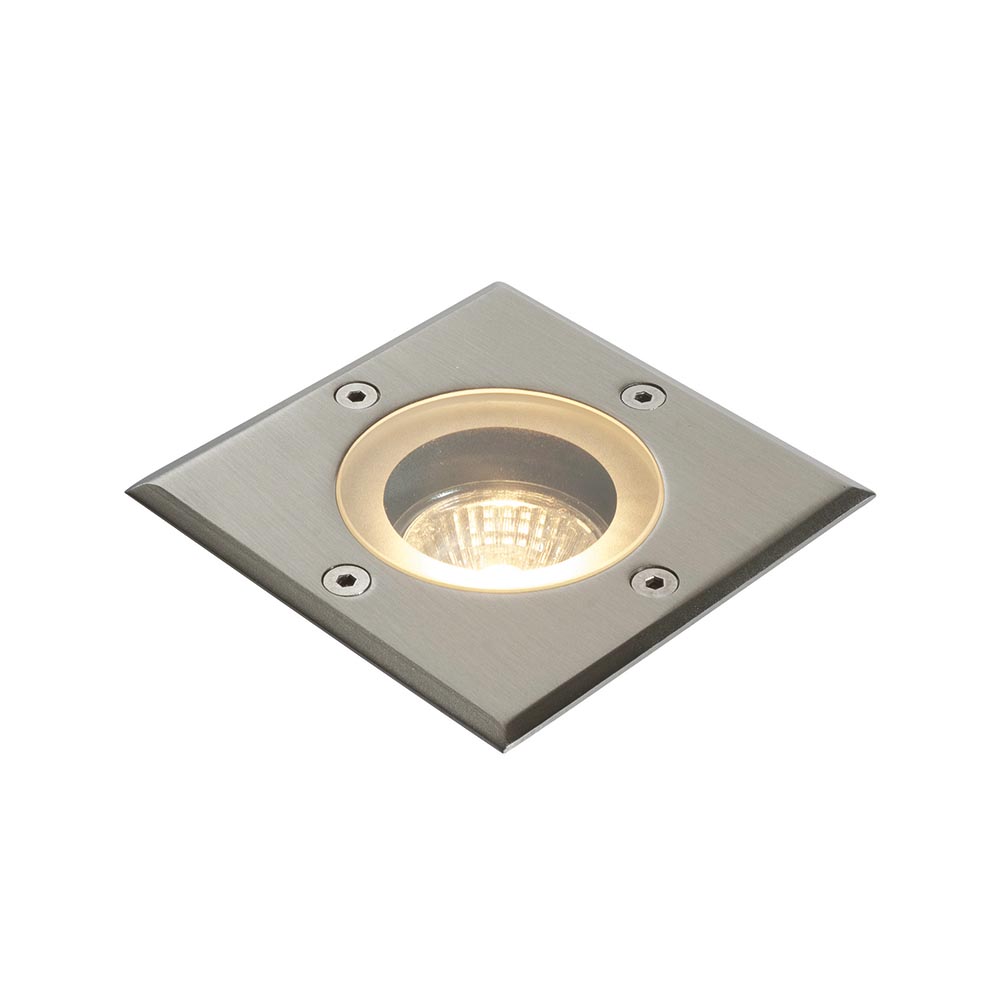

Pillar square marine grade IP65 7W

52211
Saxby
52211
UOS: Each
Hide
This fitting is manufactured from marine grade stainless steel making it the ideal choice for marine or seaside locations; built to last and suitable for walkover applications. Round shape also available.
  • Manufactured from marine grade stainless steel
  • Dimmable
  • Marine grade br stainless steel & clear glass
  • Constructed from marine grade stainless steel (316l) & glass
  • Shipment Carton Qty: 6
Login To Buy

Overview

  • 7W LED GU10 (bulb not included)
  • IP65
  • Proj: 6mm H: 150mm Sq: 110mm
  • Class 1
  • Cut hole Dia: 102mm
  • 2YR Warranty
  • Weight: 0.7 Kg

Specification

Colour Finish:
Marine grade brushed stainless steel & clear glass
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405919000
Country Of Origin:
China

Documents

Specification

These products are dual IP rated. The visible part is rated at IP65, and the cable entry is rated at IP67. These require drainage underneath them, but will cope with short periods of temporary immersion

  • Commodity Code: 9405919000
  • Country of Origin: China


    • Technical Datasheet

    Dimensons

    Unpacked Height (mm):
    150
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588522119
    Packed Height (mm):
    16
    Packed Wid (mm):
    11.3
    Packed Depth (mm):
    11.3
    Packed Weight (kg):
    .81

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    6
    Outer Height (mm):
    18
    Outer Width (mm):
    35.5
    Outer Depth (mm):
    24
    Outer Gross Weight (kg):
    5.25
