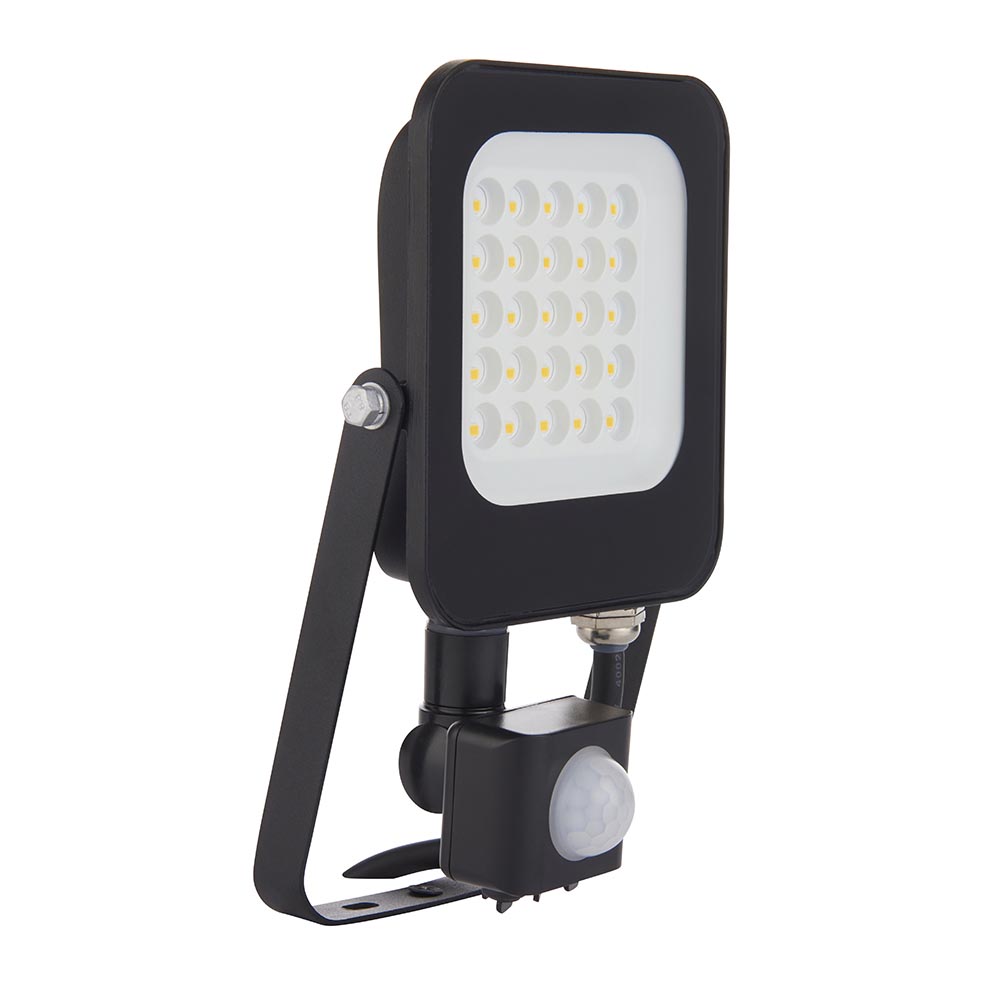

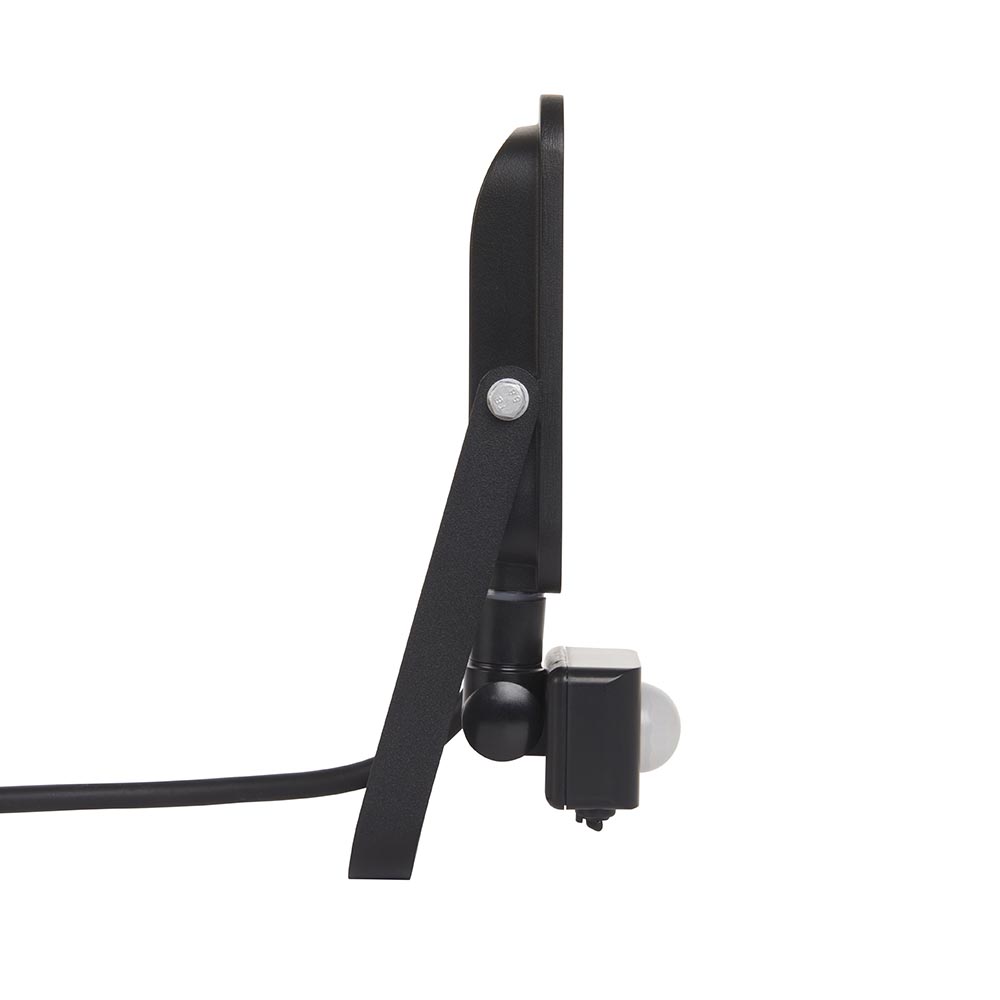

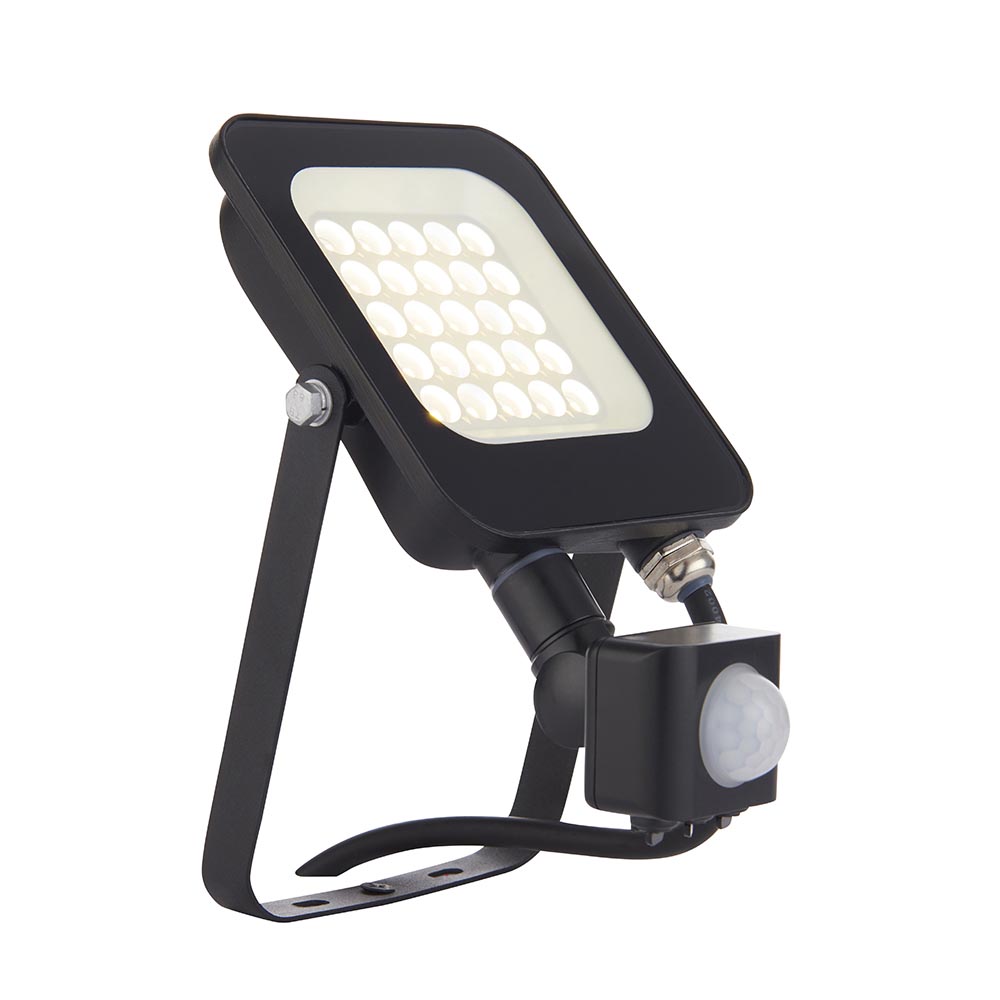

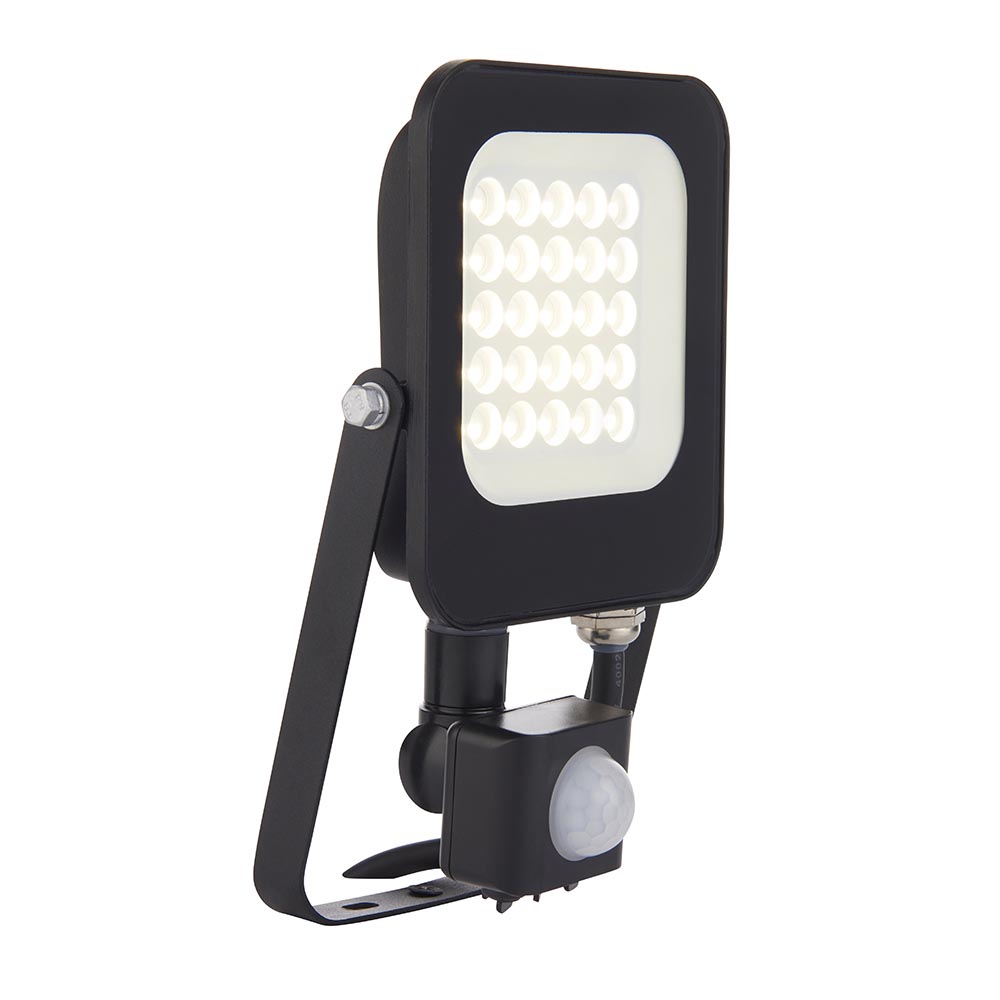

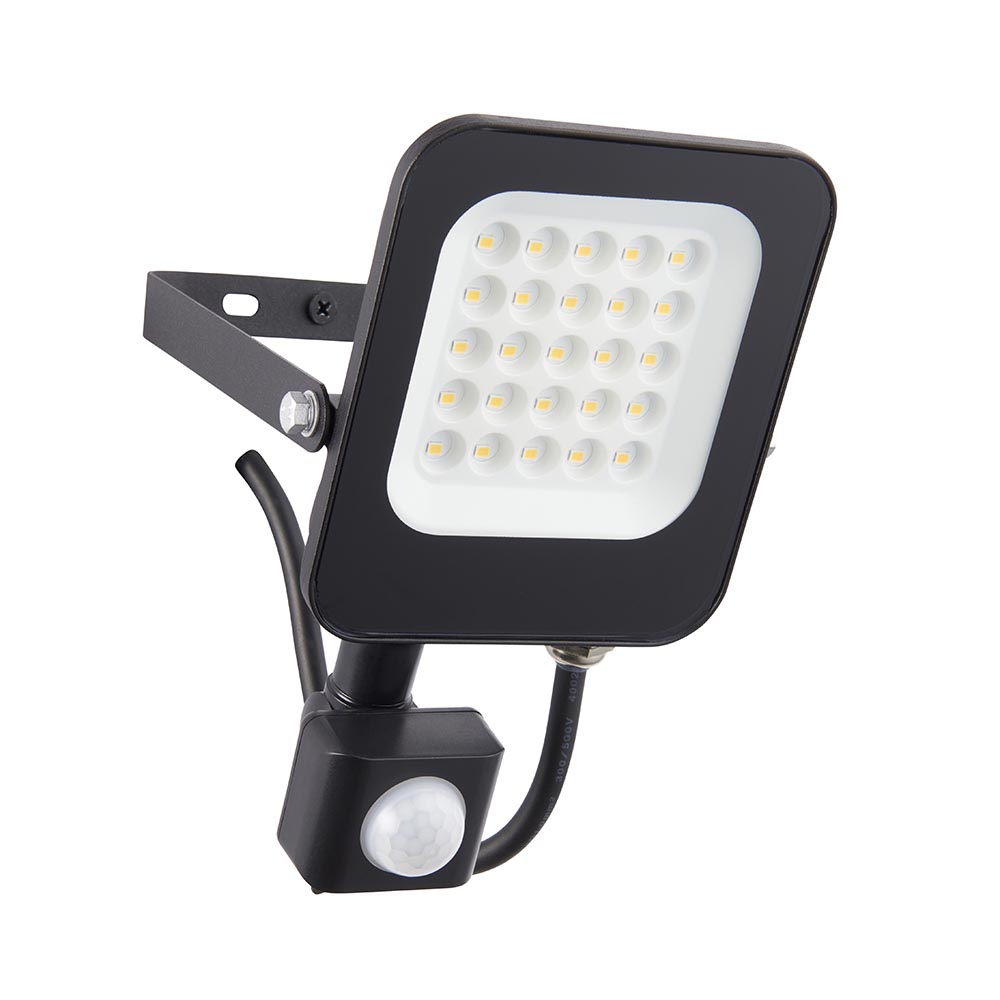

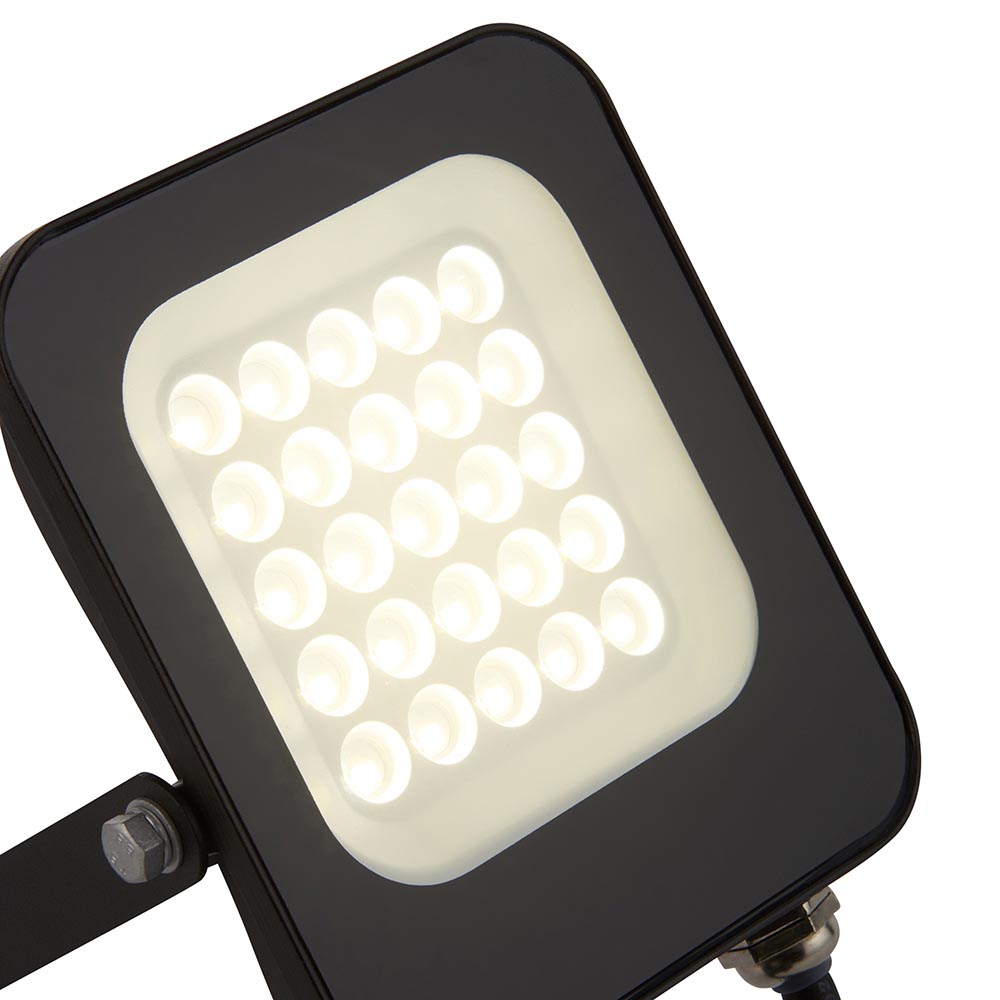

Guard PIR Override 20W Floodlight 4000K IP65

108673
Saxby
108673
UOS: Each
Hide
Introducing Guard: Our brand new floodlight to join the Saxby range. Crafted with precision and passion, the Guard floodlights redefine outdoor lighting, ensuring safety, security, and stunning aesthetics. With a wide-angle beam that effortlessly bathes your space in radiant light, the Guard floodlights eliminate shadows and dark corners, providing comprehensive coverage that leaves no place for darkness to hide.
  • Complete with built in Manual override PIR
  • 10 - 2000 lux. 120° detection angle, 8 +/- 2m maximum range with a 10 +/- 3 sec -7+/- 2 min timer function
  • Matt black & clear glass
  • Constructed from die cast aluminium alloy & glass
  • Shipment Carton Qty: 20
Login To Buy

Overview

  • Complete with integrated control gear
  • 20W LED module (SMD 2835) Cool White (Included)
  • K: 4000 Lm: 1800 Lm/W: 90
  • IP65
  • Proj: 54.1mm H: 189.9mm W: 121.3mm
  • Class 1
  • Anti-glare design
  • 2+1YR Extended Warranty
  • Weight: 0.4 Kg

Specification

Colour Finish:
Matt black paint & clear glass
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

10 - 2000 lux. 120° detection angle, 8 +/- 2m maximum range with a 10 +/- 3 sec -7+/- 2 min timer function

  • Commodity Code: 9405423990
  • Country of Origin:


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    189.9
    Unpacked Width (mm):
    121.3
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588086734
    Packed Height (mm):
    6
    Packed Wid (mm):
    13
    Packed Depth (mm):
    20
    Packed Weight (kg):
    .53

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    54.5
    Outer Width (mm):
    32
    Outer Depth (mm):
    22
    Outer Gross Weight (kg):
    11.38
