Luik Microwave emergency gear tray EM 18W cct

72181
Saxby
72181
UOS: Each
Hide

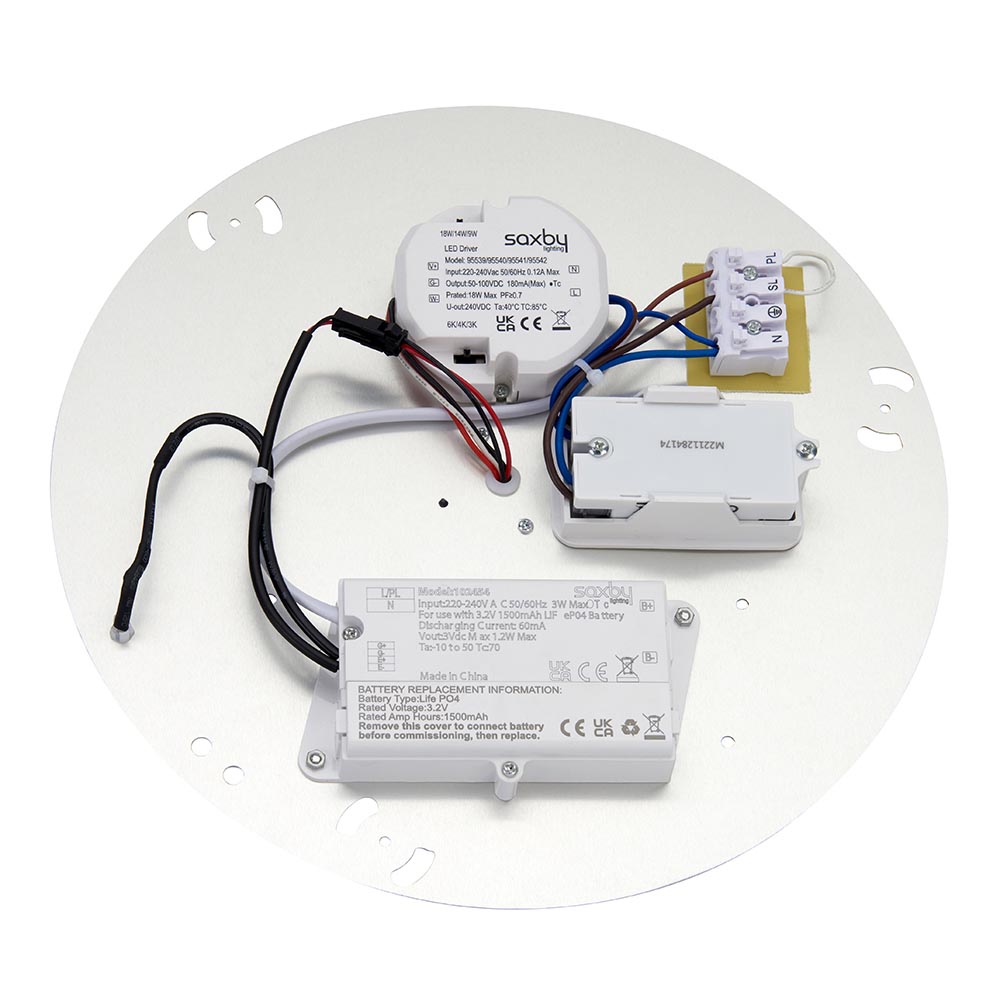

This is the Luik gear tray with both emergency gear and a microwave sensor. It is designed to be used with the Luik bulkheads. Also available in standard, emergency and microwave.

Casing is available in related items
  • Complete with built in Microwave sensor
  • 360 /120˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall
  • Gloss white

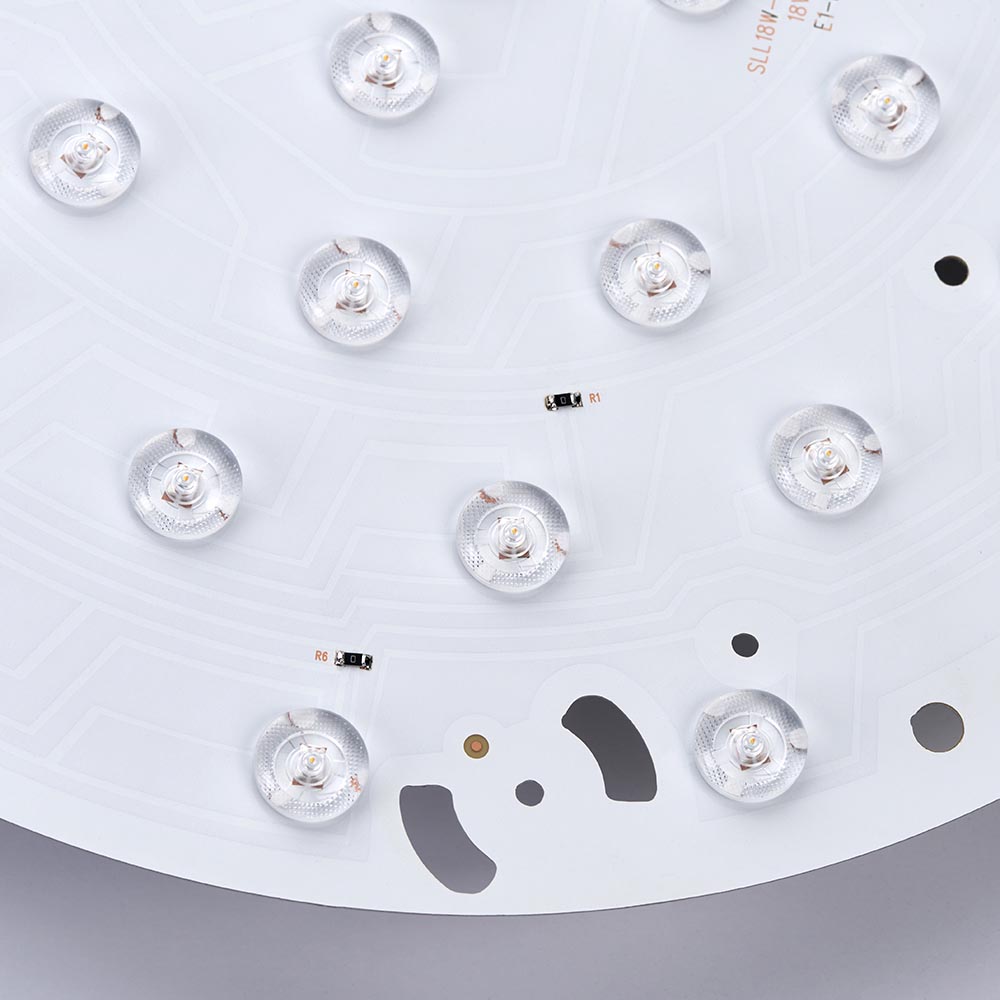

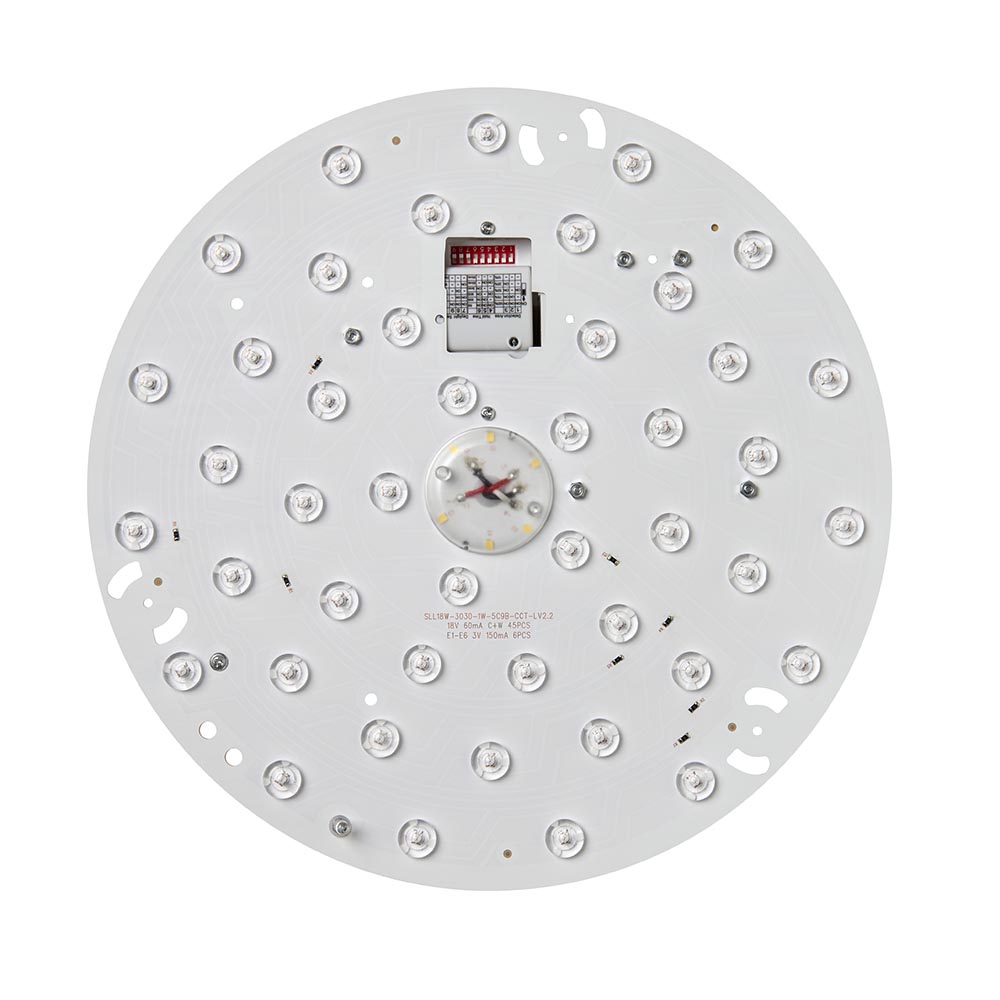

  • Constructed from fibreglass pcb
  • Shipment Carton Qty: 14
Login To Buy

Overview

  • 9/14/18W Selectable
  • 3CCT: 3000/4000/6000 Lm: 2500 Lm/W: 139
  • IP20
  • H: 31.5mm Dia: 282mm
  • Emergency maintained fitting
  • Class 1

    • Specification

    Colour Finish:
    Gloss white paint
    IP Rating:
    20
    Operating Voltage:
    220-240V
    Commodity Code:
    8543709055
    Country Of Origin:
    China

    Documents

    Specification

    360 /120˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall

  • Commodity Code: 8543709055
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    31.5
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588721819
    Packed Height (mm):
    28.5
    Packed Wid (mm):
    28.5
    Packed Depth (mm):
    4
    Packed Weight (kg):
    .74

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    14
    Outer Height (mm):
    29.9
    Outer Width (mm):
    58
    Outer Depth (mm):
    29.9
    Outer Gross Weight (kg):
    11.26
