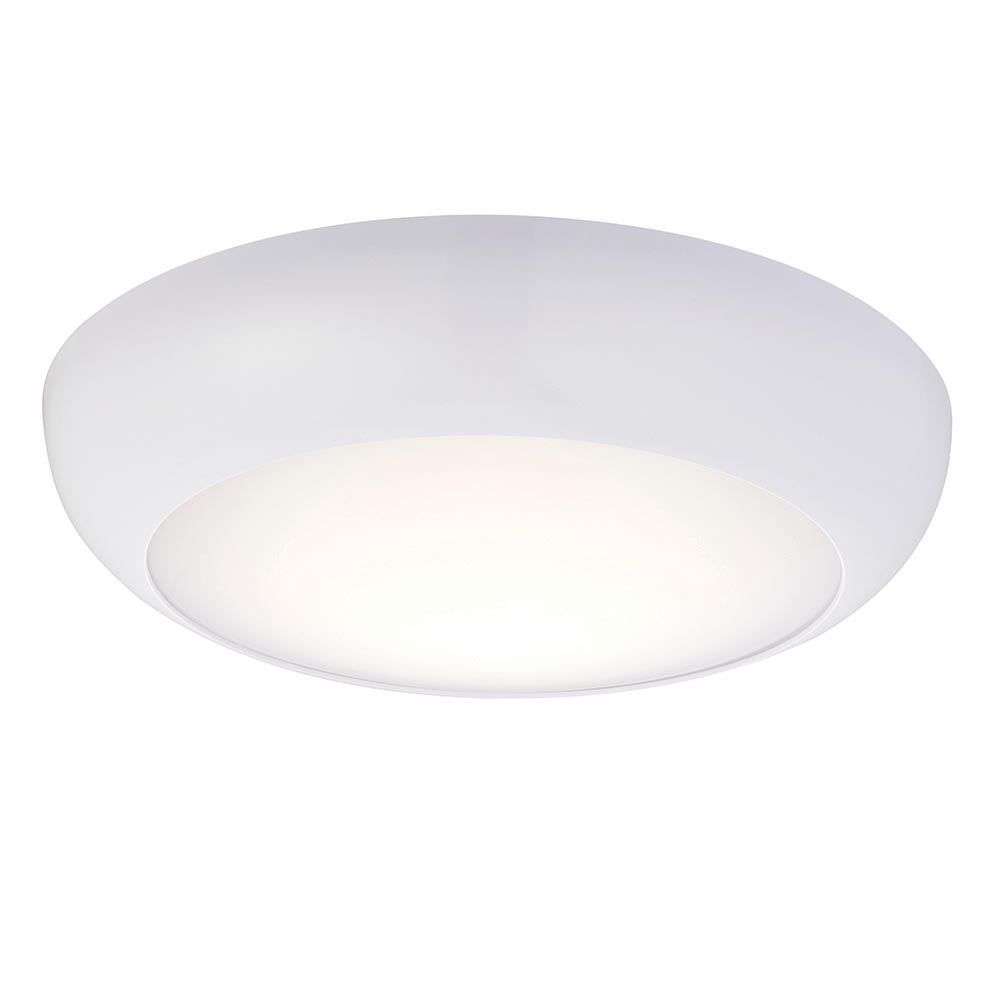

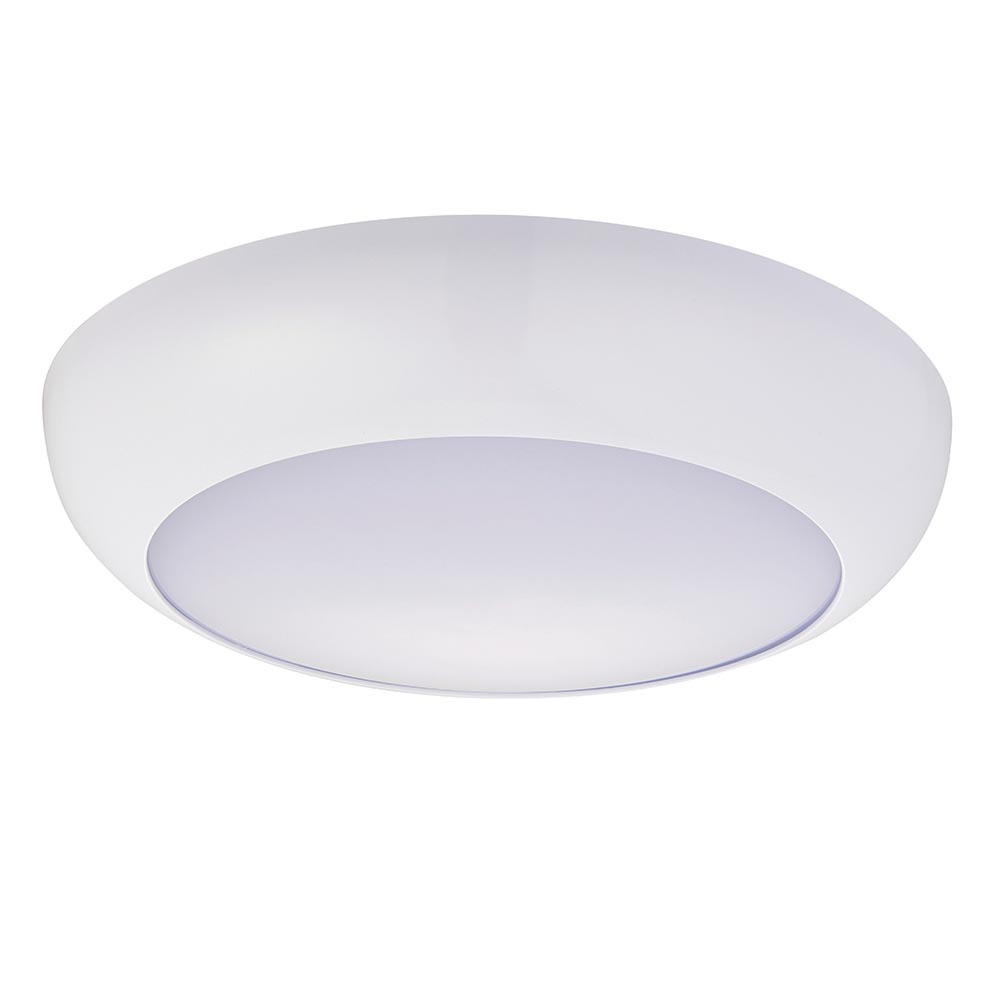

Forca Microwave IP65 12W cool white

77893
Saxby
77893
UOS: Each
Hide
The Forca is a functional bulkhead built to last, manufactured from polycarbonate, with a gloss white finish this fitting is suitable for both commercial and domestic applications. Featuring a screw lock design & IK08 rated, these fittings are sturdy and reliable; available in a choice of standard, emergency and sensor options. Range boasts a choice of bezel finishes & shapes.
  • Complete with built in Microwave sensor
  • 360 /120˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall
  • Gloss white & opal pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 6

Overview

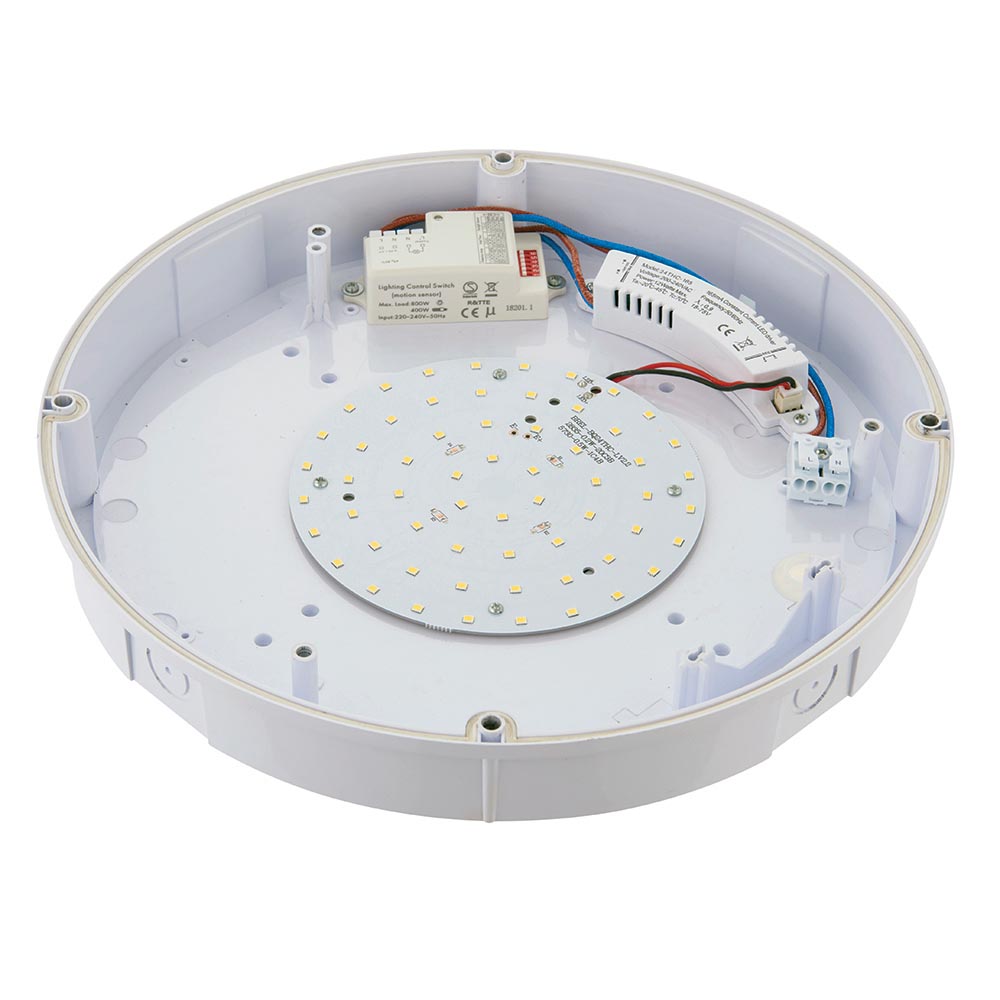

  • Complete with LED driver
  • 12W LED module (SMD 2835) Cool White (Included)
  • K: 4000 Lm: 1140 Lm/W: 95
  • IP65
  • Proj: 90mm Dia: 340mm
  • Class 2
  • 2+3YR Extended Warranty
  • Weight: 0.9 Kg

Specification

Colour Finish:
Gloss white & opal pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

360 /120˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall

  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588778936
    Packed Height (mm):
    35
    Packed Wid (mm):
    35
    Packed Depth (mm):
    9.5
    Packed Weight (kg):
    1.21

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    6
    Outer Height (mm):
    31
    Outer Width (mm):
    72
    Outer Depth (mm):
    36
    Outer Gross Weight (kg):
    8.37
