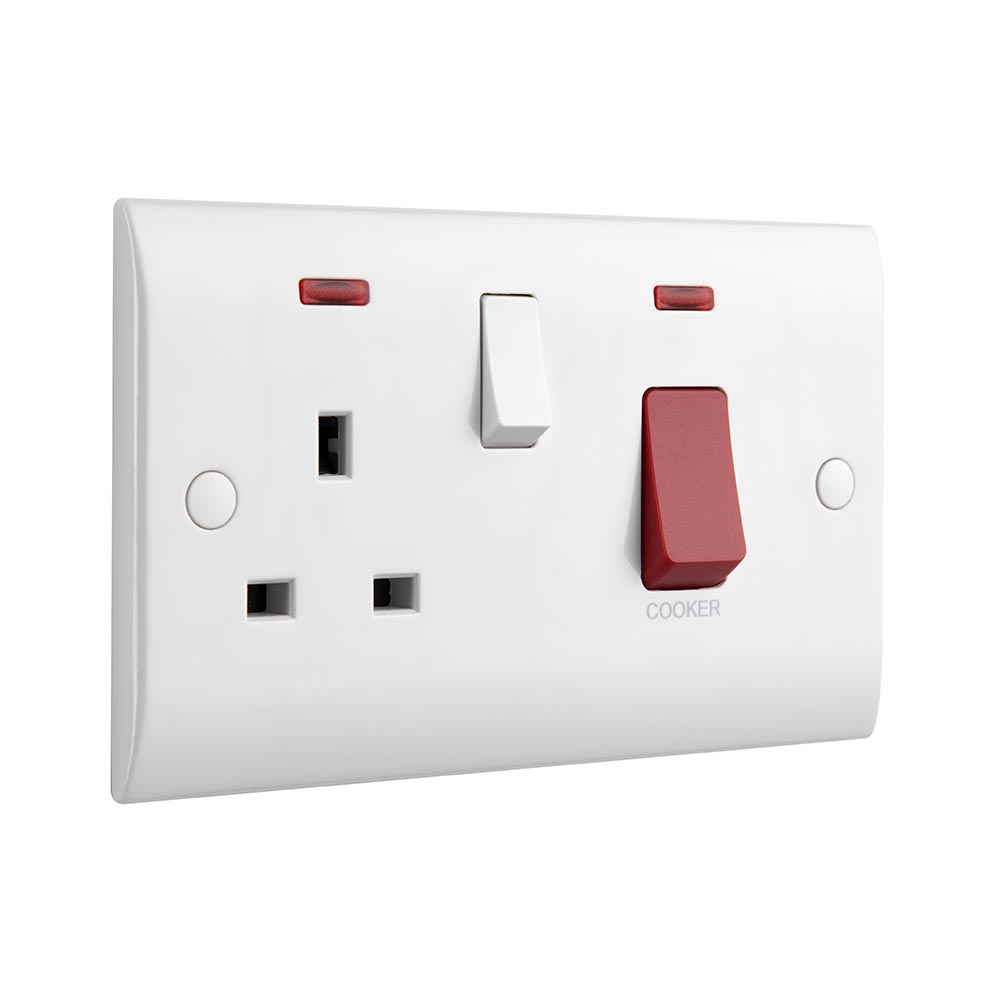

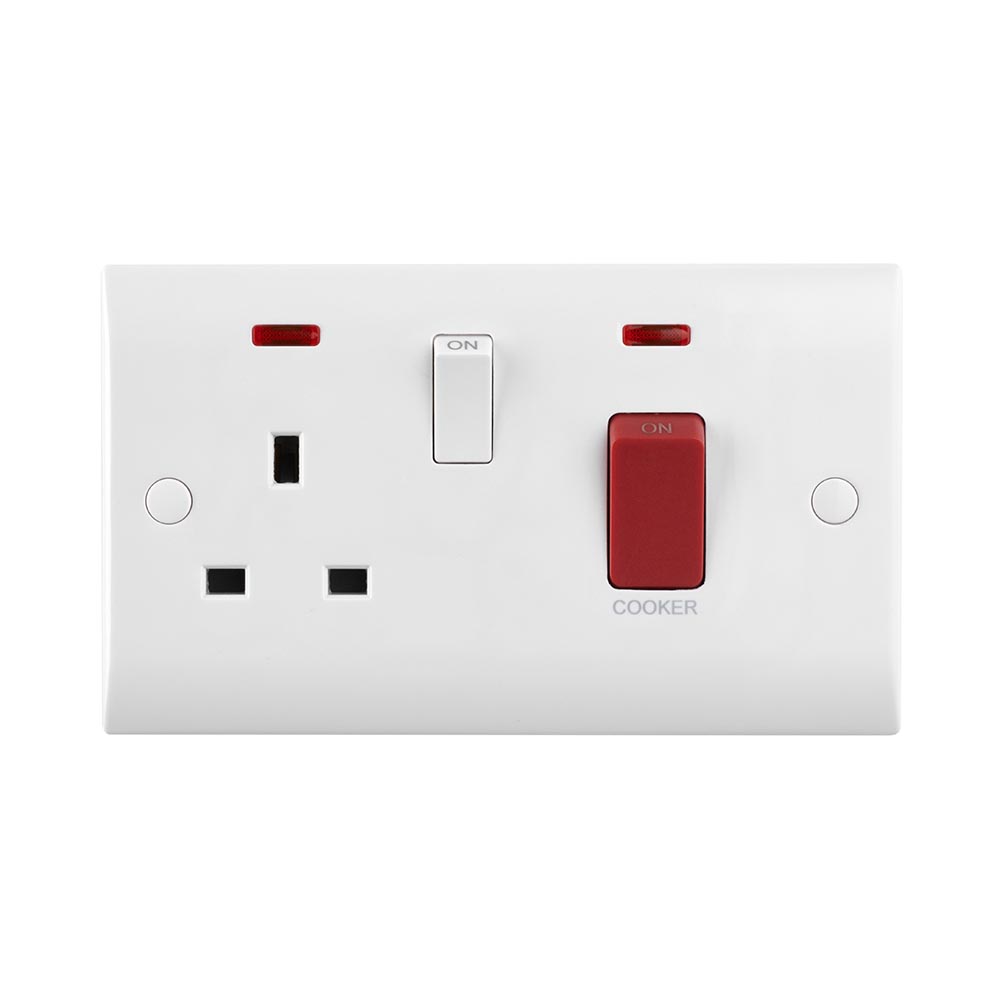

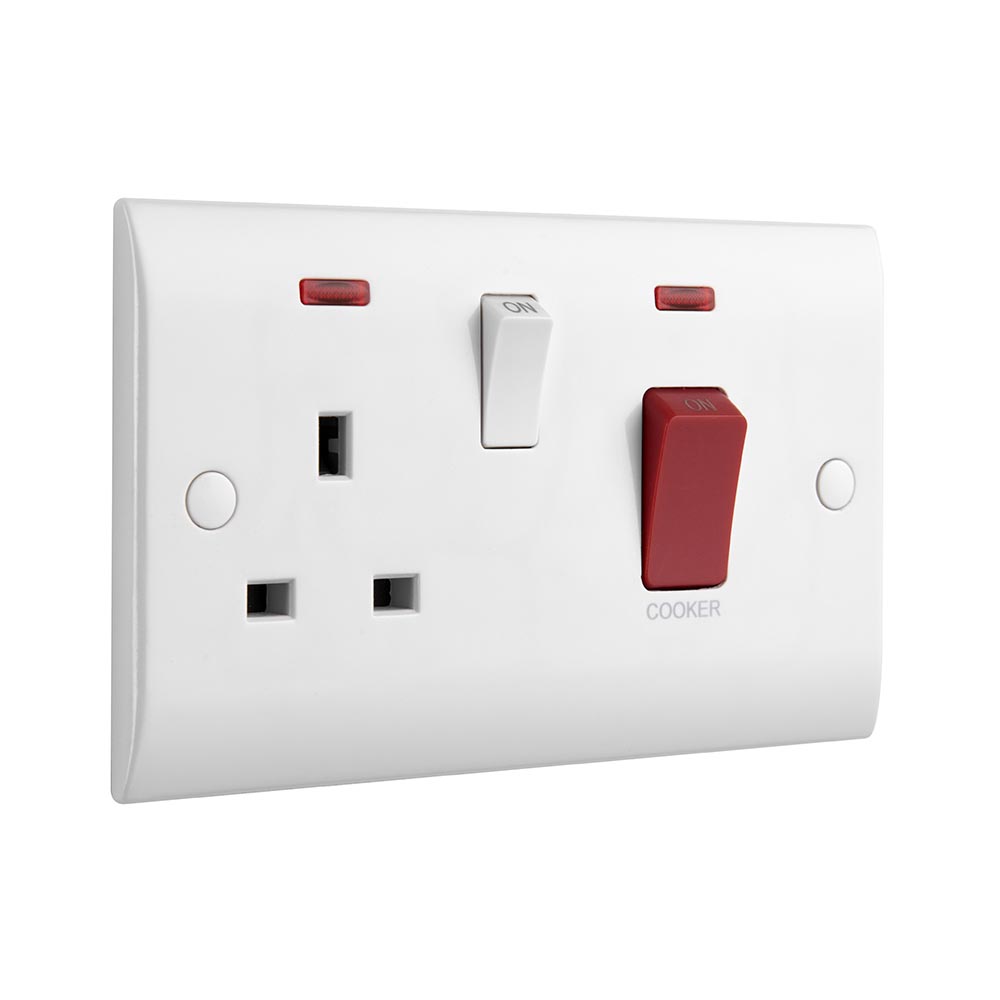

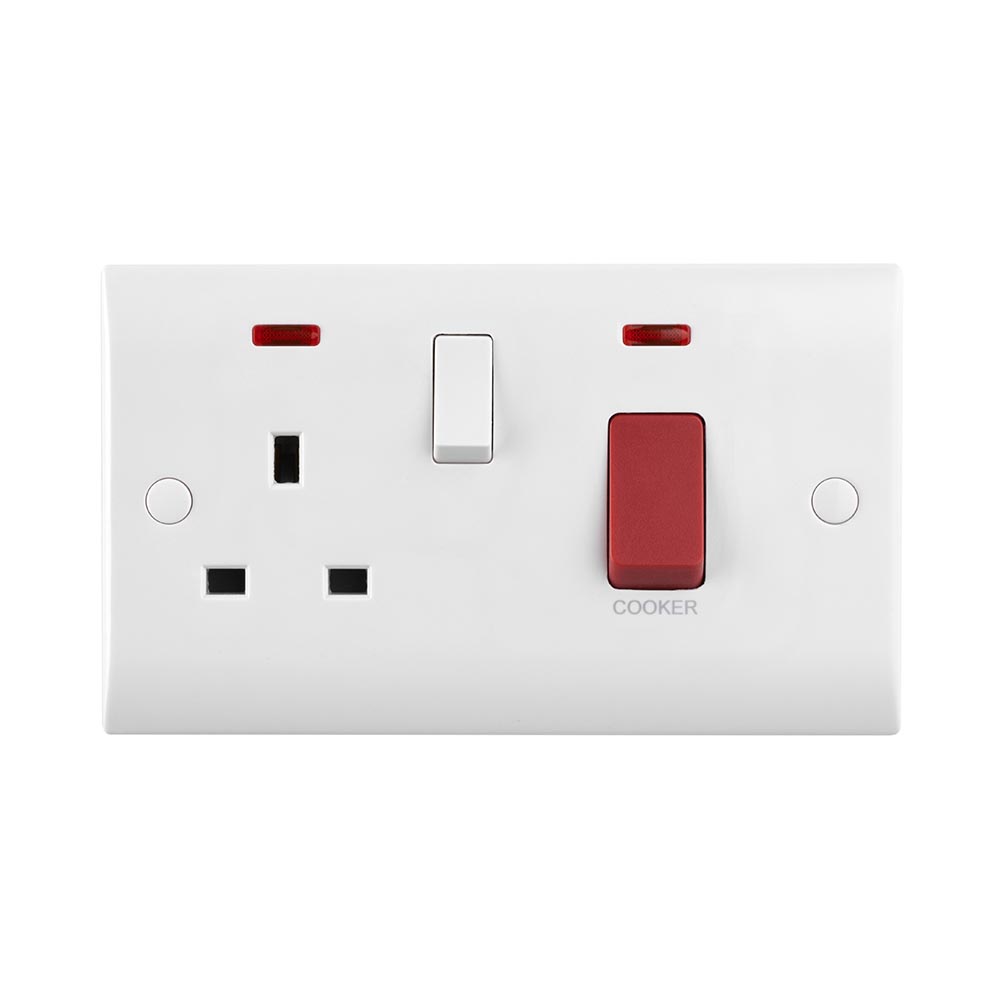

Curved Edge 45A DP Cooker Switch with 13A Socket with Neon

CE551
Saxby-Electrical
CE551
UOS: Each
Hide
Login To Buy

Overview

  • Our 45A / 13A rated switch socket boasts captive screws which provide for quick, easy and a hassle free installation
  • 13A socket has been provided for an additional power outlet
  • Supplied with fixing screws & white screw covers for sleek appearance
  • Double pole switching for the peace of mind of a safer installation of your socket

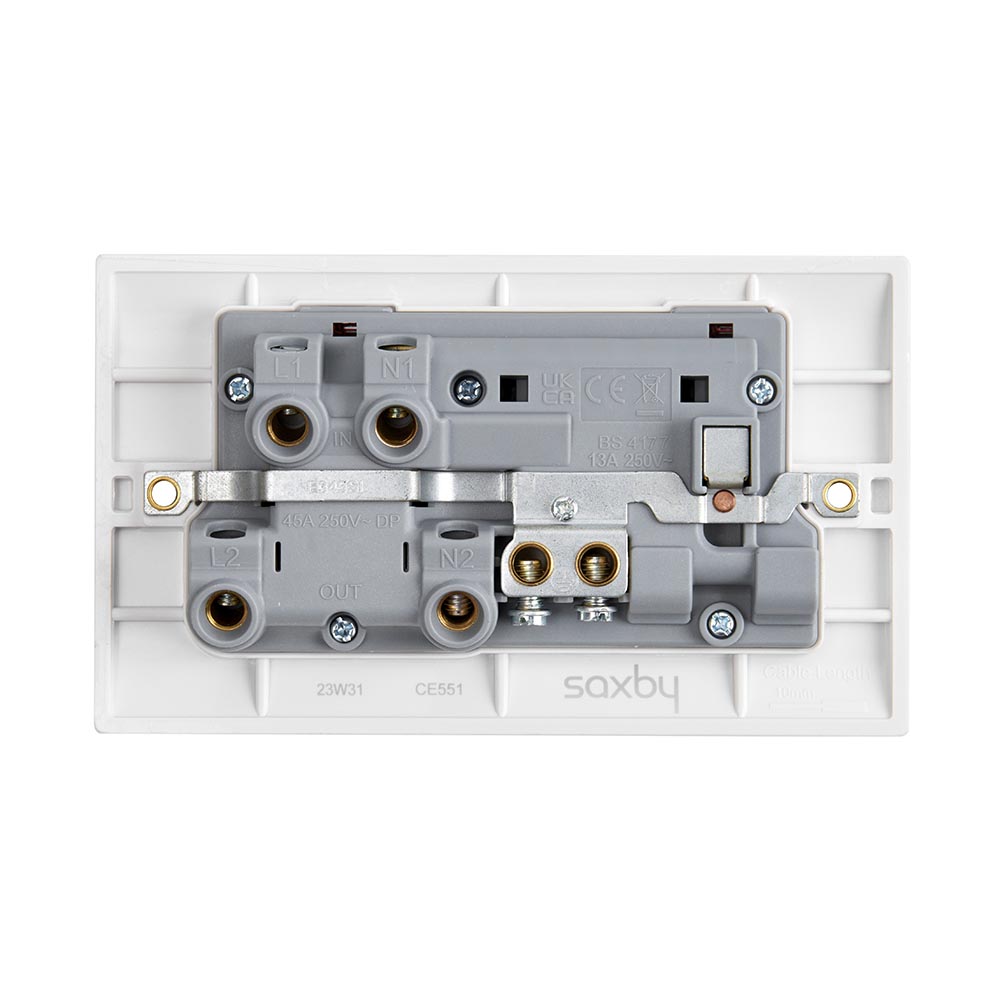

  • Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
  • Flush neon power indicator on faceplate
  • This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • We recommend a minimum mounting box depth of 47mm
  • Certified to BS 4177

    • Specification

    Colour Finish:
    White
    Captive Terminal Screw:
    YES
    Fixing Screws Supplied:
    YES
    Minimum Box Depth (mm):
    35
    Terminal Capacity (mm):
    16²*1/ 6²*2/ 4²*3/ 2.5²*4
    Number of Earth Terminals:
    2
    Screw Caps:
    INCLUDED
    Socket Type:
    1G UK 13A
    IP Rating:
    20
    Switch Type:
    DOUBLE POLE
    Anti-Microbial Property:
    YES
    Operating Voltage:
    250V 50Hz
    Anti-Fingerprint Lacquer:
    YES
    Commodity Code:
    8536508090
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 8536508090
  • Country of Origin:


    • Technical Datasheet

    Dimensons

    Unpacked Height (mm):
    86
    Unpacked Width (mm):
    146
    Unpacked Depth (mm):
    29.1

    Pack Quantities

    Package Pack Type:
    PRINTED BAG
    Package Hanging:
    YES
    Package EAN:
    5017588057222
    Packed Height (mm):
    22.3
    Packed Wid (mm):
    11
    Packed Depth (mm):
    2.92
    Packed Weight (kg):
    .21

    Case Quantities

    Inner Carton
    Inner Pack Type:
    SAXBY BRAND BOX
    Inner Qty:
    5
    Inner EAN:
    0105017588057222
    Inner Height (mm):
    9.2
    Inner Width (mm):
    16.2
    Inner Depth (mm):
    18.2
    Inner Gross Weight (kg):
    1.1
    Outer Carton
    Outer Pack Type:
    BROWN BOX
    Outer Qty:
    50
    Outer Height (mm):
    21.5
    Outer Width (mm):
    33
    Outer Depth (mm):
    50.5
    Outer Gross Weight (kg):
    11.76

    FAQs

    Other Colours

    Products you may also be interested in

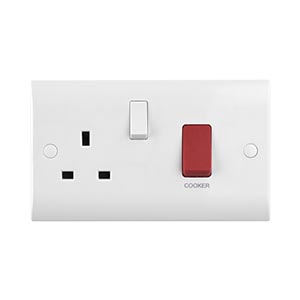

    Curved Edge 45A DP Cooker Switch with 13A Socket
