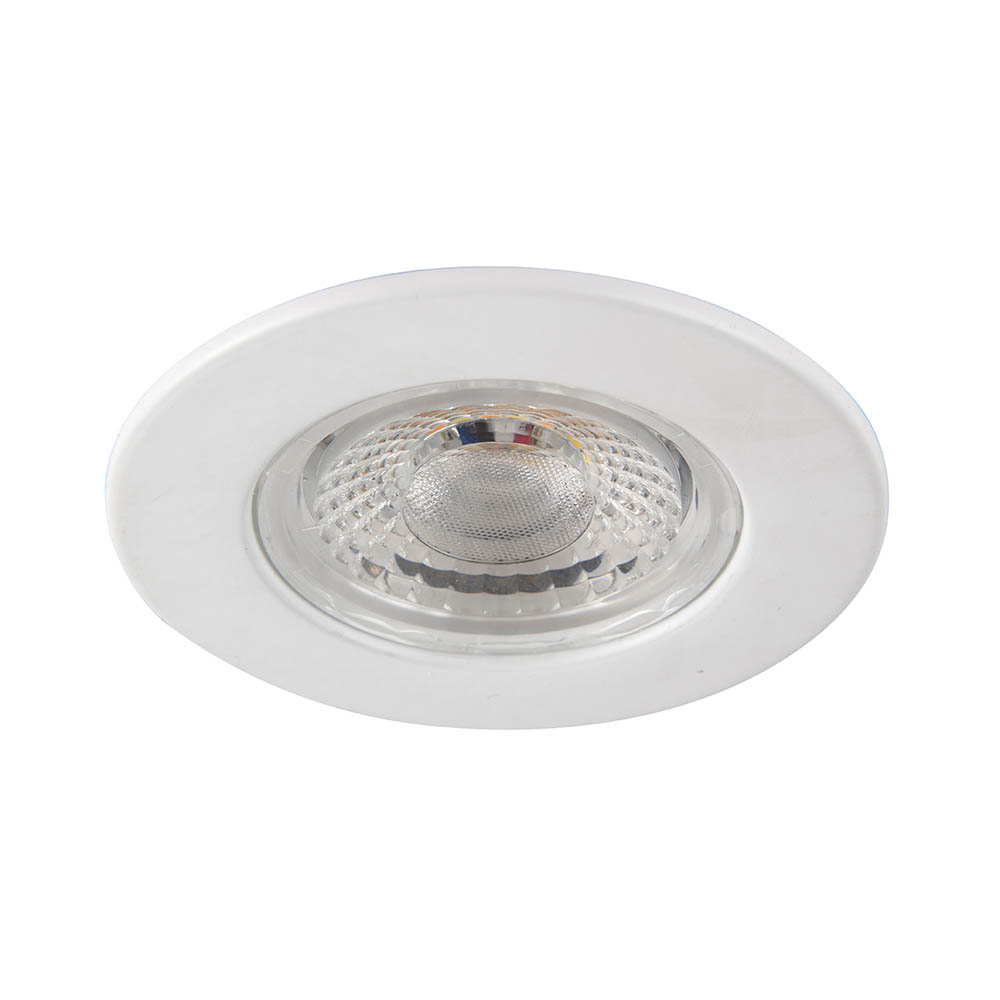

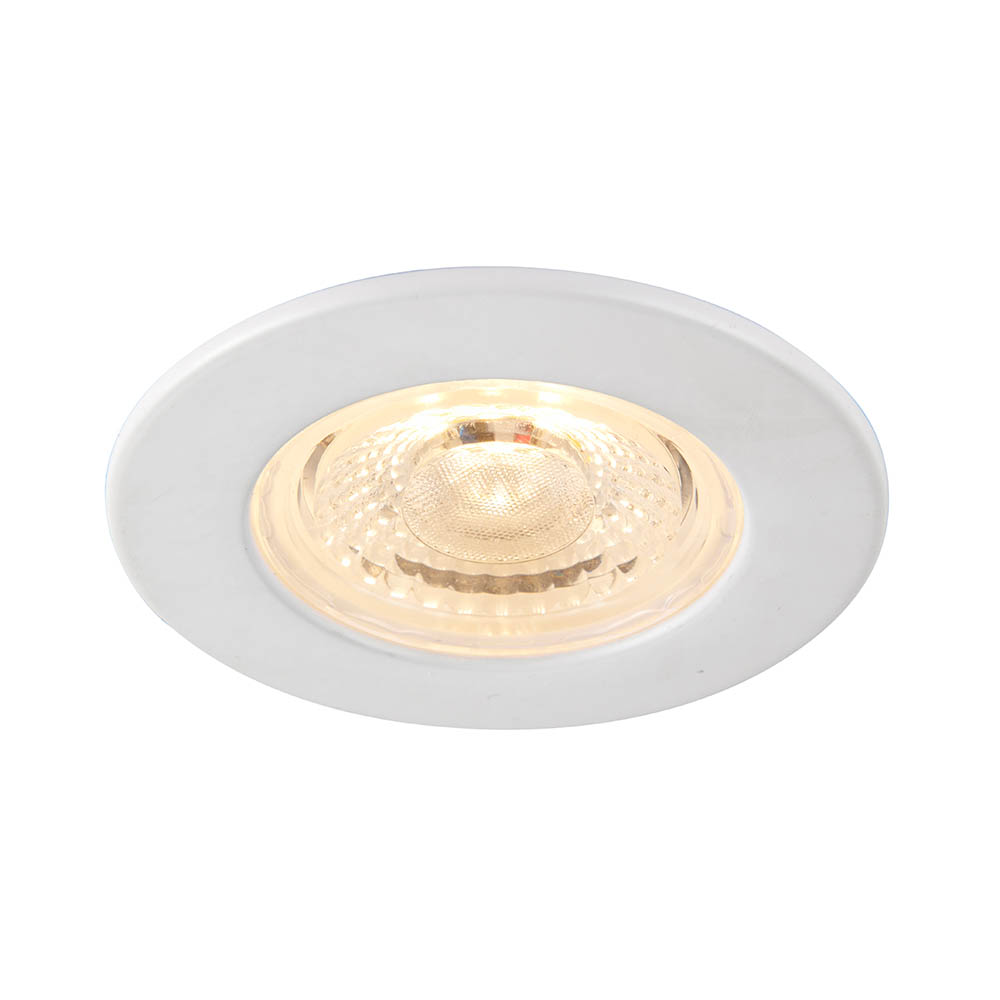

ShieldECO CCT IP65 5W Downlight

92751
Saxby
92751
UOS: Each
Hide

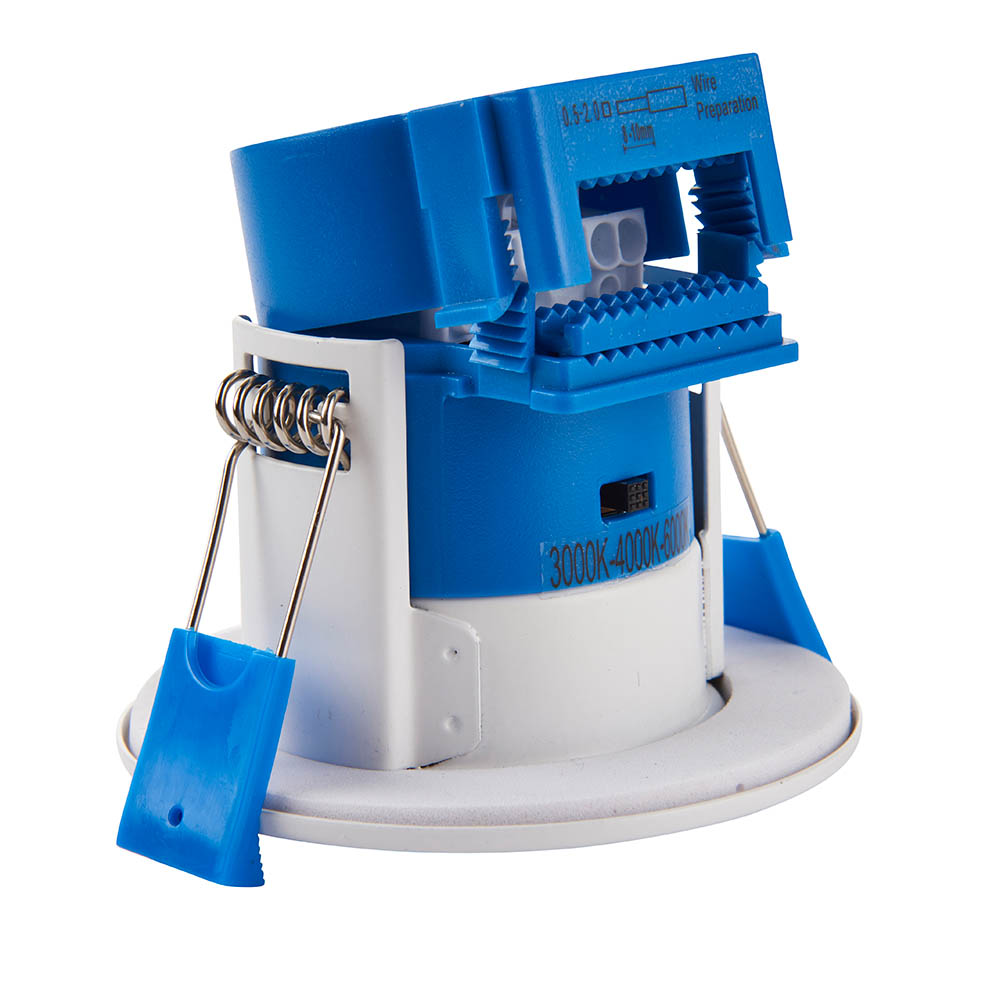

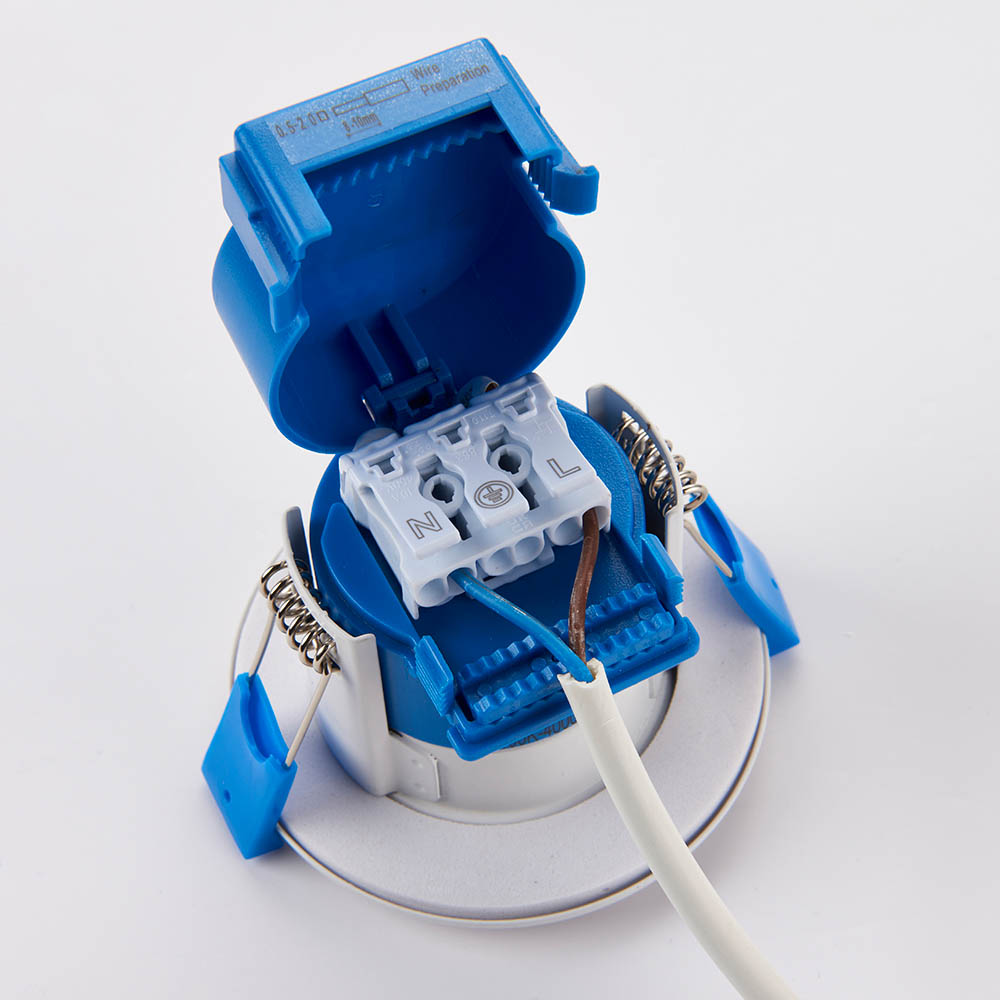

New and Improved! The ShieldECO 500 CCT has all the features required of an everyday downlight; fire rated, IP65 and dimmable. Incorporating CCT technology, allows for three colour temperatures; warm white, cool white and daylight white, in one fitting. Our new and improved tool-less connection box, integrated within the rear of the fitting, allows for quick and easy push-fit installation. Slim profile with matt white finish. Additional bezel options; satin nickel, chrome, black and antique brass, available to create the perfect finish in any setting.
  • Dimmable
  • Matt white & clear acrylic
  • Constructed from steel & acrylic
  • Shipment Carton Qty: 20

Overview

  • Complete with integrated control gear
  • 5W LED module (SMD 2835) CCT (Included)
  • K: 3000/4000/6000 Lm: 500 Lm/W: 100
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 90 minutes
  • Proj: 3mm Dia: 81.5mm H: 66mm
  • Class 2
  • Cut hole Dia: 64mm

  • Specification

    Colour Finish:
    Matt white paint & clear acrylic
    IP Rating:
    65
    Operating Voltage:
    220-240V
    Commodity Code:
    9405423990
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    66
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588927518
    Packed Height (mm):
    9
    Packed Wid (mm):
    8
    Packed Depth (mm):
    9
    Packed Weight (kg):
    .2

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    42
    Outer Width (mm):
    20
    Outer Depth (mm):
    20
    Outer Gross Weight (kg):
    4.36

    Other Colours

    Associated Products
    Dimmer Module 100W Universal
    Dimmer Module 250W Trailing edge
    EM conversion kit 8W EM
    ShieldECO Antique Brass Bezel
    ShieldECO Satin nickel bezel
    ShieldECO Chrome bezel
    ShieldECO black Bezel
