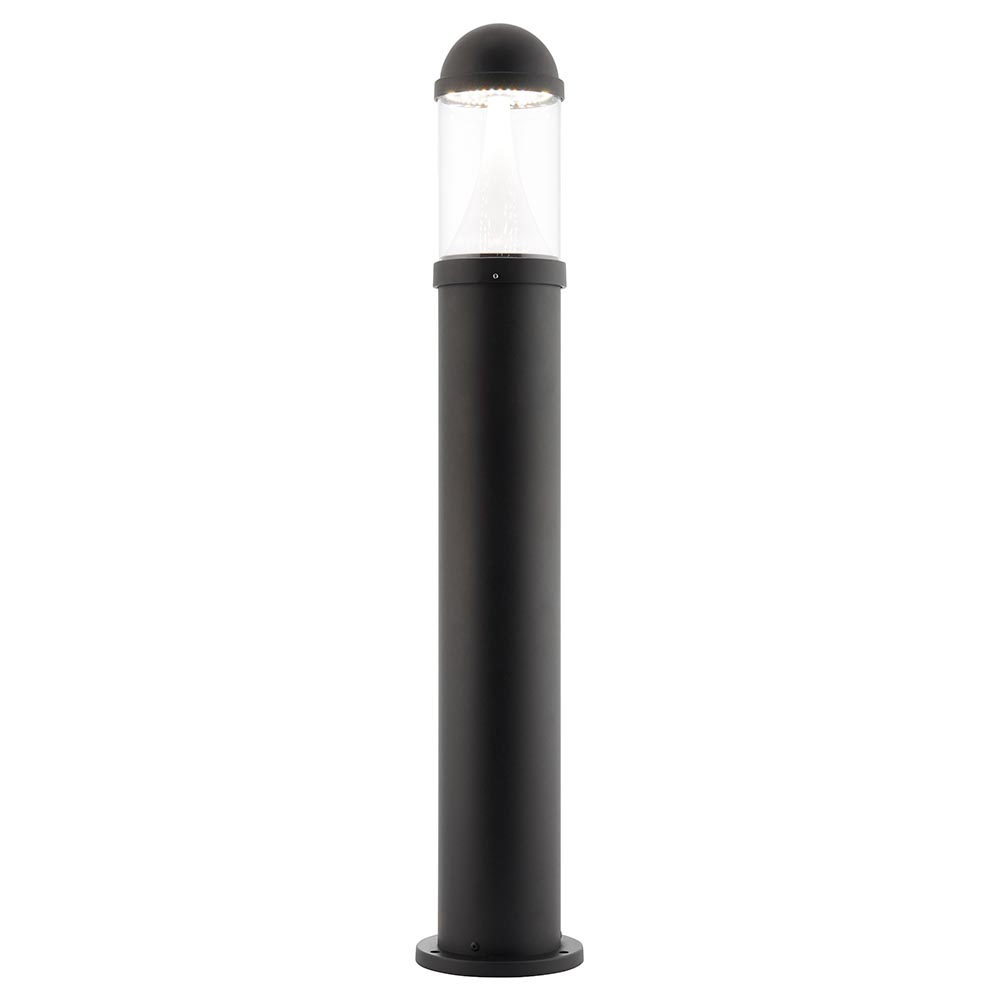

Dax CCT Bollard 1M IP65 20W

92310
Saxby
92310
UOS: Each
Hide

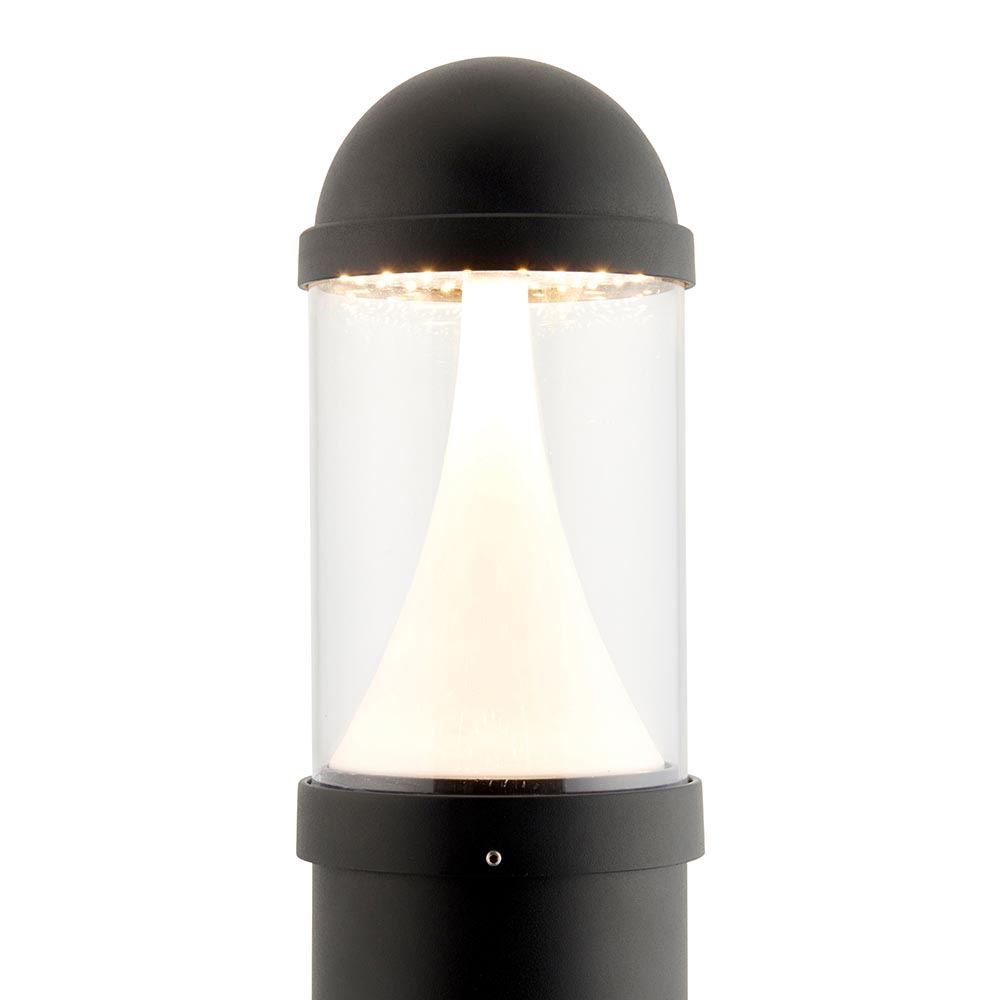

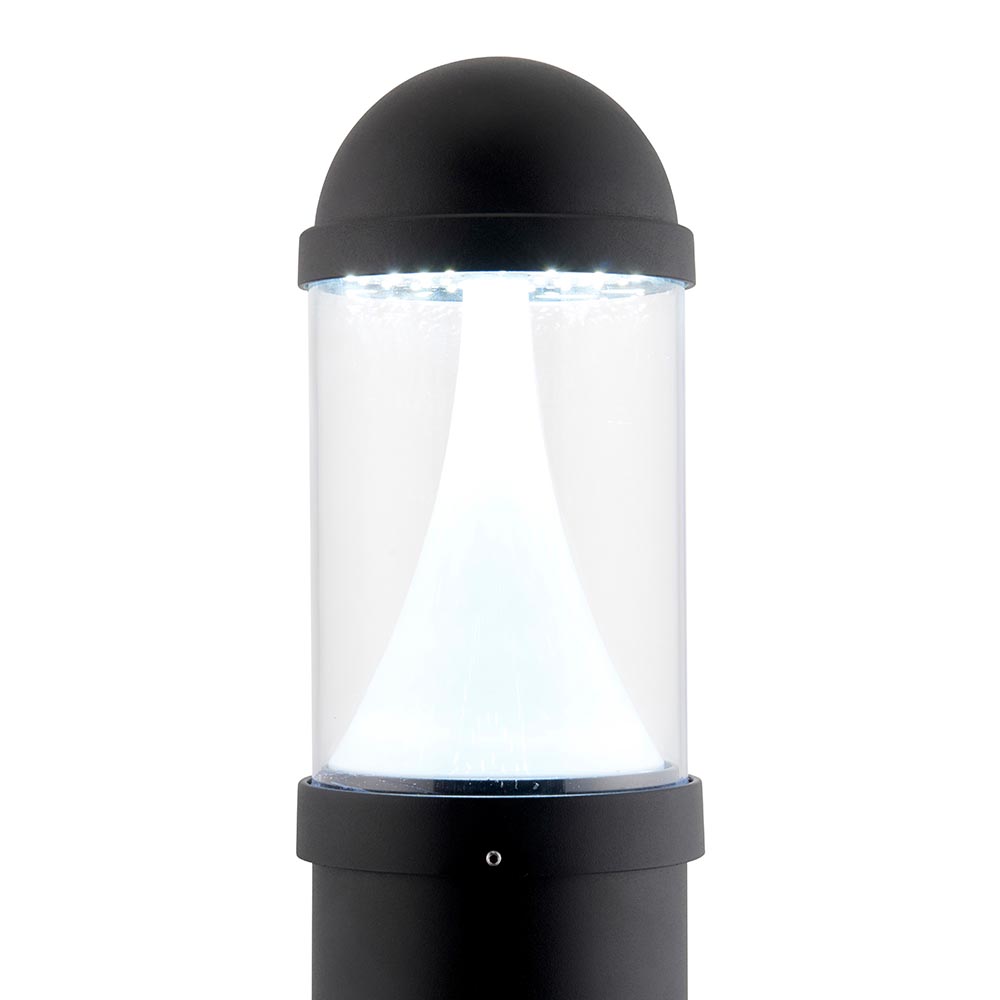

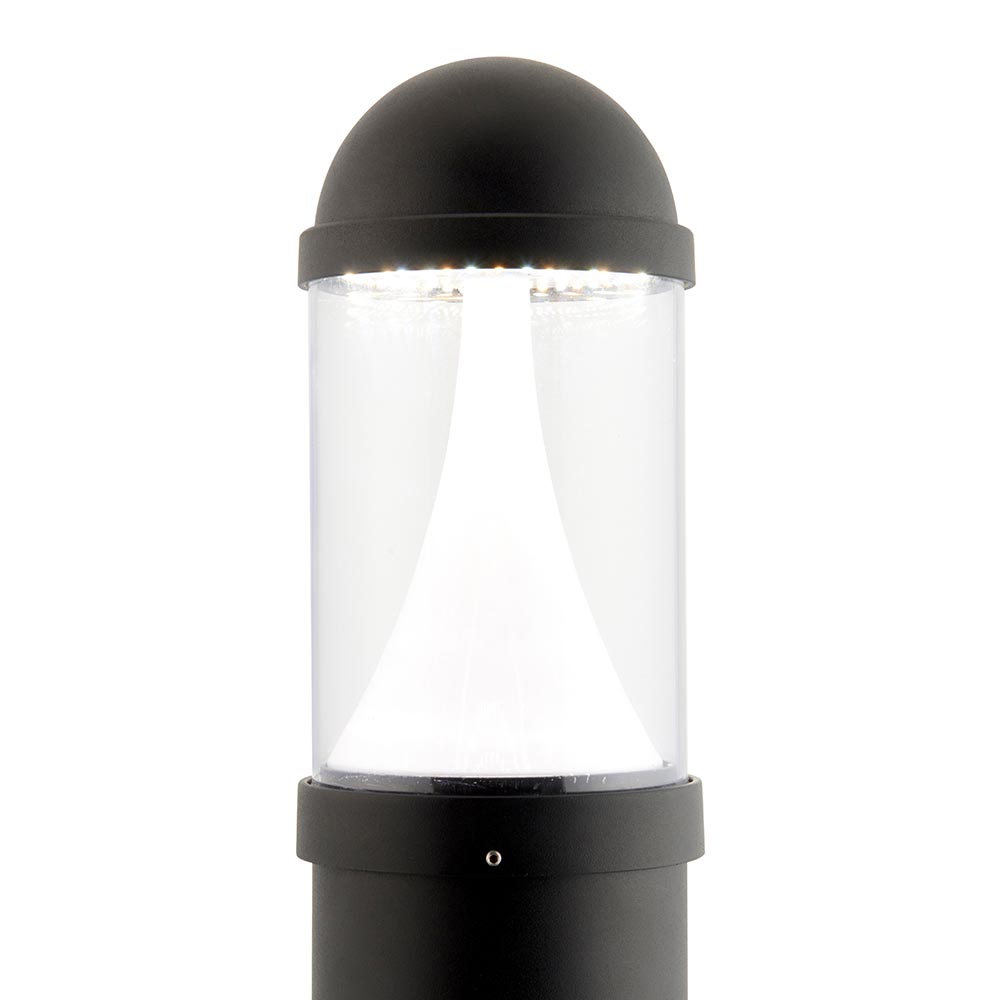

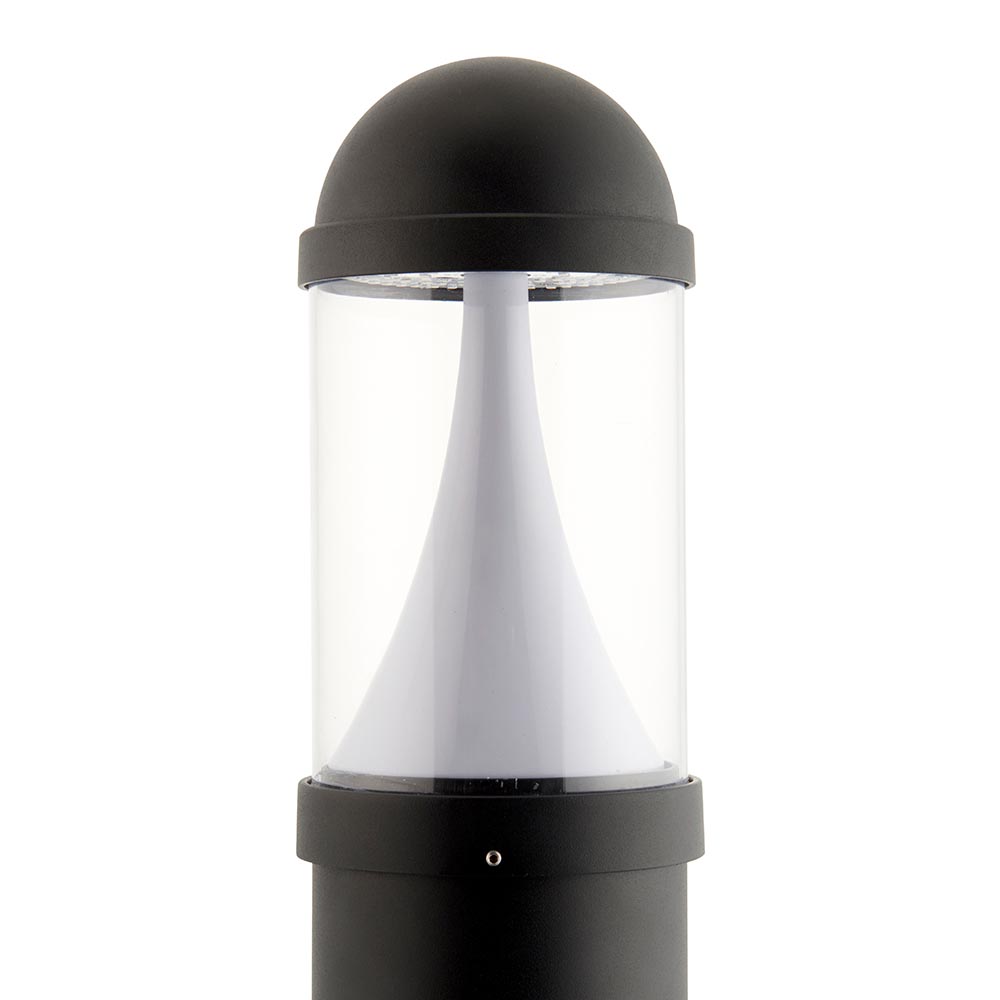

The Dax CCT LED bollard, new colour changing technology internal switch enables user to choose 3000K, 4000K or 6000K. Can be used in commercial spaces illuminating pathways and driveways. This robust fitting boasts a high lumen output of 1350 lumens, and its IP65 rating means it offers resistance against dust and water.
  • Textured black & clear pc
  • Constructed from die cast aluminium alloy & polycarbonate
  • Shipment Carton Qty: 4

Overview

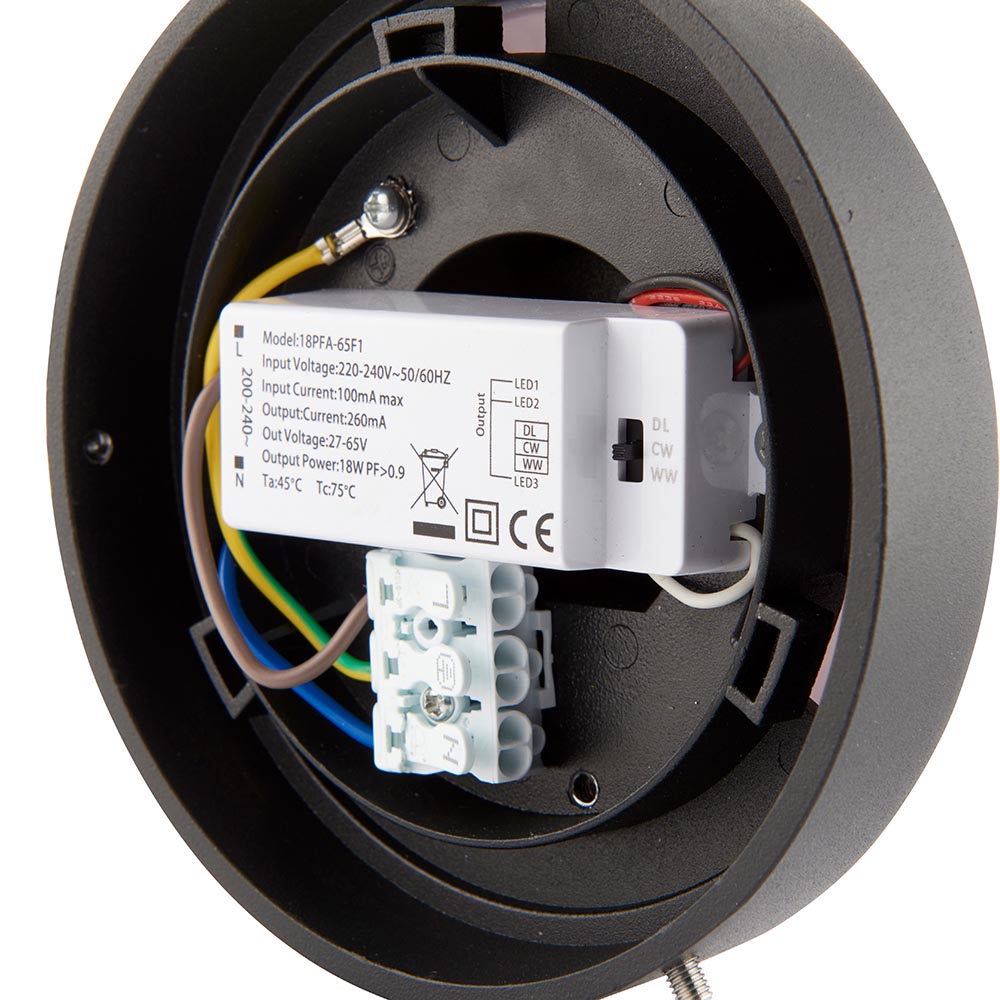

  • Complete with LED driver

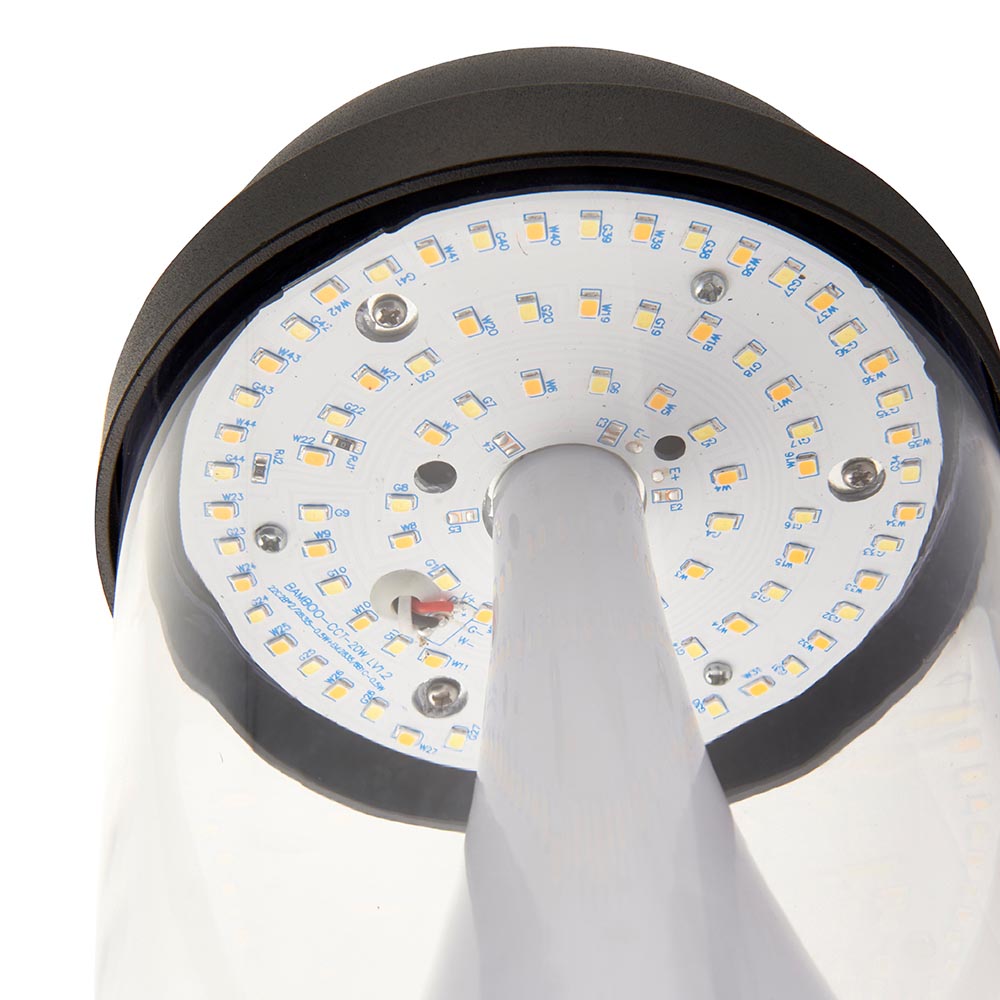

  • 20W LED module (SMD 2835) CCT (Included)
  • K: 3000/4000/6000 Lm: 1350 Lm/W: 68
  • IP65
  • H: 1000mm Dia: 181mm
  • Class 1

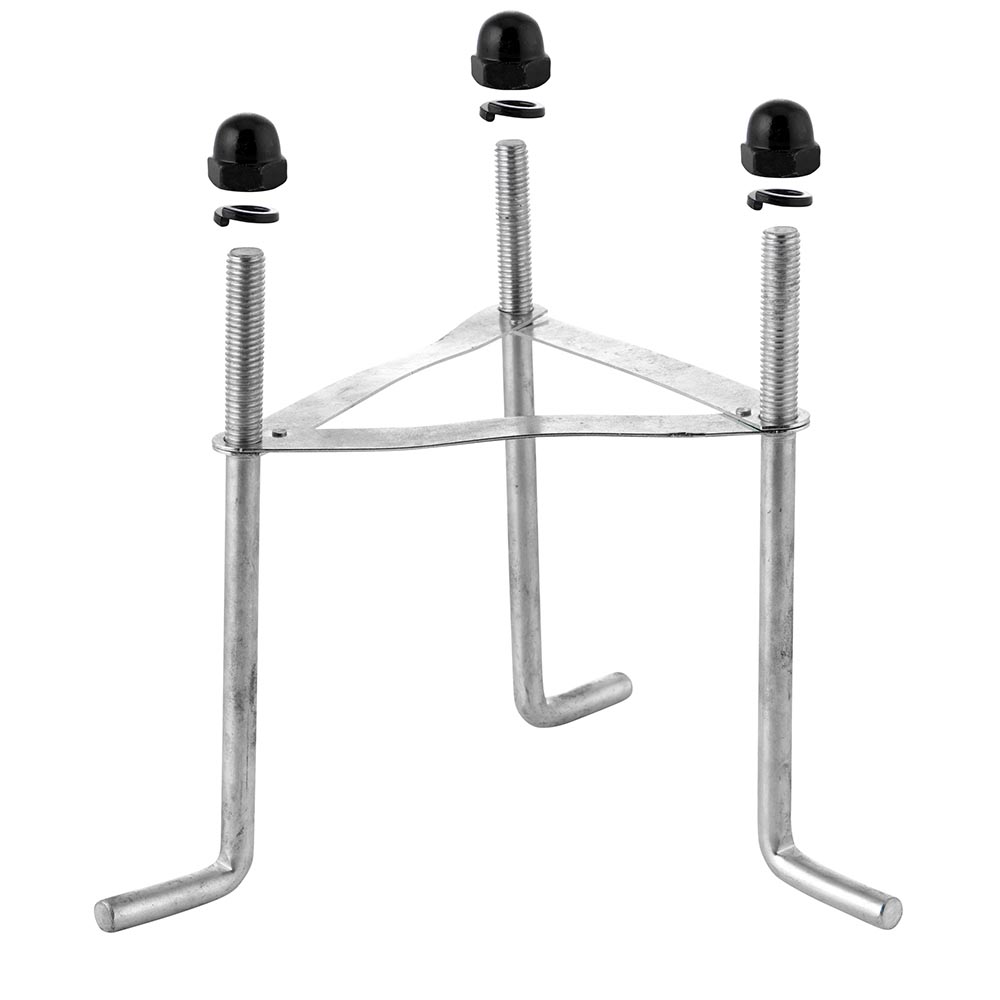

  • Root kit included
  • 2+3YR Extended Warranty
  • Weight: 3.3 Kg

Specification

Colour Finish:
Textured black paint & clear pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    1000
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588923107
    Packed Height (mm):
    18.5
    Packed Wid (mm):
    18.5
    Packed Depth (mm):
    100.5
    Packed Weight (kg):
    4.83

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    4
    Outer Height (mm):
    38.5
    Outer Width (mm):
    38.5
    Outer Depth (mm):
    102
    Outer Gross Weight (kg):
    21.05

    FAQs

    Other Colours

    Associated Products
    Inline IP68 Connector straight IP68
    Inline IP68 Connector tee IP68
