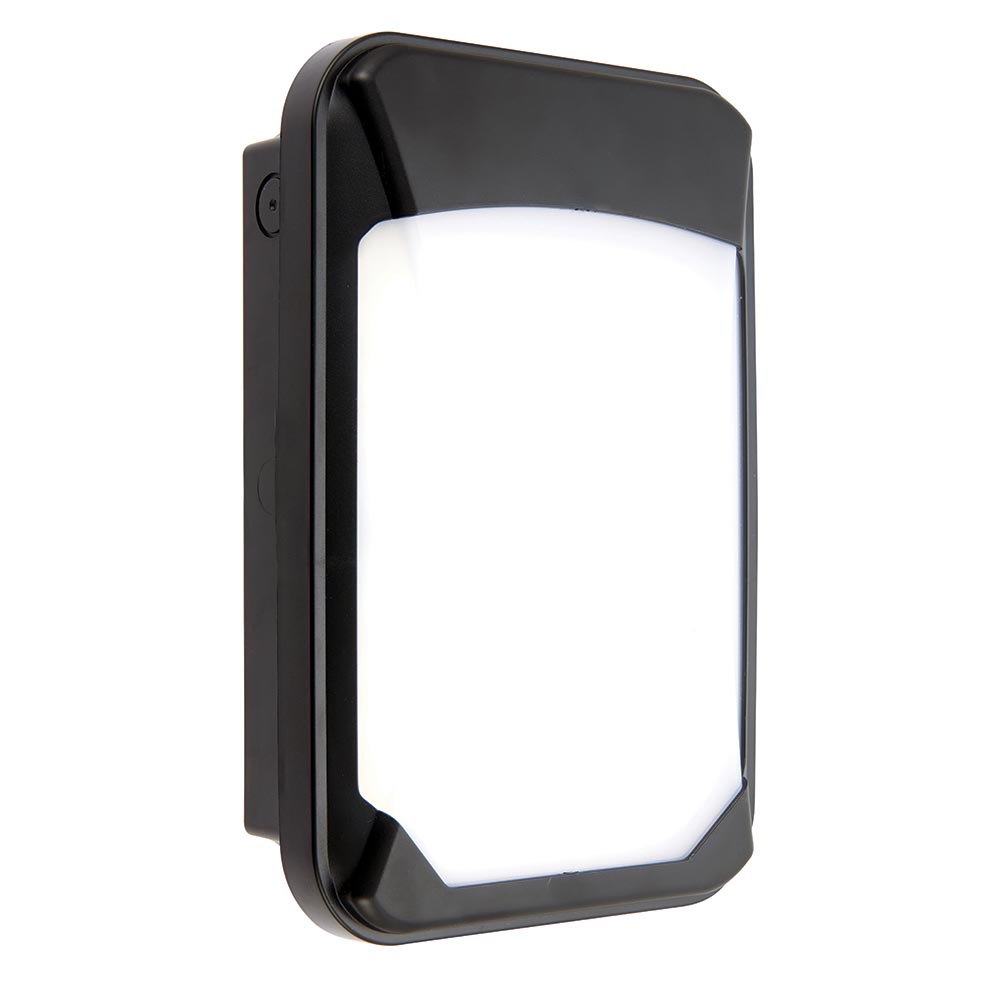

Lucca Mini microwave IP65 15W cool white

77915
Saxby
77915
UOS: Each
Hide
The Lucca Mini is a functional & compact exterior wall light for commercial applications. This energy efficient fitting provides a good light output of 1,500 lumens, making it ideal for security and safety. Constructed from polycarbonate, IP65 rated, and IK08 rated each fitting is robust and resistant against water, sun and dirt. Standard & sensor options are available.

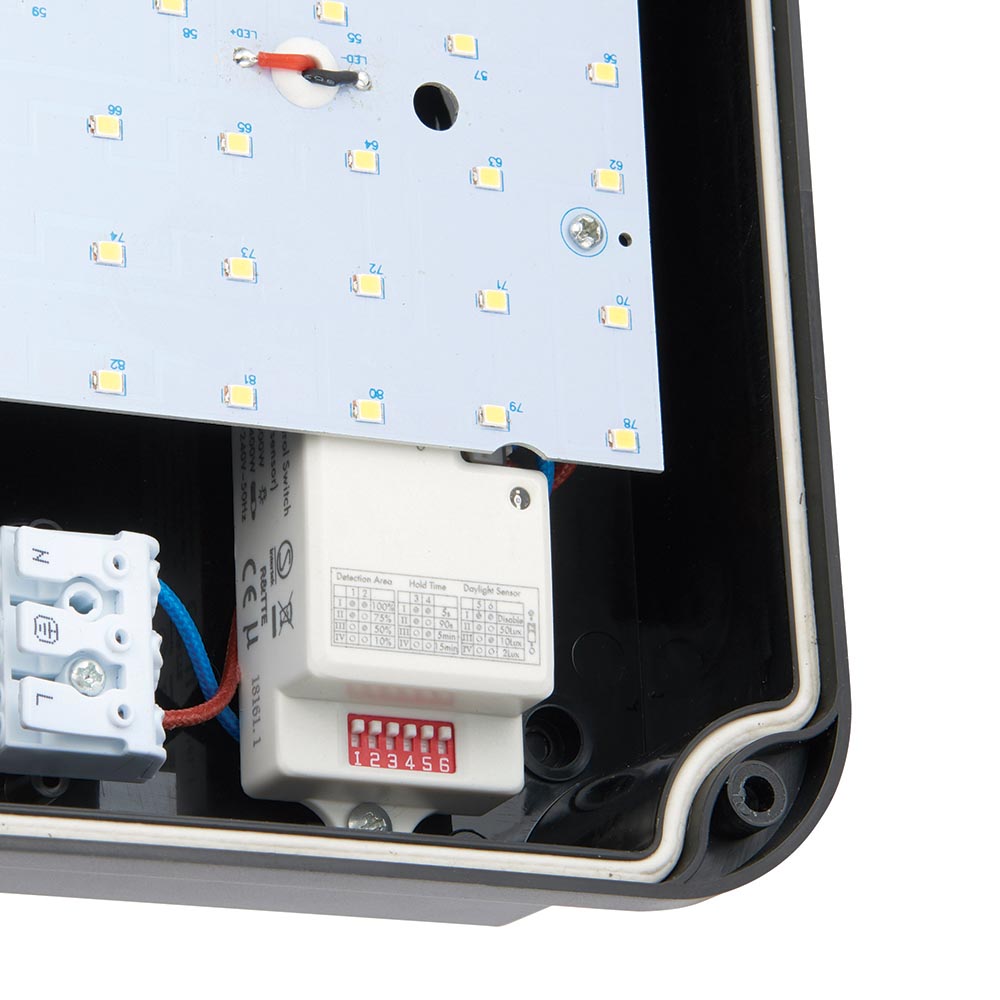

  • Complete with built in Microwave sensor
  • 360 /120˚ detection angle, 2 to 50lux sensitivity, 10% to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall
  • Black pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 5

Overview

  • Complete with LED driver
  • 15W LED module (SMD 2835) Cool White (Included)
  • K: 4000 Lm: 1500 Lm/W: 100
  • IP65
  • Proj: 73mm H: 275mm W: 185mm
  • Class 2
  • 2+3YR Extended Warranty
  • Weight: 0.6 Kg

Specification

Colour Finish:
Black pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

360 /120˚ detection angle, 2 to 50lux sensitivity, 10% to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 2m mounted on the wall

  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    275
    Unpacked Width (mm):
    185
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588779155
    Packed Height (mm):
    28
    Packed Wid (mm):
    18.5
    Packed Depth (mm):
    8
    Packed Weight (kg):
    .78

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    5
    Outer Height (mm):
    30
    Outer Width (mm):
    41
    Outer Depth (mm):
    20
    Outer Gross Weight (kg):
    4.43
