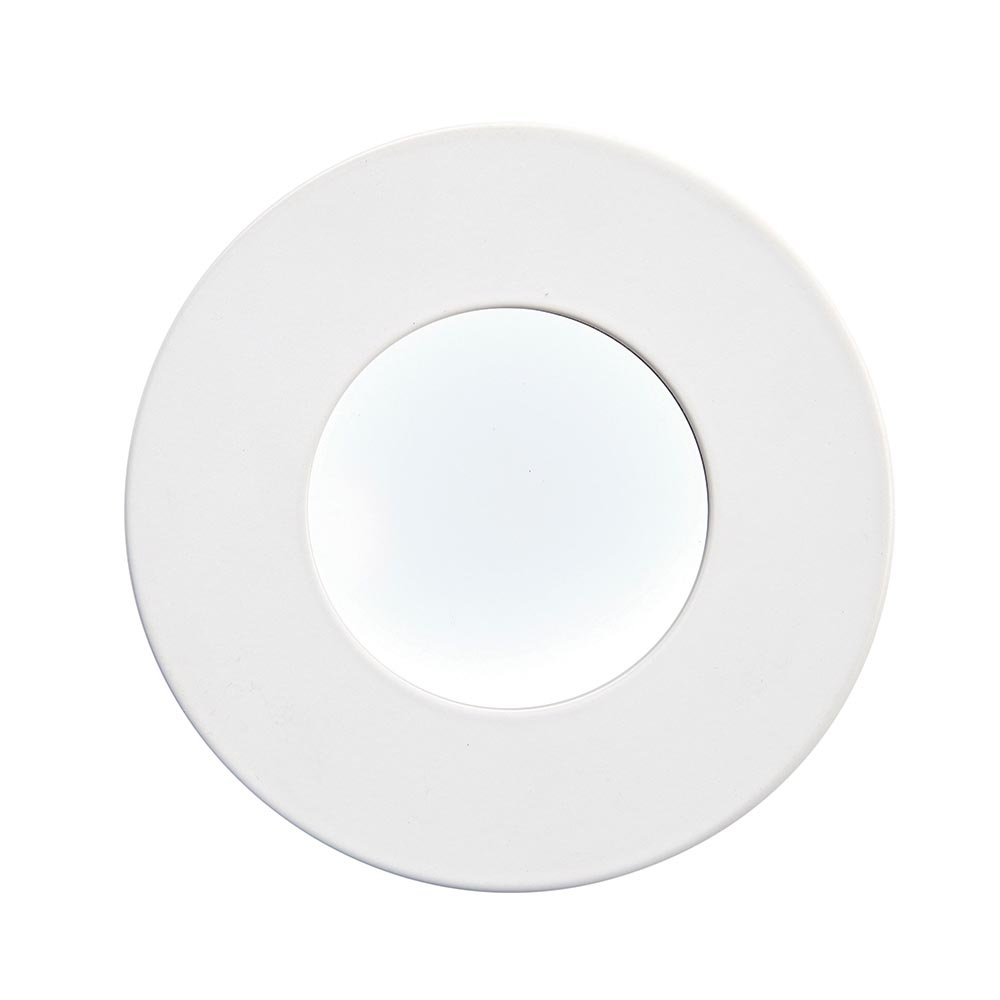

OrbitalPLUS matt White IP65 9W cool white

69883
Saxby
69883
UOS: Each
Hide

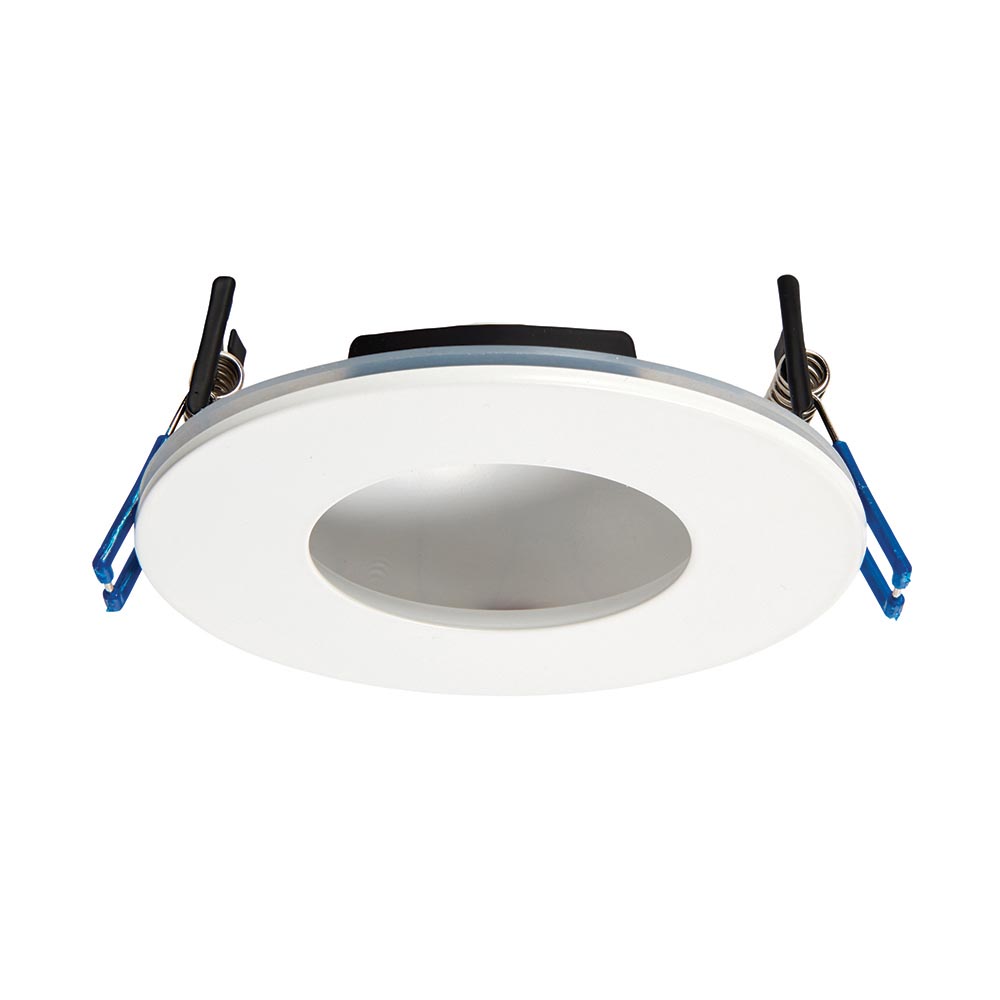

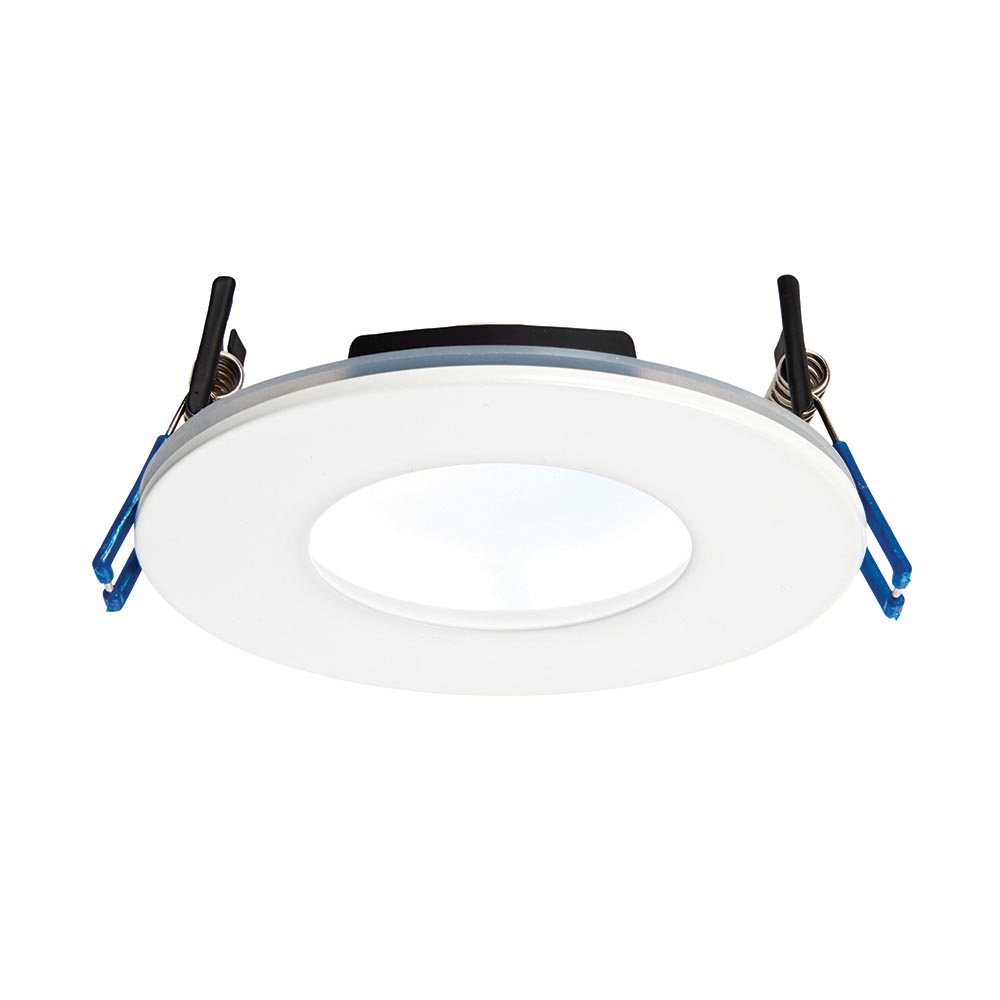

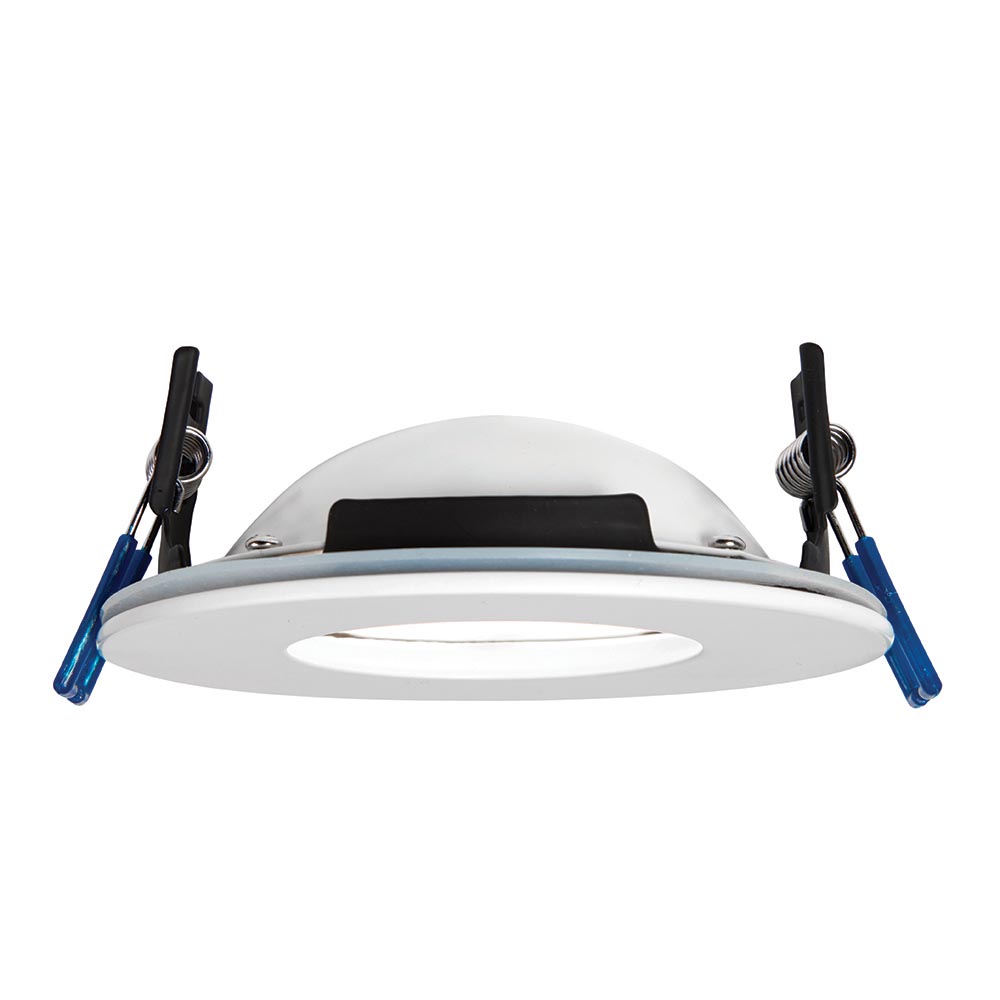

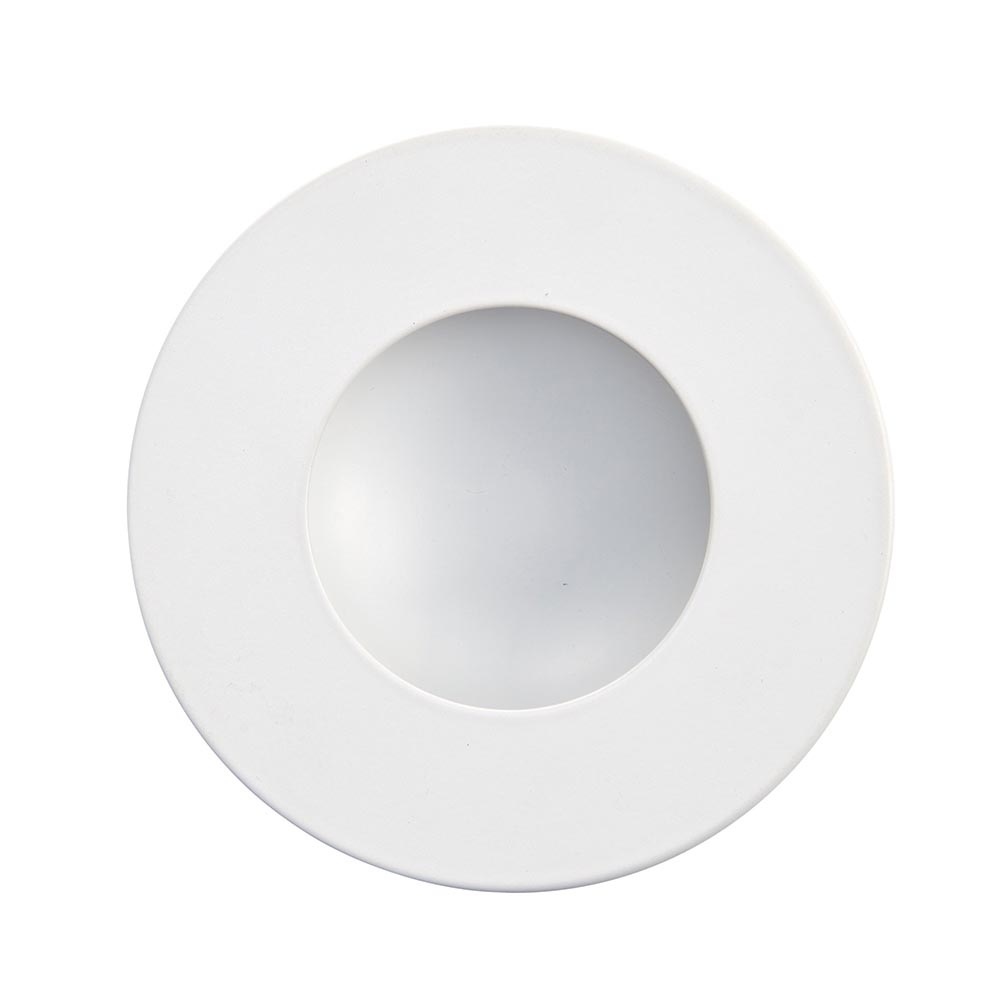

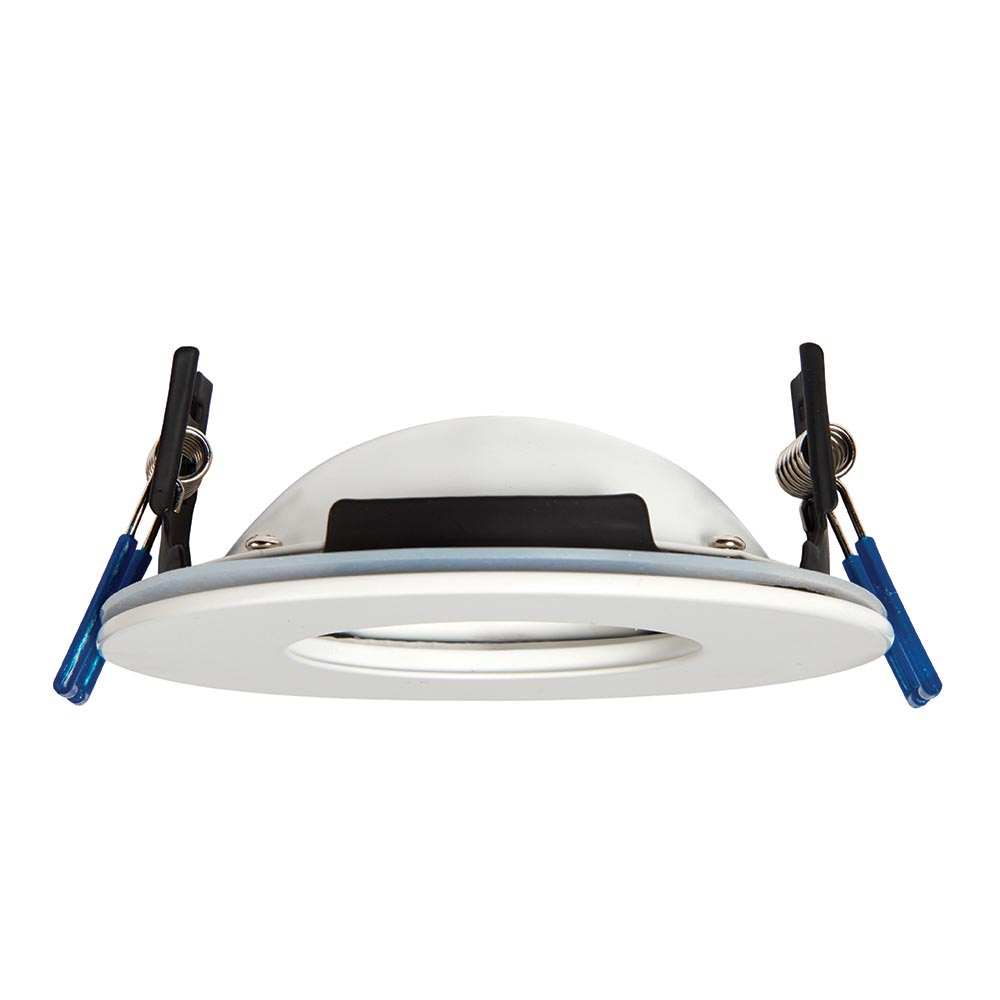

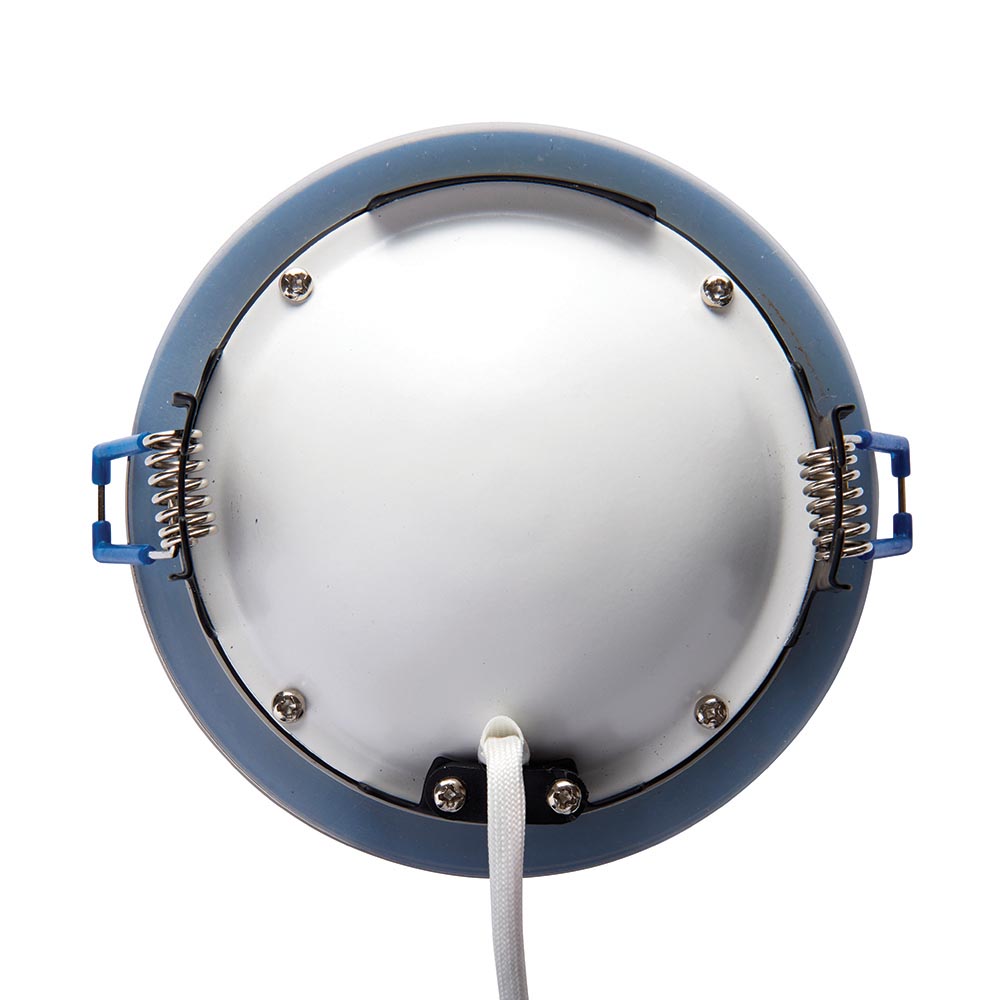

The OrbitalPlus family is a range of slimline recessed downlights which are fire rated and IP65 rated. It's anti glare dome projects up to 460 lumens of warm or cool white light. This unique and patented design can be covered with insulation and fits into shallow ceiling voids. Supplied with a dimmable driver, it is available with warm white or cool white LEDs and in three finishes, satin nickel, chrome and matt white.
  • Dimmable
  • Matt white
  • Constructed from die cast aluminium alloy & steel
  • Shipment Carton Qty: 20
Login To Buy

Overview

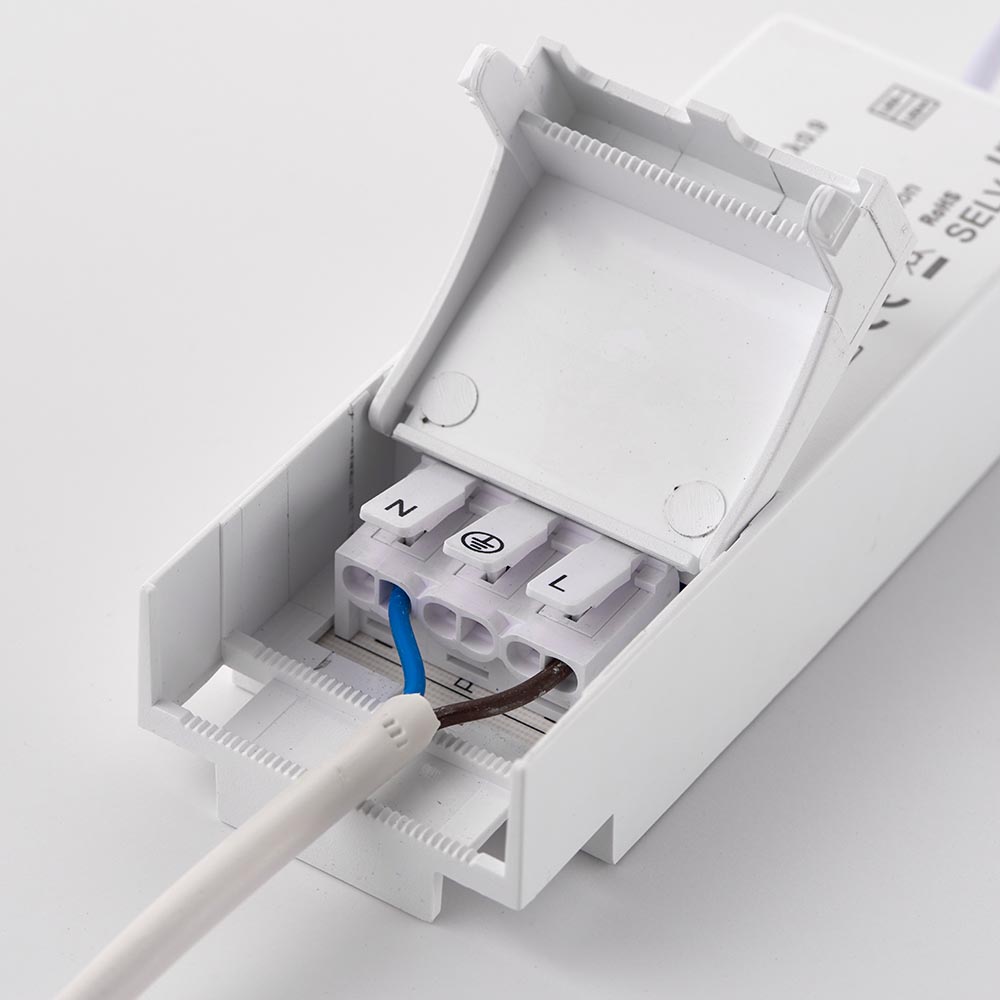

  • Complete with LED driver
  • 9W LED module (SMD 2835) Cool White (Included)
  • K: 5000 Lm: 460 Lm/W: 51
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 30, 60 & 90 minutes
  • Proj: 2mm Dia: 110mm H: 44mm
  • Class 2
  • Cut hole Dia: 97mm
  • 2+3YR Extended Warranty
  • Weight: 0.2 Kg

Specification

Colour Finish:
Matt white paint
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    44
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588698838
    Packed Height (mm):
    12
    Packed Wid (mm):
    12
    Packed Depth (mm):
    7
    Packed Weight (kg):
    .29

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    26
    Outer Width (mm):
    37.5
    Outer Depth (mm):
    25.5
    Outer Gross Weight (kg):
    6.38

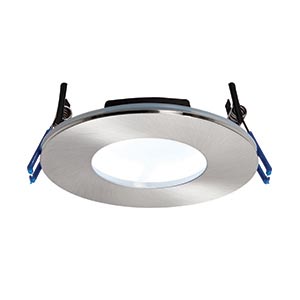

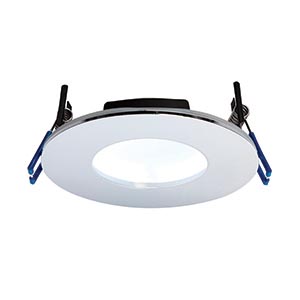

    Other Colours
