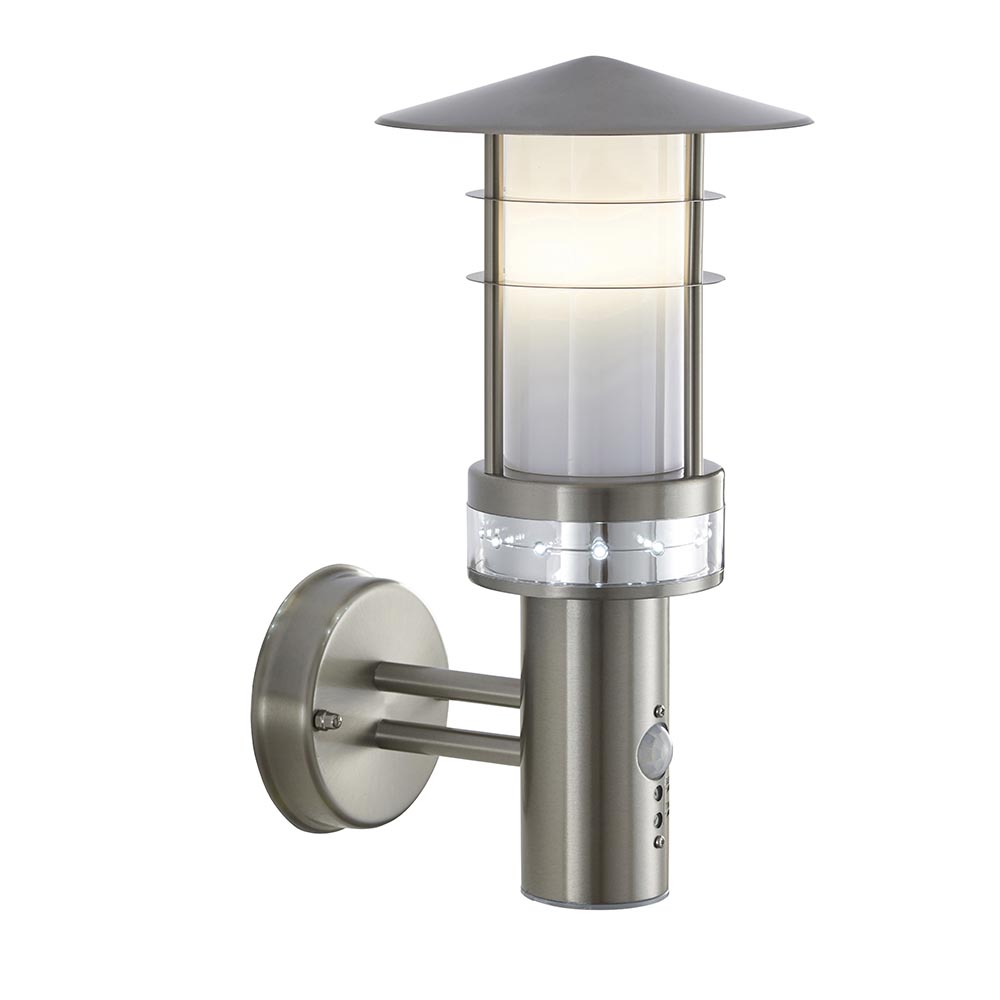

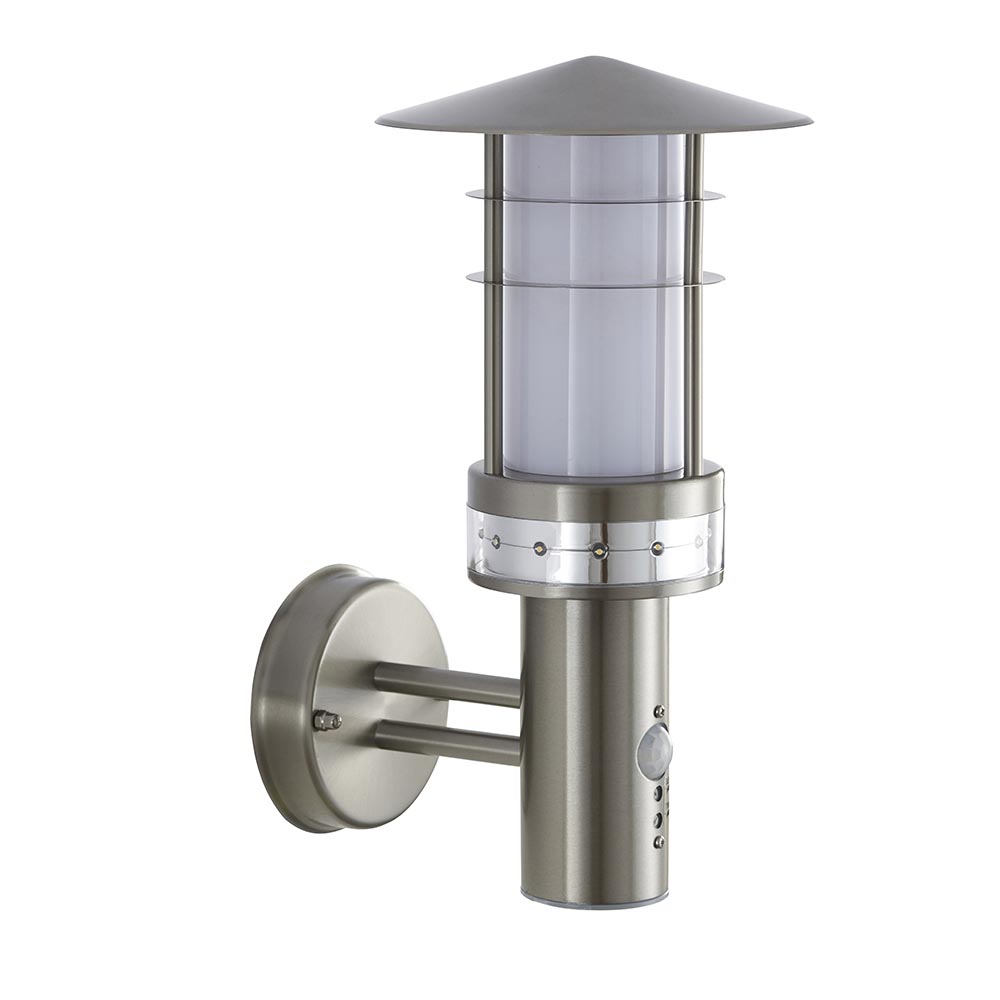

Pagoda PIR 1lt wall IP44 9.2W & 0.05W

13924
Saxby
13924
UOS: Each
Hide

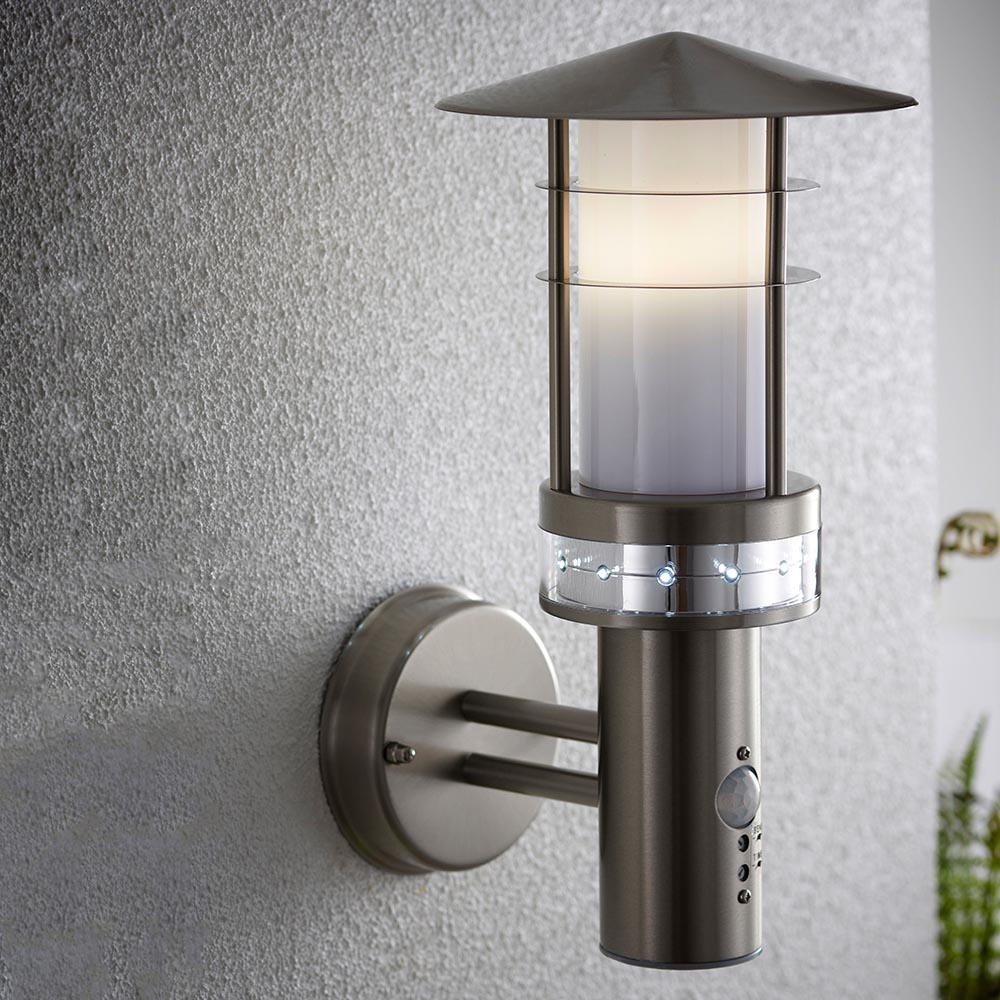

The Pagoda is an exterior wall light fitted with a PIR and photocell that lights the LEDs for added security. Stylishly designed to look great in any modern environment and suitable for use in both domestic and commercial environments.

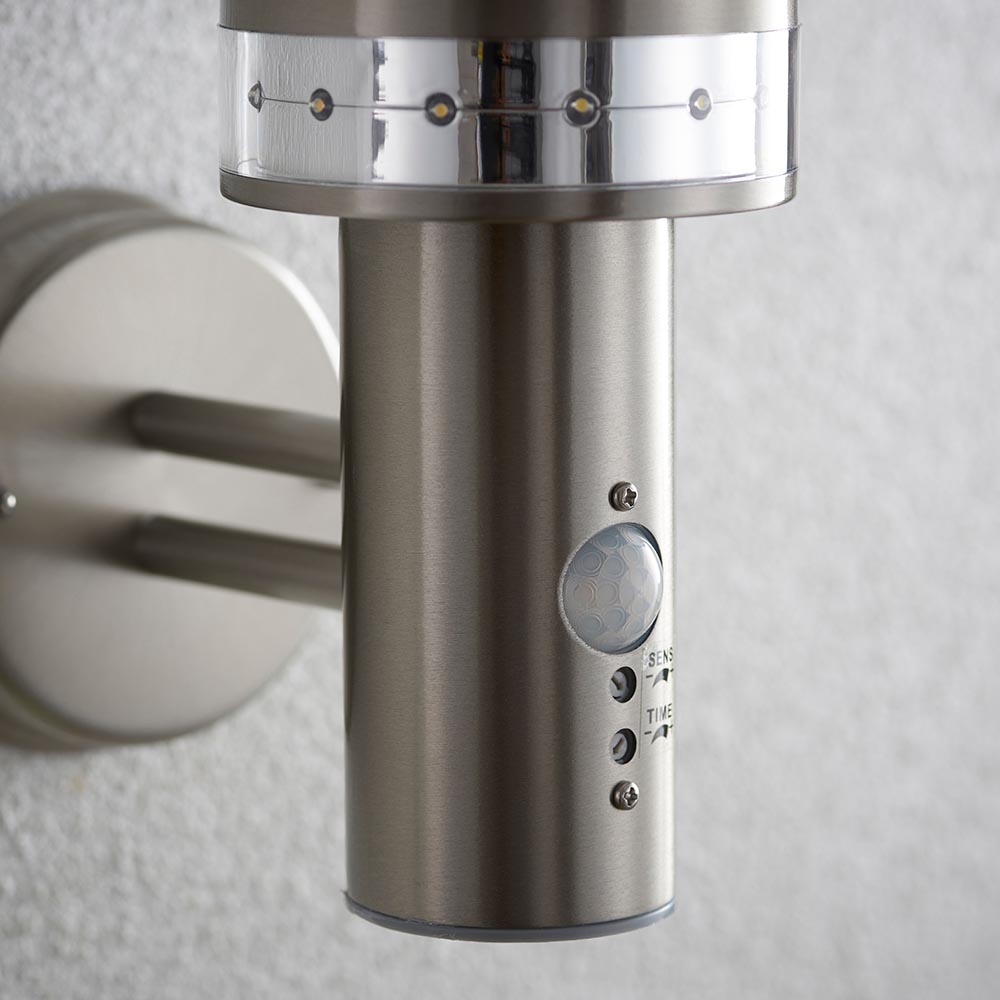

  • Complete with built in Photocell & PIR
  • 10 ± 5 lux On, 30 ± 10 lux Off,
  • 110° detection angle, 8m maximum range with a 5 sec - 5 min timer function
  • Brushed stainless steel & frosted pc
  • Constructed from stainless steel (304) & polycarbonate
  • Shipment Carton Qty: 3

Overview

  • Complete with LED driver
  • 9.2W LED E27 (Required) & 12 x 0.05W LED (Capsule) Cool white (Included)
  • IP44
  • Proj: 215mm H: 335mm W: 170mm
  • Class 1
  • 2 Year Warranty
  • Specification

    Colour Finish:
    Brushed stainless steel & frosted pc
    IP Rating:
    44
    Operating Voltage:
    220-240V
    Commodity Code:
    9405194090
    Country Of Origin:
    China

    Documents

    Specification

    10 ± 5 lux On, 30 ± 10 lux Off,
    110° detection angle, 8m maximum range with a 5 sec - 5 min timer function

  • Commodity Code: 9405194090
  • Country of Origin: China


  • Technical Datasheet

    Dimensons

    Unpacked Height (mm):
    335
    Unpacked Width (mm):
    170
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588358954
    Packed Height (mm):
    34
    Packed Wid (mm):
    22
    Packed Depth (mm):
    18
    Packed Weight (kg):
    1.47

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    3
    Outer Height (mm):
    60
    Outer Width (mm):
    38
    Outer Depth (mm):
    24.5
    Outer Gross Weight (kg):
    5.3
