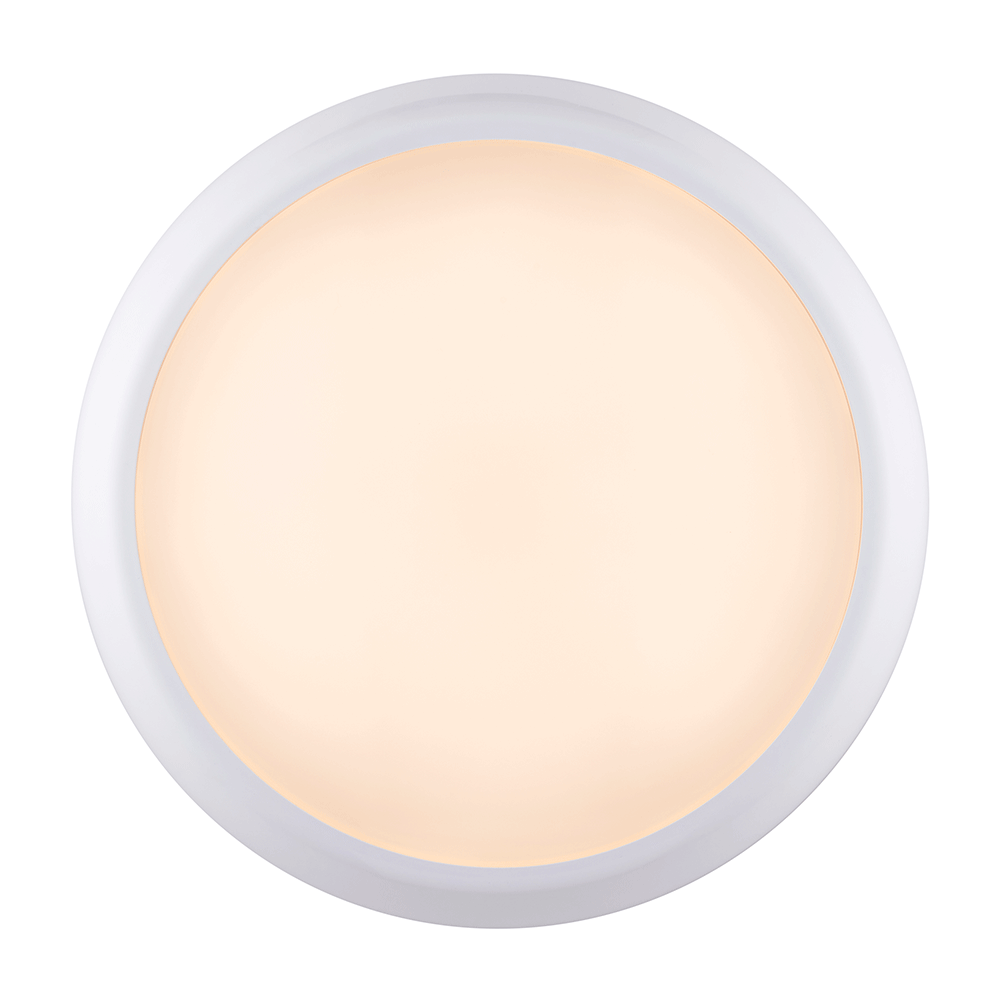

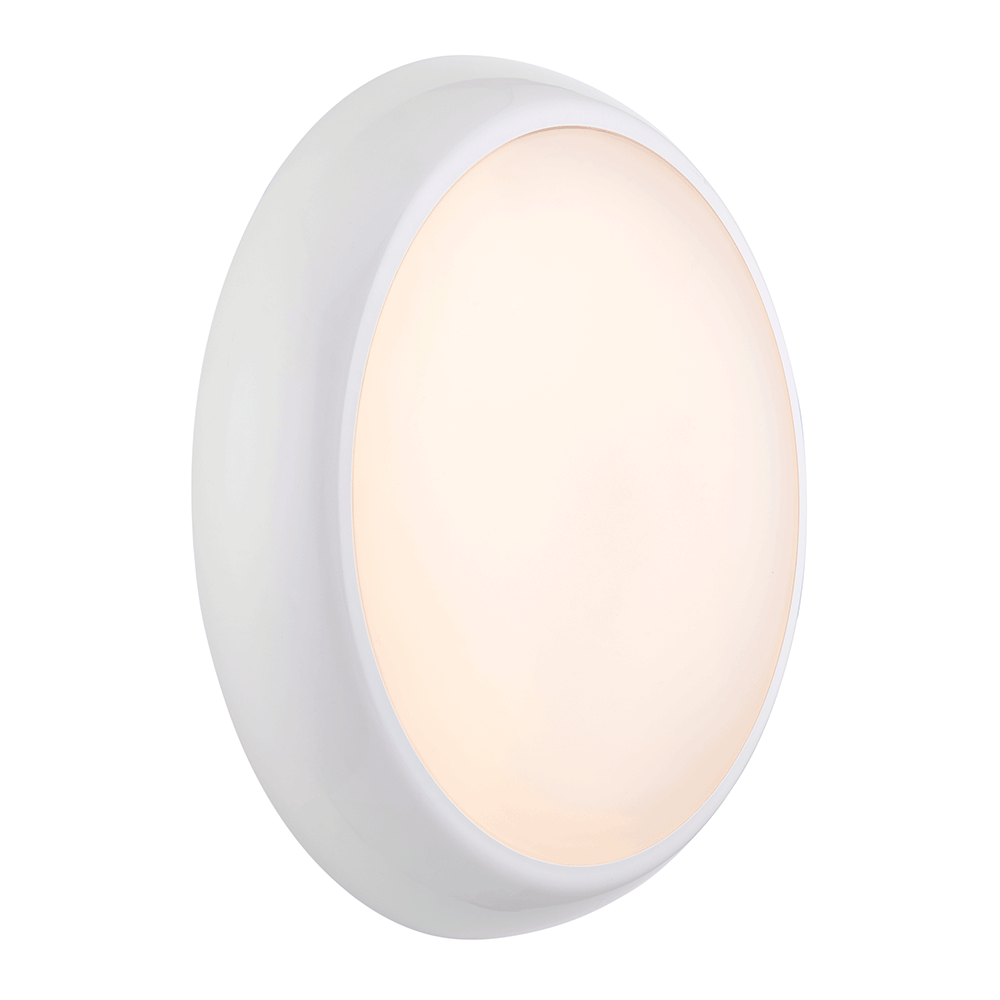

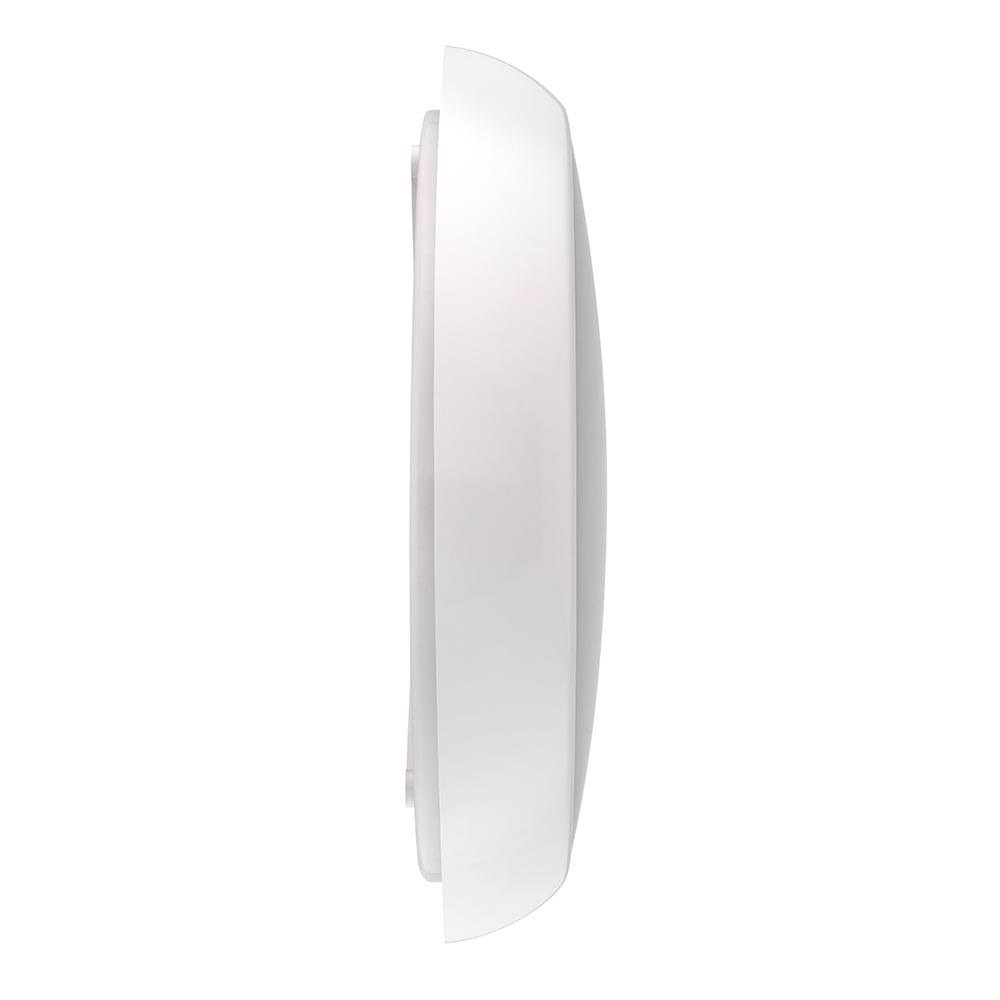

Saxby HeroPRO XL CCT Tri Wattage Bulkhead Microwave

103939
Saxby
103939
UOS: Each
Hide

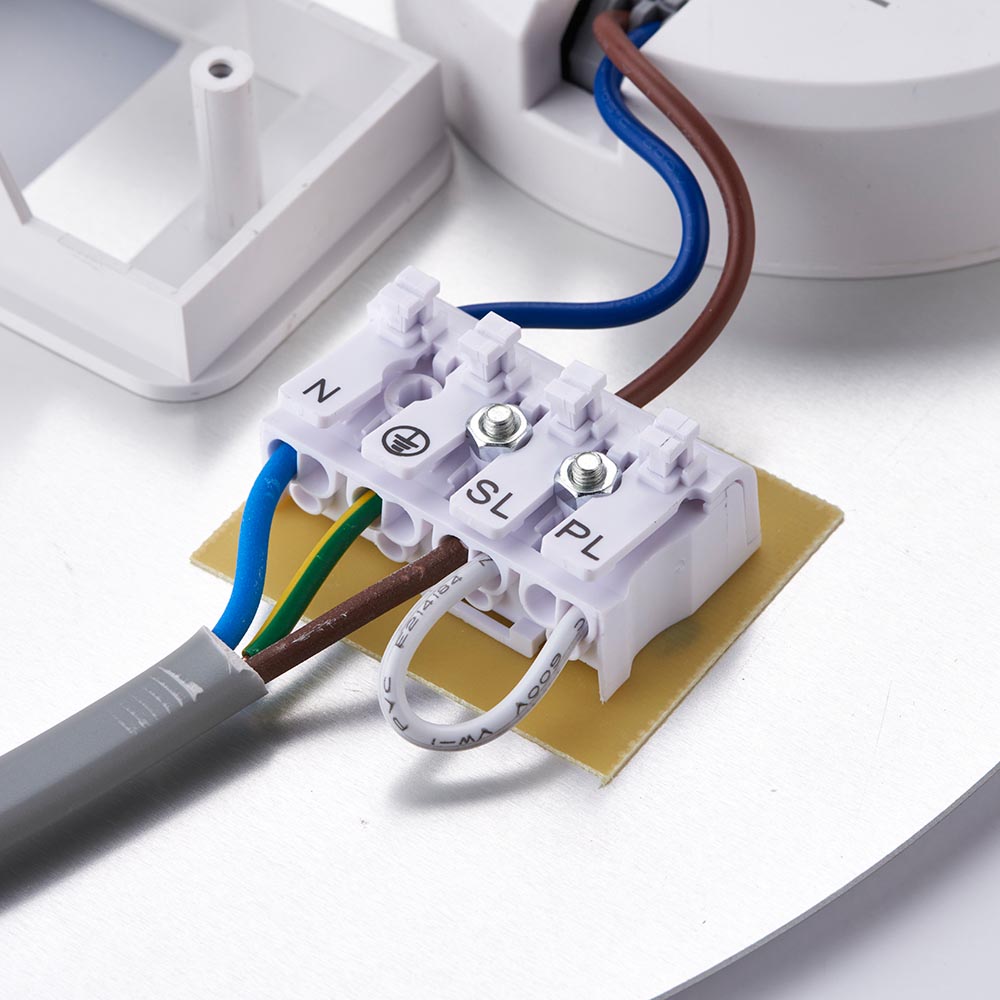

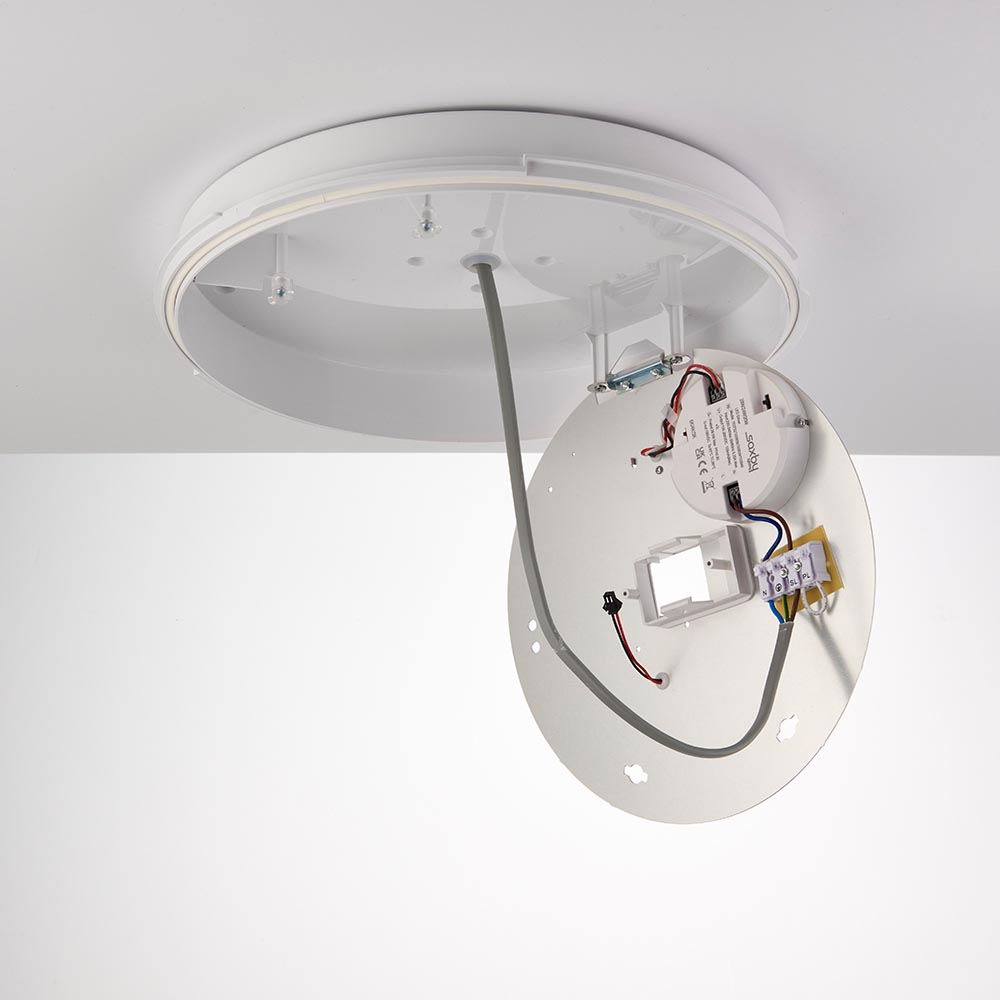

Saxby's signature bulkhead, HeroPRO XL, covers multiple wattages; 20W/24W/28W and temperature requirements; 3000K/4000K/6000K in one unit. Available in Standard, Emergency, Microwave & Microwave Emergency variants all supplied with white bezel as standard. The fast-fit hinged gear tray, and push-fit connector makes it perfect for efficient, hassle-free installation. The IP65, slim profile and IK10 rating further ensure it is robust enough for public spaces both indoors and outdoors.
  • Complete with built in Microwave sensor
  • 360 /150˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 1.5m mounted on the wall
  • Gloss white & opal pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 5

Overview

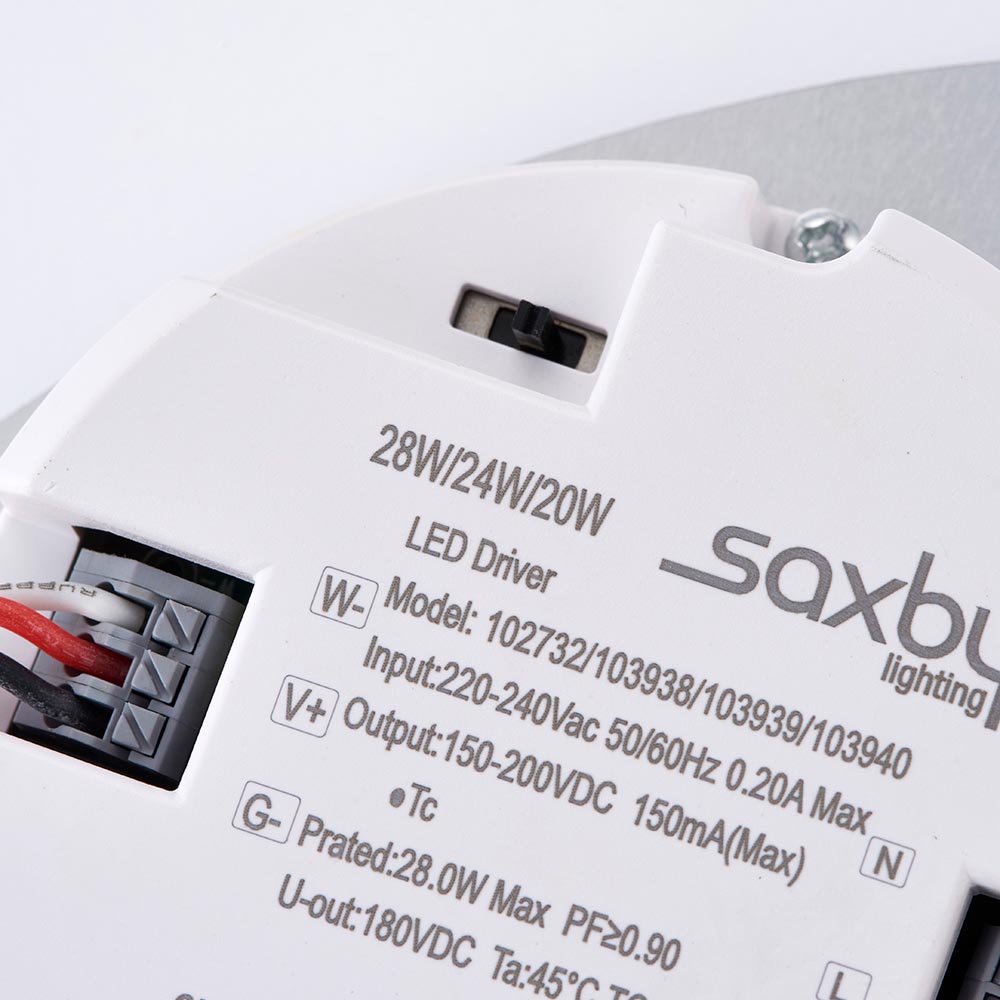

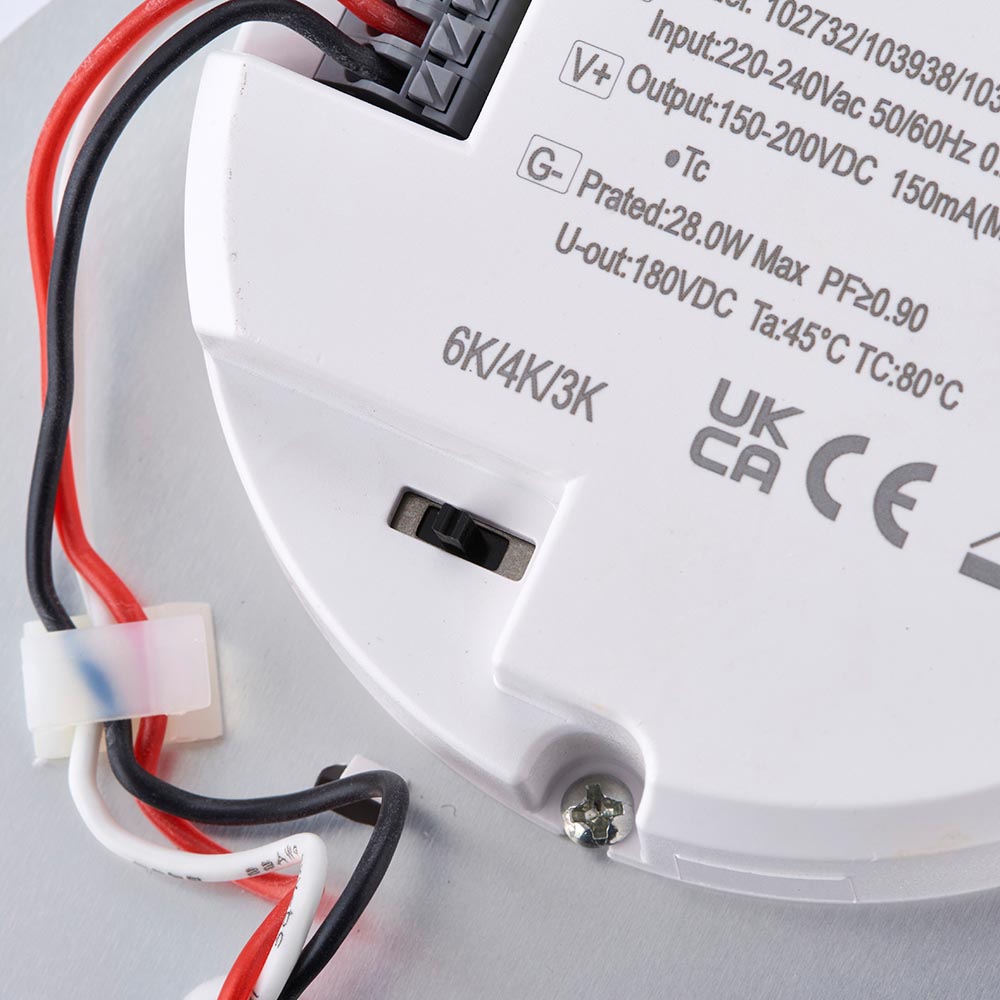

  • Complete with LED driver

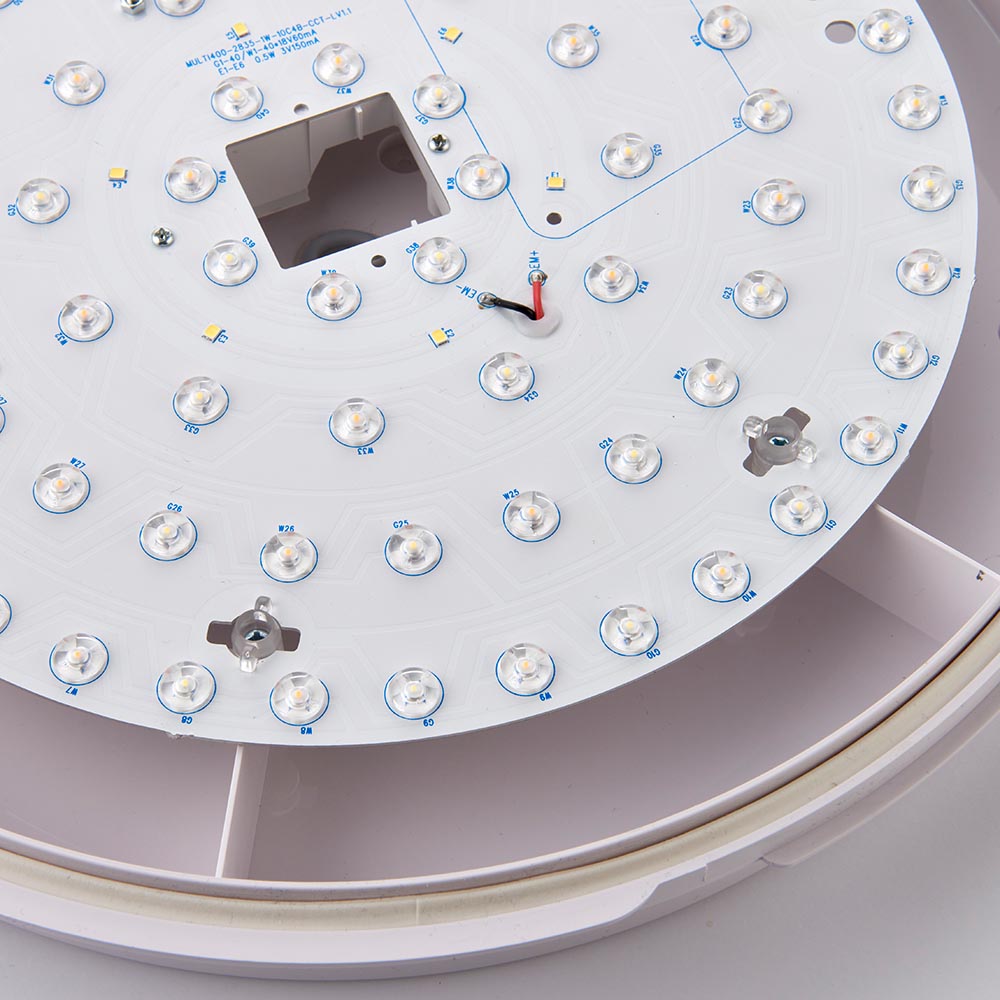

  • 28W LED module (SMD 2835 CCT) CCT (Included)
  • K: 3000/4000/6000 Lm: 2800 Lm/W: 100
  • IP65
  • Proj: 85mm Dia: 400mm
  • Class 2
  • 2+3YR Extended Warranty
  • Weight: 1.5 Kg

Specification

Colour Finish:
Gloss white & opal pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

360 /150˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 1.5m mounted on the wall

  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588039396
    Packed Height (mm):
    8.6
    Packed Wid (mm):
    40.5
    Packed Depth (mm):
    40.5
    Packed Weight (kg):
    1.95

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    5
    Outer Height (mm):
    45
    Outer Width (mm):
    42
    Outer Depth (mm):
    42
    Outer Gross Weight (kg):
    10.91
