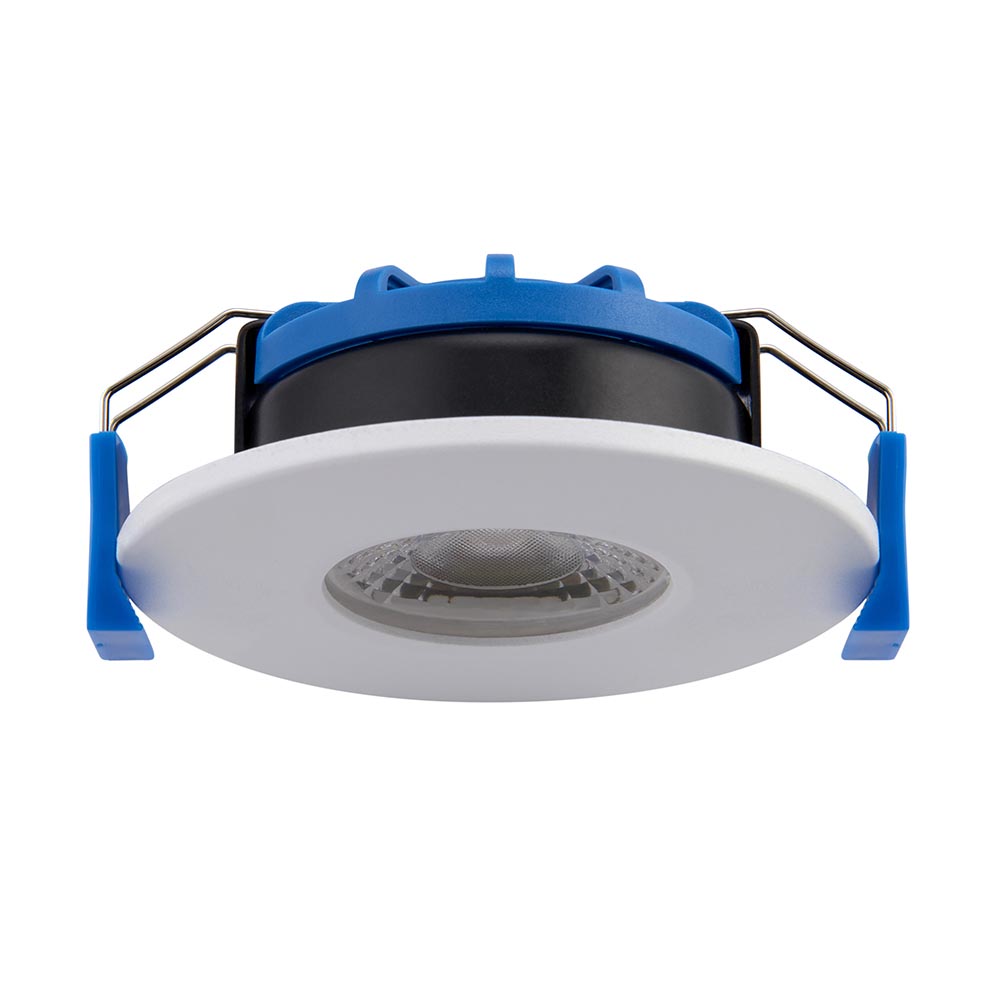

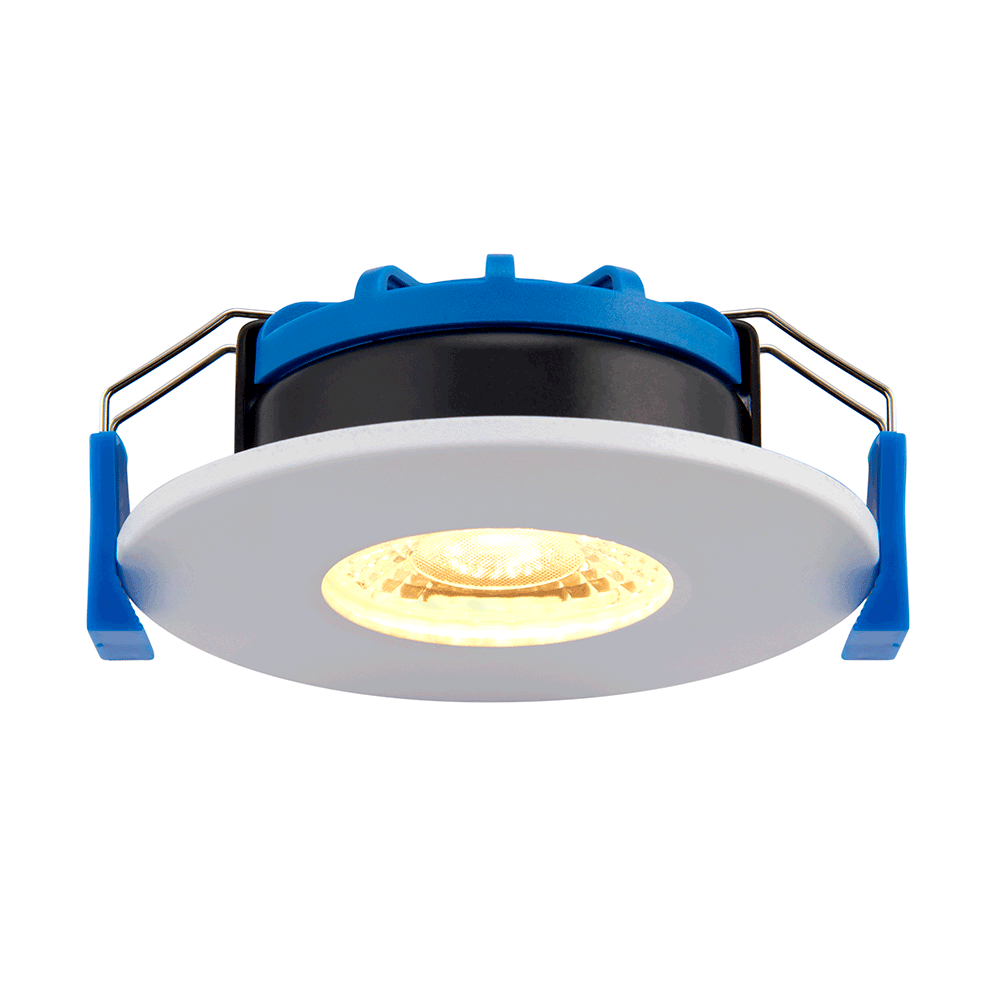

ShieldSLIM 4CCT 7W Downlight

103174
Saxby
103174
UOS: Each
Hide

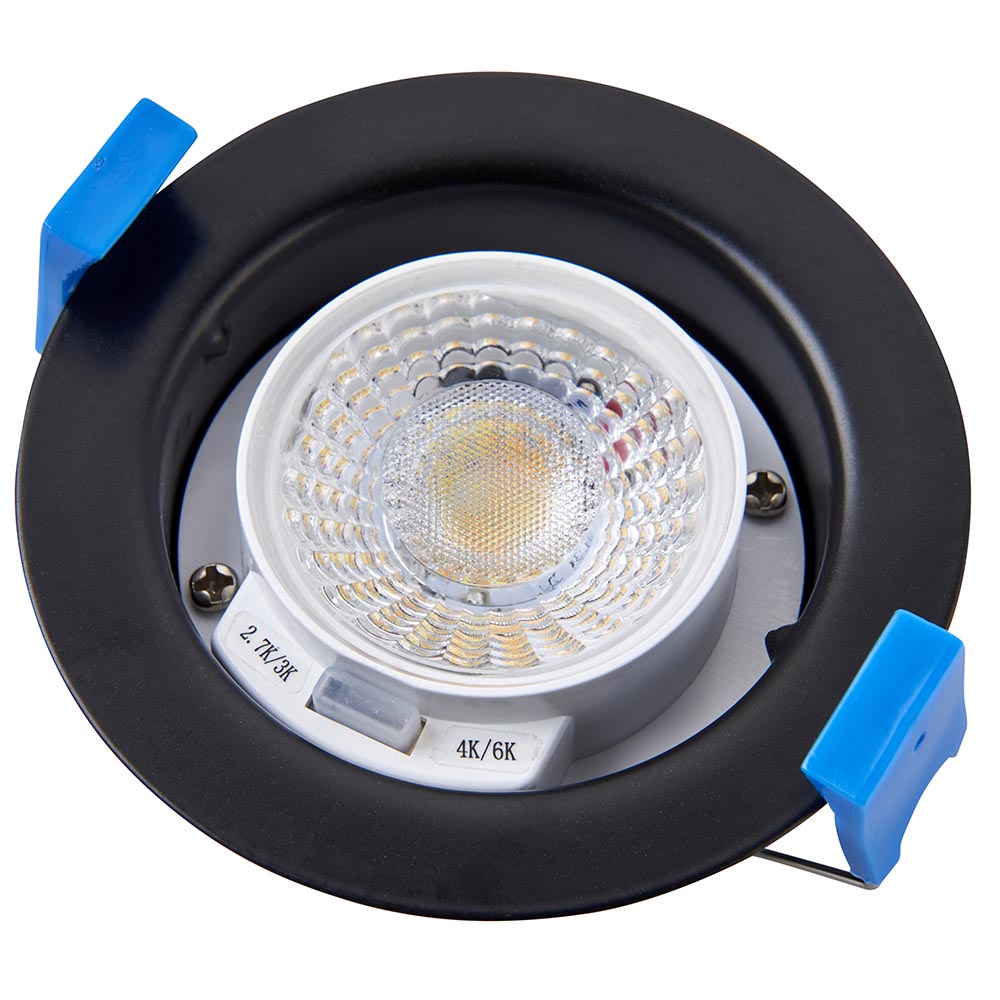

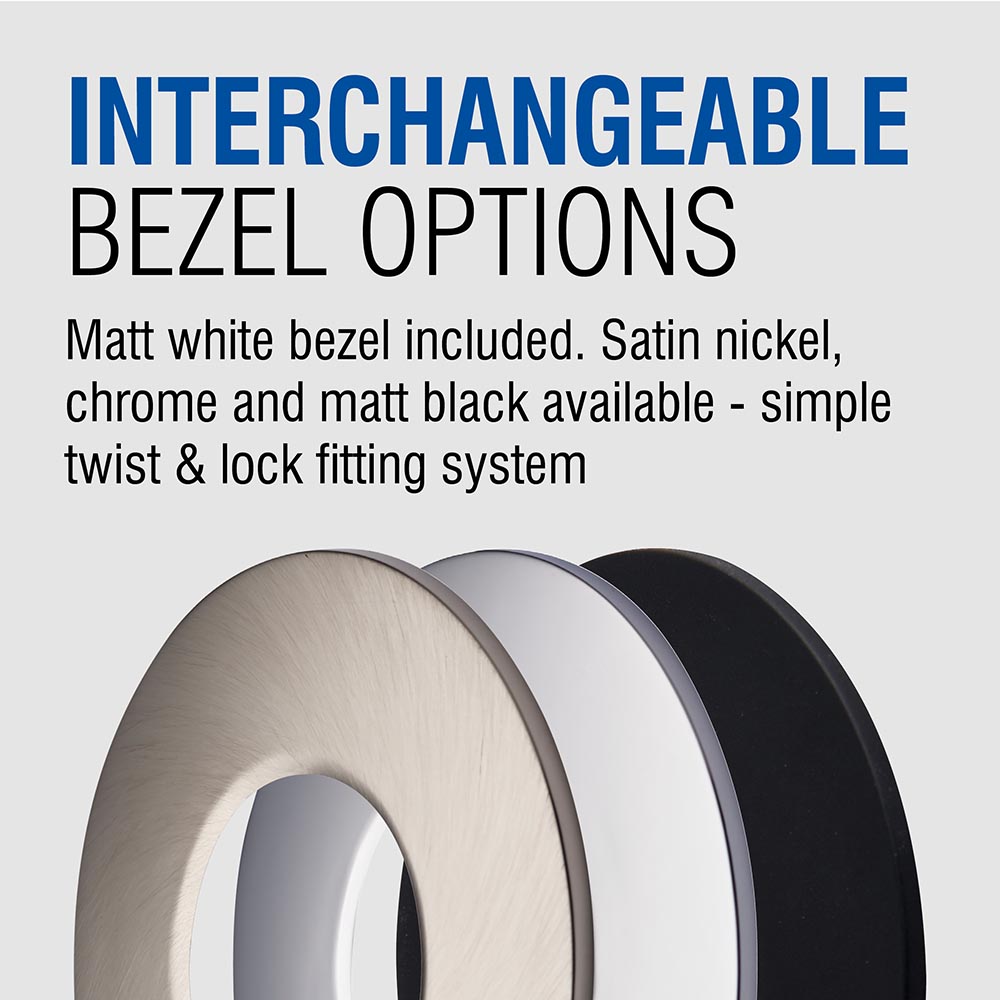

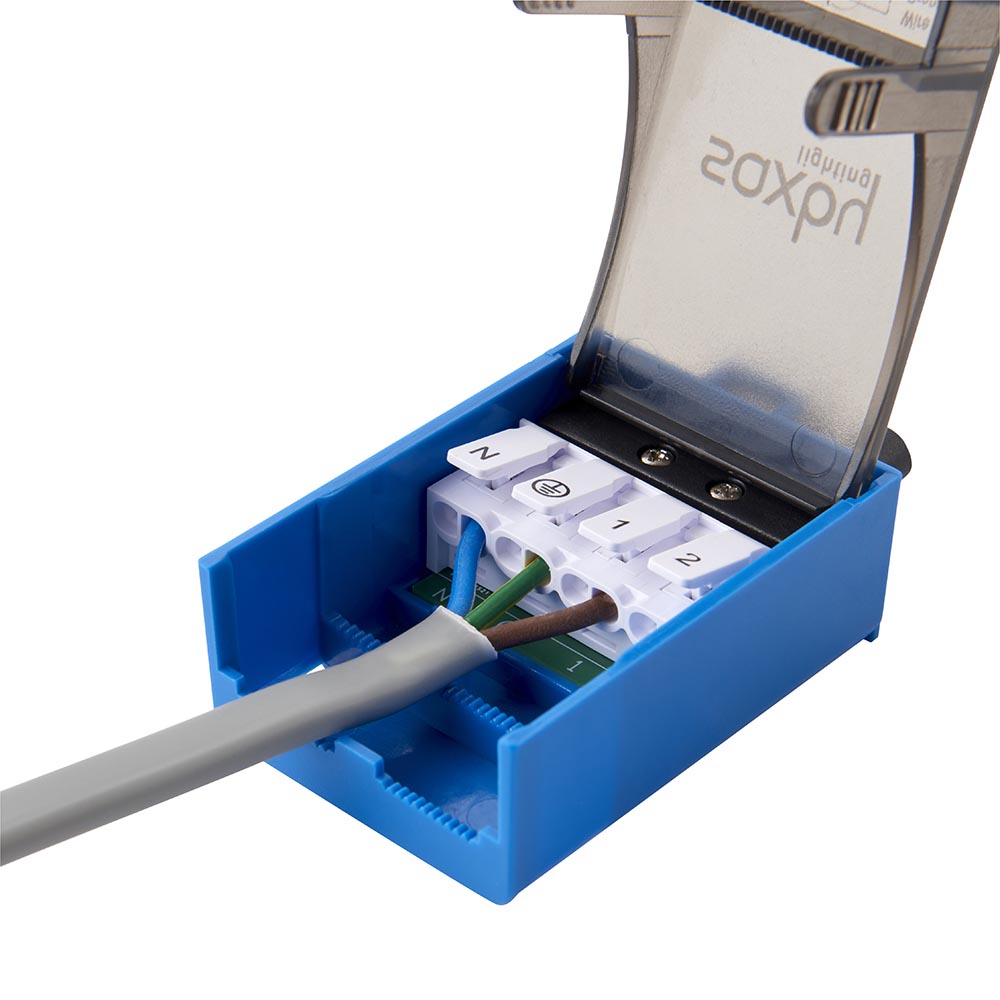

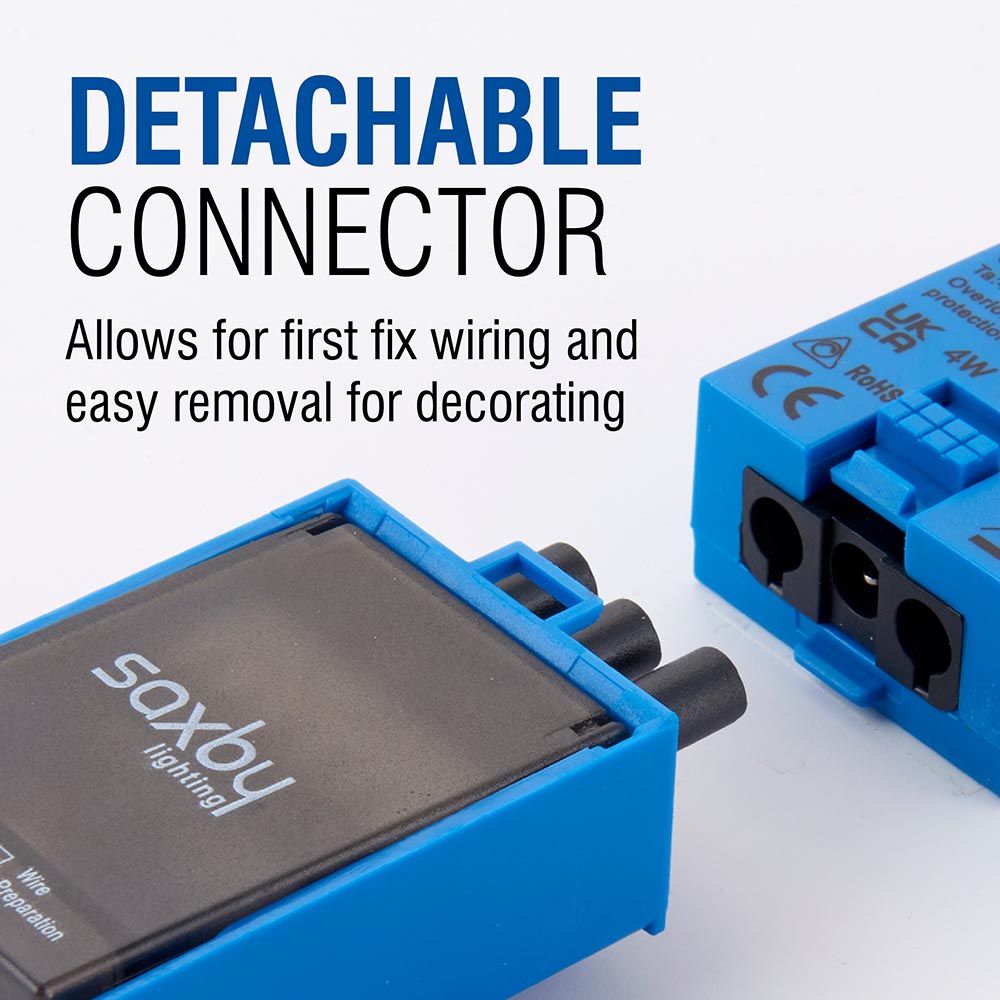

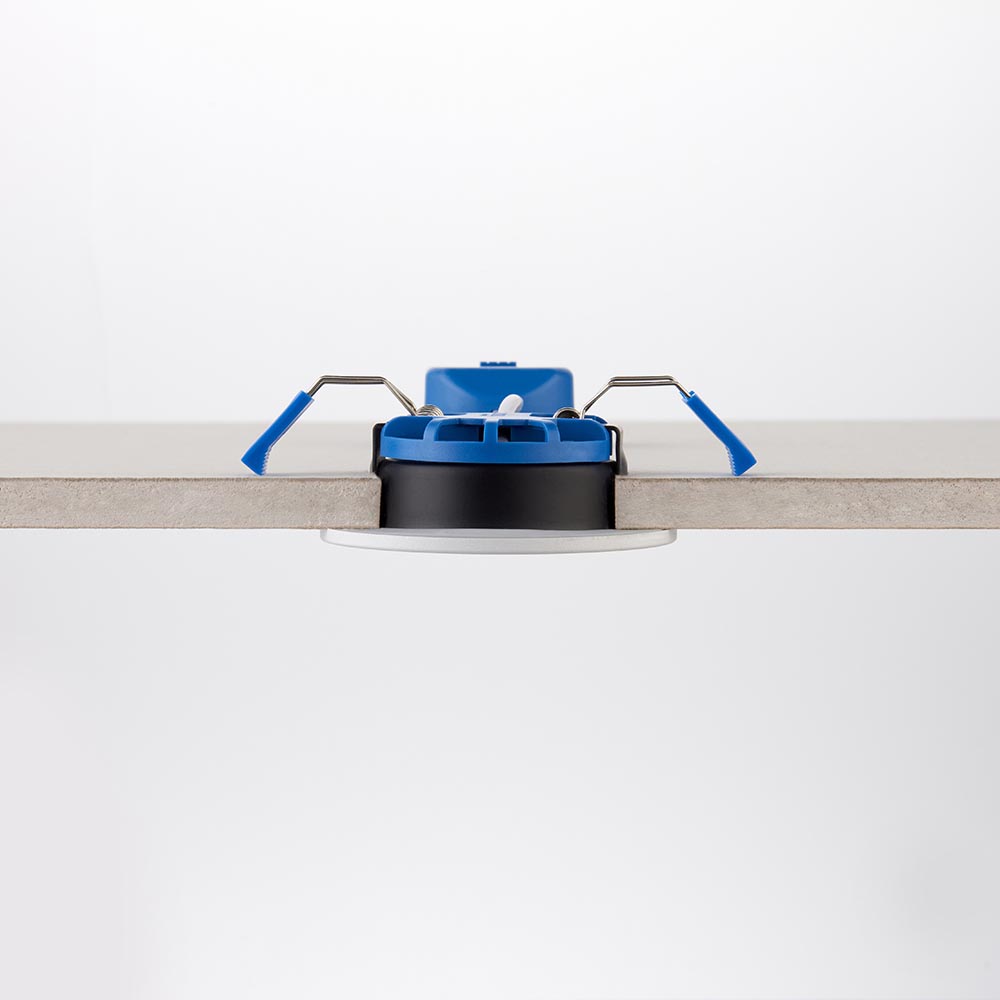

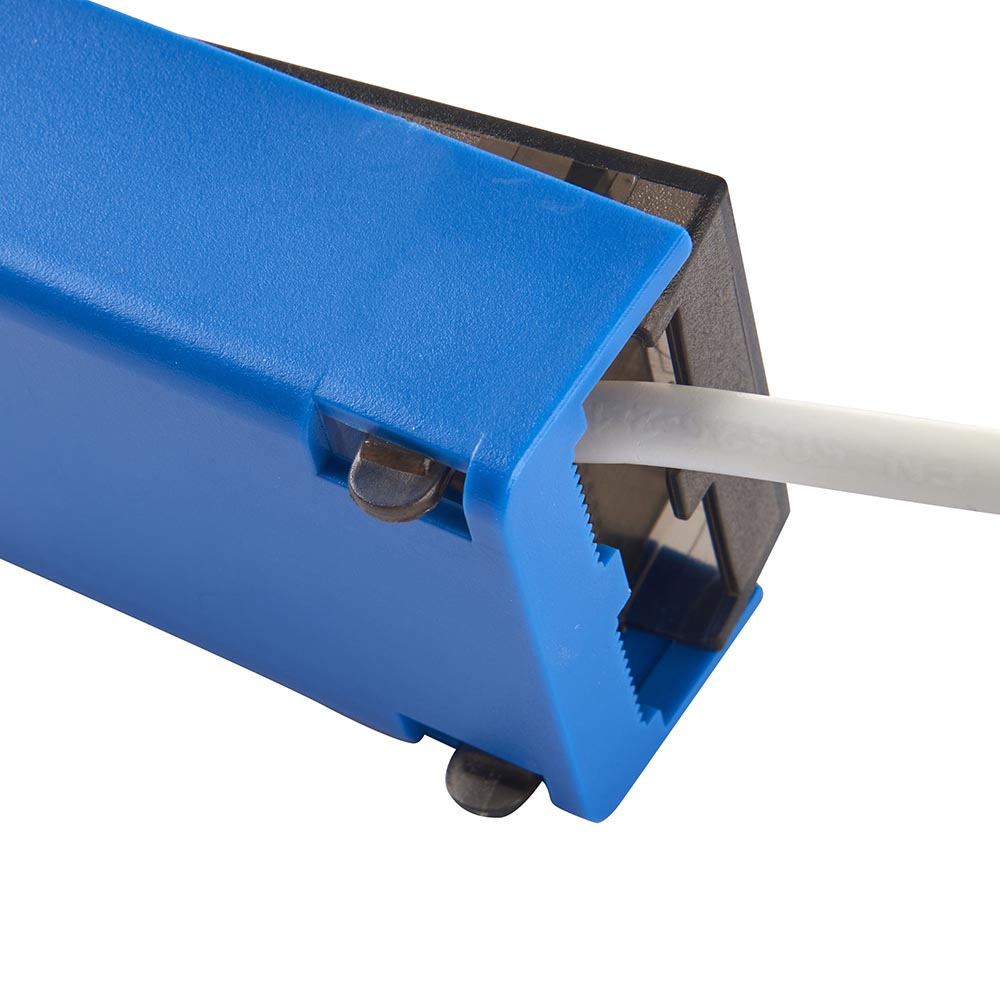

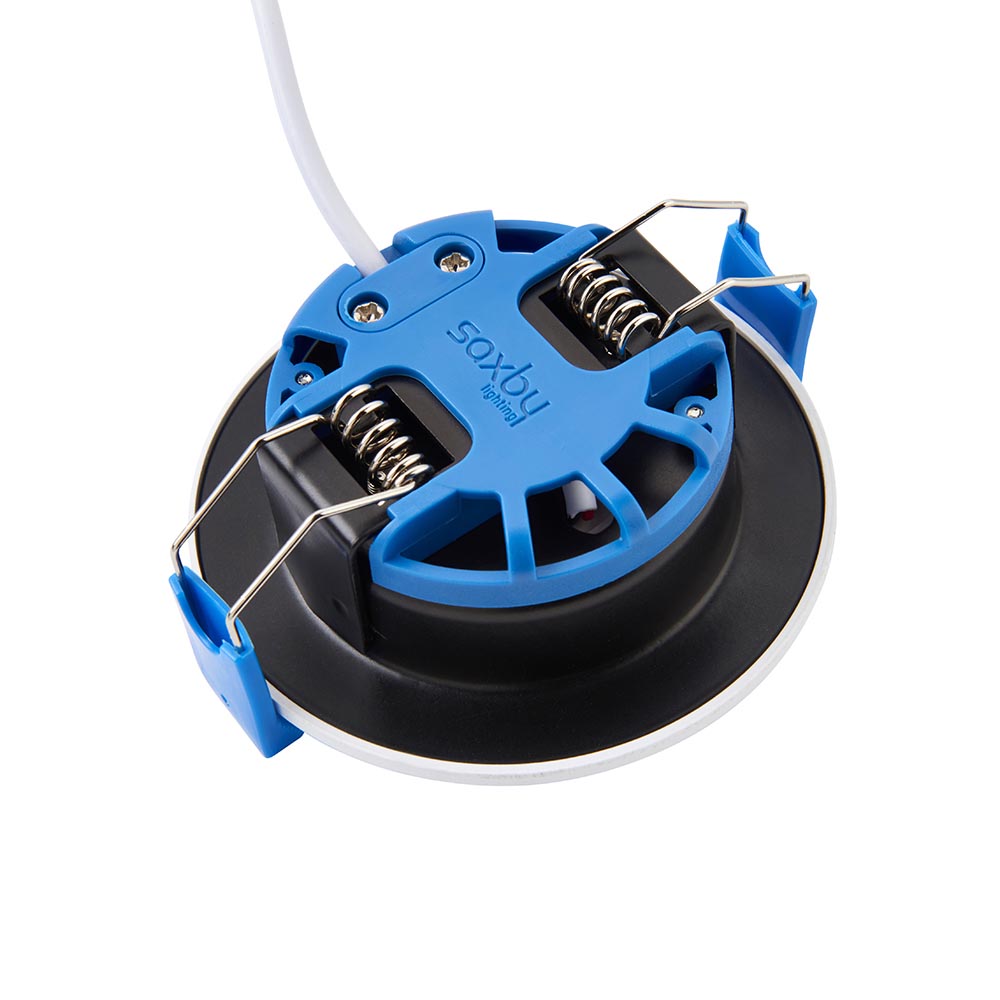

ShieldSLIM is the latest downlight to join the Saxby downlight range. The ShieldSLIM comes complete with a 3-way push fit terminal block for quick and easy installation which also allows users to loop in and out. The fitting and driver are connected with a twist lock connection meaning these can be separated during a first fix or a second fix. Under the twist lock bezel you will find a 4-way CCT switch which allows you to easily choose between 2700K, 3000K, 4000K or 6000K once the fitting is installed. Other features include: the option to be covered with insulation, fits into shallow ceiling voids, IP65-rated, and fully fire-rated for 30,60 & 90-minute ceilings.
  • Dimmable
  • Matt white & clear acrylic
  • Constructed from steel & aluminium alloy & acrylic
  • Shipment Carton Qty: 20

Overview

  • Complete with LED driver
  • 7W LED module (SMD 2835 CCT) CCT (Included)
  • K: 2700/3000/4000/6000 Lm: 600 Lm/W: 86
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 30, 60 & 90 minutes
  • H: 32mm Dia: 89mm
  • Class 2
  • Cut hole Dia: 68mm
  • 2+3YR Extended Warranty
  • Weight: 0.2 Kg

Specification

Colour Finish:
Matt white paint & clear acrylic
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    32
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588031741
    Packed Height (mm):
    13
    Packed Wid (mm):
    9.5
    Packed Depth (mm):
    7.5
    Packed Weight (kg):
    .25

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    39
    Outer Width (mm):
    20
    Outer Depth (mm):
    28
    Outer Gross Weight (kg):
    5.2

    Other Colours

    Associated Products
    Dimmer Module 100W Universal
    Dimmer Module 250W Trailing edge

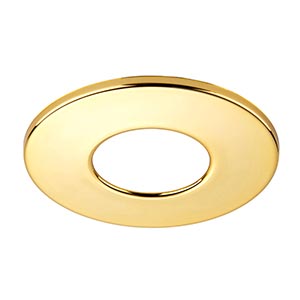

    ShieldPRO Bezel - Polished Brass

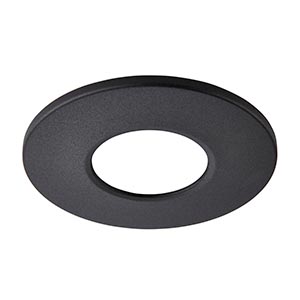

    ShieldPRO Bezel - Anthracite Grey

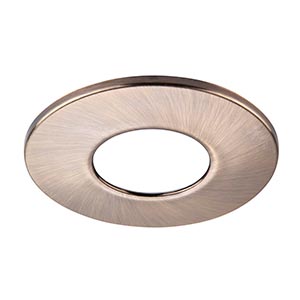

    Shield Fire Rated Bezel Antique Brass

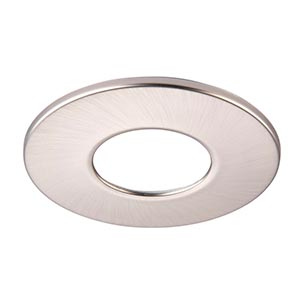

    Shield Fire Rated Bezel Satin Nickel

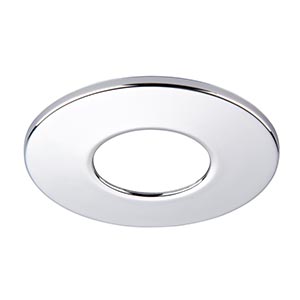

    Shield Fire Rated Bezel Chrome

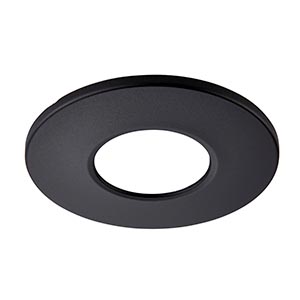

    Shield Fire Rated Bezel Matt Black

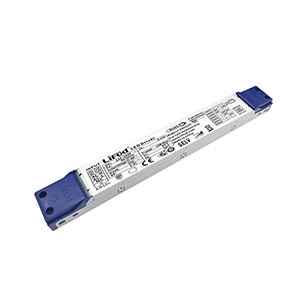

    DALI Dimmable Driver 15W
