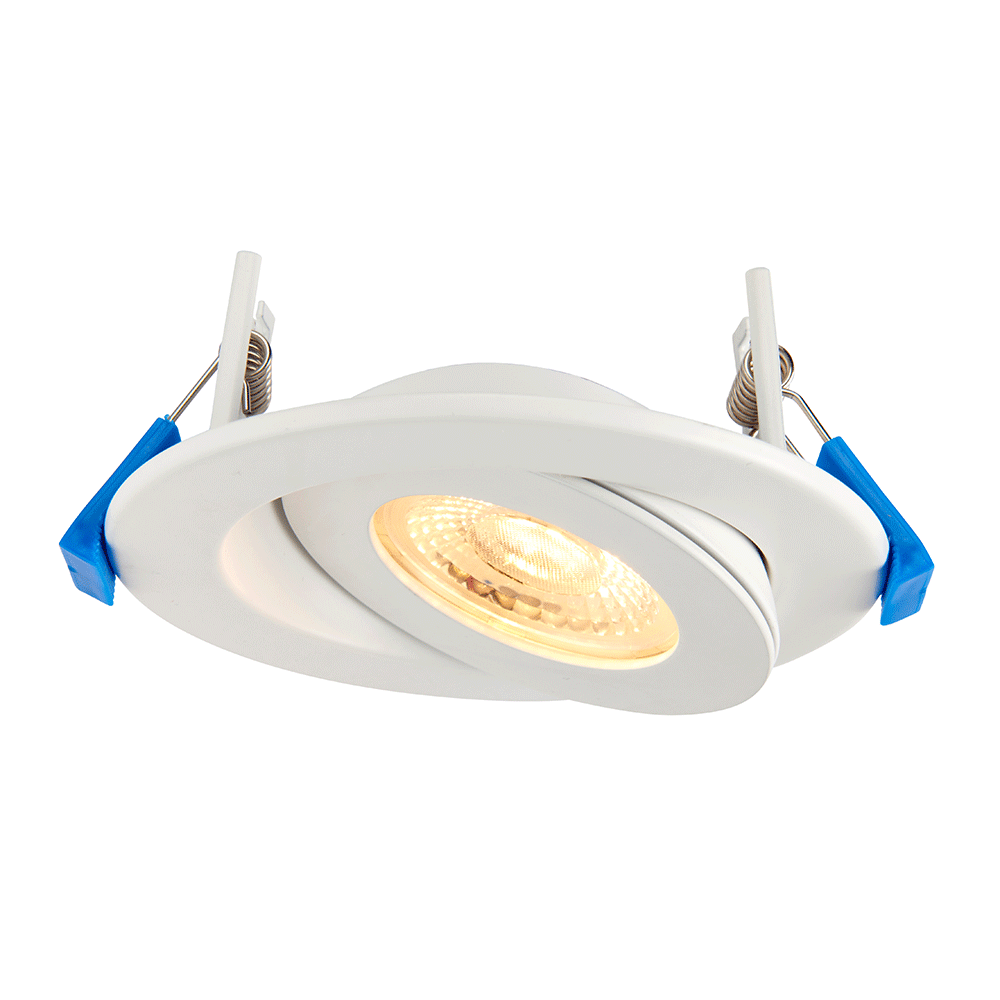

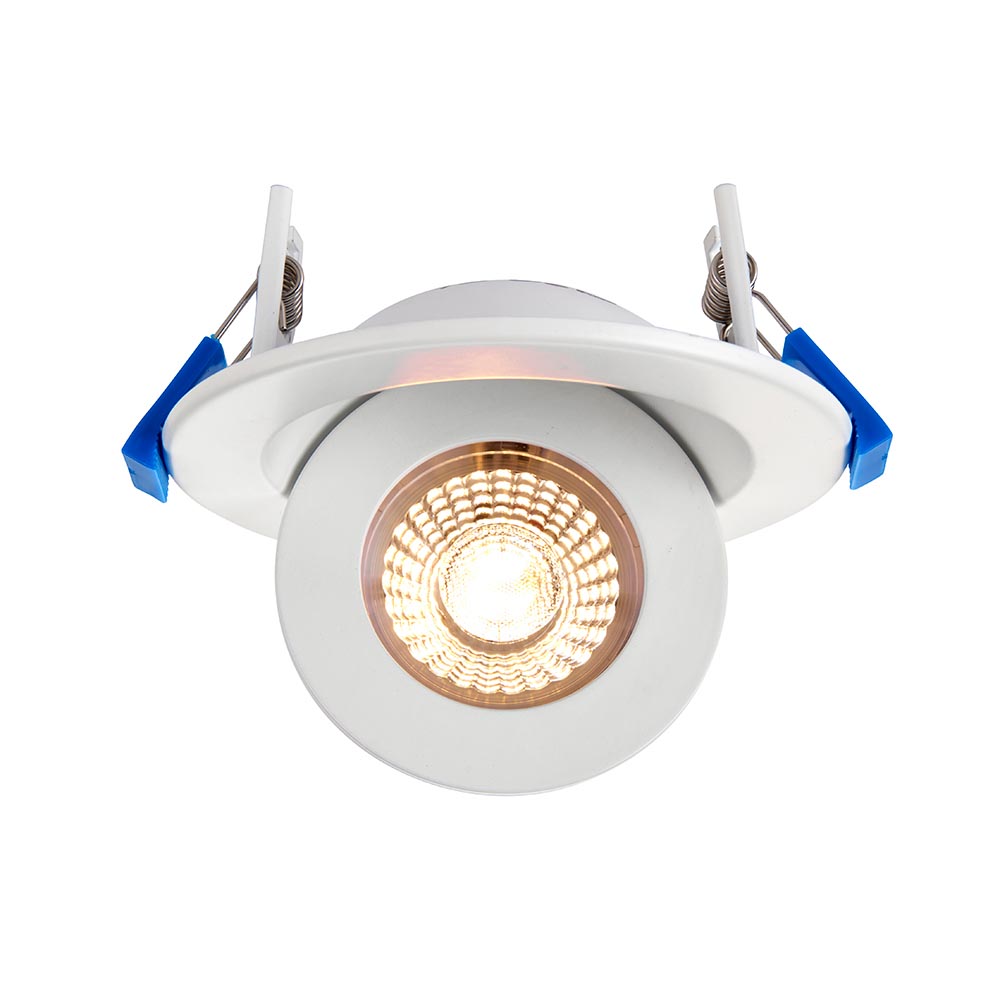

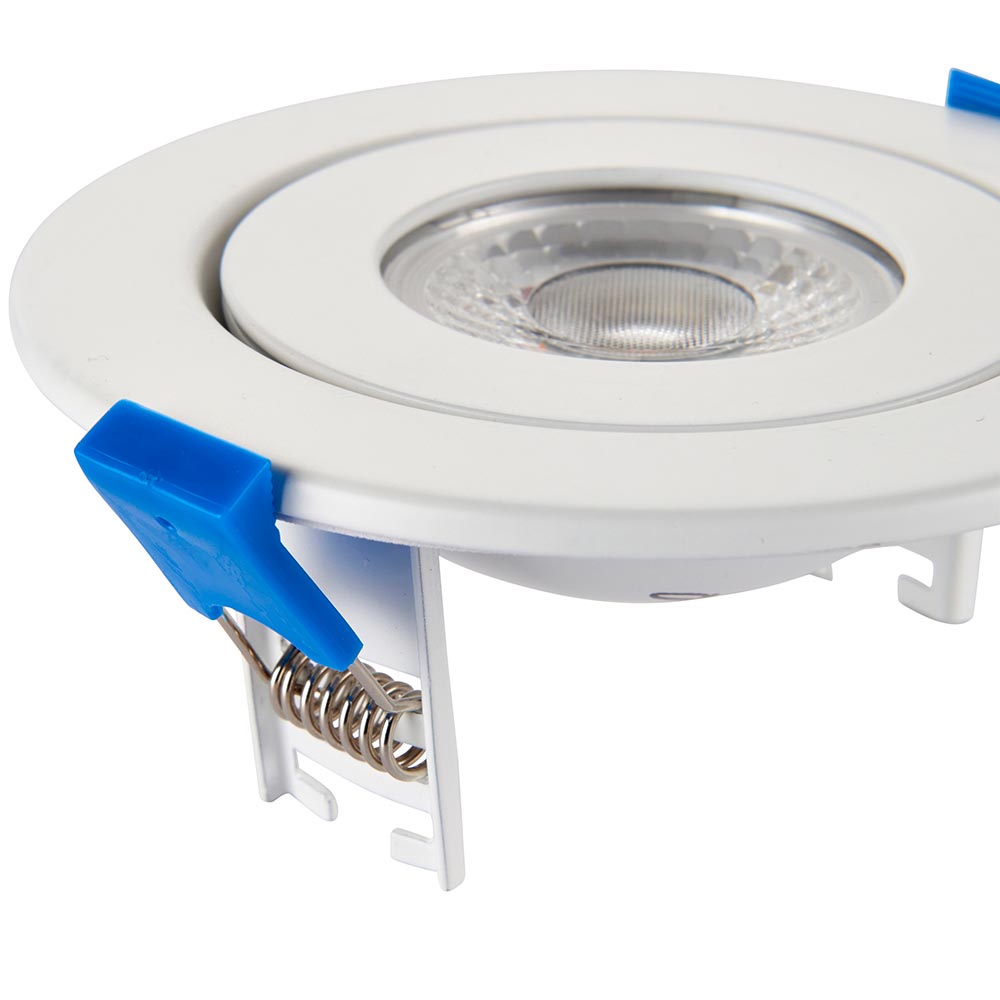

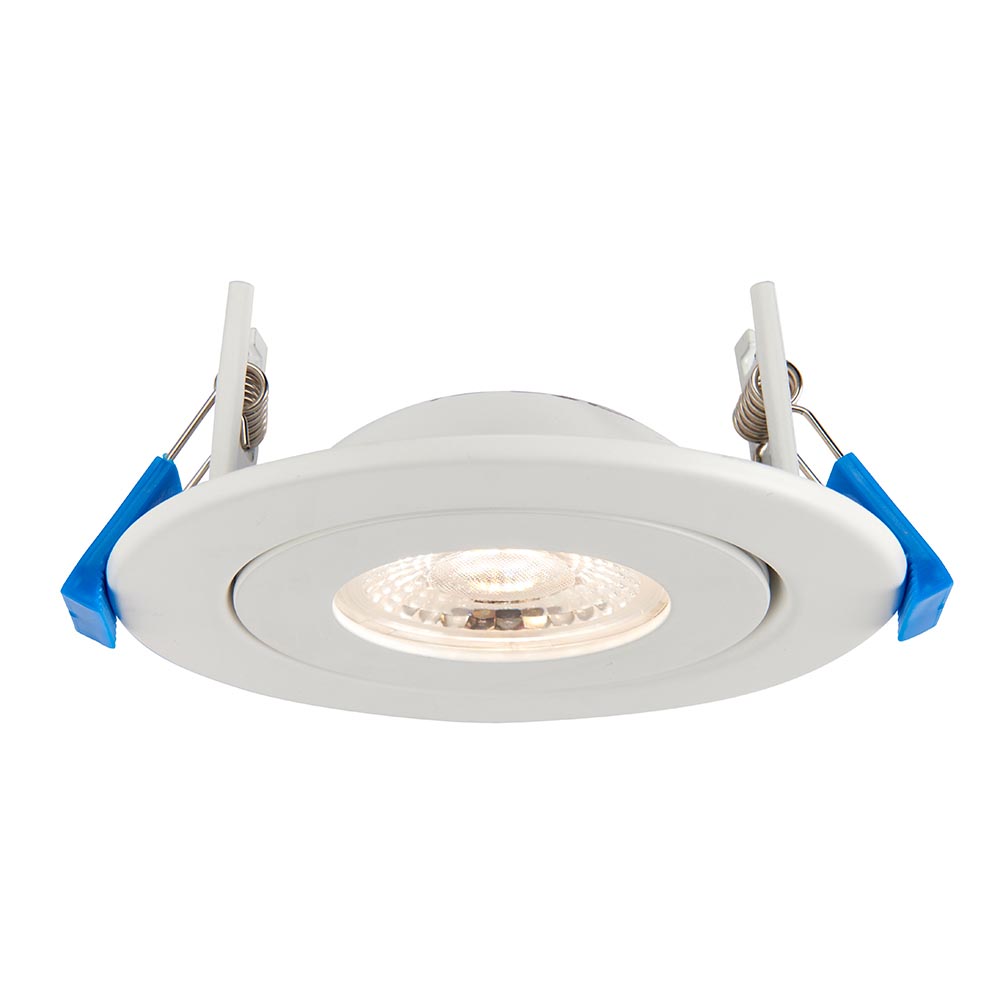

Shield360 Tri Wattage 4CCT 8W Downlight

103029
Saxby
103029
UOS: Each
Hide

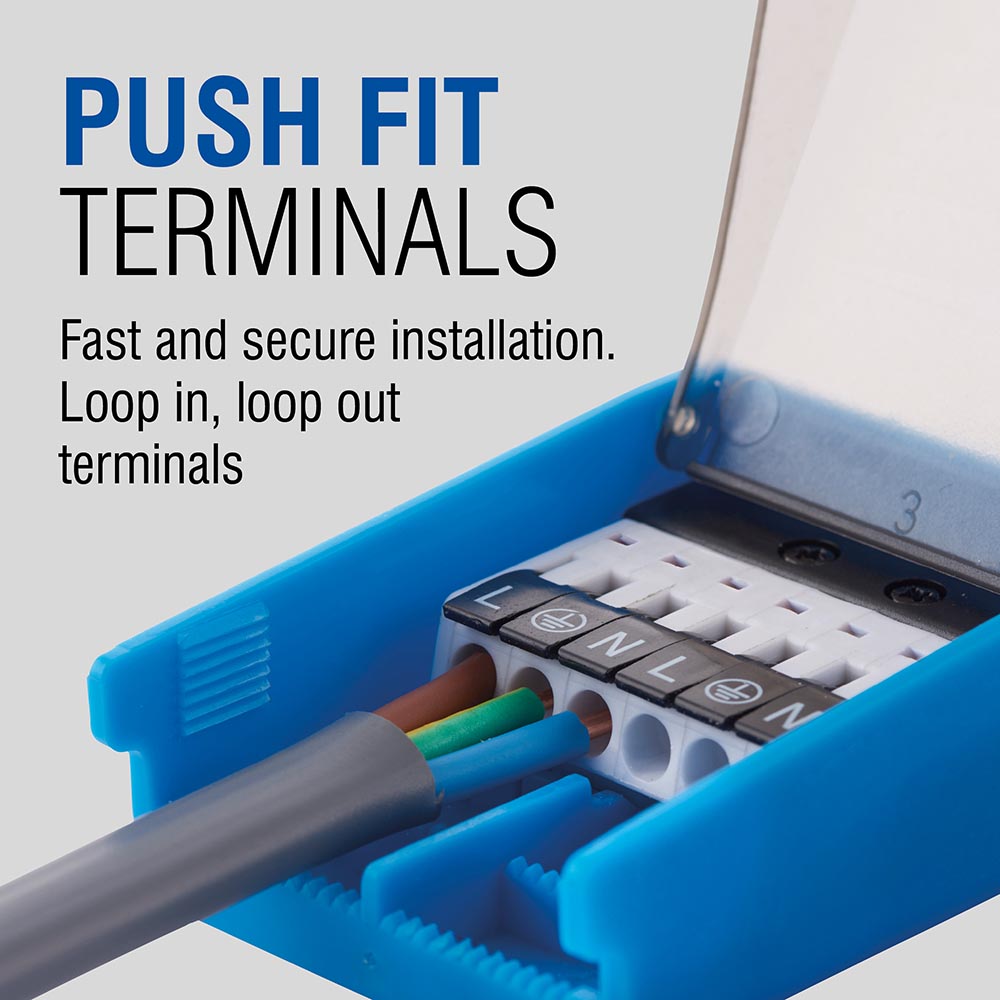

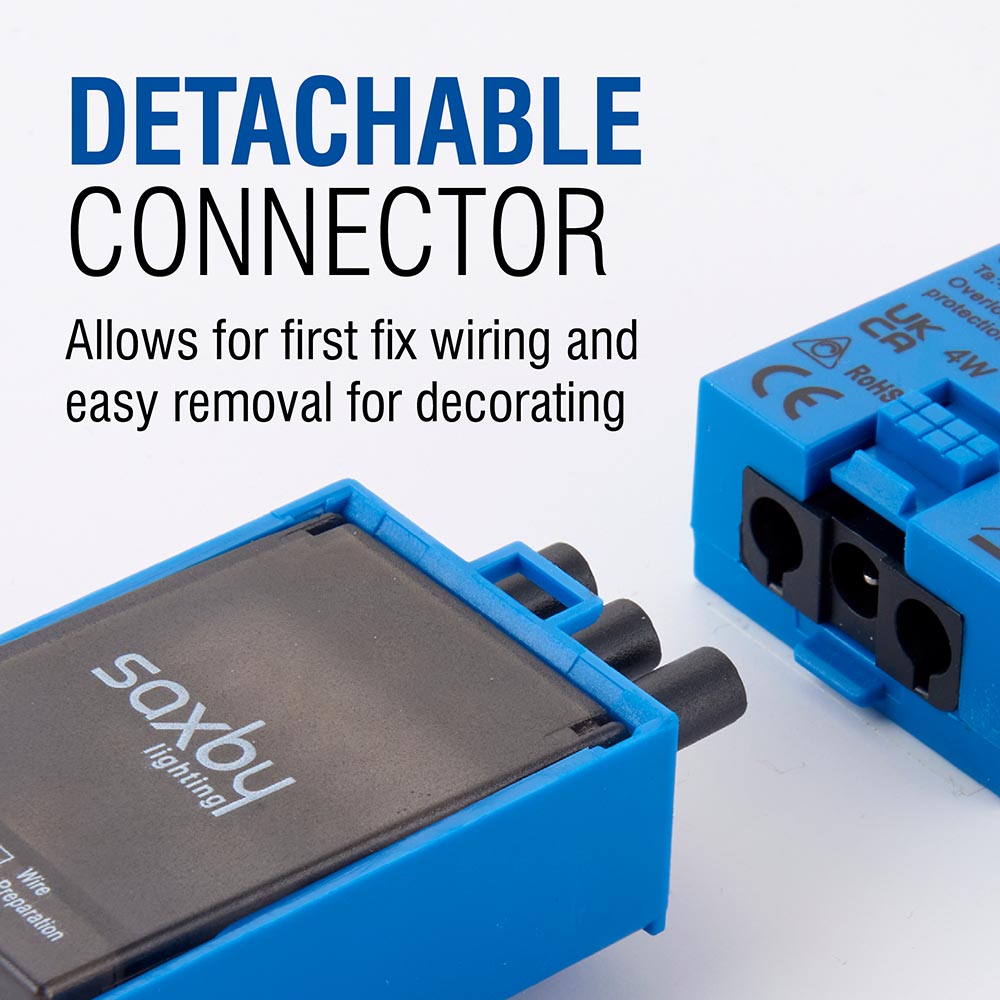

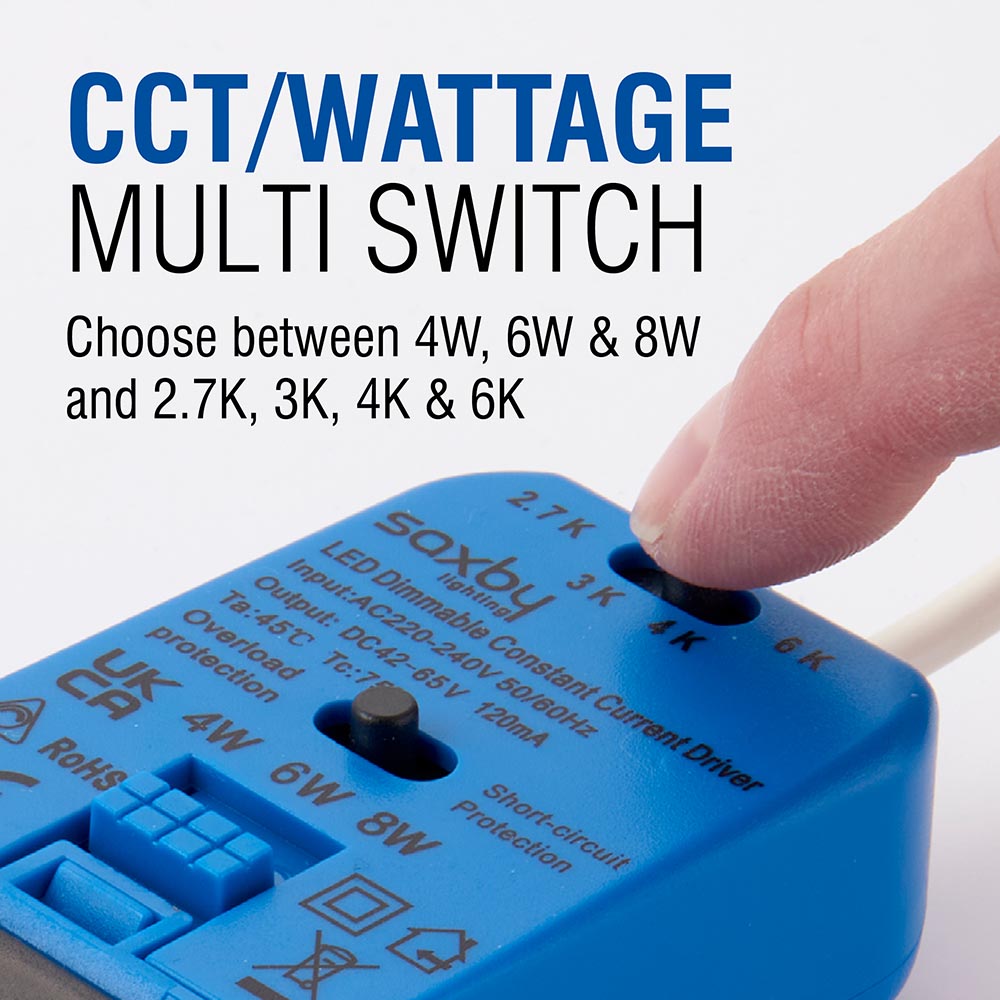

The Shield360 is Saxby's new versatile downlight. This fitting comes with a 3-way Plug and Play connector which allows users to loop in and out. The connector has a simple 4-way CCT switch allowing users to choose between 2700K, 3000K, 4000K or 6000K and a 3-way Watt switch allowing users to choose between 4W, 6W or 8W. Other features include: the option to be covered with insulation, fits into shallow ceiling voids, IP44-rated, and fully fire-rated for 30,60 & 90-minute ceilings. The Shield360 swivels on 1 axis to be able to rotate 360°.
  • Fully adjustable
  • Dimmable

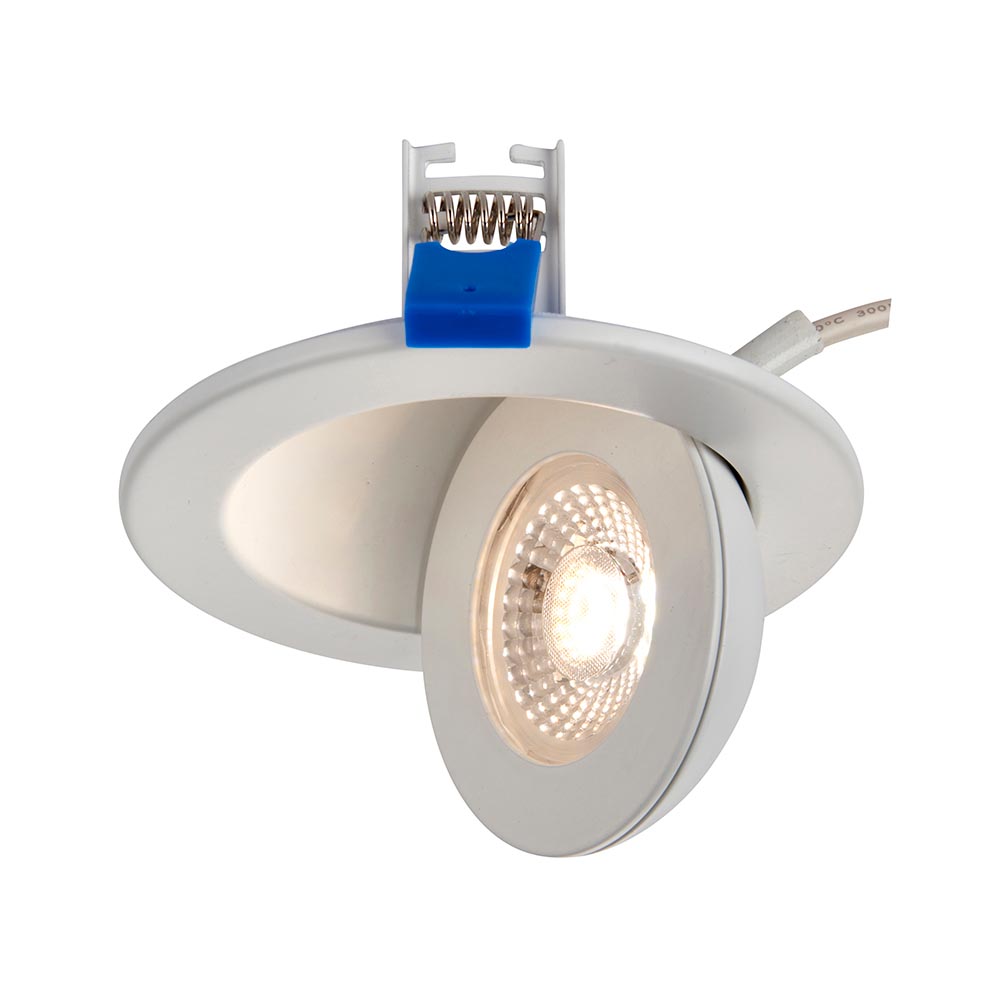

  • 360 degree rotation
  • Matt white
  • Constructed from die cast aluminium alloy & steel & acrylic
  • Shipment Carton Qty: 20

Overview

  • Complete with LED driver
  • 4/6/8W selectable Lm: 400/600/800 Lm/W: 100
  • K: 2700/3000/4000/6000
  • IP44. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 90 minutes
  • Proj: 3mm Dia: 110mm H: 45mm
  • Cut hole Dia: 90mm

Specification

Colour Finish:
Matt white paint
IP Rating:
44
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    45
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588030294
    Packed Height (mm):
    12.5
    Packed Wid (mm):
    6
    Packed Depth (mm):
    13
    Packed Weight (kg):
    .32

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    32
    Outer Width (mm):
    26
    Outer Depth (mm):
    28
    Outer Gross Weight (kg):
    7.07

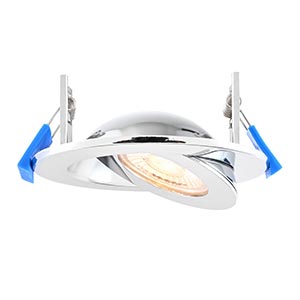

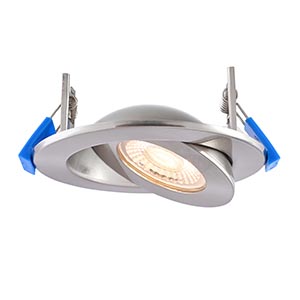

    Other Colours

    Products you may also be interested in

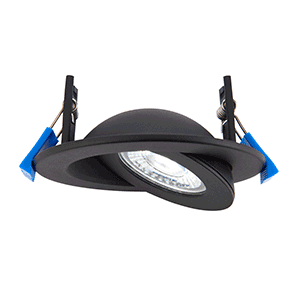

    Shield360 Tri Wattage 4CCT 8W Black Downlight
