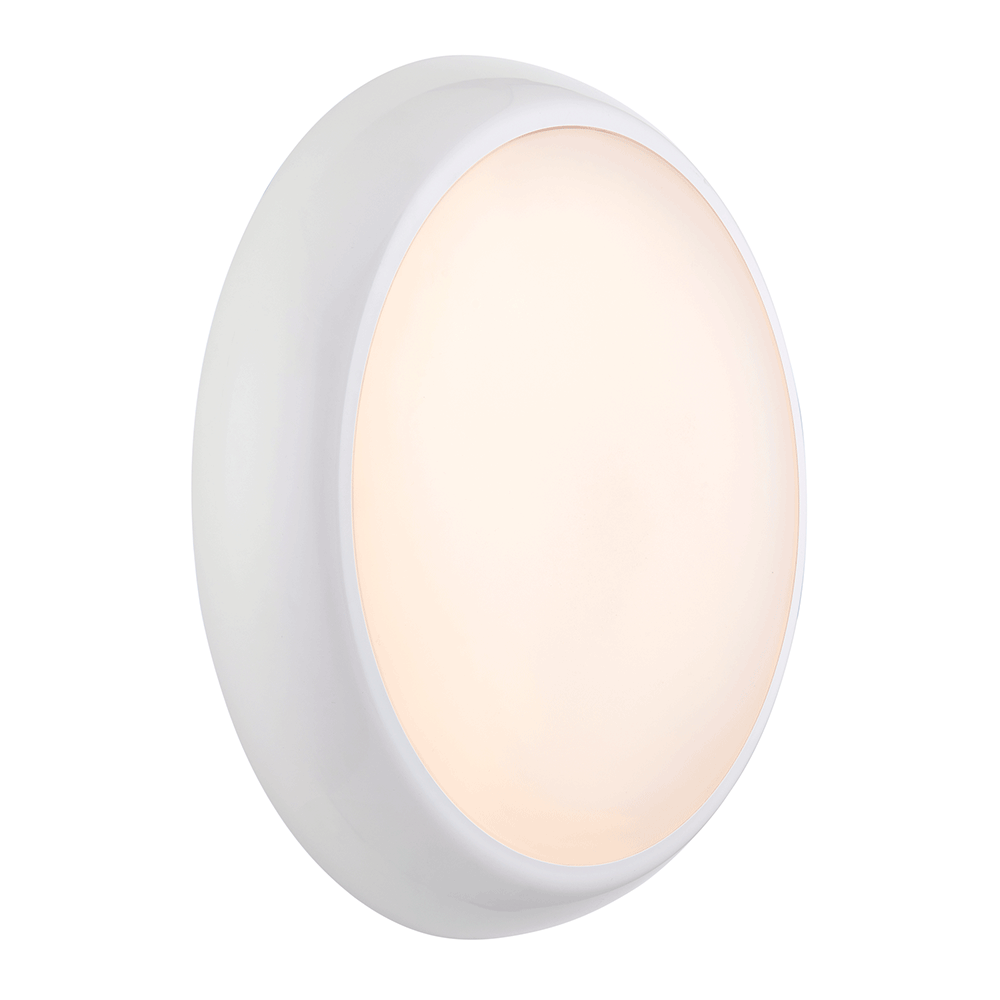

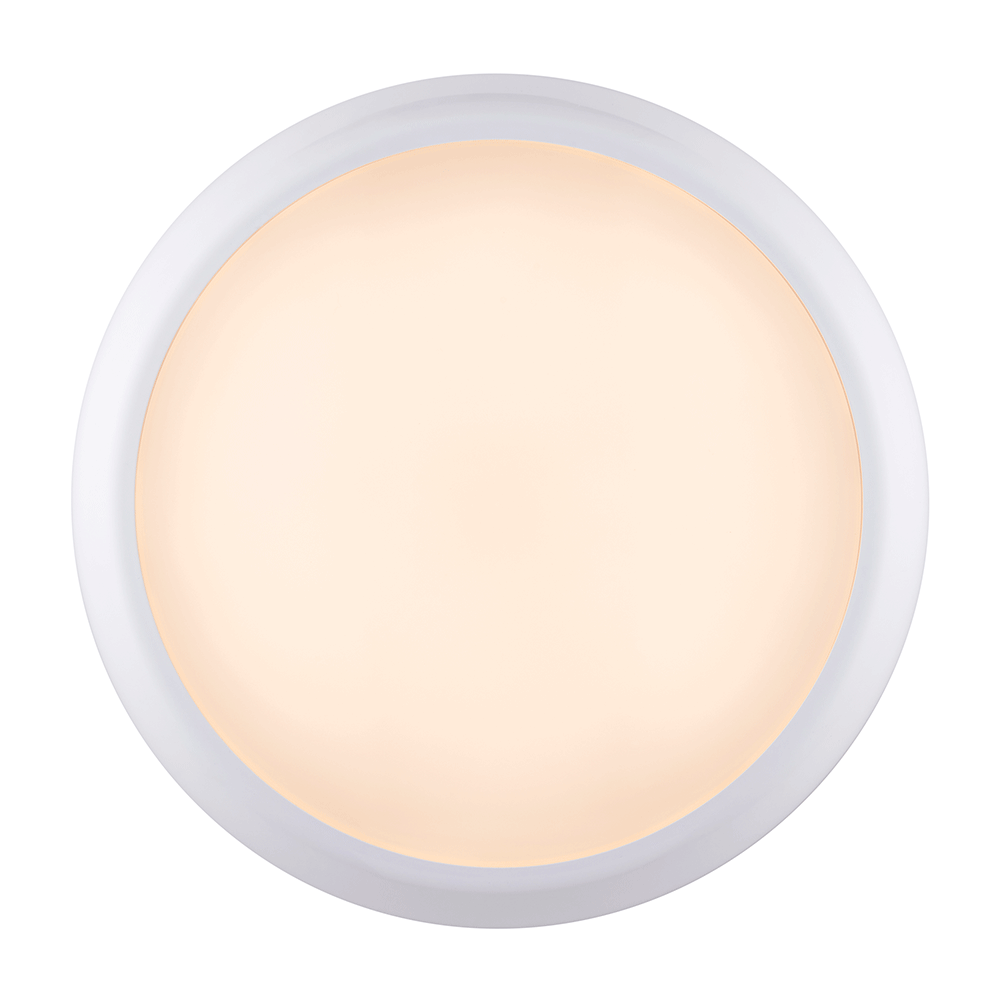

Saxby HeroPRO XL CCT Tri Wattage Bulkhead

102732
Saxby
102732
UOS: Each
Hide

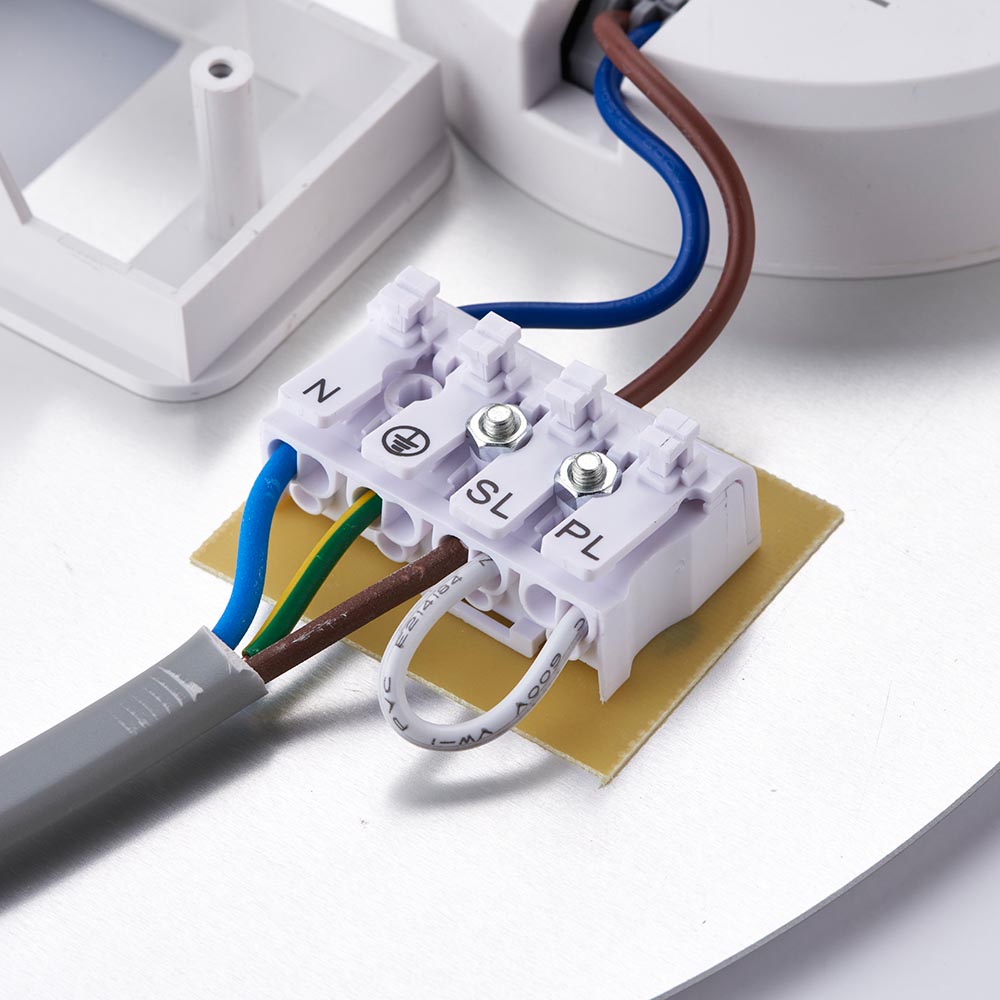

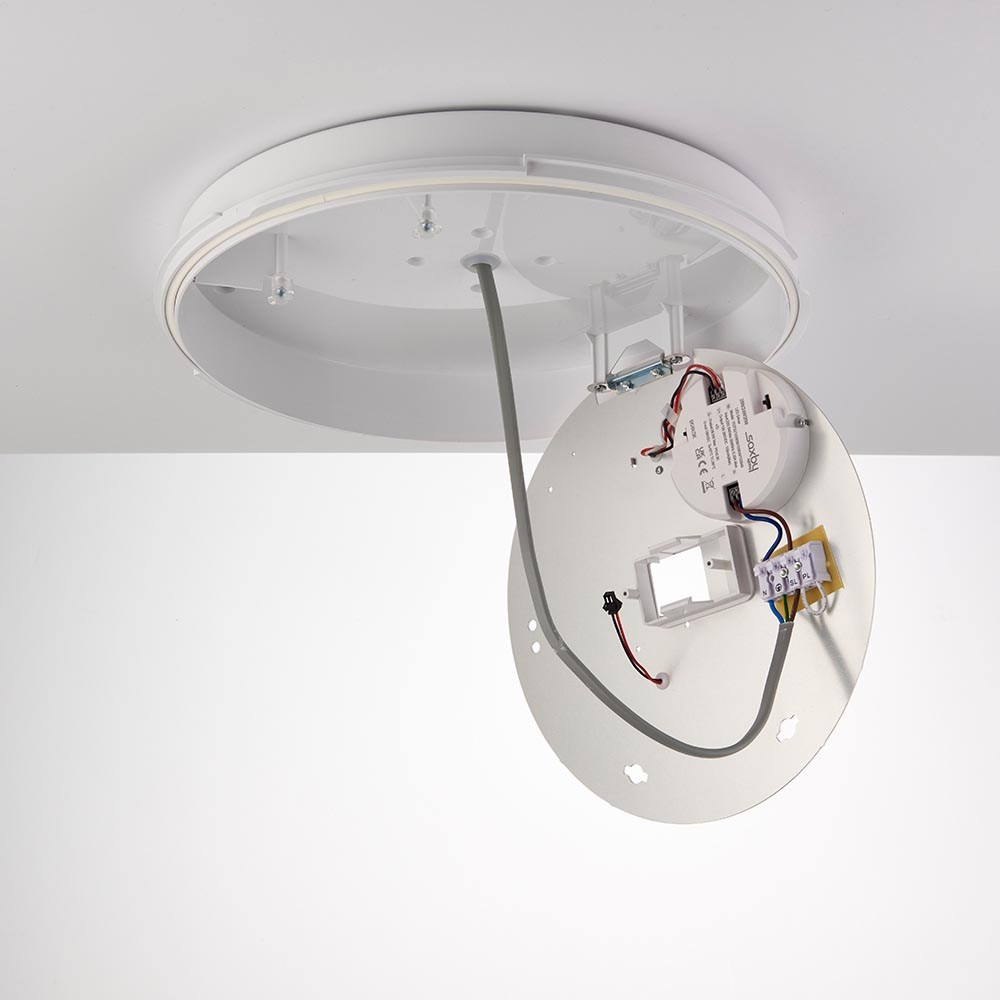

Saxby's signature bulkhead, HeroPRO XL, covers multiple wattages; 20W/24W/28W and temperature requirements; 3000K/4000K/6000K in one unit. Available in Standard, Emergency, Microwave & Microwave Emergency variants all supplied with white bezel as standard. The fast-fit hinged gear tray, and push-fit connector makes it perfect for efficient, hassle-free installation. The IP65, slim profile and IK10 rating further ensure it is robust enough for public spaces both indoors and outdoors.
  • Gloss white & opal pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 5

Overview

  • Complete with LED driver

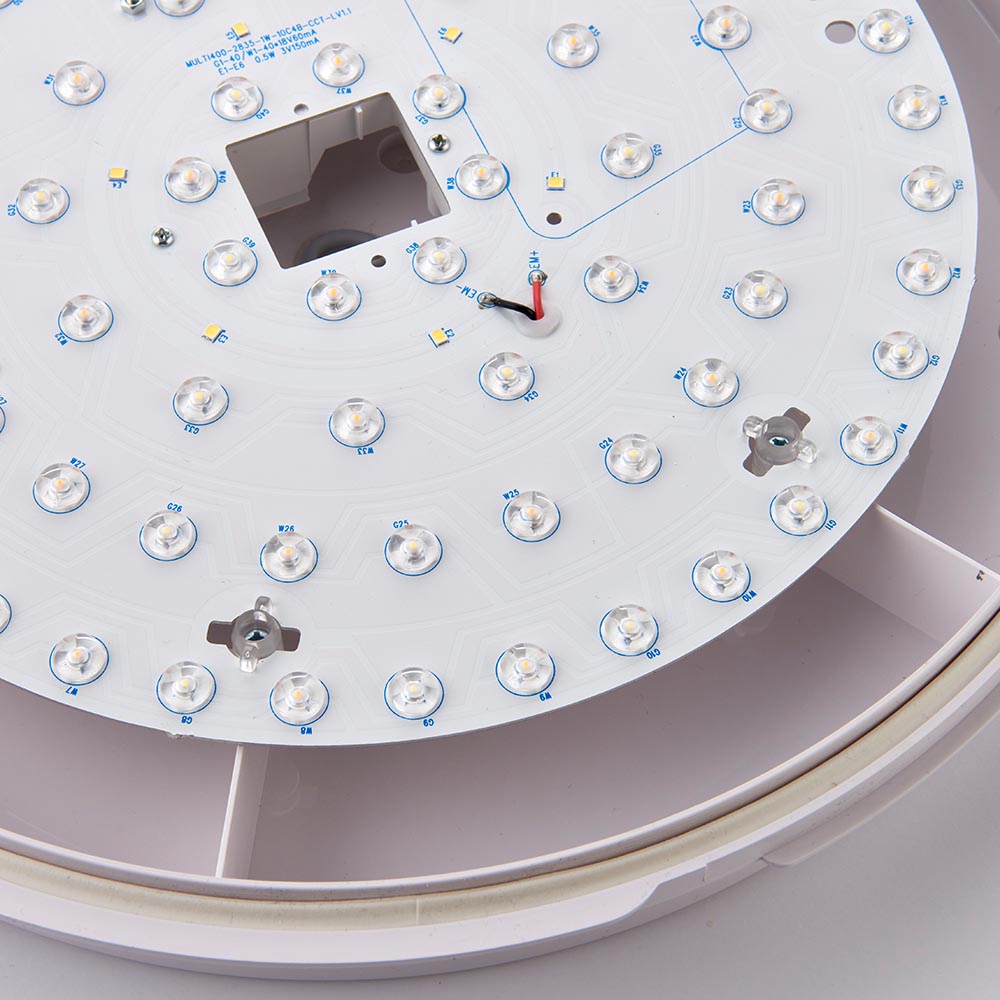

  • 28W LED module (SMD 2835 CCT) CCT (Included)

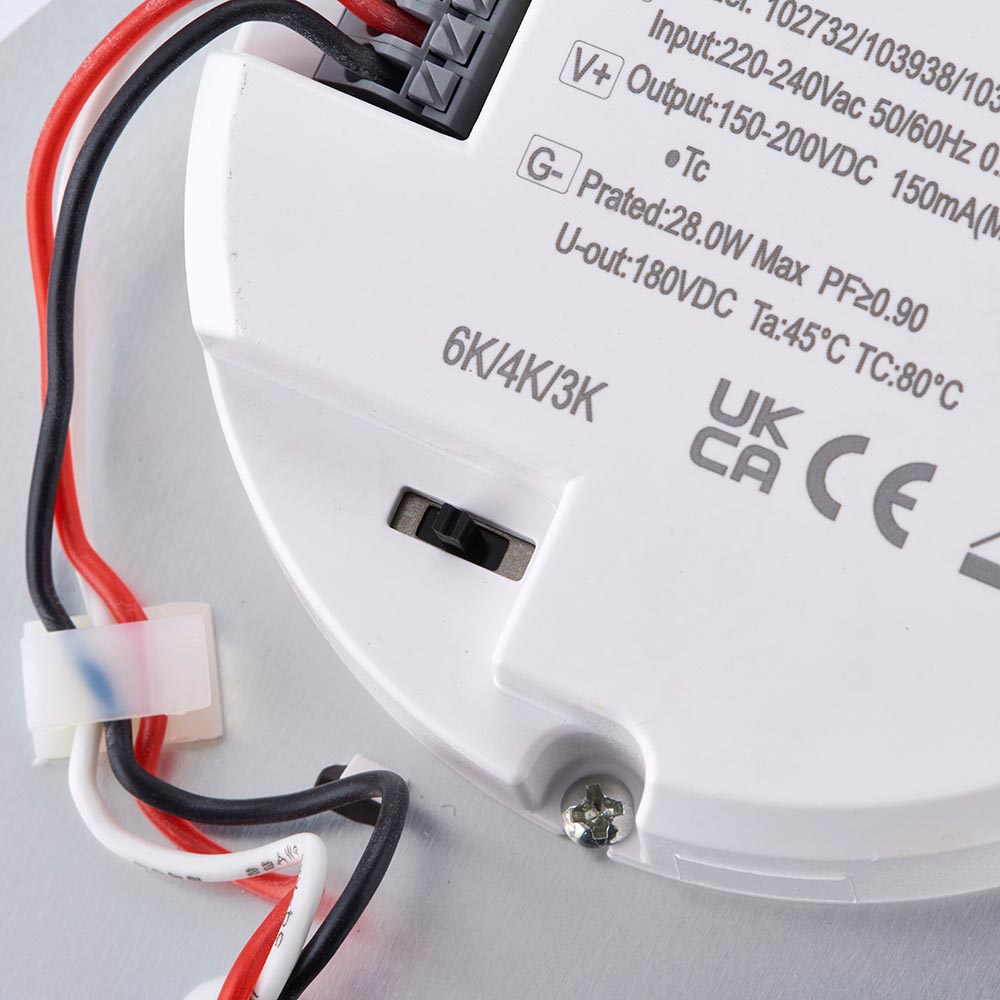

  • K: 3000/4000/6000 Lm: 2800 Lm/W: 100
  • IP65

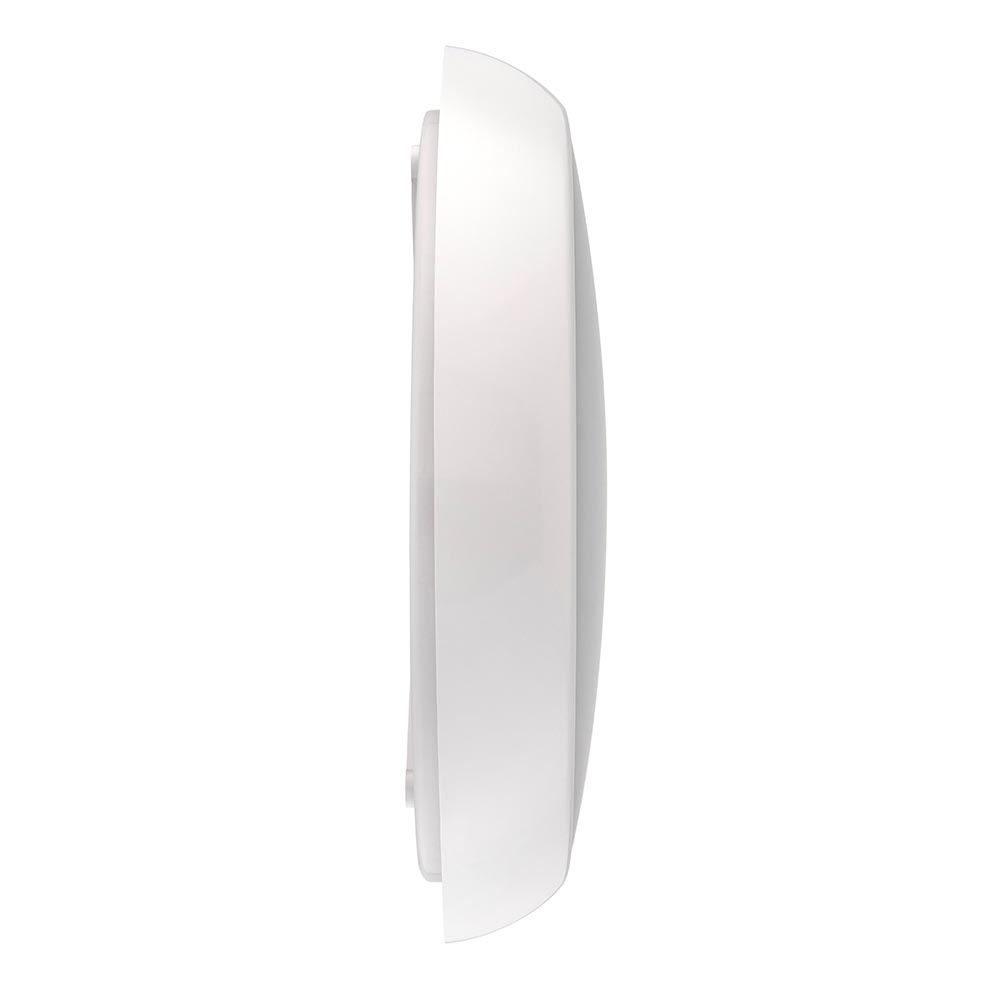

  • Proj: 85mm Dia: 400mm
  • Class 2

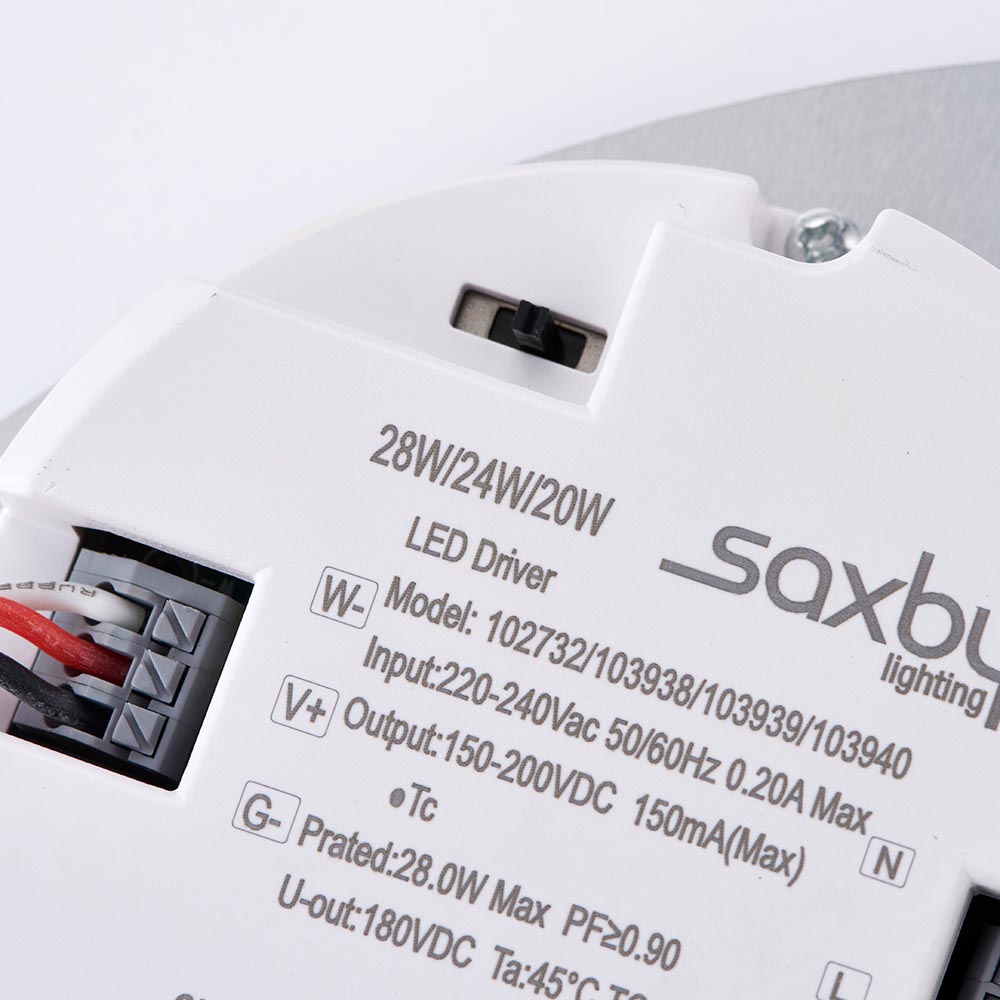

  • 28W/24W/20W selectable
  • 2+3YR Extended Warranty
  • Weight: 1.4 Kg

Specification

Colour Finish:
Gloss white & opal pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588027324
    Packed Height (mm):
    8.6
    Packed Wid (mm):
    40.5
    Packed Depth (mm):
    40.5
    Packed Weight (kg):
    1.85

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    5
    Outer Height (mm):
    45
    Outer Width (mm):
    42
    Outer Depth (mm):
    42
    Outer Gross Weight (kg):
    10.41

    Other Colours

    Products you may also be interested in
    Saxby HeroPRO XL CCT Tri Wattage Bulkhead Emergency
    Saxby HeroPRO XL CCT Tri Wattage Bulkhead Microwave
    Saxby HeroPRO XL CCT Tri Wattage Bulkhead Microwave Emergency
    Associated Products

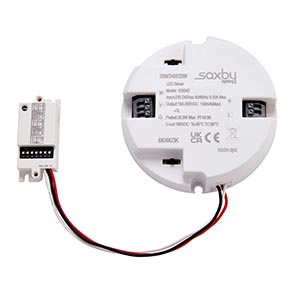

    Saxby HeroPRO Microwave Sensor Accessory
