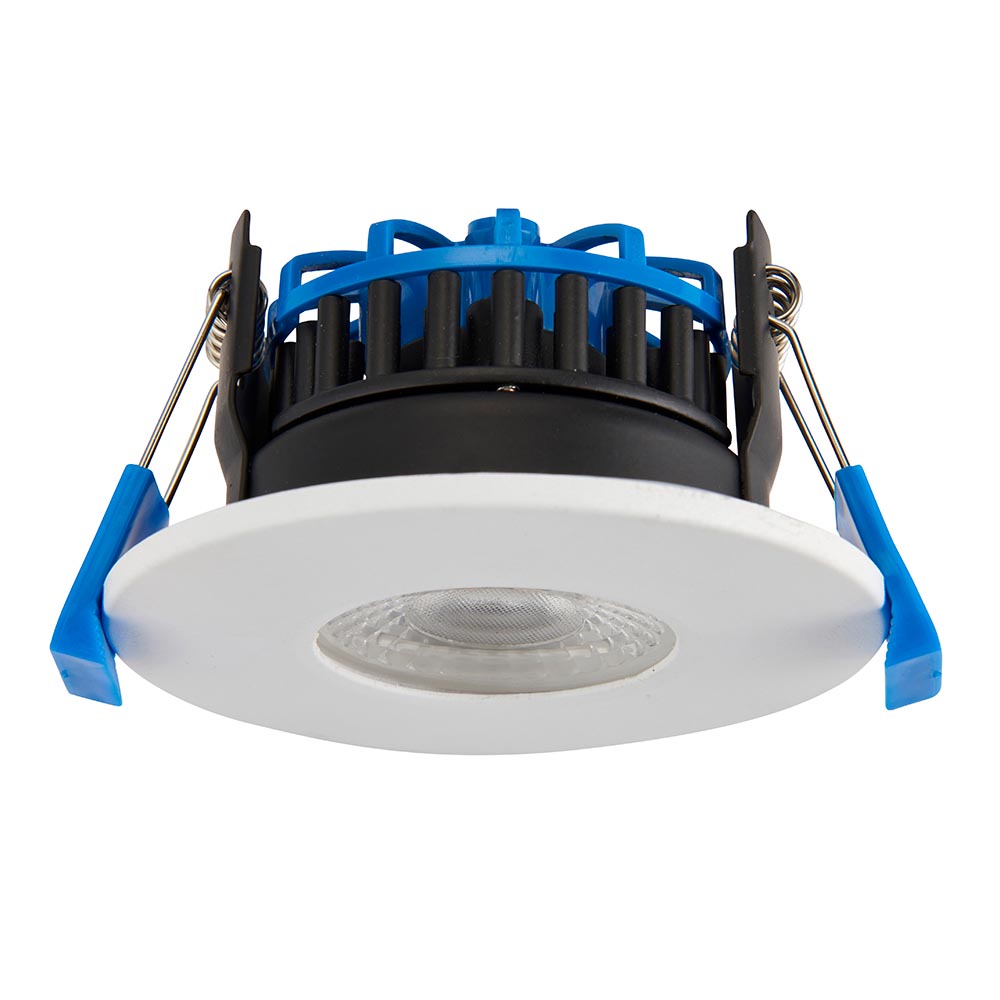

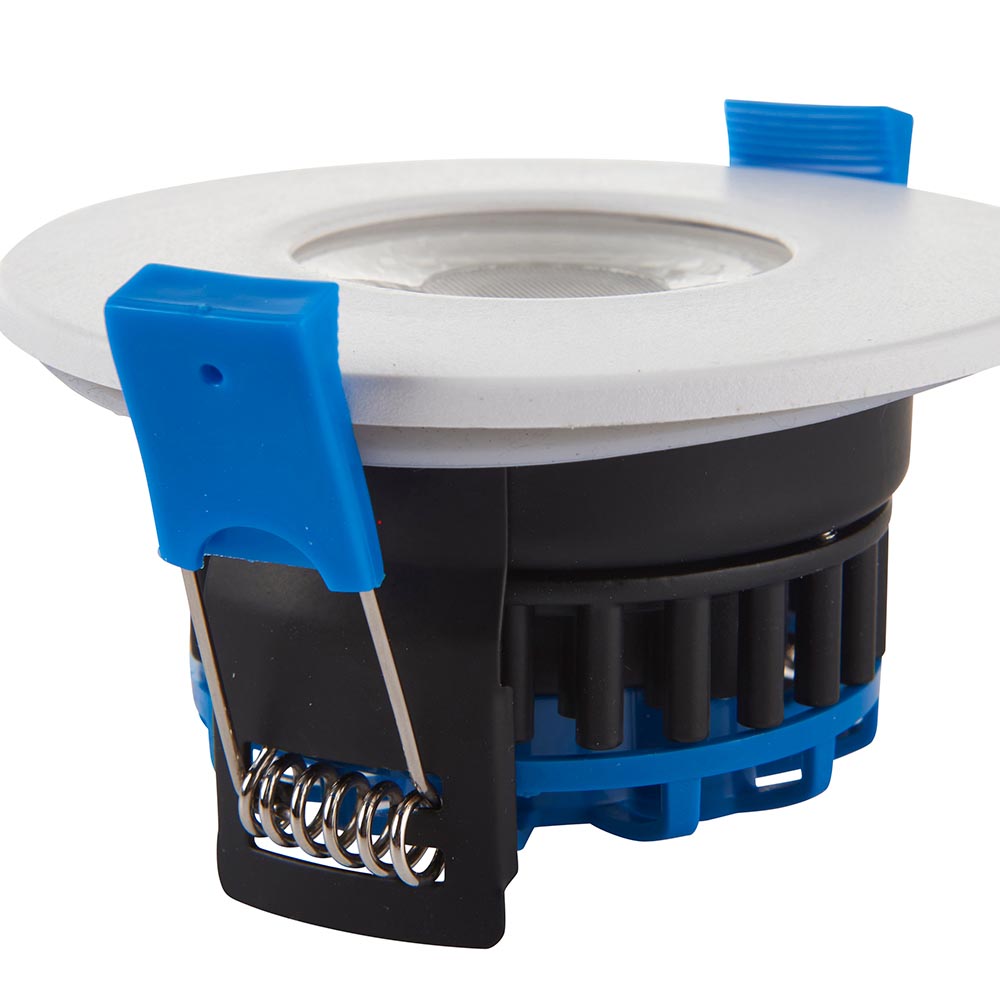

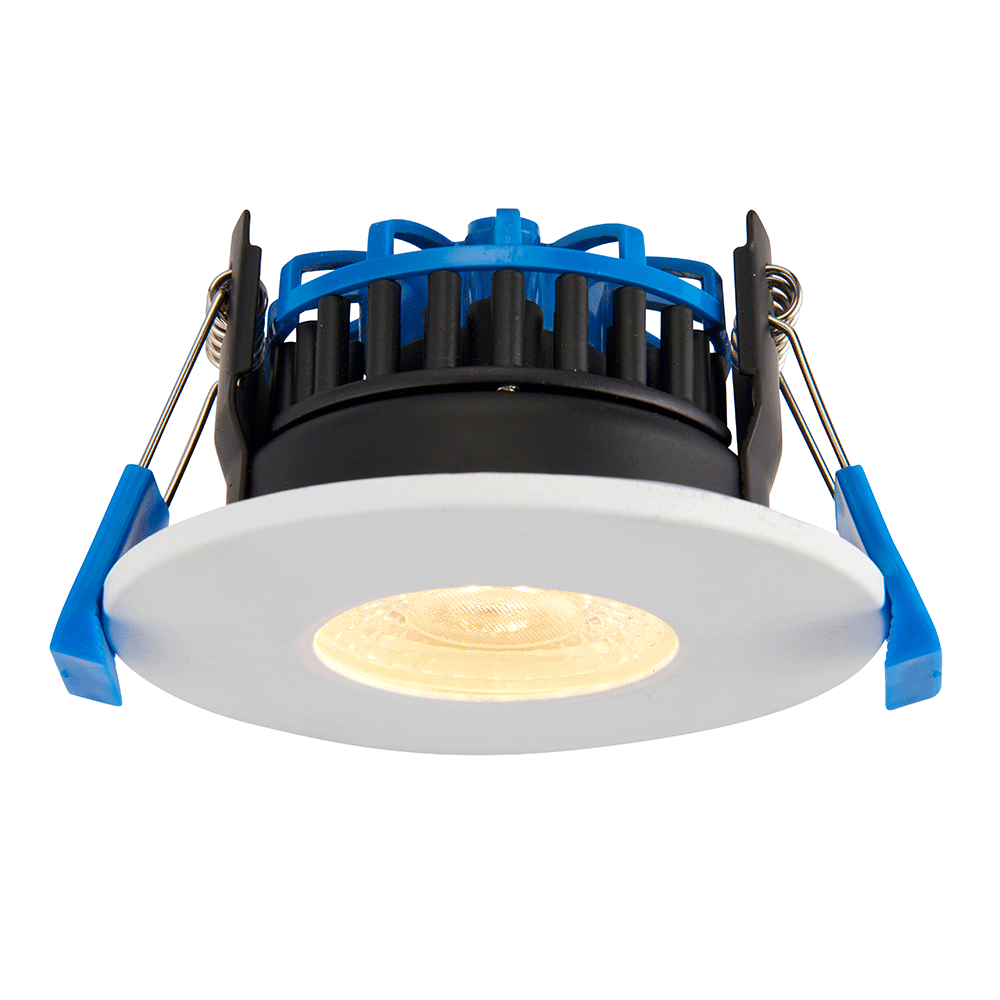

      ShieldPRO Tri Wattage 4CCT 8W Downlight

      102630
      Saxby
      102630
      UOS: Each
      Hide

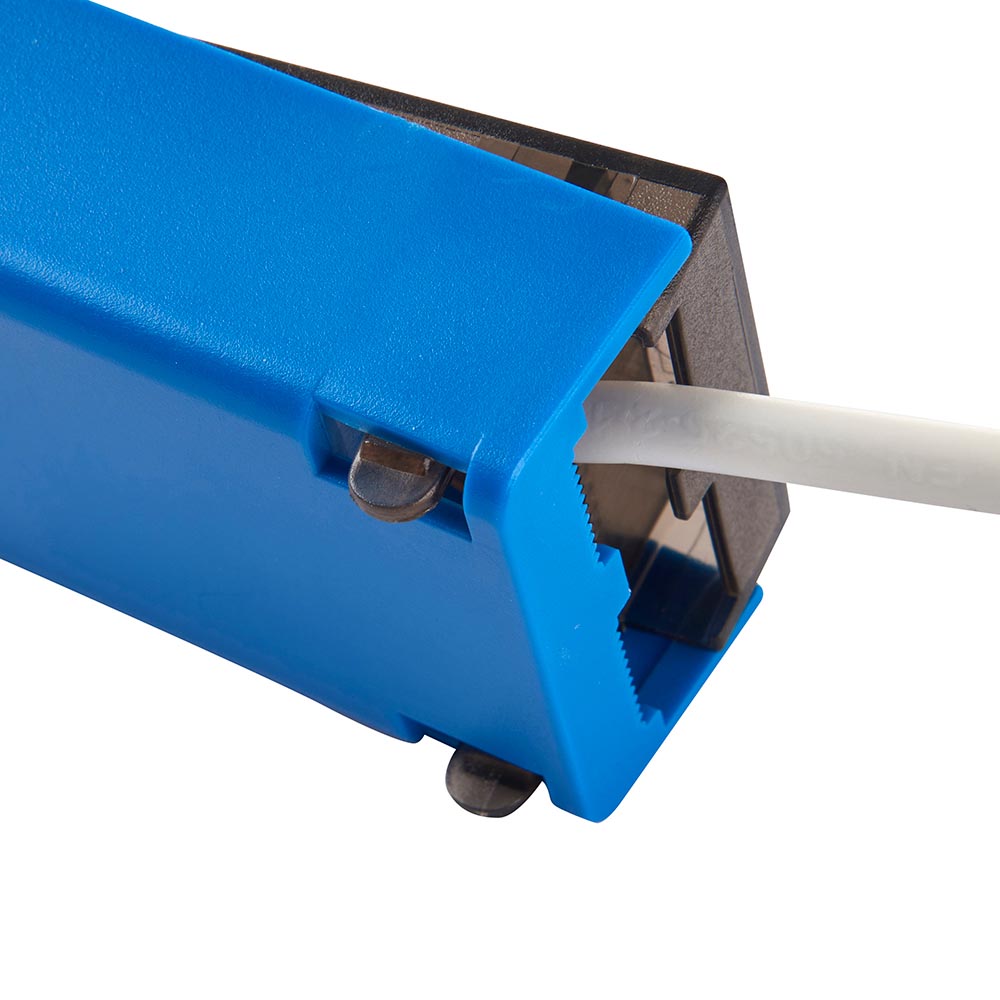

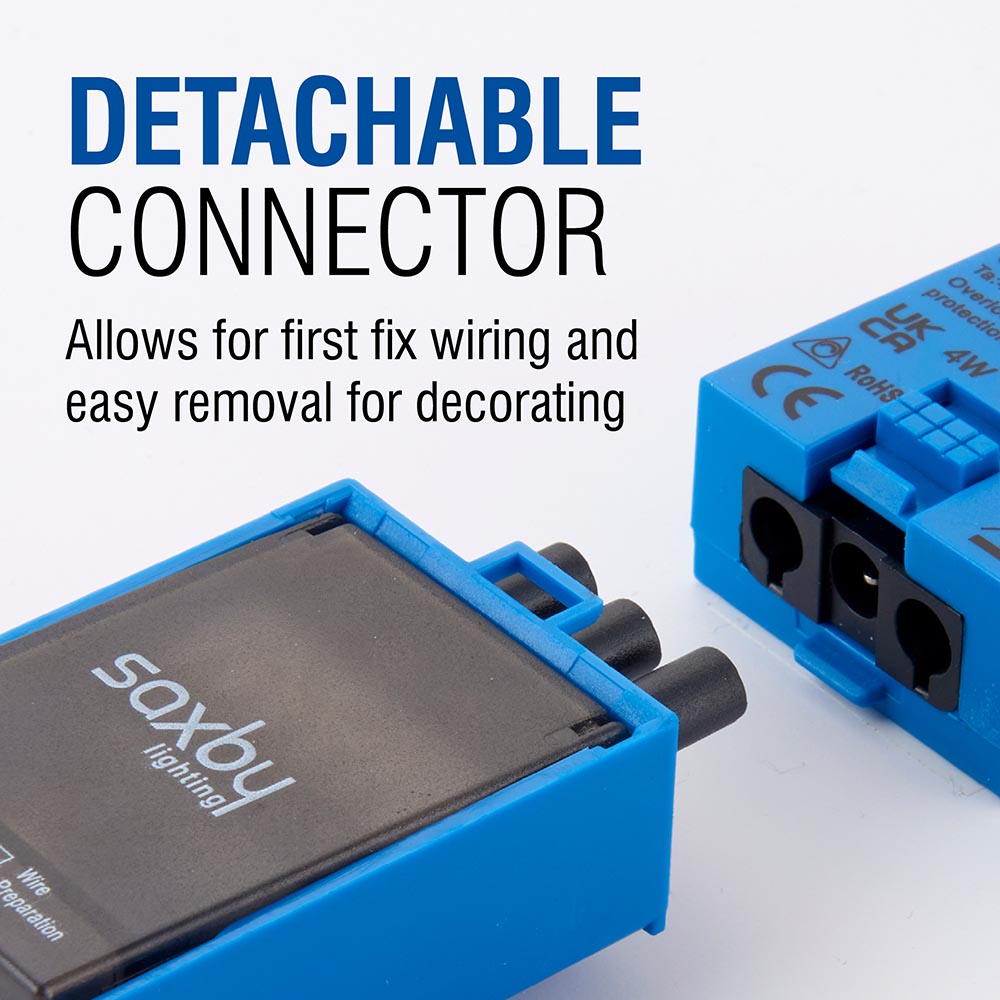

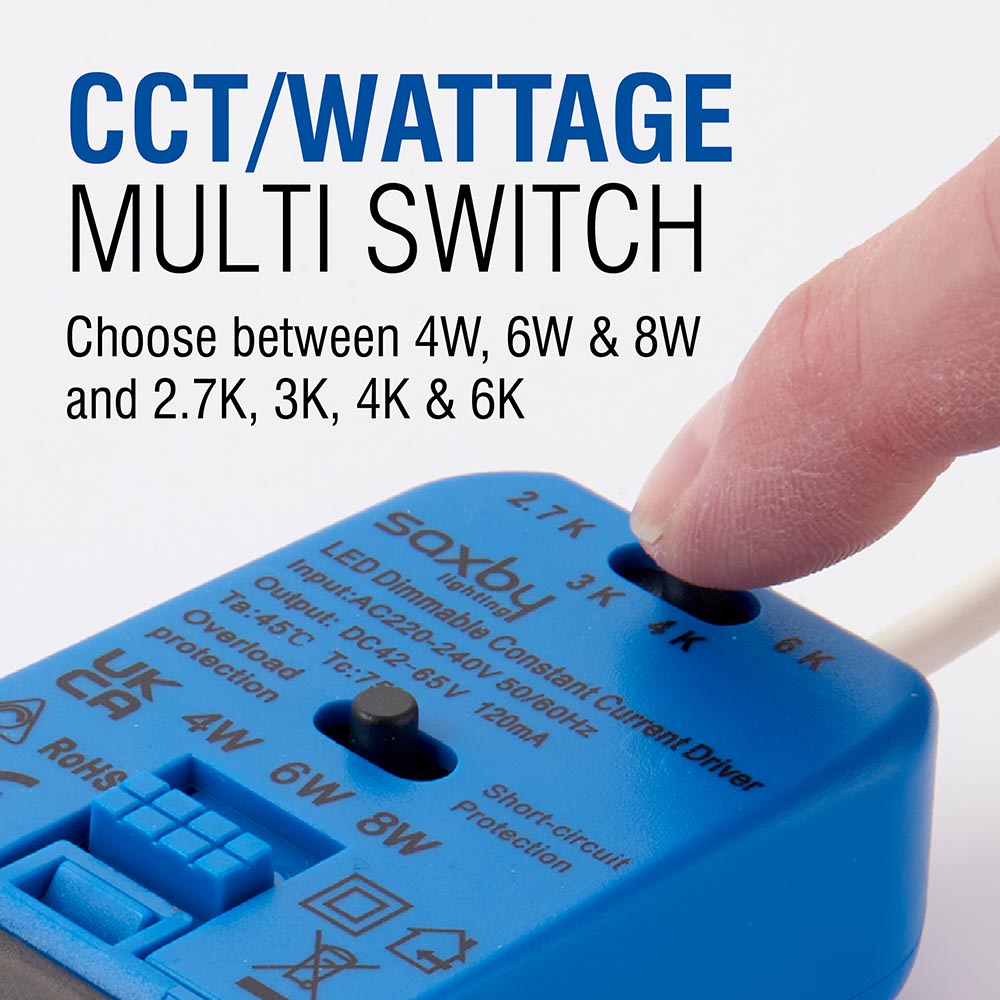

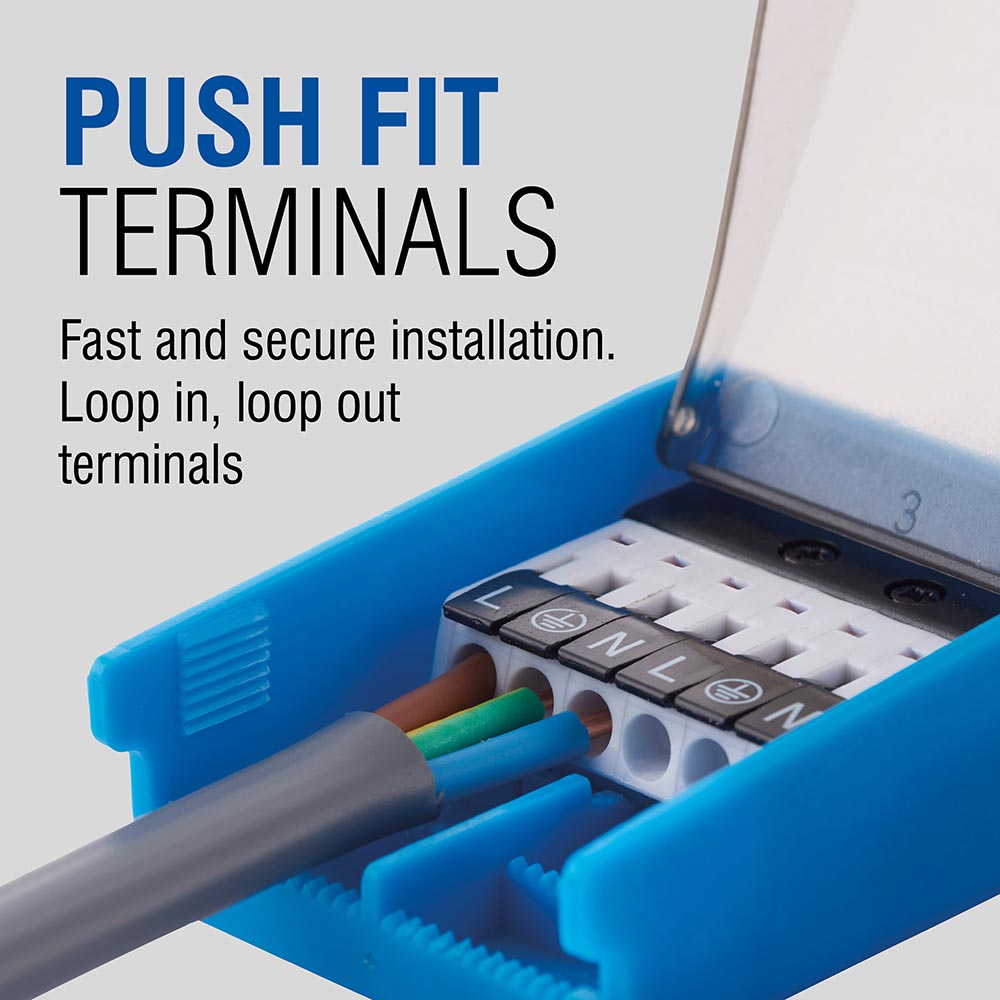

      The popular ShieldPRO fitting from Saxby has been upgraded! This fitting comes with a 3-way Plug and Play connector which allows users to loop in and out. The connector has a simple 4-way CCT switch allowing users to choose between 2700K, 3000K, 4000K or 6000K and a 3-way Watt switch allowing users to choose between 4W, 6W or 8W. Other features include: the option to be covered with insulation, fits into shallow ceiling voids, IP65-rated, and fully fire-rated for 30, 60 and 90-minute ceilings.
      • Dimmable
      • Matt white & clear acrylic
      • Constructed from steel & aluminium alloy & acrylic
      • Shipment Carton Qty: 50
      Overview
      Specification
      Documents
      Specification
      Dimensons
      Pack Quantities
      Case Quantities

      Overview

      • Complete with LED driver
      • 4/6/8W selectable Lm: 400/600/800 Lm/W: 100
      • 2700/3000/4000/6000K selectable
      • IP65. Suitable for bathroom zone 2
      • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
      • Fire rated to 30, 60 & 90 minutes
      • H: 48mm Dia: 89mm
      • Class 2
      • Cut hole Dia: 70mm

      Specification

      Colour Finish:
      Matt white paint & clear acrylic
      IP Rating:
      65
      Operating Voltage:
      220-240V
      Commodity Code:
      9405423990
      Country Of Origin:
      China

      Documents

      Specification



    • Commodity Code: 9405423990
    • Country of Origin: China


    • Technical Datasheet

      Photometric LDT File

      Dimensons

      Unpacked Height (mm):
      48
      Unpacked Width (mm):
      No Width
      Unpacked Depth (mm):
      No Depth

      Pack Quantities

      Package Pack Type:
      Retail carton
      Package EAN:
      5017588026303
      Packed Height (mm):
      8.5
      Packed Wid (mm):
      10
      Packed Depth (mm):
      10
      Packed Weight (kg):
      .3

      Case Quantities

      Outer Carton
      Outer Pack Type:
      Shipment carton
      Outer Qty:
      50
      Outer Height (mm):
      51.5
      Outer Width (mm):
      21.5
      Outer Depth (mm):
      44.5
      Outer Gross Weight (kg):
      15.85
      Associated Products
      Dimmer Module 250W Trailing edge
      EM conversion kit 8W EM
      100W Dimmer Module
      250W Dimmer Module

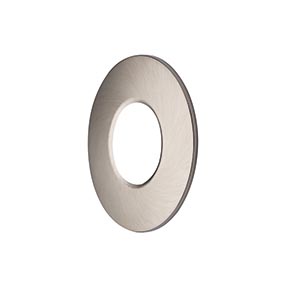

      Shield Fire Rated Bezel Antique Brass
