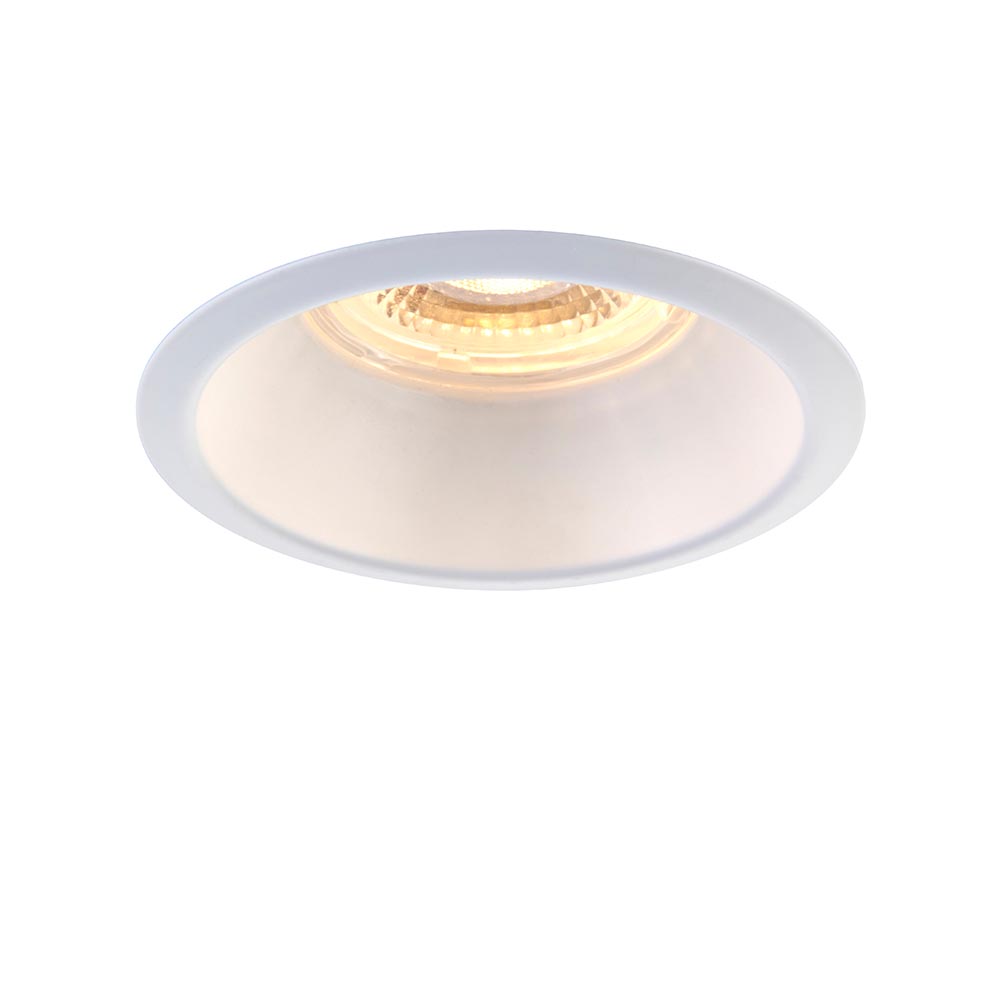

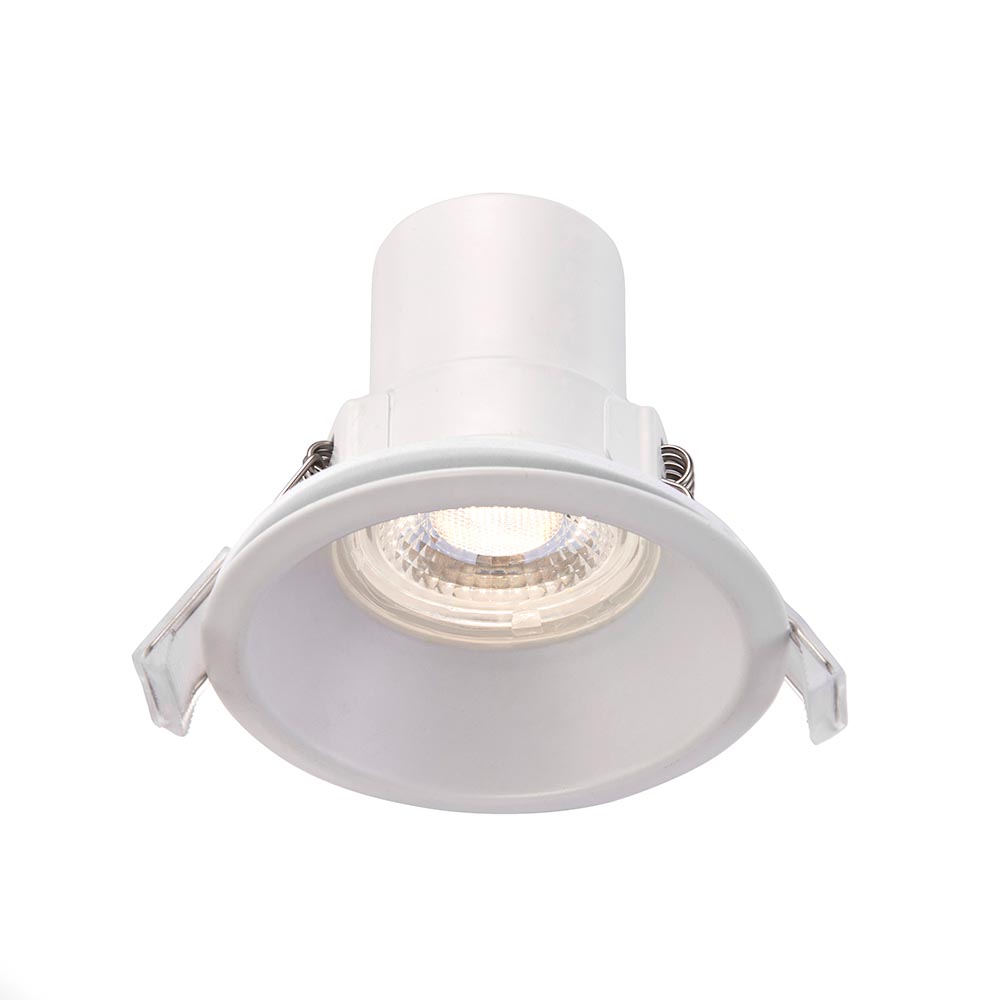

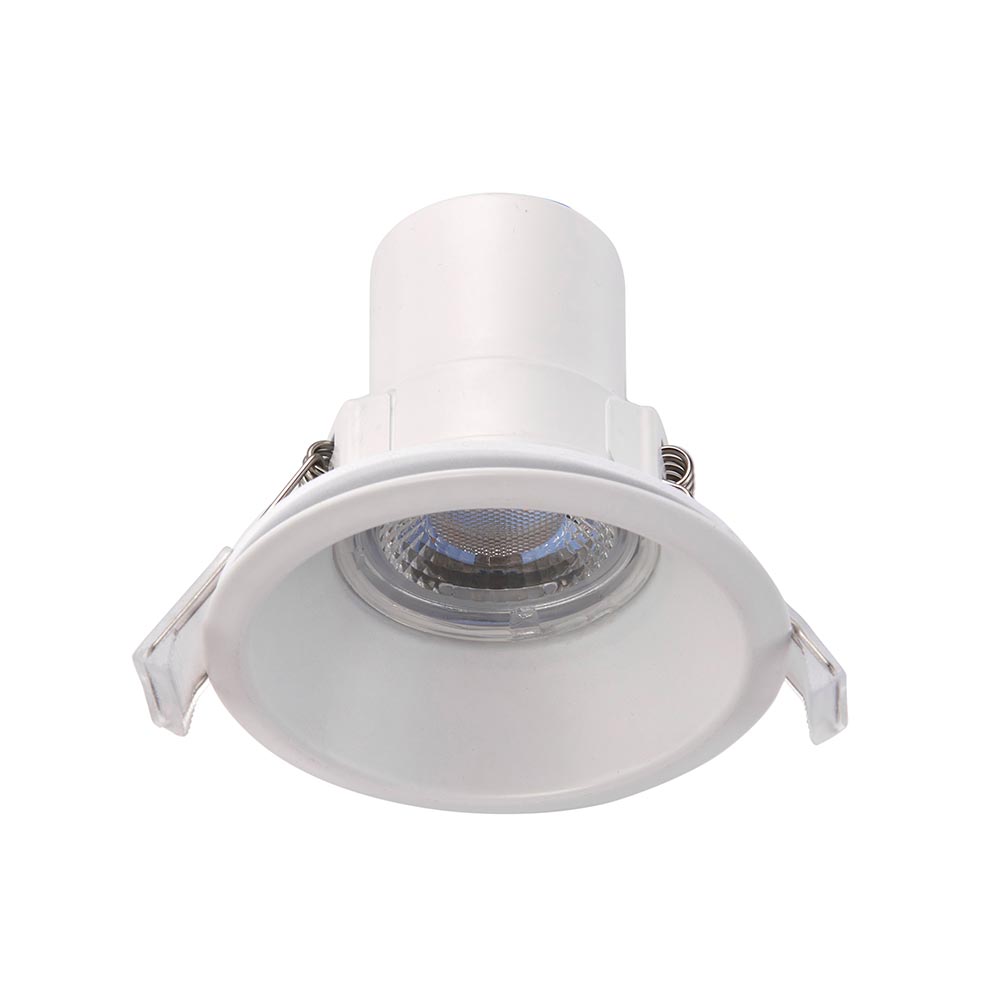

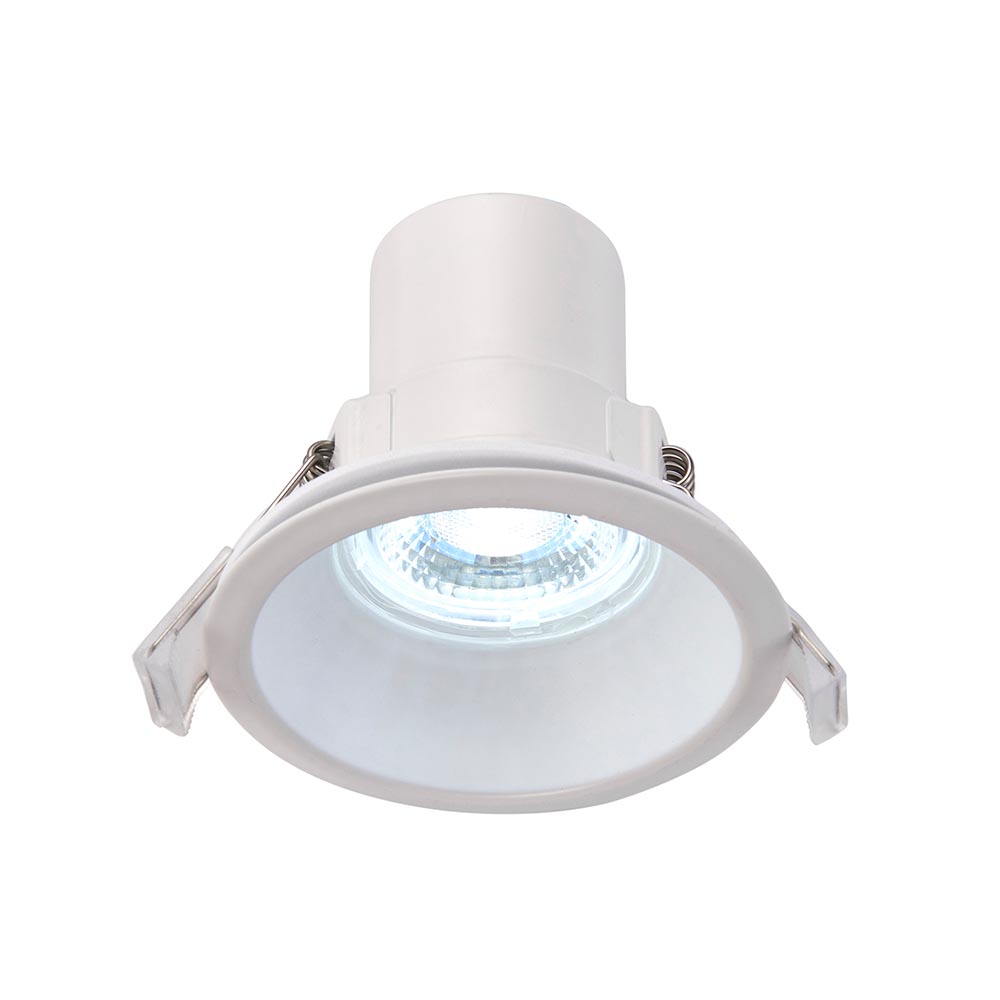

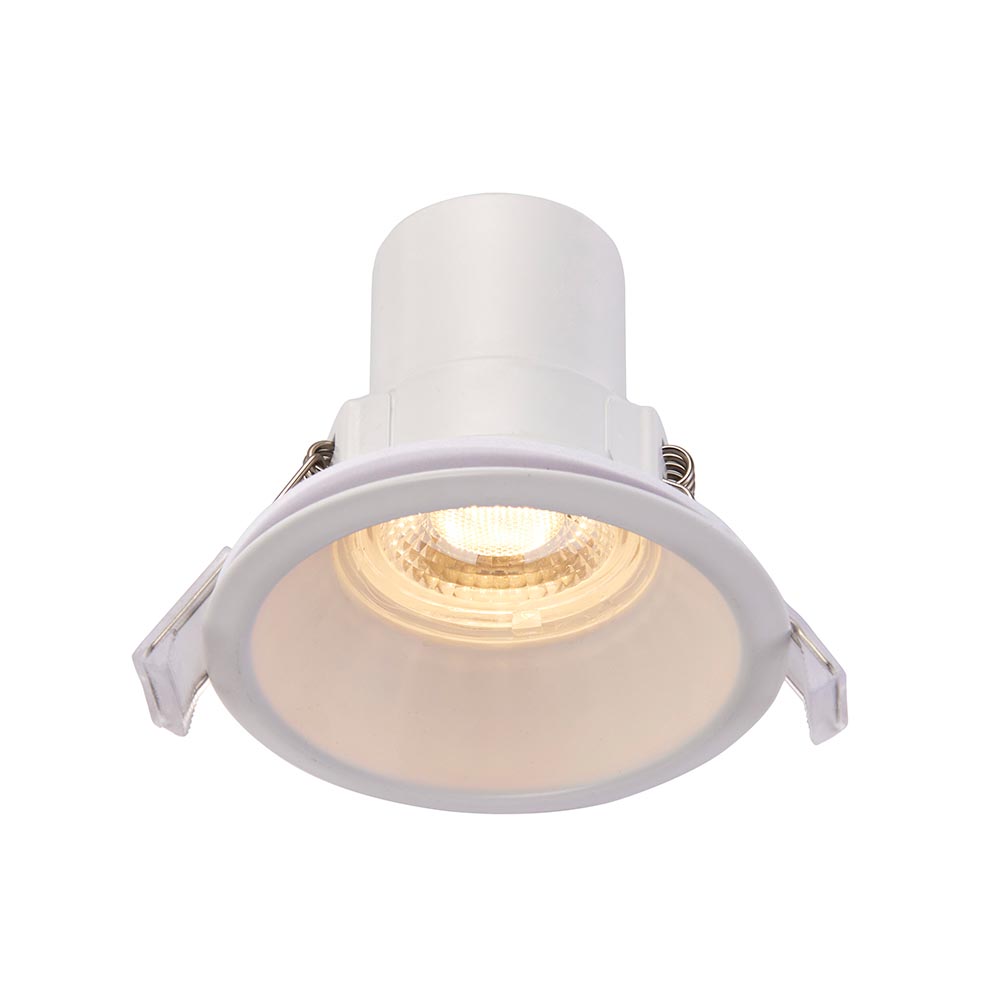

ShieldECO CCT anti-glare White IP65 5W cct

101342
Saxby
101342
UOS: Each
Hide

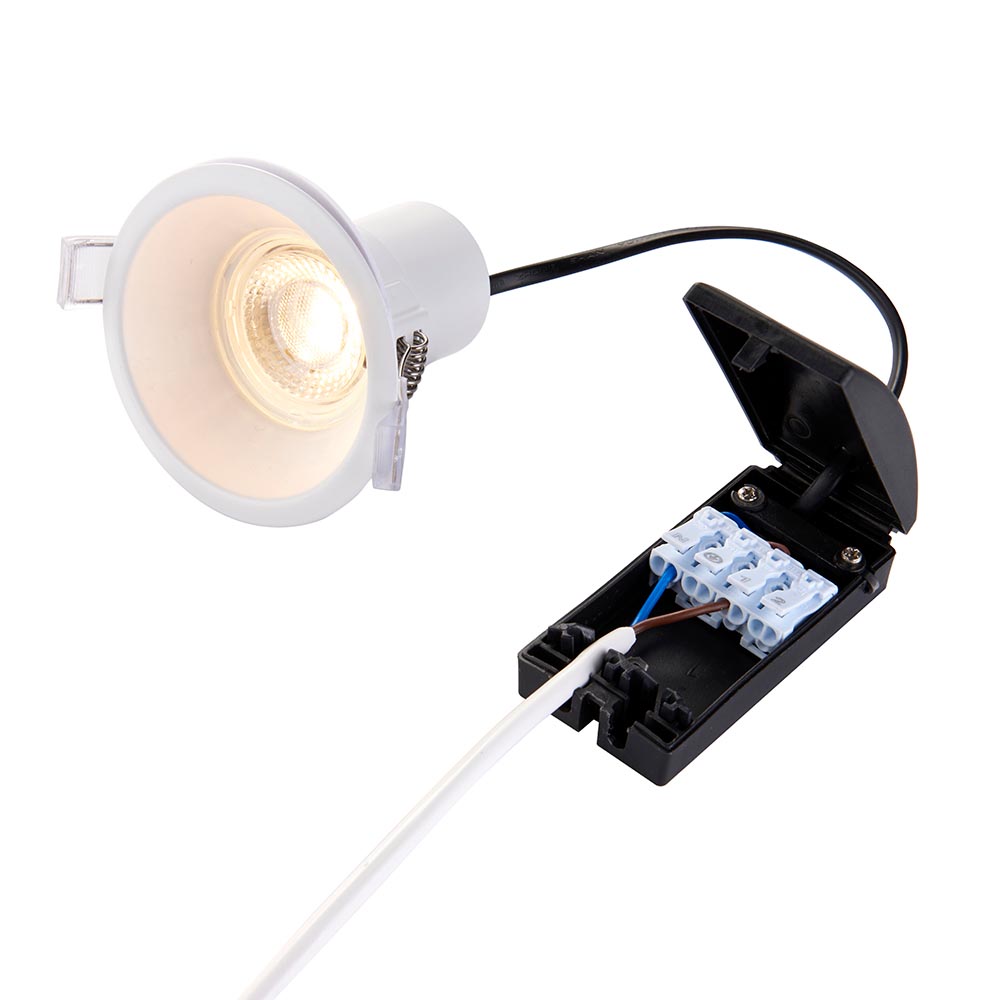

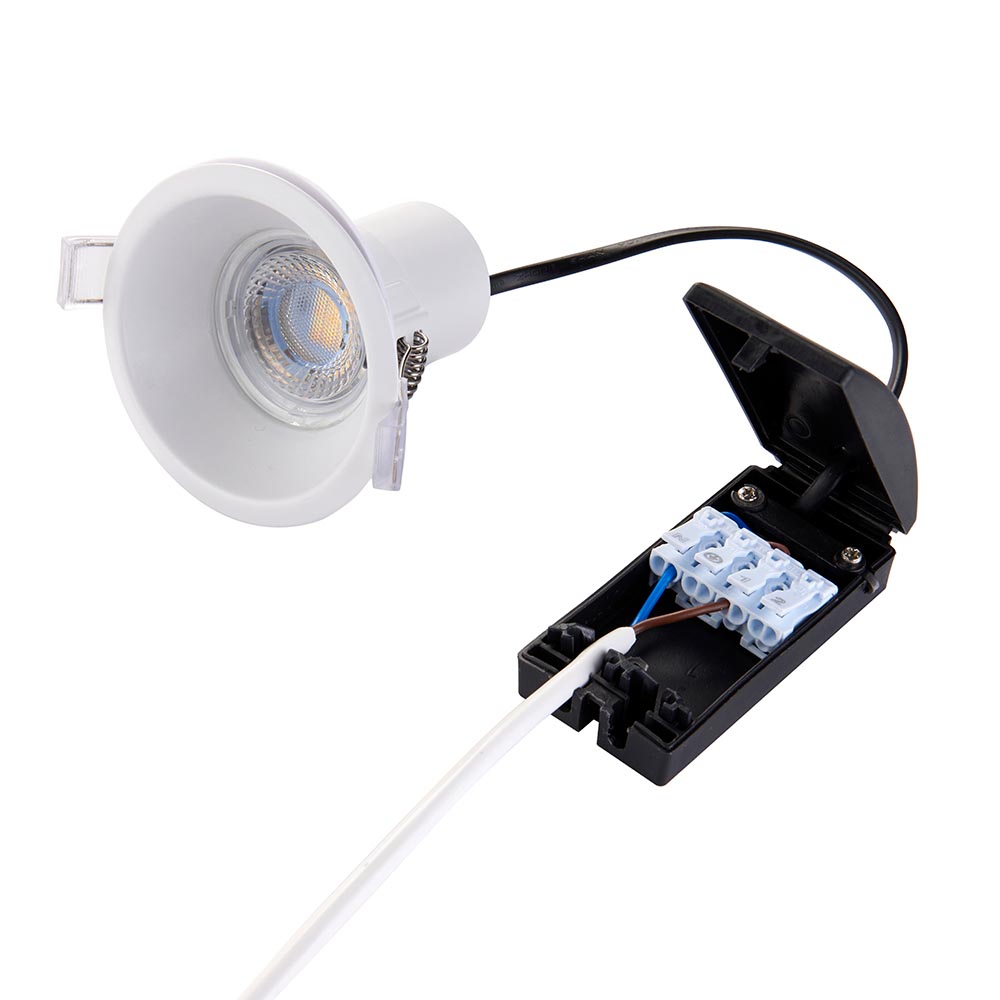

NEW AND IMPROVED! The ShieldECO range now offers an anti-glare version, without sacrificing any of the features of the popular fitting. It has all the features required of an everyday downlight; fire rated, IP65 and dimmable. Tool-less and quick to install due to the 4 way push fit, screwless terminal block. Cool, Warm & daylight white.
  • Dimmable
  • Matt white & clear acrylic
  • Constructed from steel & acrylic
  • Shipment Carton Qty: 20

Overview

  • Complete with integrated control gear
  • 5W LED module (SMD 2835) CCT (Included)

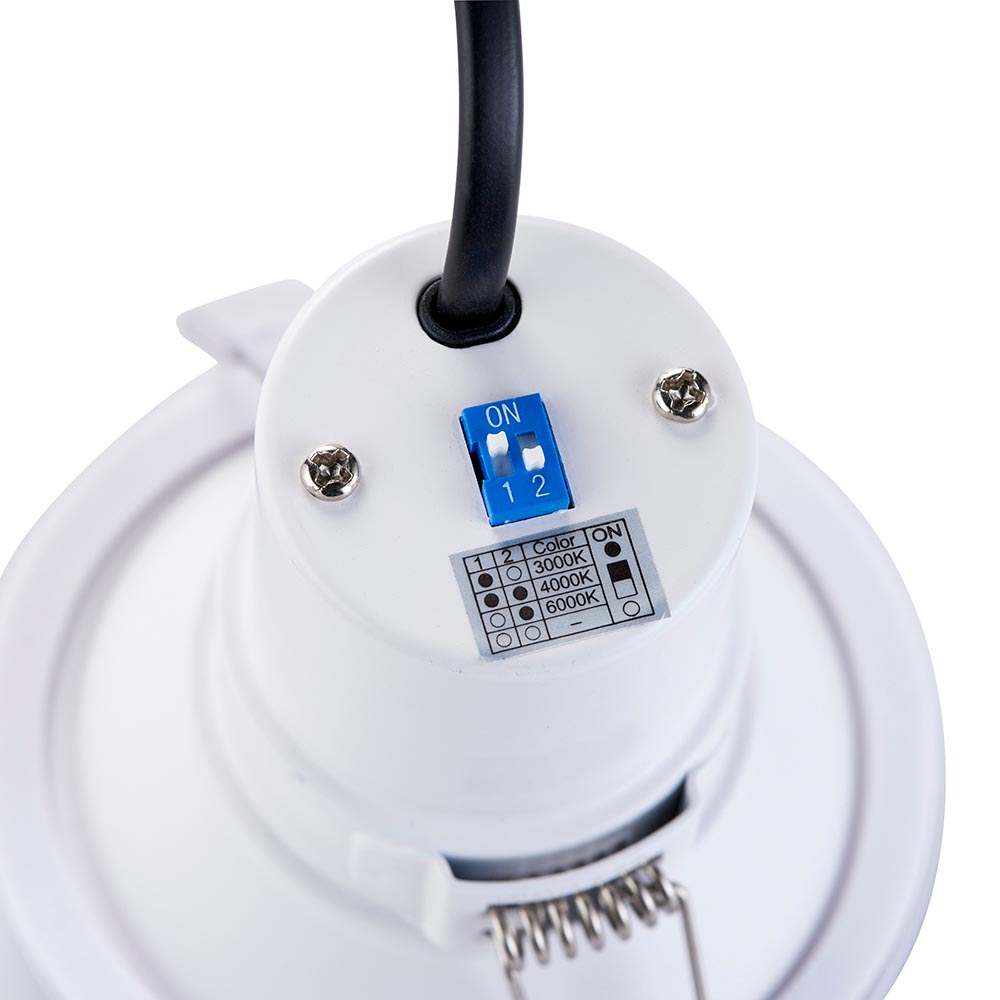

  • K: 3000/4000/6000 Lm: 520 Lm/W: 104
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 30, 60 & 90 minutes
  • Proj: 3mm H: 78mm Dia: 90mm
  • Class 2
  • 2+1YR Extended Warranty
  • Weight: 0.2 Kg

Specification

Colour Finish:
Matt white paint & clear acrylic
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensons

    Unpacked Height (mm):
    78
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588013426
    Packed Height (mm):
    11
    Packed Wid (mm):
    12
    Packed Depth (mm):
    12
    Packed Weight (kg):
    .26

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    57
    Outer Width (mm):
    25
    Outer Depth (mm):
    26
    Outer Gross Weight (kg):
    5.8

    Other Colours

    Products you may also be interested in

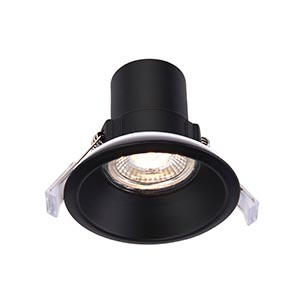

    ShieldECO CCT anti-glare Black IP65 5W cct
